◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#14624) — 26 parça

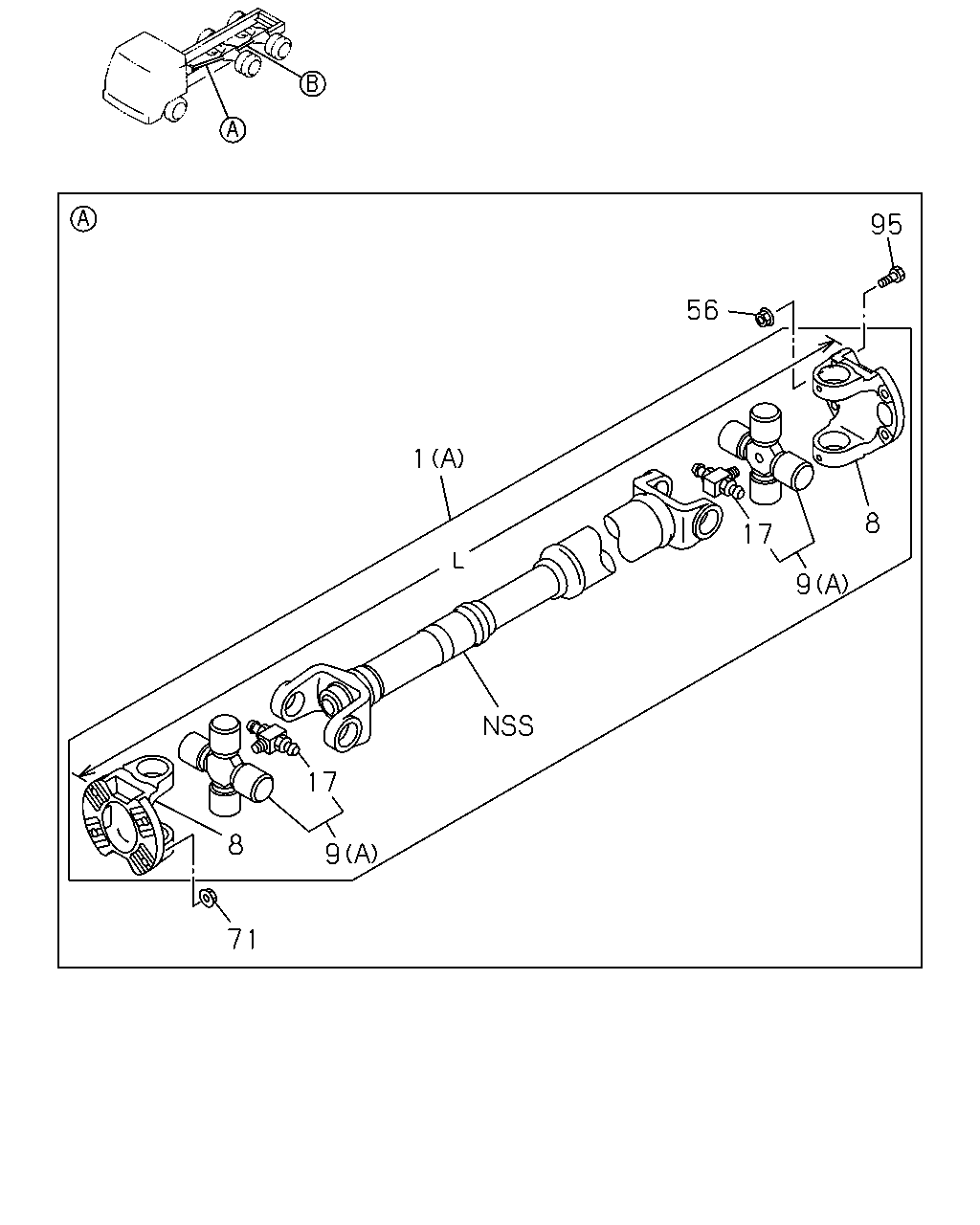

çizim 141663
95 56 1 8 17 9 17 8 9 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
CYZ(CY****) TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1450 		8-98156-776-0 01 1 1006-
1 SHAFT; PROP
MJX12P M/T SMOOTHER-G(Y4S) (A) L=1425 		8-98096-186-0 01 1 0710-
1 SHAFT; PROP
(B) L=405.3 		1-37124-936-0 01 1 0710-
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1505 		1-37124-764-1 01 1 0710-1005
1 SHAFT; PROP
CXZ(CX****) TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1505 		1-37124-764-1 01 1 1006-
8 YOKE; FLANGE,PROP SHAFT 1-37211-083-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0710-
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0710-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0710-
çizim 141665
198 96 9 1 128 198 225 96 9 106
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
CYZ(CY****) TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1450 		8-98156-776-0 01 1 1006-
1 SHAFT; PROP
MJX12P M/T SMOOTHER-G(Y4S) (A) L=1425 		8-98096-186-0 01 1 0710-
1 SHAFT; PROP
(B) L=405.3 		1-37124-936-0 01 1 0710-
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1505 		1-37124-764-1 01 1 0710-1005
1 SHAFT; PROP
CXZ(CX****) TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1505 		1-37124-764-1 01 1 1006-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0710-
96 BOLT; PROP SHAFT 1-09088-009-0 08 1 0710-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0710-
128 SEAL; SLEEVE 1-37247-025-0 01 1 0710-
198 PLATE; PROP SHAFT 1-37319-010-0 04 1 0710-
225 YOKE; SLEEVE,PROP SHAFT
L=297 		1-37241-142-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
