11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#14622) — 52 parça
Tümü
A - CXZ5MC
B - CYZ5MC
◀

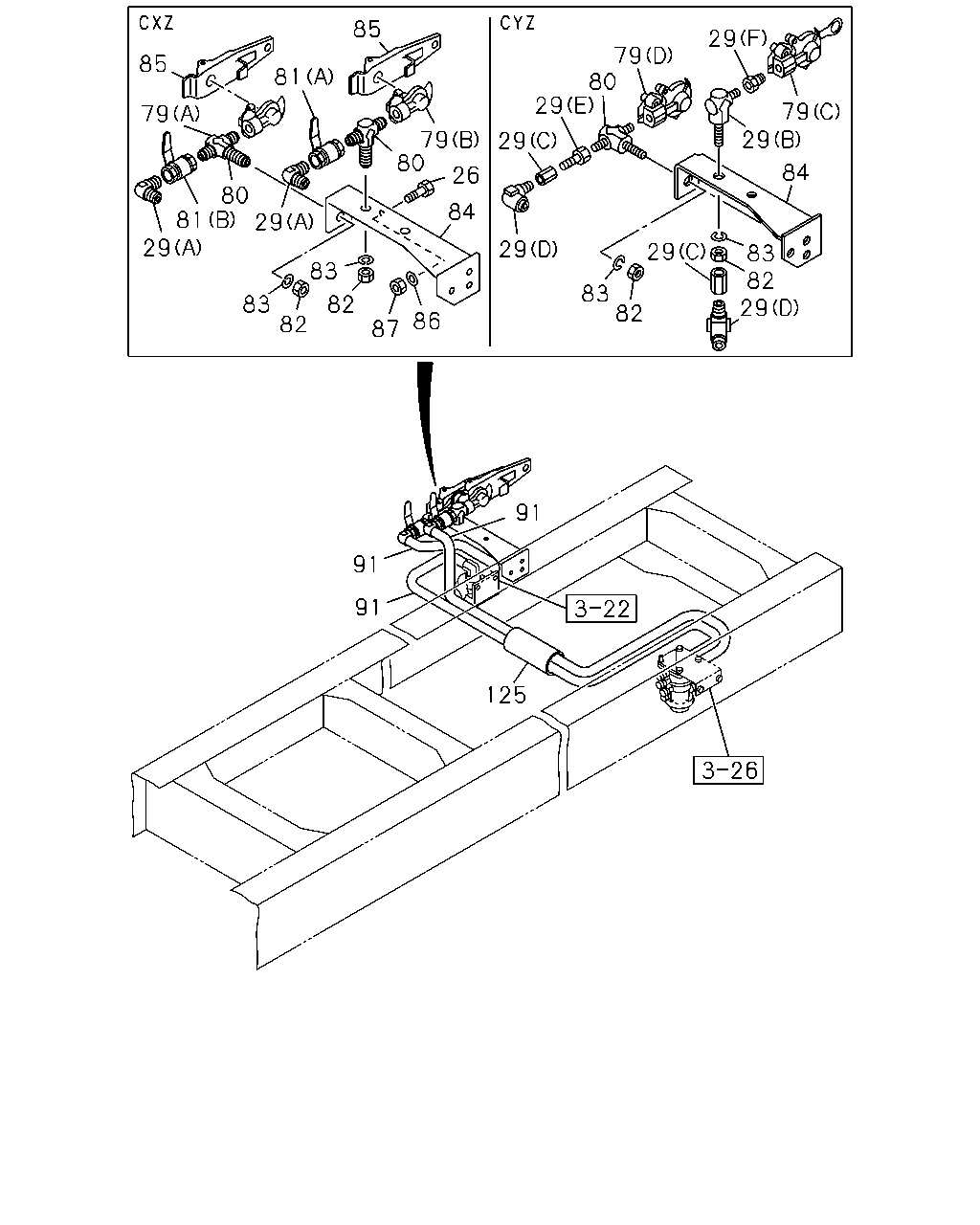

[380A] FRAME SIDE (30 parça)

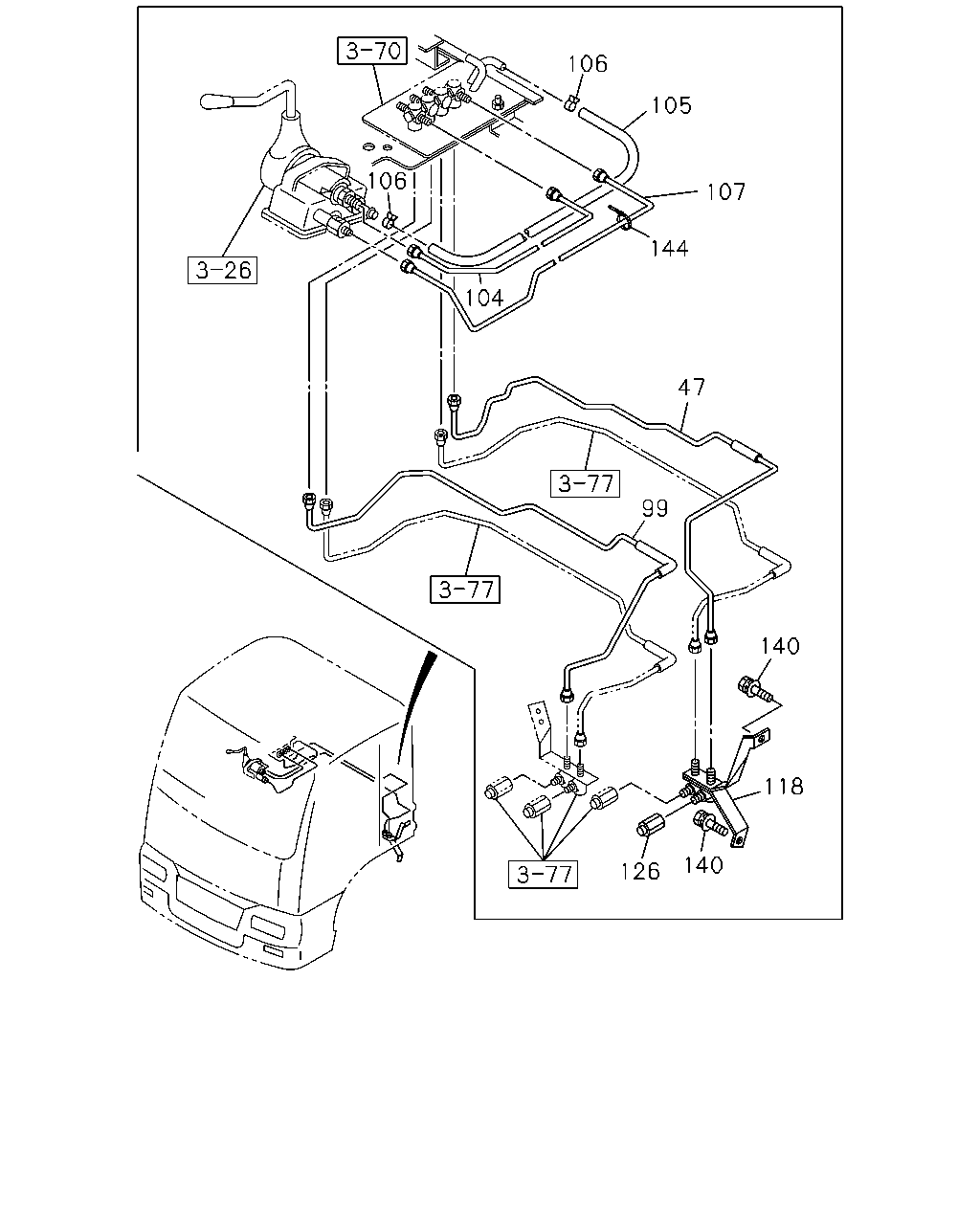

[380A] CAB SIDE (22 parça)
▶
85
29
79
80
29
85
79
81
79
29
79
80
29
84
26
80
81
29
29
84
29
29
83
82
29
83
83
82
83
82
82
86
87
91
91
91
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
BOLT; CHAIN
M10X33
9-09808-590-0
02
1
0710-
●
29
CONNECTOR; COCK
(B) M16 ELBOW
0-92135-210-0
01
1
1006-
●
29
CONNECTOR; COCK
(E)
1-09650-222-1
01
1
1006-
●
29
CONNECTOR; COCK
(F)
1-09660-078-0
01
1
1006-
●
29
CONNECTOR; COCK
(C) M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
1006-
●
29
CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1006-
●
29
CONNECTOR; COCK
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
02
1
0710-
●
79
COUPLING; AIR,TRAILER
(C) RED
1-47478-466-1
01
1
1006-
●
79
COUPLING; AIR,TRAILER
(D) YELLOW
1-47478-467-1
01
1
1006-
●
79
COUPLING; AIR,TRAILER
(A) BLUE
1-47465-151-0
01
1
0710-
●
79
COUPLING; AIR,TRAILER
(B) RED
1-47465-152-0
01
1
0710-
●
80
NIPPLE; AIR COUPLING
1-09656-377-1
01
1
1006-
●
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
0710-
●
81
COCK; AIR COUPLING
(A) RED
1-09680-091-0
01
1
0710-
●
81
COCK; AIR COUPLING
(B) BLUE
1-09680-092-0
01
1
0710-
●
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
0710-1005
●
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
1006-
●
●
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
0710-1005
●
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
1006-
●
●
84
BRACKET; COUPLER
1-47465-883-1
01
1
0710-1005
●
84
BRACKET; COUPLER
1-47465-883-1
01
1
1006-
●
●
85
CHAIN; AIR HOSE
1-47469-010-0
02
1
0710-
●
86
WASHER; PL
ID=10.5 OD=22
0-91614-610-0
02
1
0710-
●
87
NUT
M10 FLANGE
0-91180-210-0
02
1
0710-
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-1005
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1006-
●
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-1005
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1006-
●
●
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-1005
●
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1006-
●
●
106
105
106
107
144
104
47
99
140
118
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
0710-1005
●
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
1006-
●
●
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
1006-1006
●
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
0710-1006
●
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
1007-
●
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0710-1005
●
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
1006-
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0710-1005
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
1006-
●
●
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0710-1005
●
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
1006-
●
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0710-1005
●
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
1006-
●
●
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0710-1005
●
118
JOINT; AIR PIPE
1-47470-608-1
01
1
1006-
●
●
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0710-1005
●
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1006-
●
●
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
●
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-1005
●
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1006-
●
●
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0710-1005
●
144
CLIP; BAND
L=140
5-09707-031-1
01
1
1006-
●
●
