◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#14621) — 635 parça

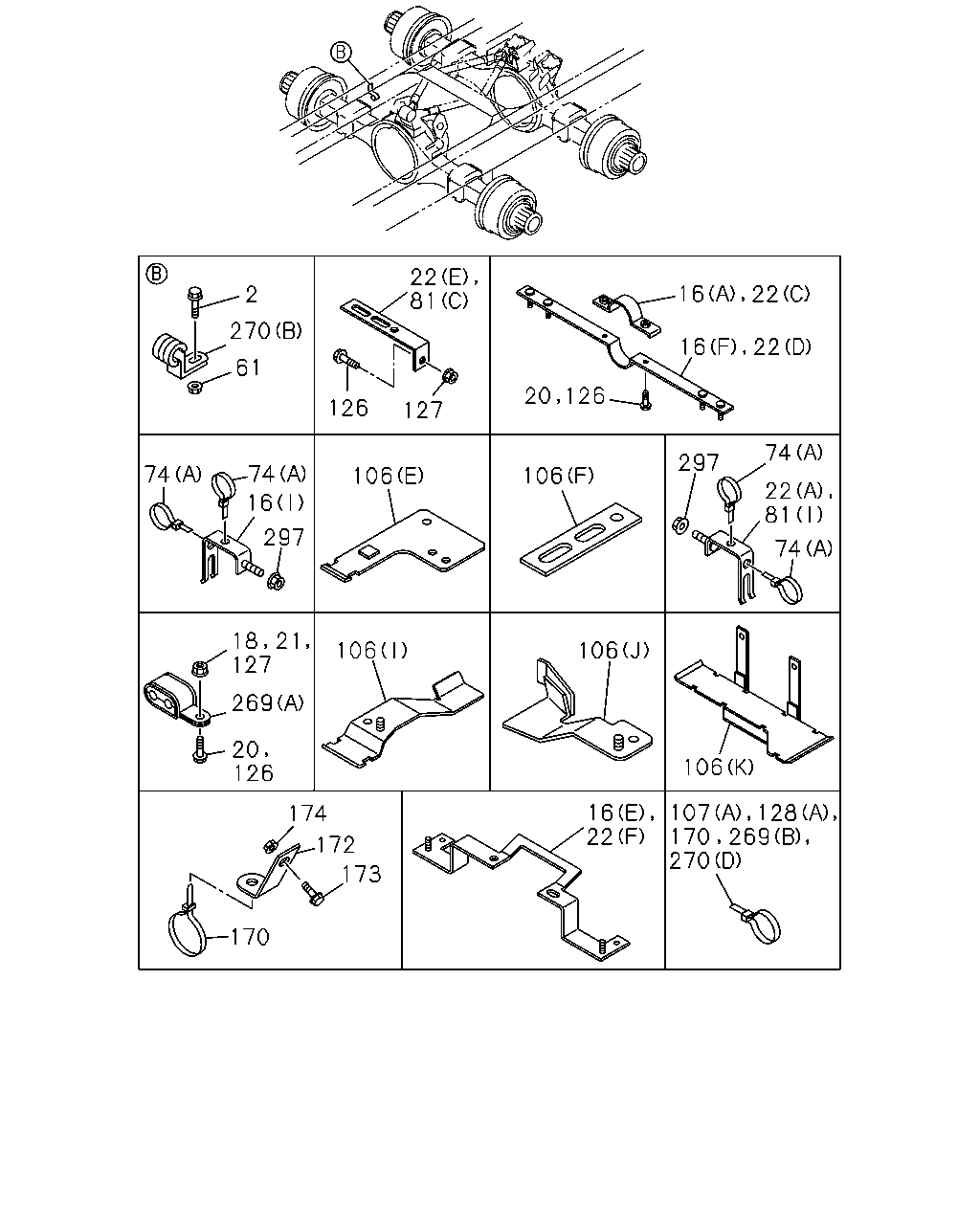

çizim 141660
22 81 16 22 2 270 61 126 127 74 297 74 74 106 106 22 81 16 297 74 127 106 106 269 20 126 106 16 22 107 128 174 172 173 170 16 22 18 21 170 269 270 20 126
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
16 BRACKET; PIPE CLIP
(C) 		8-98095-666-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(C) 		8-98095-666-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98095-667-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(D) 		8-98095-667-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47471-272-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(E) 		1-47471-272-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 1006- ● ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 1006- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 1006- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1006- ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-1005 ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1006- ● ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 09 1 0710-1005 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 09 1 1006- ● ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (G) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 1006- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0710-1005 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 1006- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 0710-1005 ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 1006- ● ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1006- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710-1005 ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 1006- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1006- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1006-1504 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0710-1001 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1002-1504 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1505- ● ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-1005 ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1006- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 1006- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1006- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-1005 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1006- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-1005 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 1006- ● ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1006- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 1006- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1006- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1006-1504 ● ●
106 BRACKET; TUBE CLIP
(L) 		8-98302-600-0 01 1 1505- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 1006- ● ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 1006-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1006- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-1005 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1006- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710-1005 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1006- ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0710-1005 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1006- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 1006- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710- ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0710-1005 ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 1006- ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0710-1005 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1006-1504 ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1505- ● ●
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-0801 ●
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 0802-1005 ●
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1006- ● ●
172 BRACKET; TUBE CLIP 1-47477-571-3 01 1 0710-1005 ●
172 BRACKET; TUBE CLIP 1-47477-571-3 01 1 1006- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 08 1 0710-0908 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 1505- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 1006- ● ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09700-976-0 01 1 0710-0907 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0908-1005 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911-1005 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 1006- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1108- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006- ● ●

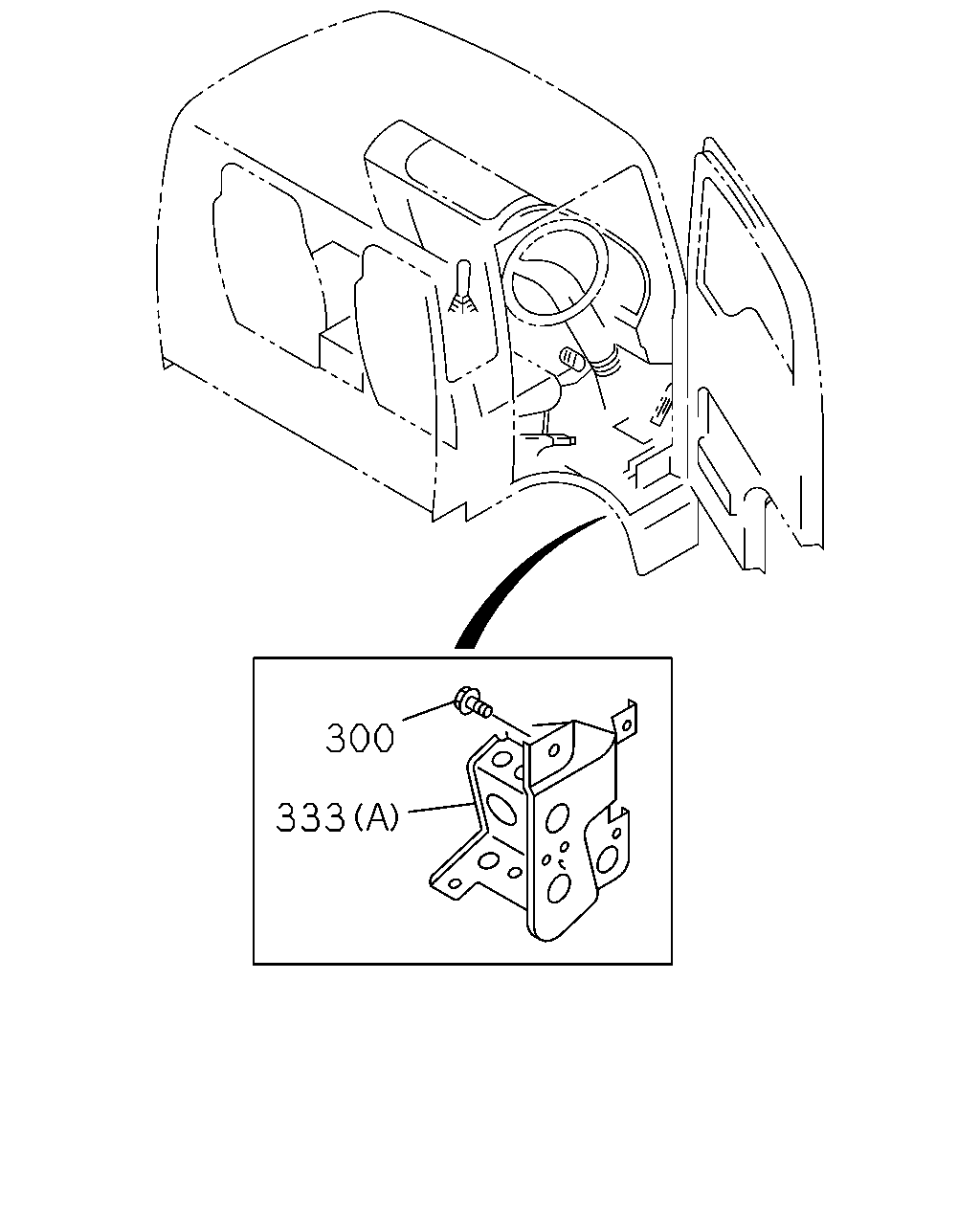

çizim 141673
300 333
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904 ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-1005 ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1006- ● ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1005 ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1006-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-1005 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1006- ● ●

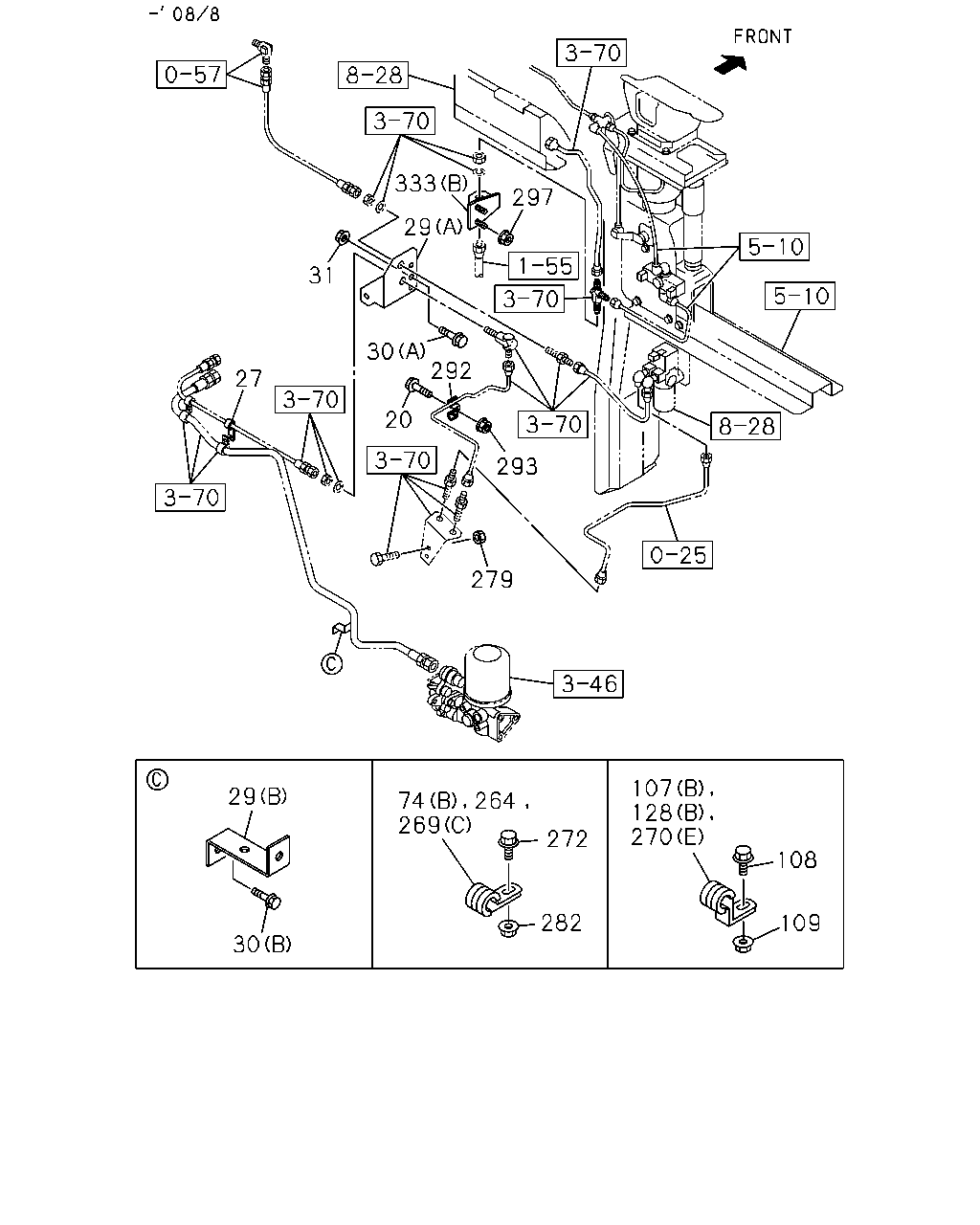

çizim 141676
333 297 29 31 30 292 27 20 293 279 107 128 270 29 269 272 108 282 109 30 74 264
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710-1005 ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1006- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1006-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804-1005 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804-1005 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 1006- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1006- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1006-1504 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0710-1001 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1002-1504 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1505- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-1005 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-1005 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1006- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0710-1005 ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 1006- ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0710-1005 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1006-1504 ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1505- ● ●
264 CLIP
ID=25 L=50 		1-09701-019-0 01 1 1006- ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710-1005 ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 08 1 0710-0908 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 1505- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 1006- ● ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09700-976-0 01 1 0710-0907 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0908-1005 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911-1005 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 1006- ● ●
272 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ●
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0710-1005 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1006-1504 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 1505- ● ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
292 CLIP; AIR PIPE
EURO5 SPECIFICATION<NT5> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1108- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0710-0808 ●
293 NUT; CLIP
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1108- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006- ● ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1005 ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1006-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-1005 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1006- ● ●

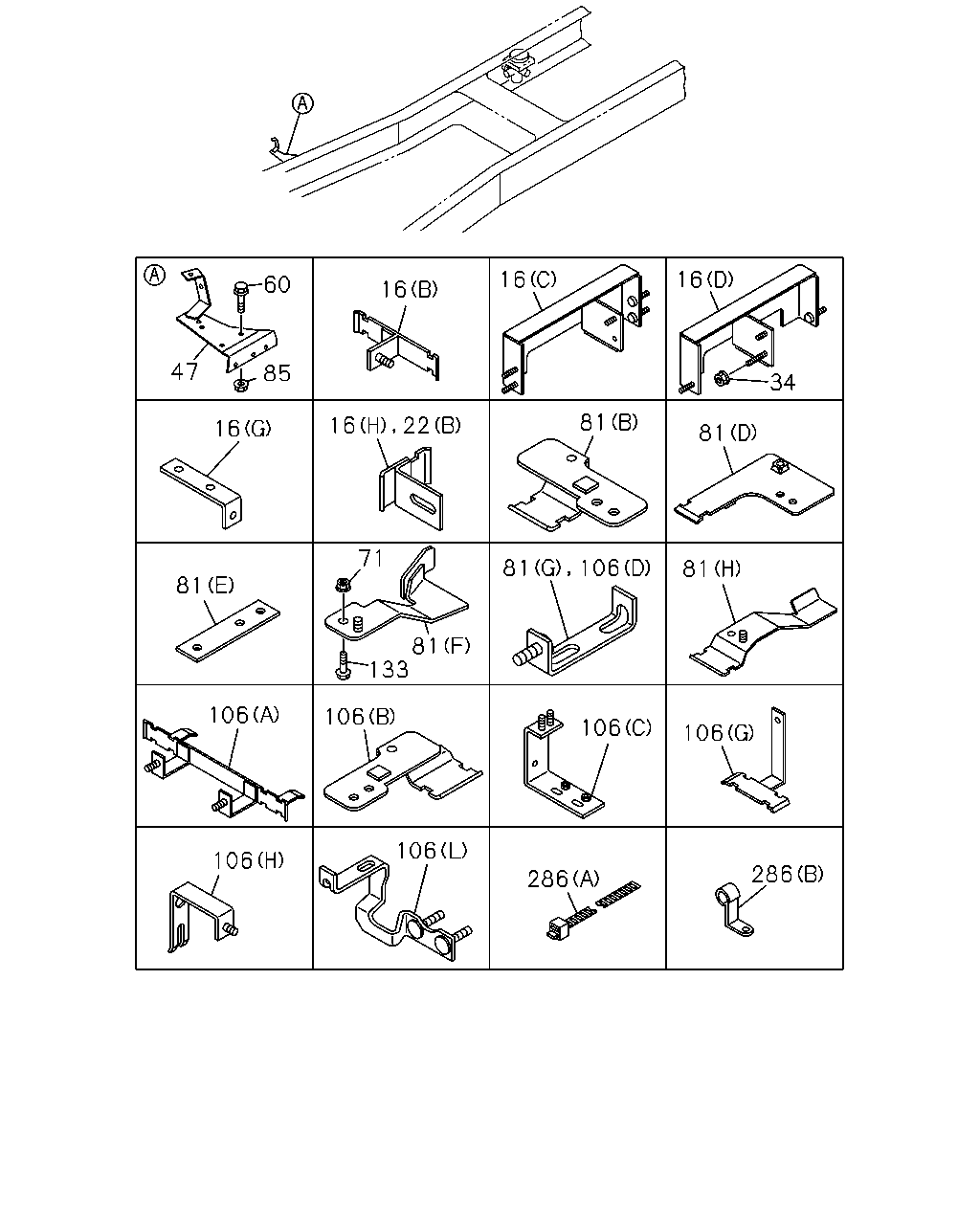

çizim 141677
60 47 85 16 16 16 22 81 16 16 81 34 81 71 81 106 81 106 106 106 106 133 106 286 286 106 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(C) 		8-98095-666-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(C) 		8-98095-666-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98095-667-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(D) 		8-98095-667-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47471-272-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(E) 		1-47471-272-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 1006- ● ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 02 1 1006- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 1006- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 1006- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0710-1005 ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1006- ● ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (G) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 1006- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0710-1005 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 1006- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 0710-1005 ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 1006- ● ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1006- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710-1005 ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 1006- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1006- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 0710-1005 ●
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 1006- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1006- ● ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-1005 ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1006- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 1006- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1006- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-1005 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1006- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-1005 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 1006- ● ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1006- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 1006- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1006- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 1006- ● ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1006-1504 ● ●
106 BRACKET; TUBE CLIP
(L) 		8-98302-600-0 01 1 1505- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 1006- ● ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 1006-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1006- ● ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710-1005 ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1006- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-1005 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 1006-1107 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1006- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1006- ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-1005 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1006- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0710-1005 ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1006- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1006-1107 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 1108- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (A) L=250 		1-09707-126-0 02 1 0710-1005 ●
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (A) L=250 		1-09707-126-0 02 1 1006- ●
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 1006- ●
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0710-1005 ●
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1006- ● ●

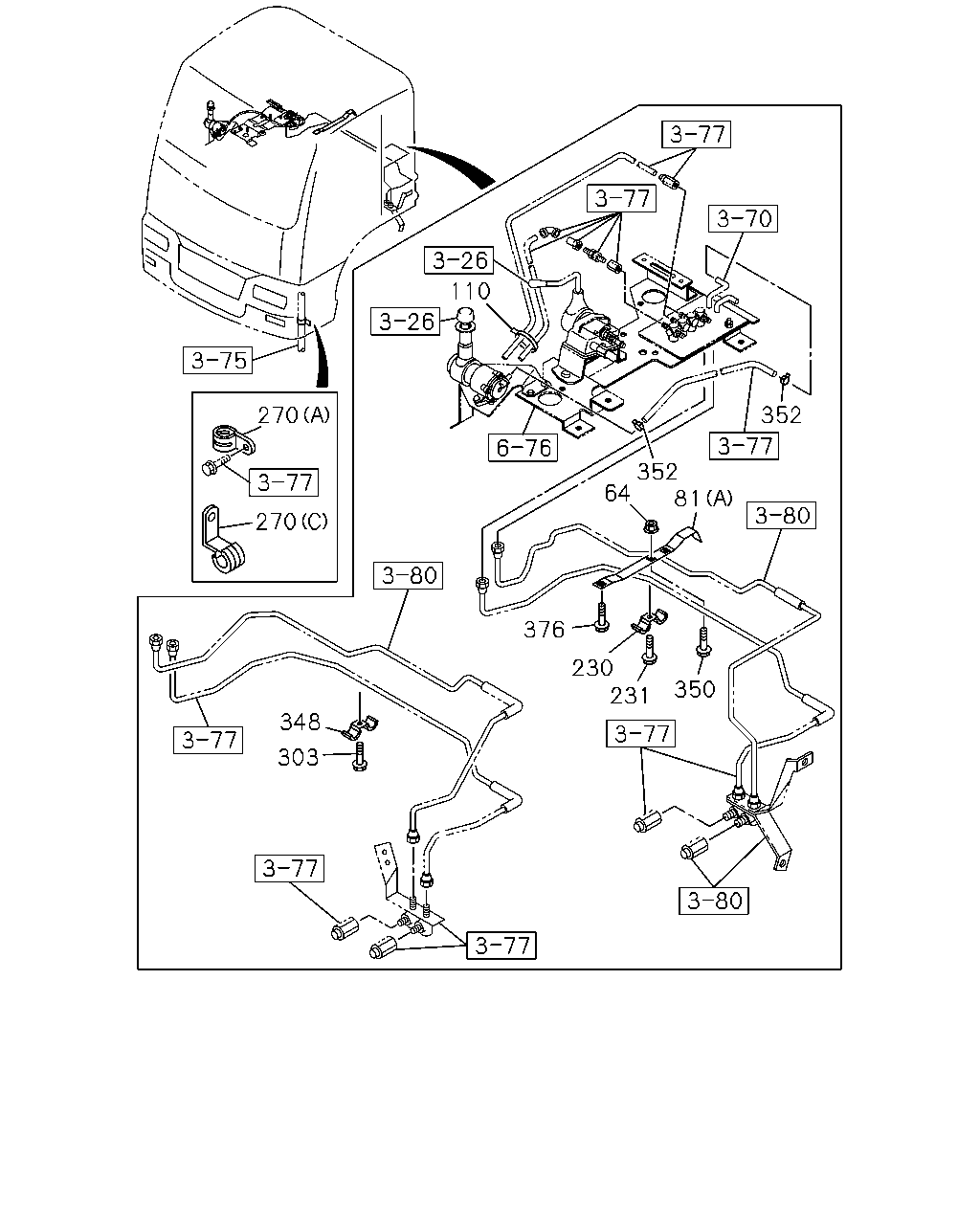

çizim 141680
110 352 270 352 64 81 270 376 230 231 350 348 303
BalonParca AdiParca NoAdetTipApplied Date A B
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006- ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710-1005 ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1006- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 1006- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1006- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-1005 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1006- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-1005 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 1006- ● ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1006- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 1006- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1006- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710-1005 ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 1006- ● ●
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710-1005 ●
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 1006- ● ●
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710-1005 ●
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 1006- ● ●
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 1006- ● ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09700-976-0 01 1 0710-0907 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0908-1005 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911-1005 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 1006- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710-1005 ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 1006- ● ●
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1006- ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710-1005 ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1006- ● ●
376 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●

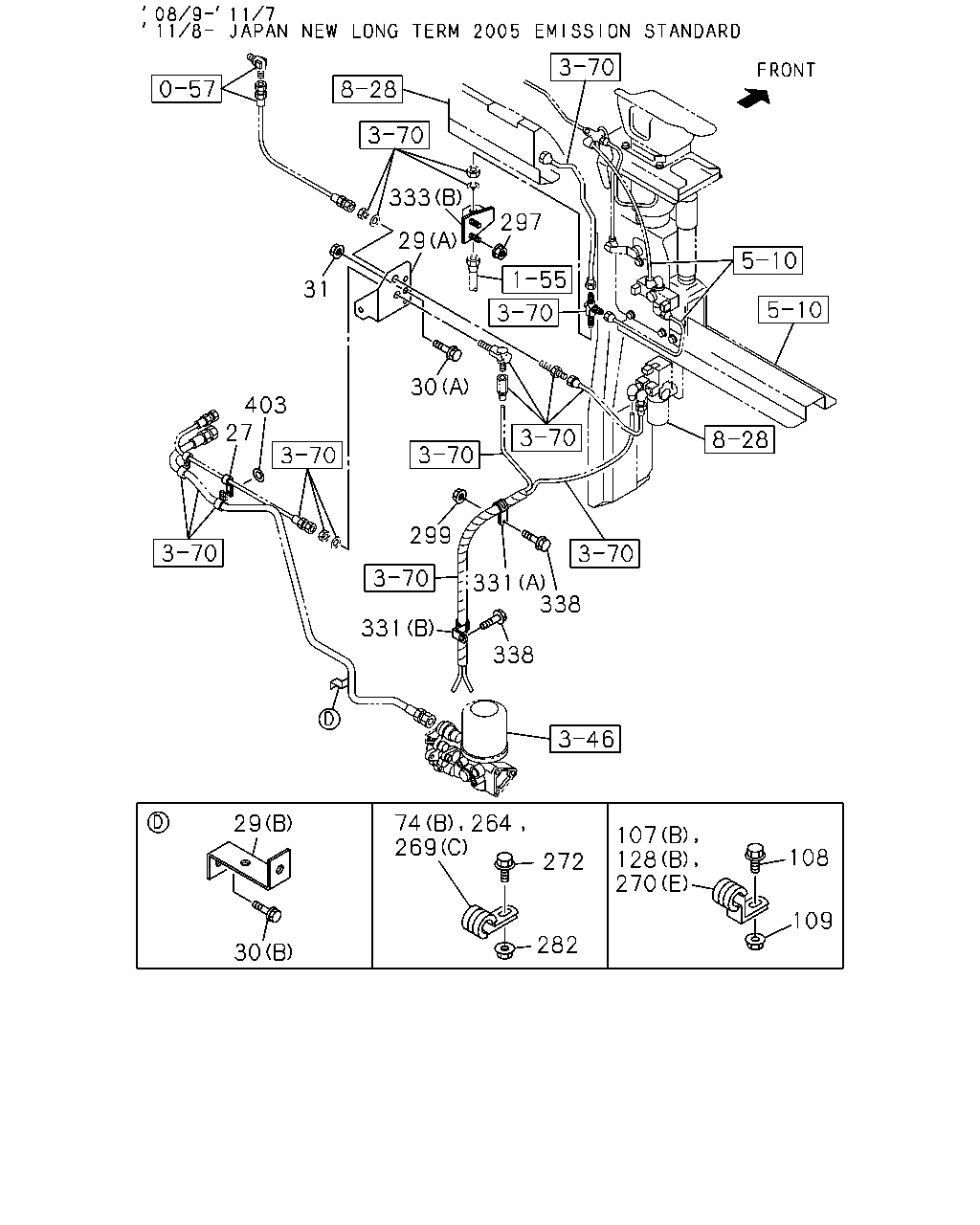

çizim 141817
333 297 29 31 403 27 30 299 331 331 338 338 29 30 269 74 264 272 282 270 128 107 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710-1005 ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1006- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1006-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804-1005 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804-1005 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 1006- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1006- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1006-1504 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
74 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0710-1001 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1002-1504 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1505- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-1005 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-1005 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1006- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0710-1005 ●
128 CLIP; NYLON TUBE
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 1006- ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0710-1005 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1006-1504 ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1505- ● ●
264 CLIP
ID=25 L=50 		1-09701-019-0 01 1 1006- ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710-1005 ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 08 1 0710-0908 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0909-1005 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1006-1504 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 1505- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 03 1 1006- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0710-1005 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=20 H=23 L=27 		1-09700-861-0 02 1 1006- ● ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09700-976-0 01 1 0710-0907 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0908-1005 ●
270 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911-1005 ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1006- ● ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-1005 ●
270 CLIP; NYLON TUBE
(E) ID=16 H=25 L=25 		1-09701-162-0 03 1 1006- ● ●
272 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ●
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1108- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006- ● ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-1005 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006-1107 ● ●
299 NUT; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 0809-1005 ●
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 1006-1107 ● ●
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=19 L=20 		0-95235-836-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0809-1005 ●
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1006-1107 ● ●
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108- ●
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1005 ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1006-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-1005 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1006- ● ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0809-1005 ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1006-1107 ● ●
338 BOLT; PIPE CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
403 WASHER; PL
SMOOTHER-G(C1W) D=12 		0-91614-612-0 01 1 1212- ●

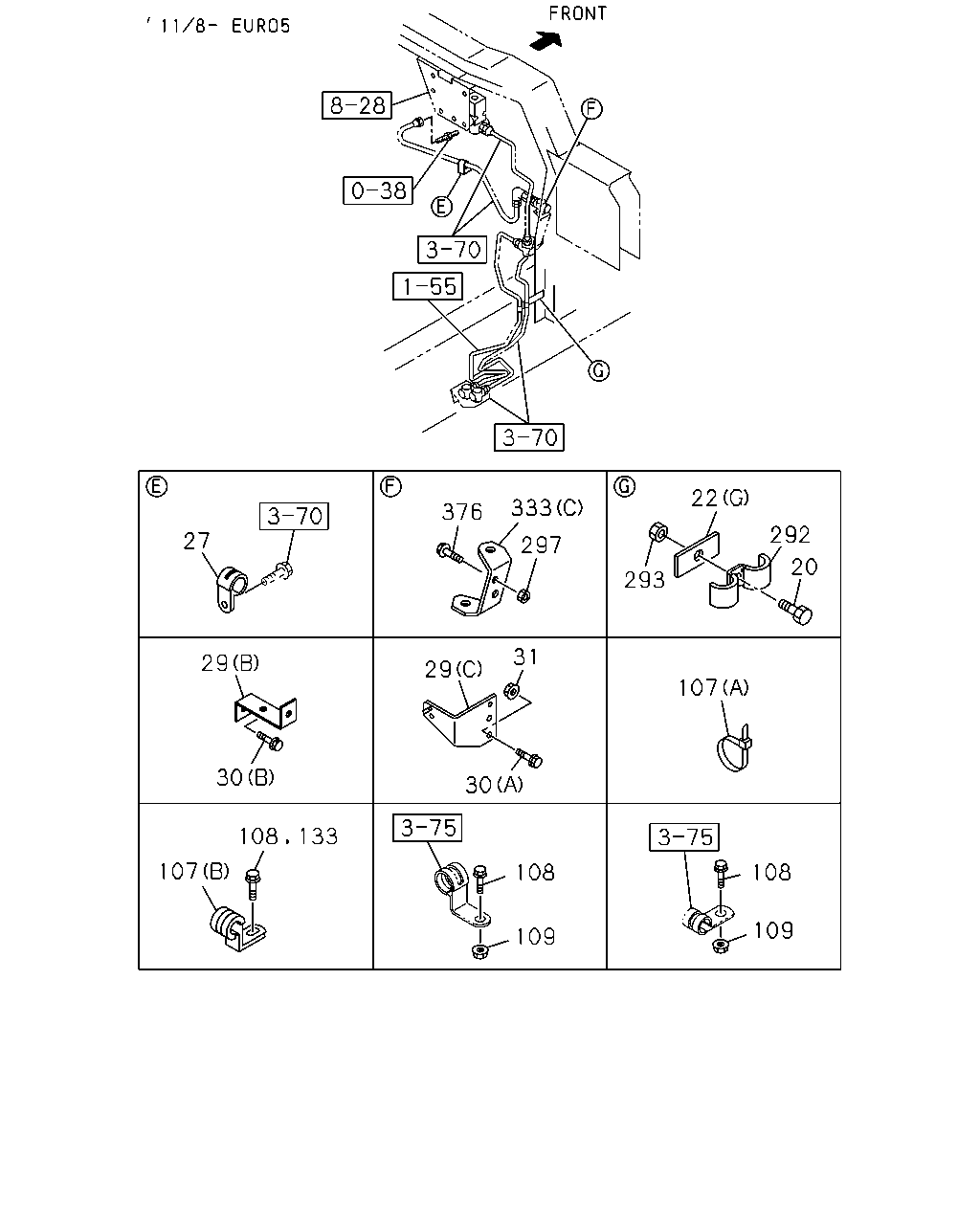

çizim 141860
22 333 376 292 27 297 20 293 31 29 29 107 30 30 108 133 107 108 108 109 109
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (G) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(F) 		1-47471-272-0 01 1 1006- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0710-1005 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 1006- ● ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 0710-1005 ●
22 BRACKET; CLIP
(A) 		1-47479-381-2 03 1 1006- ● ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1006- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710-1005 ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 1006- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0710-1005 ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1006- ● ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710-1005 ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1006- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1006-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0710-1005 ●
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804-1005 ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1006- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804-1005 ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 1006- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1006- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710-1005 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1006- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-1005 ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1006- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-1005 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1006- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-1005 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 1006-1107 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1006- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1006- ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-1005 ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1006- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0710-1005 ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1006- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1006-1107 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 1108- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-1005 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
292 CLIP; AIR PIPE
EURO5 SPECIFICATION<NT5> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1108- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0710-0808 ●
293 NUT; CLIP
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1108- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006- ● ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1005 ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1006-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-1005 ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 1006- ● ●
376 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
