◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#14620) — 223 parça

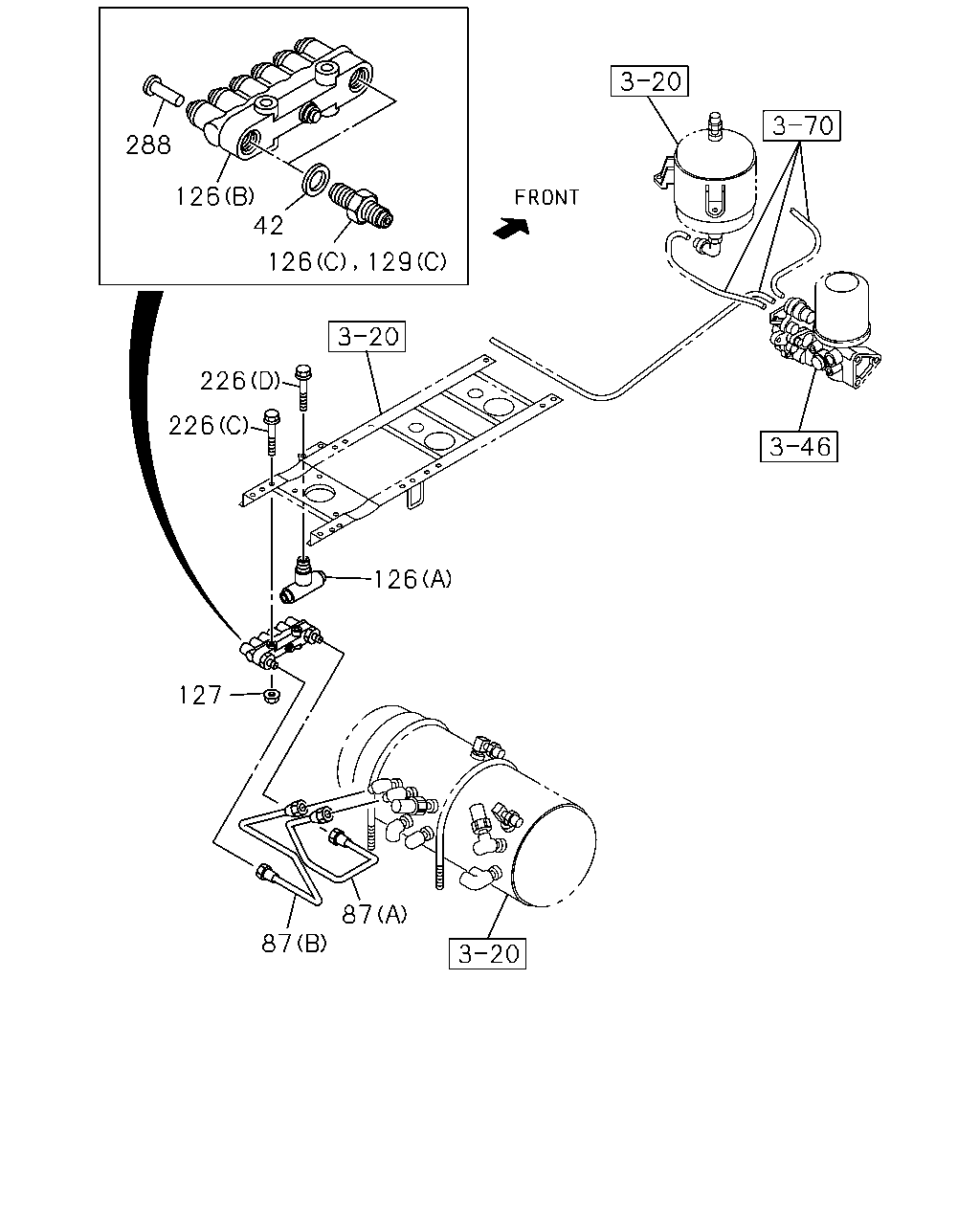

çizim 141664
288 126 42 126 129 226 226 126 127 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
42 GASKET; CONNECTOR 9-09572-022-0 02 1 0710-0803 ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=573 		8-98096-184-0 01 1 0710-1005 ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=573 		8-98096-184-0 01 1 1006- ● ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 0710-1005 ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 1006- ● ●
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 0804-1005 ●
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1006- ● ●
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0710-1005 ●
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1006- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0710-1005 ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1006- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1006- ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-1005 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1006- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 0710-1005 ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 1006- ● ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006- ● ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0712 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0712 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0801-1005 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 1006- ● ●

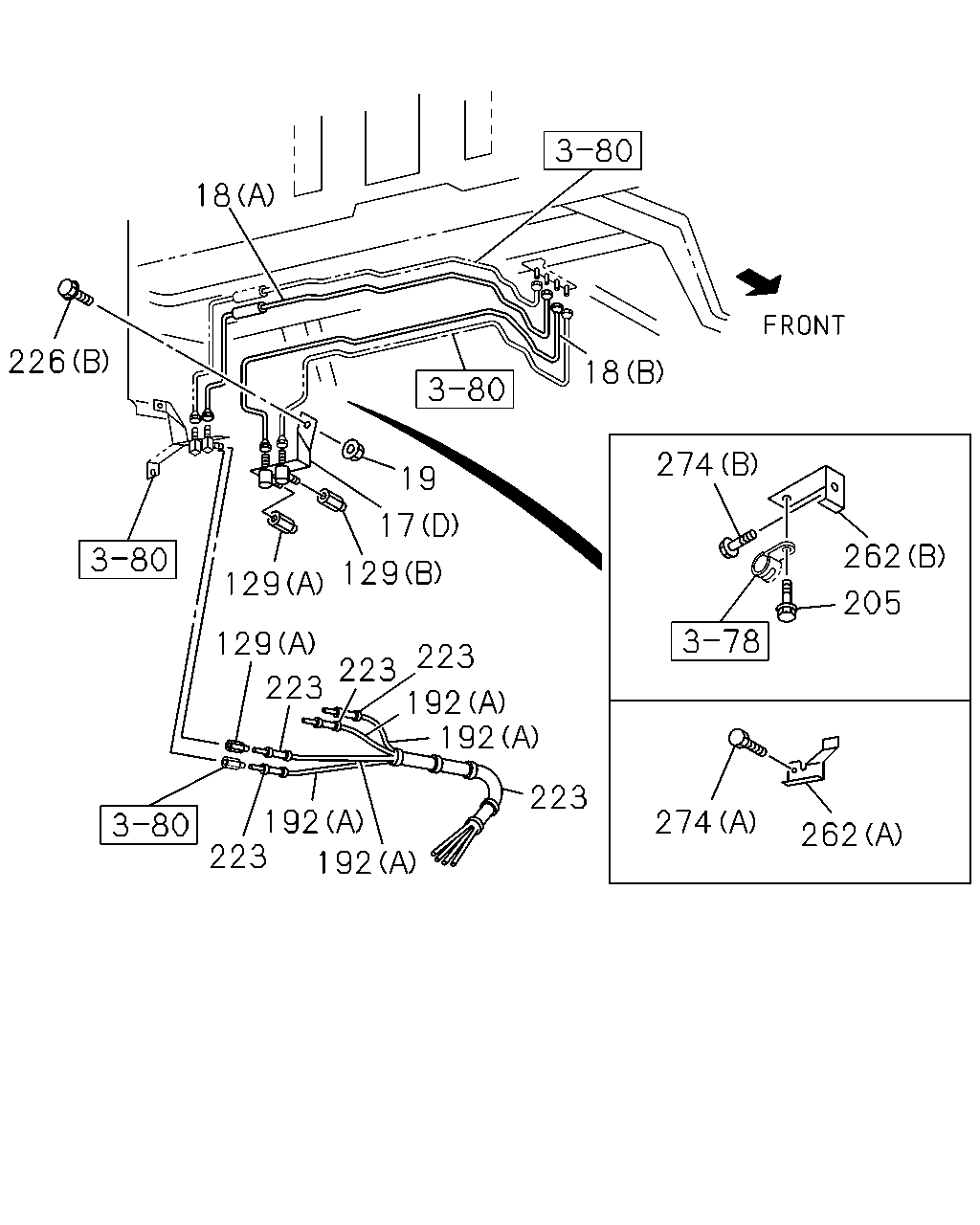

çizim 141670
18 226 18 274 19 17 262 129 129 205 129 223 223 192 192 223 223 192 223 274 262 192
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 1006- ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-1005 ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1006- ● ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0710-1005 ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 1006-1006 ● ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0710-1005 ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 1006-1006 ● ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0710- ●
18 PIPE; AIR,UNION TO UNION
(B) L=1749 		1-49121-758-1 01 1 1006-1006 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1885 		1-49121-759-1 01 1 1007- ●
18 PIPE; AIR,UNION TO UNION
(A) L=1845 		1-49122-059-1 01 1 1006-1006 ●
18 PIPE; AIR,UNION TO UNION
(A) L=1937 		1-49122-060-1 01 1 0710-1006 ●
18 PIPE; AIR,UNION TO UNION
(A) L=1937 		1-49122-060-1 01 1 1007- ● ●
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0710-1005 ●
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 1006- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1006- ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-1005 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1006- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ●
192 TUBE; NYLON
(B) L=200 OD=12 		1-49216-861-1 01 1 1006- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0710-1005 ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 35 1 1505- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 0710-1005 ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 1006- ● ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006- ● ●
262 BRACKET
(B) 		1-79996-143-0 01 1 0710-1005 ●
262 BRACKET
(B) 		1-79996-143-0 01 1 1006- ● ●
262 BRACKET
(A) 		1-79996-144-0 01 1 0710-1005 ●
262 BRACKET
(A) 		1-79996-144-0 01 1 1006- ● ●
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-1005 ●
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1006- ● ●

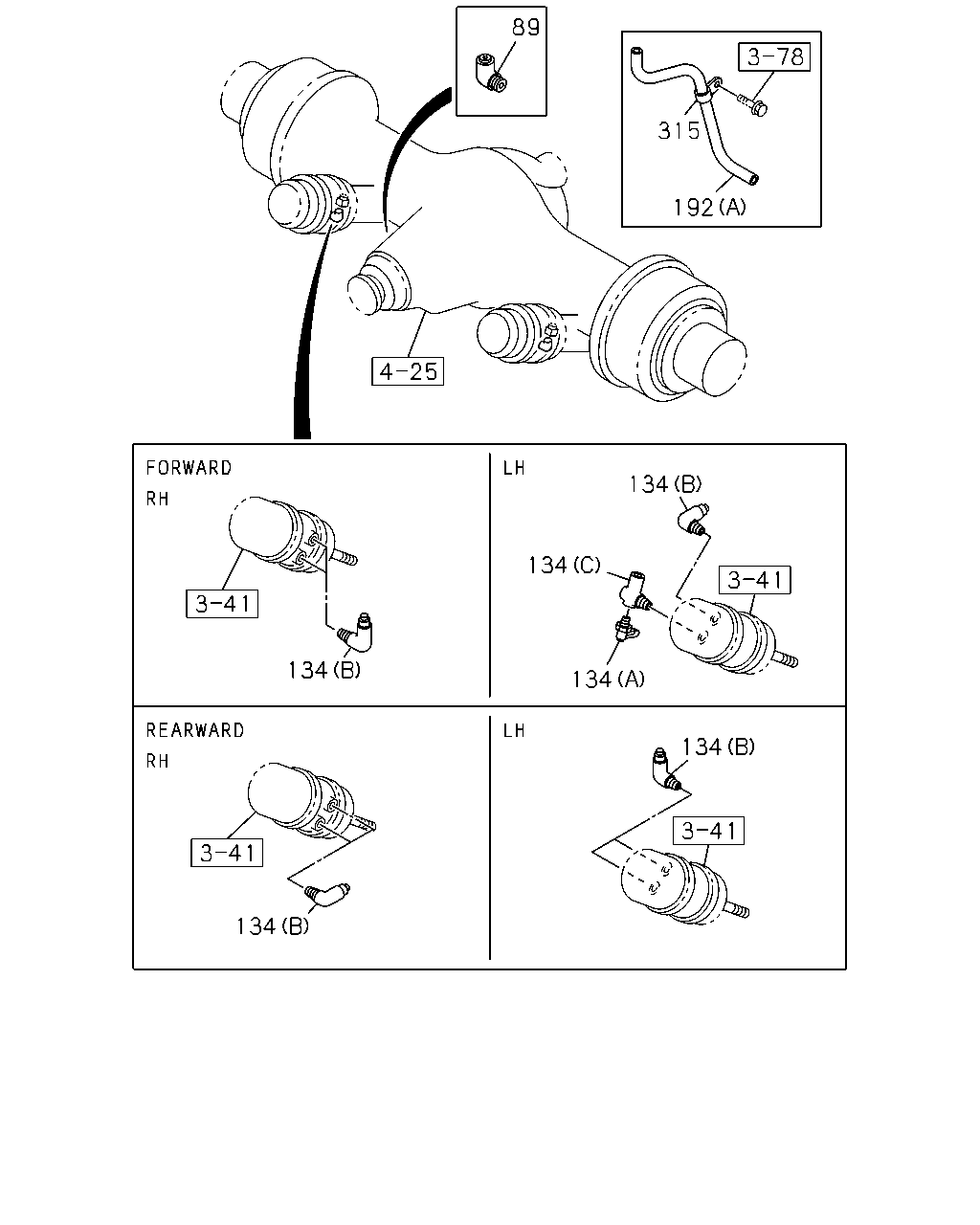

çizim 141671
89 315 192 134 134 134 134 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 03 1 0710-1005 ●
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 03 1 1006- ● ●
134 CONNECTOR
(B) 		1-09660-741-0 08 1 1006- ●
134 CONNECTOR
(B) 		1-09660-741-0 07 1 0710- ●
134 CONNECTOR
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0710- ●
134 CONNECTOR
(C) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 01 1 0710- ●
192 TUBE; NYLON
(B) L=200 OD=12 		1-49216-861-1 01 1 1006- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
315 CLIP
ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
315 CLIP
ID=16 L=20 		0-95235-535-0 01 1 1006- ● ●

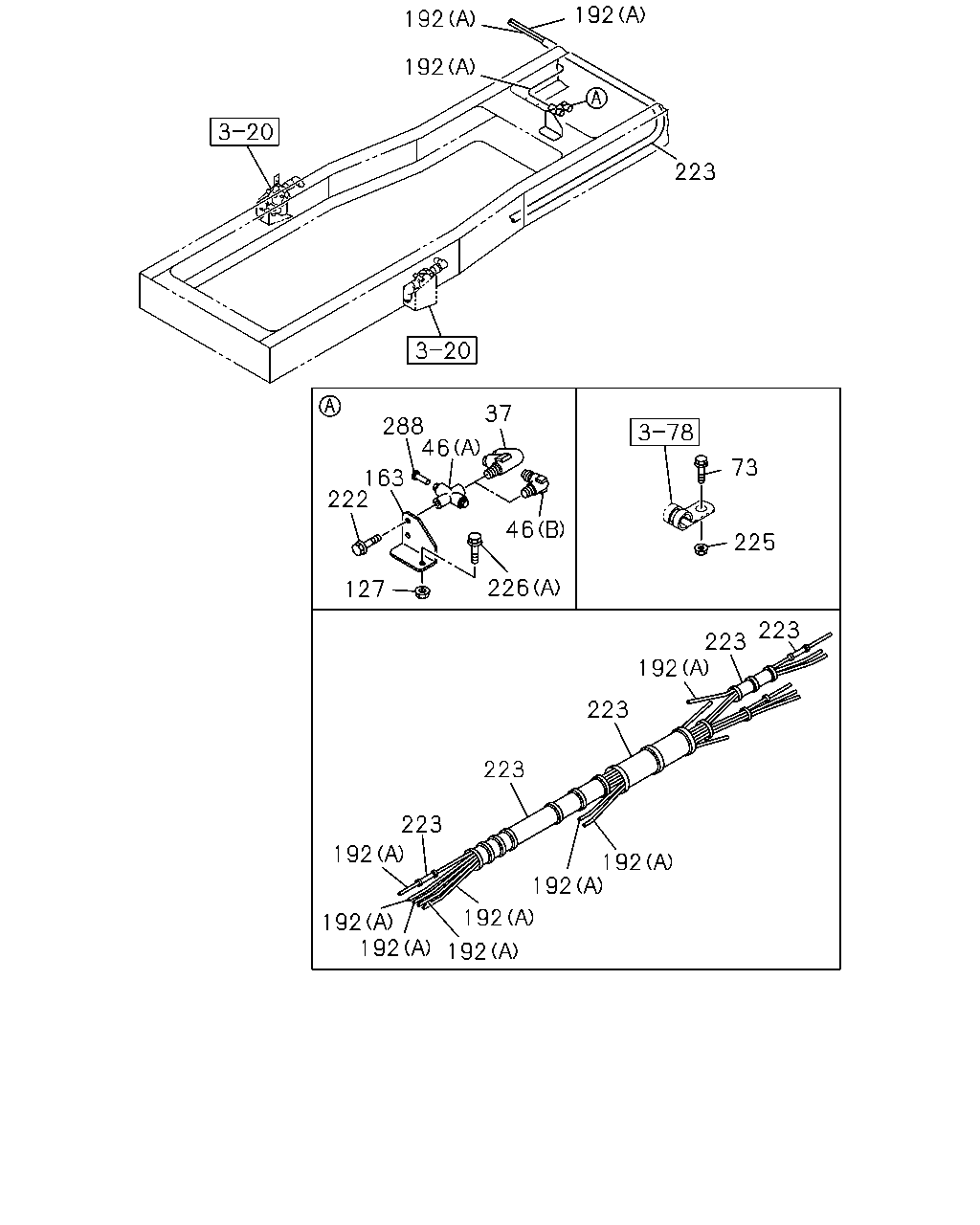

çizim 141694
192 192 192 223 37 288 46 73 163 222 46 225 226 127 223 223 192 223 223 223 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-0712 ●
46 NIPPLE; AIR PIPE
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0801-1005 ●
46 NIPPLE; AIR PIPE
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1006- ● ●
46 NIPPLE; AIR PIPE
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0710-0712 ●
46 NIPPLE; AIR PIPE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-1005 ●
46 NIPPLE; AIR PIPE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1006- ● ●
73 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
73 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 0710-1005 ●
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 1006- ● ●
192 TUBE; NYLON
(B) L=200 OD=12 		1-49216-861-1 01 1 1006- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
222 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0710-1005 ●
222 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 35 1 1505- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
226 BOLT; UNION
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 0710-1005 ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 1006- ● ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
226 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005 ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006- ● ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0712 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0712 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0801-1005 ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 1006- ● ●

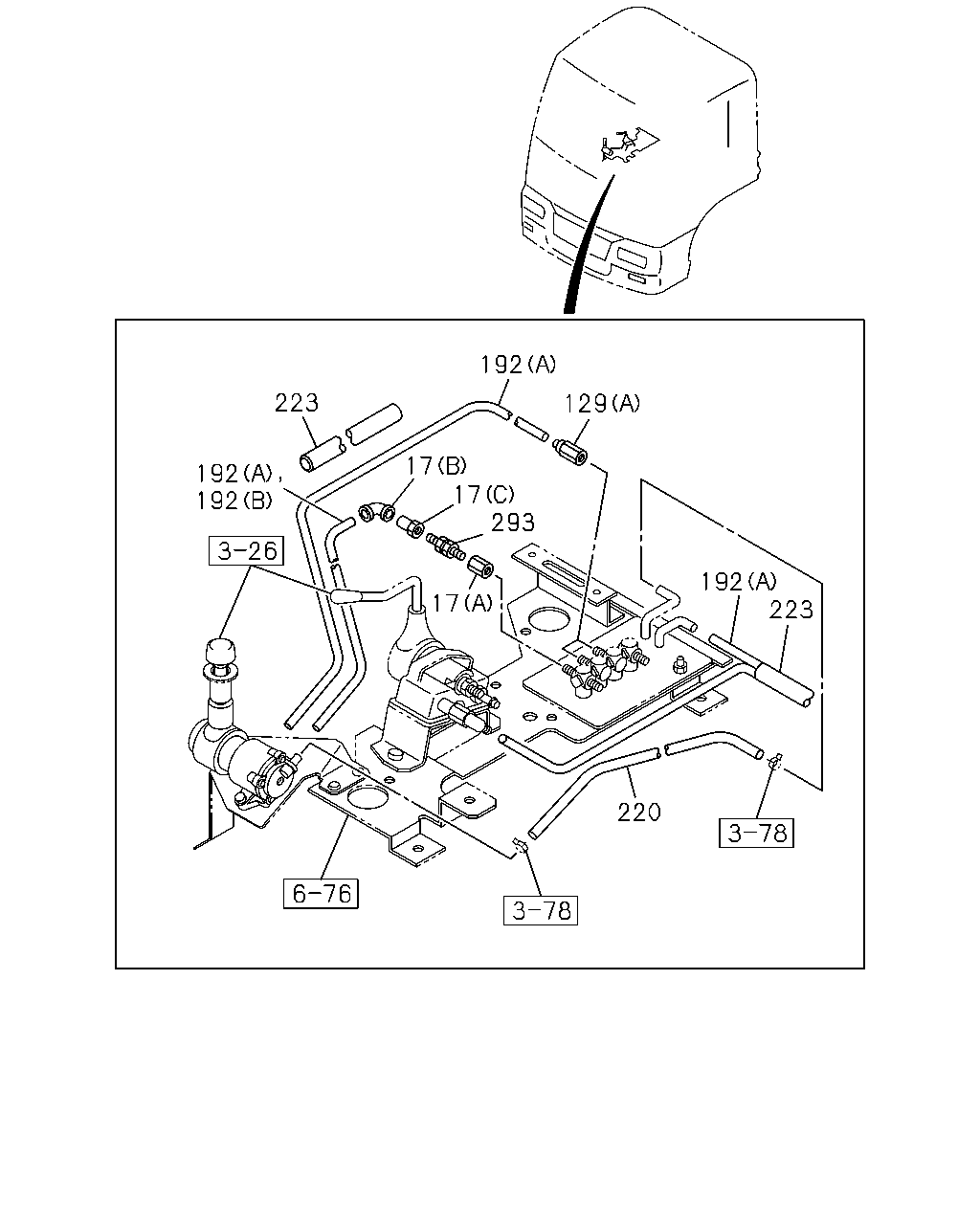

çizim 141698
192 223 129 17 17 293 192 192 192 223 17 220
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 1006- ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-1005 ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1006- ● ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0710-1005 ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 1006-1006 ● ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0710-1005 ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 1006-1006 ● ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0710- ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1006- ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-1005 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1006- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ●
192 TUBE; NYLON
(B) L=200 OD=12 		1-49216-861-1 01 1 1006- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 1006- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 35 1 1505- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1006- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
293 VALVE; CHECK 1-48410-479-1 01 1 0710-1005 ●
293 VALVE; CHECK 1-48410-479-1 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
