◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#14619) — 132 parça

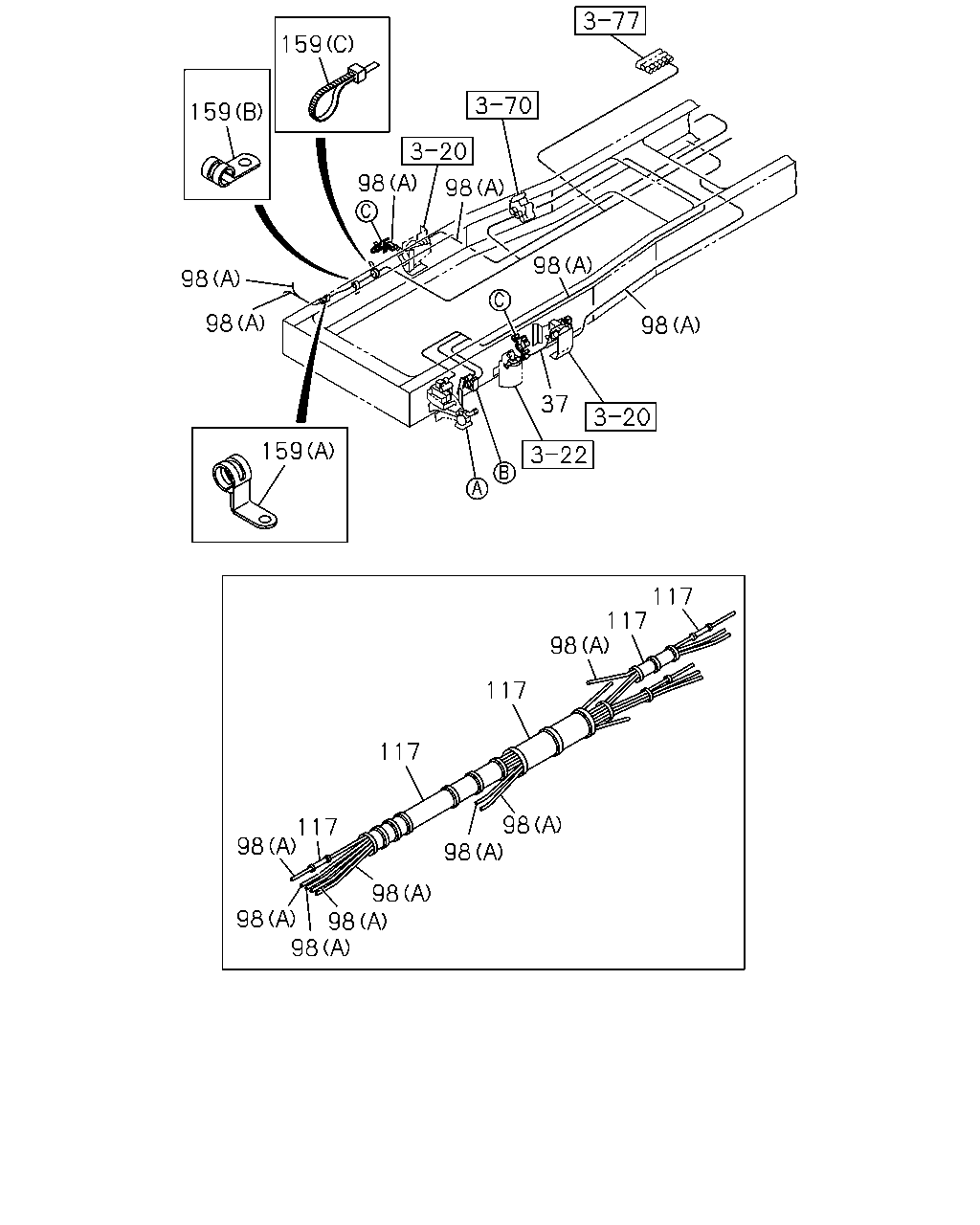

çizim 141576
159 159 98 98 98 98 98 98 37 159 117 117 98 117 117 98 117 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
37 PIPE; AIR,UNION TO FLEX HOSE
L=767 		8-98096-181-0 01 1 0710-1005 ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=767 		8-98096-181-0 01 1 1006- ● ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=707 		8-98096-182-0 01 1 0710-1005 ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=707 		8-98096-182-0 01 1 1006- ● ●
98 TUBE; NYLON
(B) L=240 OD=12 		8-98096-505-0 02 1 0710-1005 ●
98 TUBE; NYLON
(B) L=240 OD=12 		8-98096-505-0 02 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 		1-87411-023-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 		1-87411-023-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1006- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0710-1005 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1006- ● ●
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1006- ● ●
159 CLIP; NYLON TUBE
(B) ID=23 L=27 		1-09700-946-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(B) ID=23 L=27 		1-09700-946-0 02 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 0710-1005 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 1006- ● ●
159 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 02 1 1006- ● ●

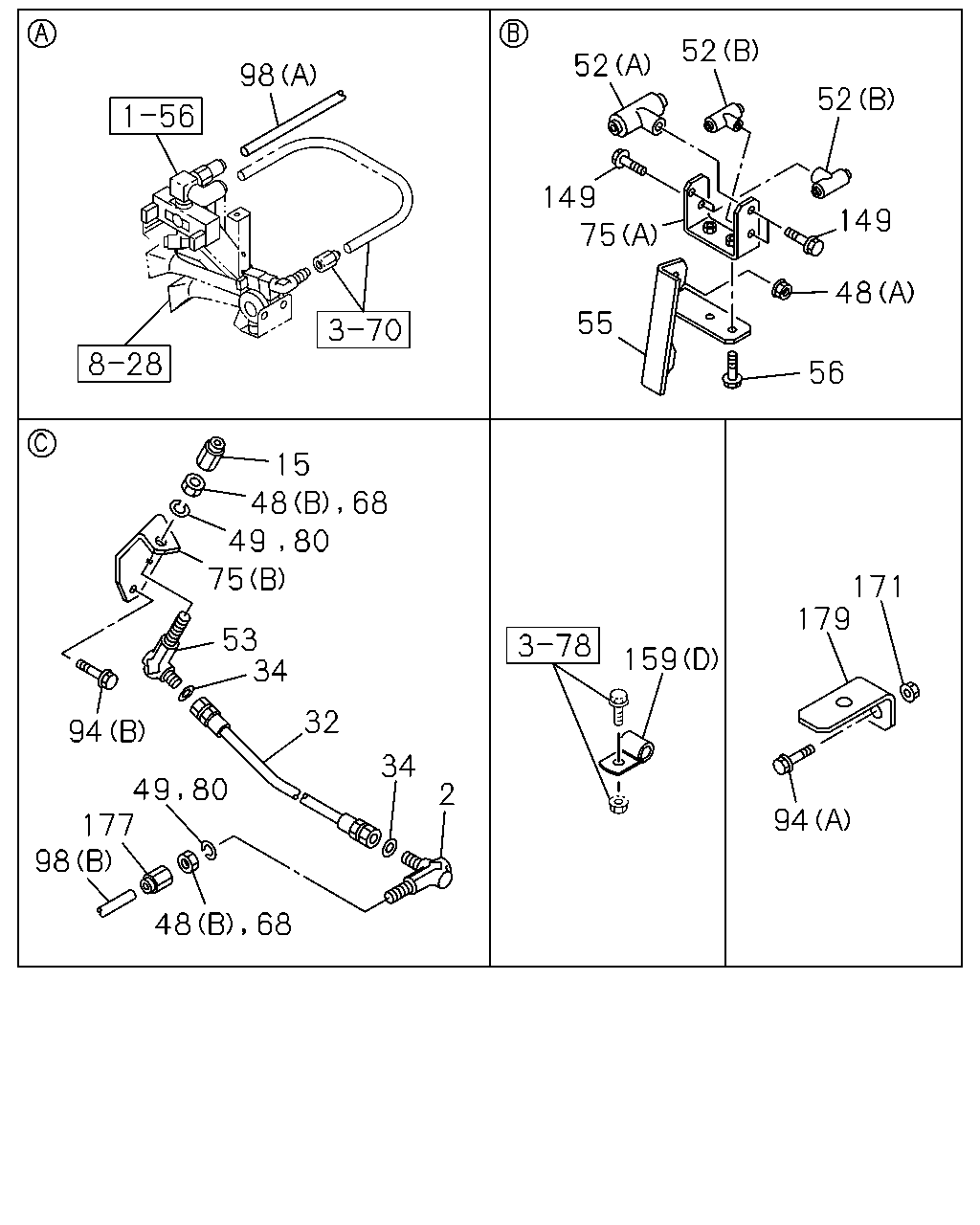

çizim 141666
52 52 98 52 149 75 149 48 55 56 15 49 80 75 171 179 53 34 159 32 94 34 177 98 2 94 49 80 48 68 48 68
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 0710-1005 ●
2 UNION; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 1006- ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0710-1005 ●
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1006- ● ●
32 HOSE; FLEX,FRT
L=470 		0-57847-470-1 02 1 1006- ●
32 HOSE; FLEX,FRT 0-87847-470-1 02 1 0710- ●
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710-1005 ●
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1006- ● ●
48 NUT; UNION BRKT
(B) M20 		0-91111-520-0 01 1 0710-1005 ●
48 NUT; UNION BRKT
(B) M20 		0-91111-520-0 01 1 1006- ● ●
48 NUT; UNION BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 0710-1005 ●
48 NUT; UNION BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 1006- ● ●
49 WASHER; LK,UNION BRKT
ID=20.2 		0-91510-520-0 01 1 0710-1005 ●
49 WASHER; LK,UNION BRKT
ID=20.2 		0-91510-520-0 01 1 1006- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1006- ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0710-1005 ●
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1006- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0710- ●
53 UNION; ELBOW
M20 		1-09654-199-2 02 1 0710-1005 ●
53 UNION; ELBOW
M20 		1-09654-199-2 02 1 1006- ● ●
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0710-1005 ●
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 1006- ● ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-1005 ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1006- ● ●
68 NUT; UNION
M20 		0-91111-520-0 01 1 0710-1005 ●
68 NUT; UNION
M20 		0-91111-520-0 01 1 1006- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 0710-1005 ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1006- ● ●
75 BRACKET; UNION
(A) 		1-47478-382-0 01 1 0710-1005 ●
75 BRACKET; UNION
(A) 		1-47478-382-0 01 1 1006- ● ●
75 BRACKET; UNION
(B) 		8-98084-256-0 01 1 0710-1005 ●
75 BRACKET; UNION
(B) 		8-98084-256-0 01 1 1006- ● ●
75 BRACKET; UNION
(B) 		8-98084-257-0 01 1 0710-1005 ●
75 BRACKET; UNION
(B) 		8-98084-257-0 01 1 1006- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 0710-1005 ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 1006- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 0710-1005 ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1006- ● ●
94 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
94 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ● ●
94 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
94 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
98 TUBE; NYLON
(B) L=240 OD=12 		8-98096-505-0 02 1 0710-1005 ●
98 TUBE; NYLON
(B) L=240 OD=12 		8-98096-505-0 02 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1006- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710-1005 ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1006- ● ●
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 04 1 1006- ●
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 03 1 0710- ●
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1006- ● ●
159 CLIP; NYLON TUBE
(B) ID=23 L=27 		1-09700-946-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(B) ID=23 L=27 		1-09700-946-0 02 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-1005 ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1006- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 0710-1005 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 1006- ● ●
159 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 02 1 0710-1005 ●
159 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 02 1 1006- ● ●
171 NUT; BRACKET
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
171 NUT; BRACKET
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
177 CONNECTOR
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0710-1005 ●
177 CONNECTOR
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1006- ● ●
179 BRACKET; CLIP 1-47477-648-0 01 1 0710-1005 ●
179 BRACKET; CLIP 1-47477-648-0 01 1 1006- ● ●
