3-46 — AIR DRYER (#14615) — 76 parça

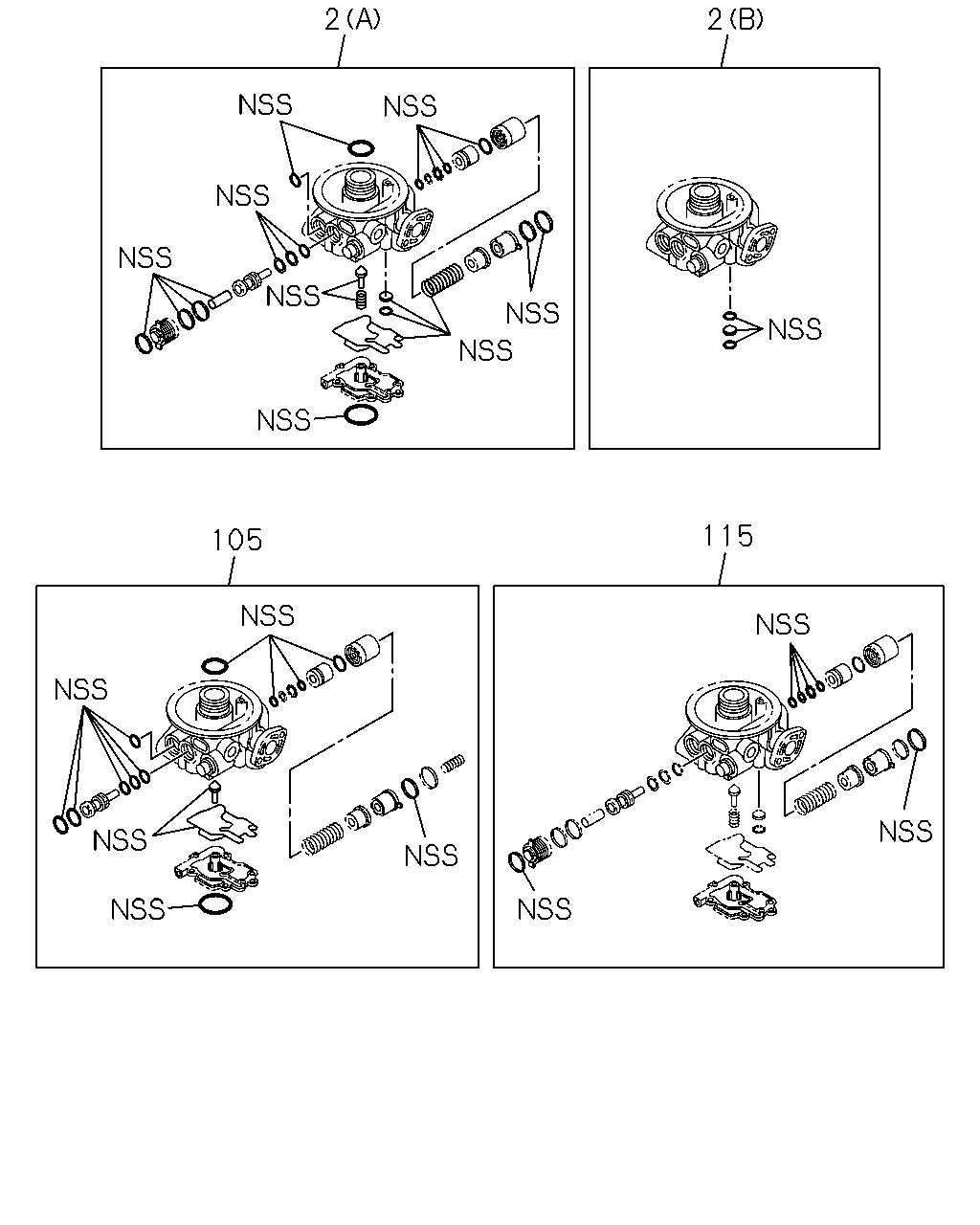

115 105 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER (B)	8-98302-391-0	01	1	1412-	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0710-1005	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	1006-1102	●	●
2	REPAIR KIT; AIR DRYER (A)	8-98161-324-0	01	1	1103-1401	●	●
2	REPAIR KIT; AIR DRYER (A)	8-98185-664-0	01	1	1402-	●	●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0710-1005	●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	1006-1401	●	●
105	SEAL KIT; AIR DRYER	8-98185-665-0	01	1	1402-	●	●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0710-1005	●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	1006-	●	●

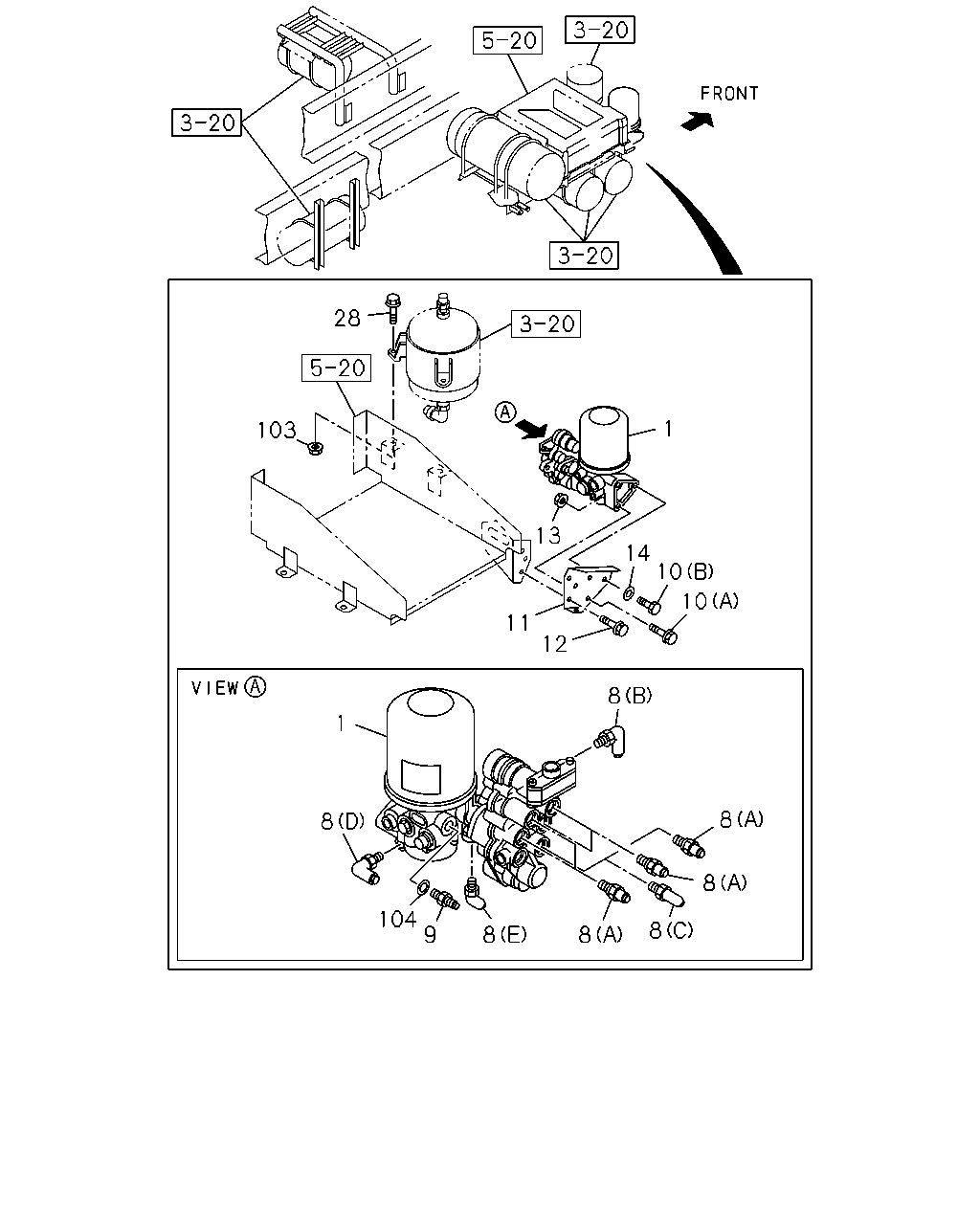

28 103 11 12 14 13 10 10 1 1 8 104 9 4 8 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR	1-48190-368-5	01	1	0710-1005	●
1	DRYER; AIR	1-48190-368-5	01	1	1006-1401	●	●
1	DRYER; AIR	8-98219-852-1	01	1	1402-	●	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	0710-1005	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1006-1401	●	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	1402-1402	●	●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1402-	●	●
8	CONNECTOR; OUT,AIR DRYER (E)	1-09661-499-0	01	1	0710-1005	●
8	CONNECTOR; OUT,AIR DRYER (E)	1-09661-499-0	01	1	1006-	●	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0710-1005	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1006-	●	●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	01	1	0710-1005	●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	01	1	1006-	●	●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0710-1005	●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	1006-	●	●
9	CONNECTOR; PIPE,AIR DRYER	8-97618-539-0	01	1	0710-0803	●
9	CONNECTOR; PIPE,AIR DRYER M22X2 STRAIGHT	8-98107-103-0	01	1	0804-1005	●
9	CONNECTOR; PIPE,AIR DRYER M22X2 STRAIGHT	8-98107-103-0	01	1	1006-	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	0710-1005	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	1006-	●	●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0710-1005	●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	1006-	●	●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0710-1005	●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	1006-	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	03	1	0710-1005	●
12	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	03	1	1006-	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	0710-1005	●
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	1006-	●	●
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	0710-1005	●
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	1006-	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	0710-1005	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	1006-	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	1006-	●	●
104	GASKET	9-09572-022-0	01	1	0710-0803	●

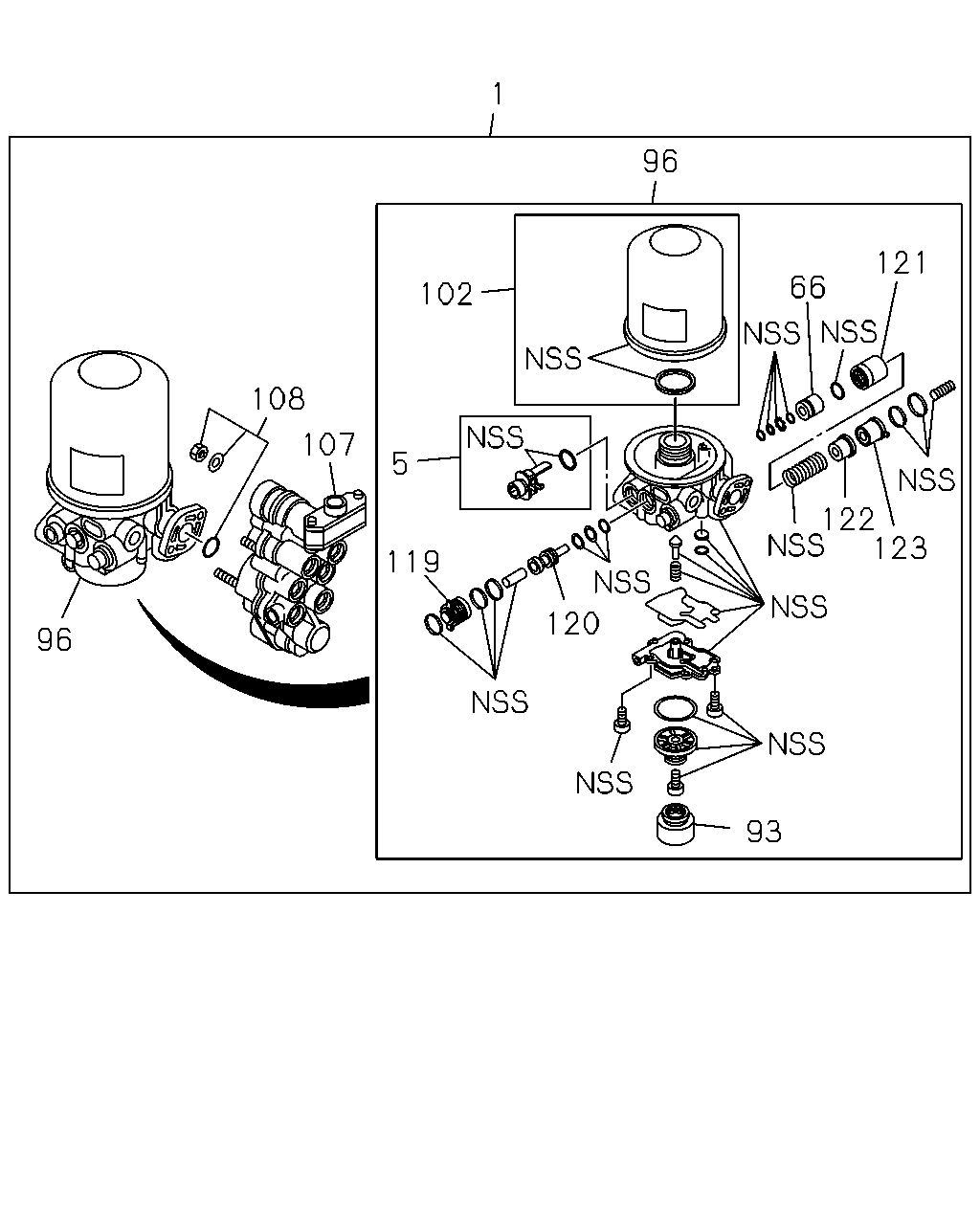

1 96 102 108 107 119 5 120 93 123 122 121 66 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR	1-48190-368-5	01	1	0710-1005	●
1	DRYER; AIR	1-48190-368-5	01	1	1006-1401	●	●
1	DRYER; AIR	8-98219-852-1	01	1	1402-	●	●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0710-1005	●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	1006-	●	●
66	PISTON; AIR DRYER	1-85576-475-0	01	1	0710-1005	●
66	PISTON; AIR DRYER	1-85576-475-0	01	1	1006-	●	●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0710-1005	●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	1006-1401	●	●
93	SILENCER; AIR DRYER	8-98219-823-0	01	1	1402-	●	●
96	DRYER KIT; AIR	1-85576-455-1	01	1	0710-1005	●
96	DRYER KIT; AIR	1-85576-455-1	01	1	1006-1102	●	●
96	DRYER KIT; AIR	8-98161-322-1	01	1	1103-1401	●	●
96	DRYER KIT; AIR	8-98219-822-1	01	1	1402-	●	●
102	CARTRIDGE; AIR DRYER	1-85576-450-1	01	1	0710-1005	●
102	CARTRIDGE; AIR DRYER	1-85576-450-2	01	1	1006-	●	●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-2	01	1	0710-1005	●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-3	01	1	1006-	●	●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0710-1005	●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	1006-	●	●
119	COVER; PURGE VALVE	1-85576-473-0	01	1	0710-1005	●
119	COVER; PURGE VALVE	1-85576-473-0	01	1	1006-	●	●
120	TAPPET	1-85576-474-0	01	1	0710-1005	●
120	TAPPET	1-85576-474-0	01	1	1006-1401	●	●
120	TAPPET	8-98185-666-0	01	1	1402-	●	●
121	HOLDER; SPRING	1-85576-476-0	01	1	0710-1005	●
121	HOLDER; SPRING	1-85576-476-0	01	1	1006-	●	●
122	SEAT; SPRING	1-85576-477-0	01	1	0710-1005	●
122	SEAT; SPRING	1-85576-477-0	01	1	1006-	●	●
123	COVER; GOVERNER	1-85576-478-0	01	1	0710-1005	●
123	COVER; GOVERNER	1-85576-478-0	01	1	1006-	●	●
