◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#14610) — 480 parça

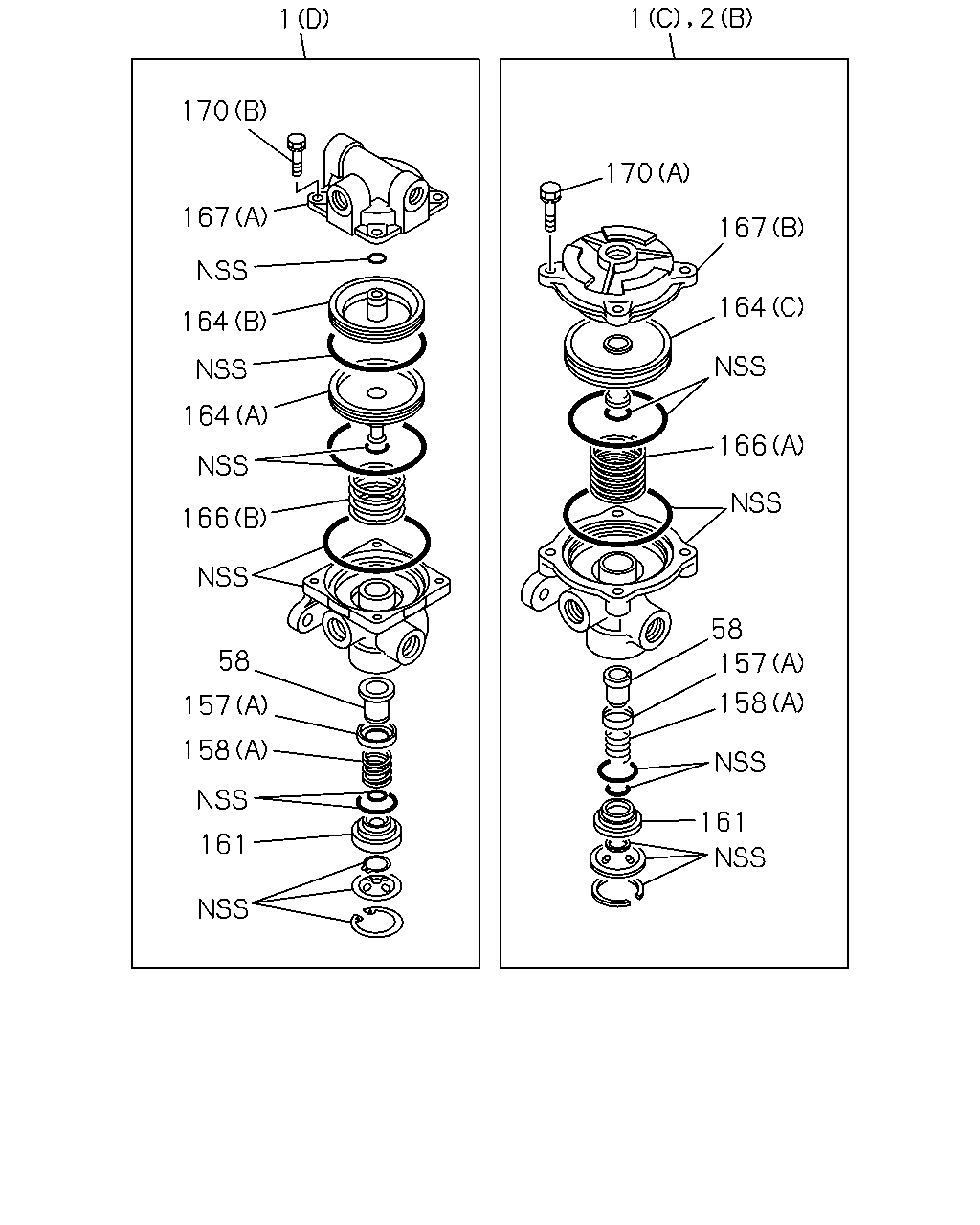

çizim 141562
1 170 170 167 167 164 164 164 166 166 58 58 157 158 157 158 161 161 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(C) 		1-48210-875-0 01 1 1006- ●
1 VALVE; RELAY RWD RR
(D) 		1-48240-041-1 01 1 1006- ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ●
2 VALVE; RELAY
(B) 		1-48210-875-0 01 1 1006- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 02 1 0710-1001 ●
58 ADAPTER 1-48219-154-0 03 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1006- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1006- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-1001 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 1002- ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 1006- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1006-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1006- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 1006-1008 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1006- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-1005 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1006- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-1001 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 1002- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1006- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1006- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-1005 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1006- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710-1001 ●
161 GUIDE; VALVE 1-48129-014-0 03 1 1002- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-1005 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-1005 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1002-1005 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 1002- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1002-1005 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1006- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1006- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 1002- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0710-1005 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1006- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0710-1005 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1006- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0710-1001 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0710-1001 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1002-1005 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006- ●
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 1002- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1002-1005 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1006- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1006- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 1002- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0710-1005 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1006- ● ●

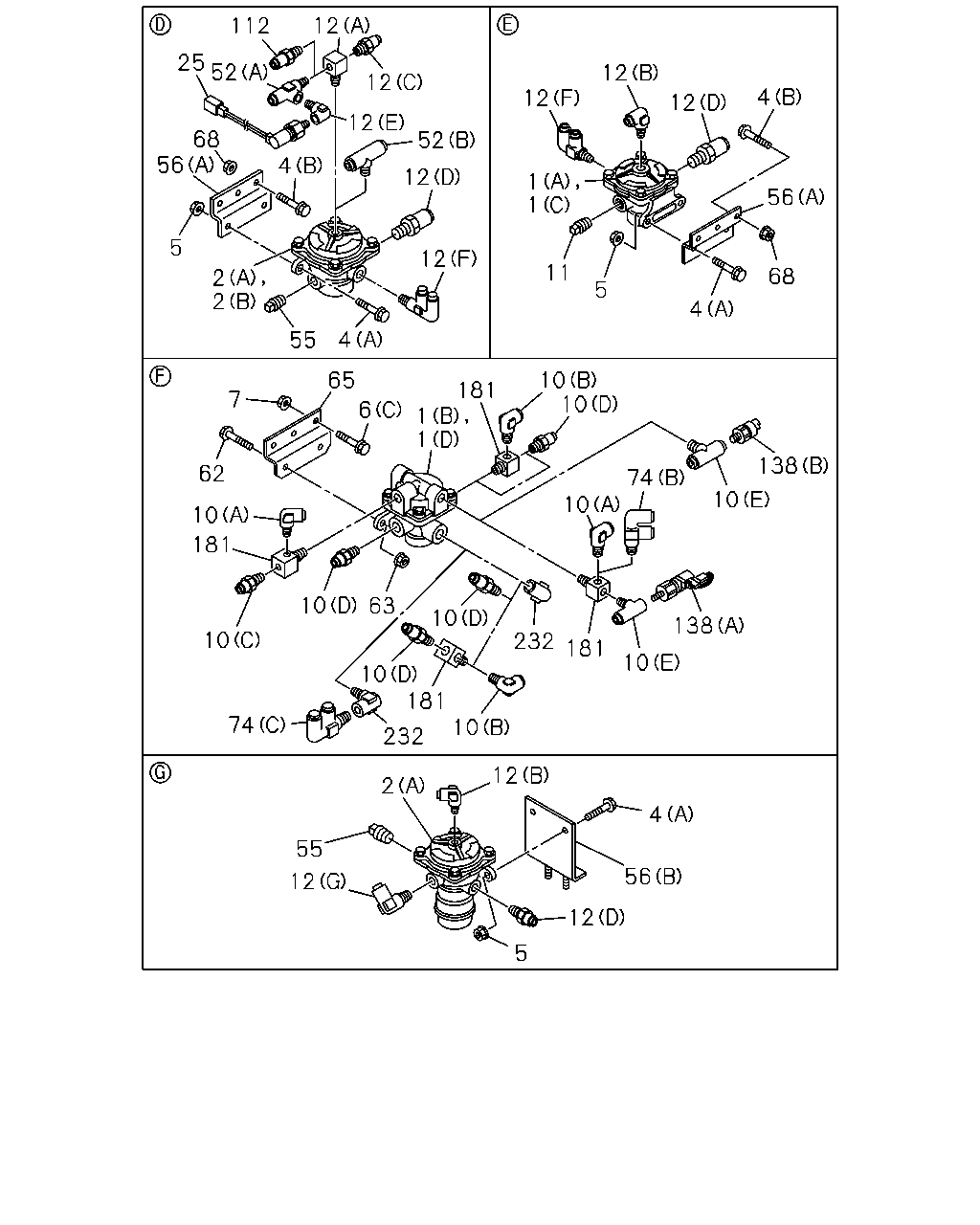

çizim 141571
112 2 25 52 12 12 4 12 12 12 68 56 52 4 12 1 1 56 5 12 11 68 2 2 5 4 55 4 65 10 10 181 1 1 7 6 138 74 62 10 10 10 181 10 63 10 138 10 232 181 10 10 181 74 10 232 12 2 4 55 56 12 12 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(C) 		1-48210-875-0 01 1 1006- ●
1 VALVE; RELAY RWD RR
(D) 		1-48240-041-1 01 1 1006- ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ●
2 VALVE; RELAY
(B) 		1-48210-875-0 01 1 1006- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
4 BOLT; RELAY VLV TO BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 0710-1005 ●
4 BOLT; RELAY VLV TO BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1006- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0710-1001 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1002-1005 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1006- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1006- ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0710-1001 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0710-1001 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 1002- ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 1002- ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1002- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-1001 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-1001 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1002-1005 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1006- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1006- ●
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 0710-1005 ●
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1006- ● ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0710-1005 ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1006- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1006- ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-1001 ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1002-1005 ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1006- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1001 ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-1005 ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1006- ● ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0710-1001 ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1002- ●
10 CONNECTOR
(E) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0710-1005 ●
10 CONNECTOR
(E) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 1006- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1006- ●
12 CONNECTOR; RELAY VLV
(G) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) 		1-09656-708-0 01 1 0710-0712 ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-09656-708-0 01 1 0801- ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710- ●
12 CONNECTOR; RELAY VLV
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0712 ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0801- ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1001 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1001 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1002-1005 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1006- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1006- ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-1005 ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-1005 ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1006- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1006- ● ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (E) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ●
25 SWITCH; PRESSURE
MJX12P M/T SMOOTHER-G(Y4S) 		8-97383-820-1 01 1 0710- ●
52 CONNECTOR; RELAY VLV
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0801-1005 ●
52 CONNECTOR; RELAY VLV
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1006- ● ●
52 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 0710-0712 ●
52 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 0801- ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 1006- ● ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 1006- ●
56 BRACKET; RELAY VLV
(B) 		8-98164-894-0 01 1 0710- ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 0710-1005 ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 0710-1005 ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1006- ● ●
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1006- ● ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0710-1005 ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 1006- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0710-1005 ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1006- ● ●
65 BRACKET; RELAY VLV RR 8-98075-291-0 01 1 0710-1005 ●
65 BRACKET; RELAY VLV RR 8-98075-291-0 01 1 1006- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
74 CONNECTOR; 3WAY
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1002- ●
74 CONNECTOR; 3WAY
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1002- ●
74 CONNECTOR; 3WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0710-1005 ●
74 CONNECTOR; 3WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1006- ● ●
112 CONNECTOR; DELIVERY
TRANSMISSION-FULLER RTLO189 18(Y4W) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0712 ●
138 SWITCH; RELAY VALVE
(B) STAMP 2.0 		8-98010-856-2 01 1 1006- ●
138 SWITCH; RELAY VALVE
(A) 		1-48340-067-0 01 1 0710- ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 03 1 0710-1001 ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 02 1 1002-1005 ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 02 1 1006- ● ●
232 VALVE; CHECK 1-48320-031-1 01 1 0710-1005 ●
232 VALVE; CHECK 1-48320-031-1 01 1 1006- ● ●

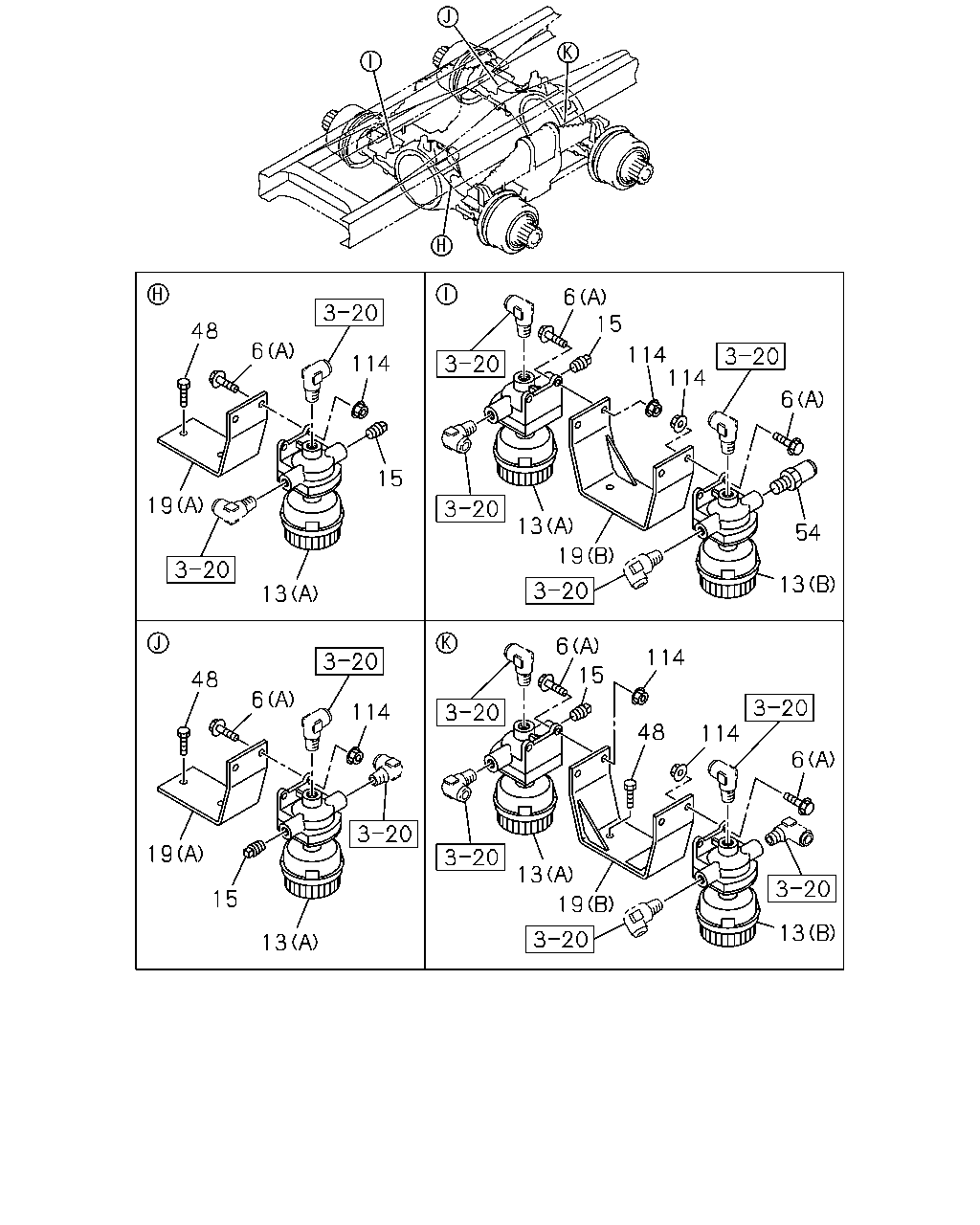

çizim 141574
6 15 48 6 114 114 114 6 15 19 13 54 19 13 13 6 114 15 48 6 114 48 114 6 19 13 15 19 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 0710-1005 ●
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1006- ● ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0710-1005 ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 01 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 04 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 1006-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
15 PLUG; VALVE
PT3/8 		9-09204-517-0 04 1 0710-1005 ●
15 PLUG; VALVE
PT3/8 		9-09204-517-0 04 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98069-342-0 02 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98069-342-0 02 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28050-816-0 08 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28050-816-0 08 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1005 ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 12 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 12 1 1006- ● ●

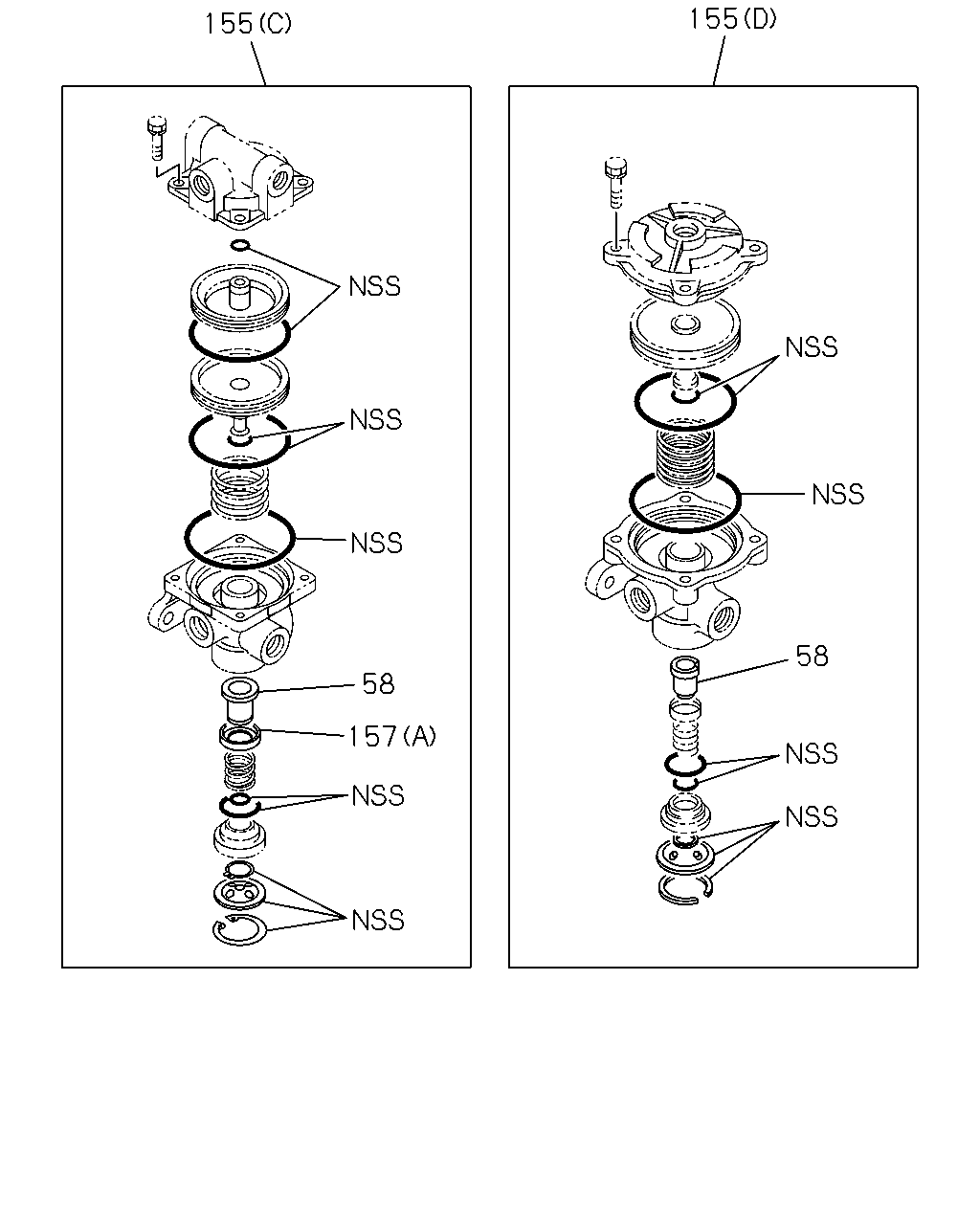

çizim 141653
155 155 58 58 157
BalonParca AdiParca NoAdetTipApplied Date A B
58 ADAPTER 1-48219-154-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 02 1 0710-1001 ●
58 ADAPTER 1-48219-154-0 03 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 02 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(D) 		1-85576-033-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(D) 		1-85576-033-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(C) 		1-85576-035-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-453-0 01 1 0710- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1006- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1006- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-1001 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 1002- ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 1006- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1006-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1006- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 1006-1008 ● ●

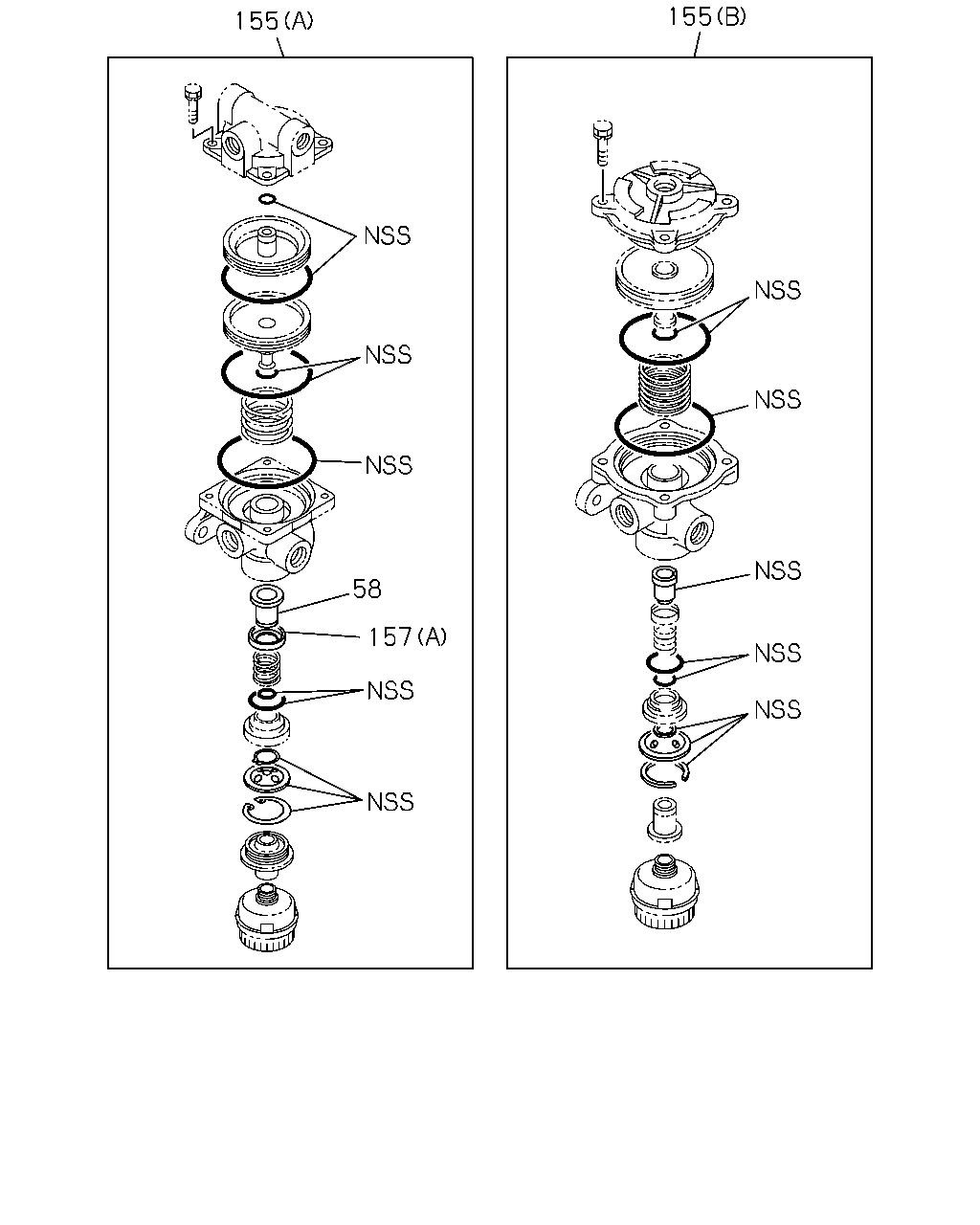

çizim 141659
155 155 58 157
BalonParca AdiParca NoAdetTipApplied Date A B
58 ADAPTER 1-48219-154-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 02 1 0710-1001 ●
58 ADAPTER 1-48219-154-0 03 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 02 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(D) 		1-85576-033-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(D) 		1-85576-033-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(C) 		1-85576-035-0 01 1 1006- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-453-0 01 1 0710- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1006- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1006- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-1001 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 1002- ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 1006- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1006-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1006- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 1006-1008 ● ●

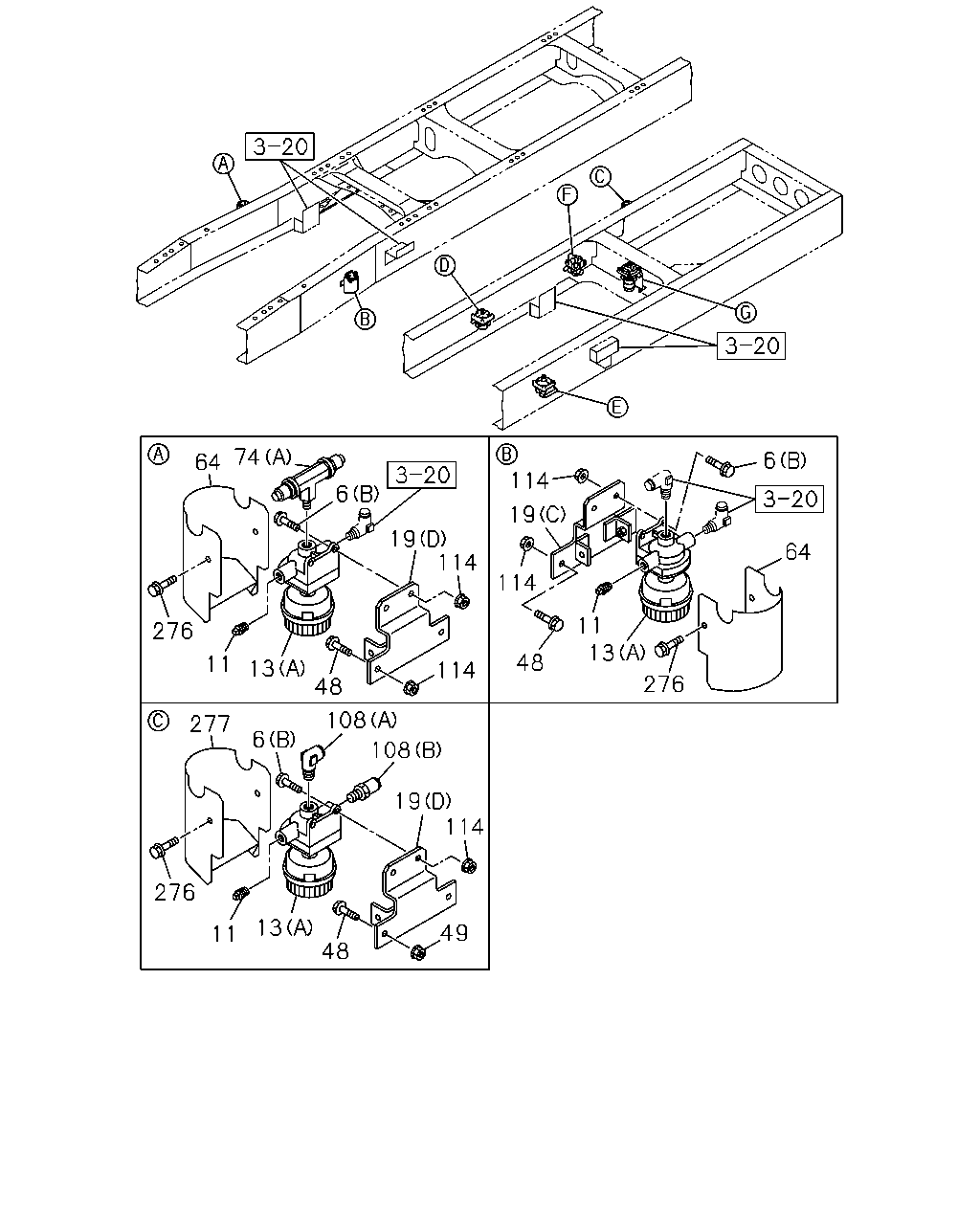

çizim 141752
114 74 6 64 6 19 19 114 64 114 11 13 276 48 11 13 48 114 276 108 277 6 108 19 114 276 13 48 49 11
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 0710-1005 ●
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28050-825-0 12 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-1005 ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1006- ● ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0710-1005 ●
6 BOLT; VLV
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 1006- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710-1005 ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 01 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 04 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 1006-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98069-342-0 02 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98069-342-0 02 1 1006- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 0710-1005 ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28050-816-0 08 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28050-816-0 08 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
49 NUT; QUICK RELEASE VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
49 NUT; QUICK RELEASE VLV
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 02 1 0710-1005 ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 02 1 1006- ● ●
74 CONNECTOR; 3WAY
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1002- ●
74 CONNECTOR; 3WAY
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1002- ●
74 CONNECTOR; 3WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0710-1005 ●
74 CONNECTOR; 3WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1006- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1005 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 12 1 0710-1005 ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 12 1 1006- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
277 PROTECTOR; VLV 8-98043-421-0 01 1 0710-1005 ●
277 PROTECTOR; VLV 8-98043-421-0 01 1 1006- ● ●

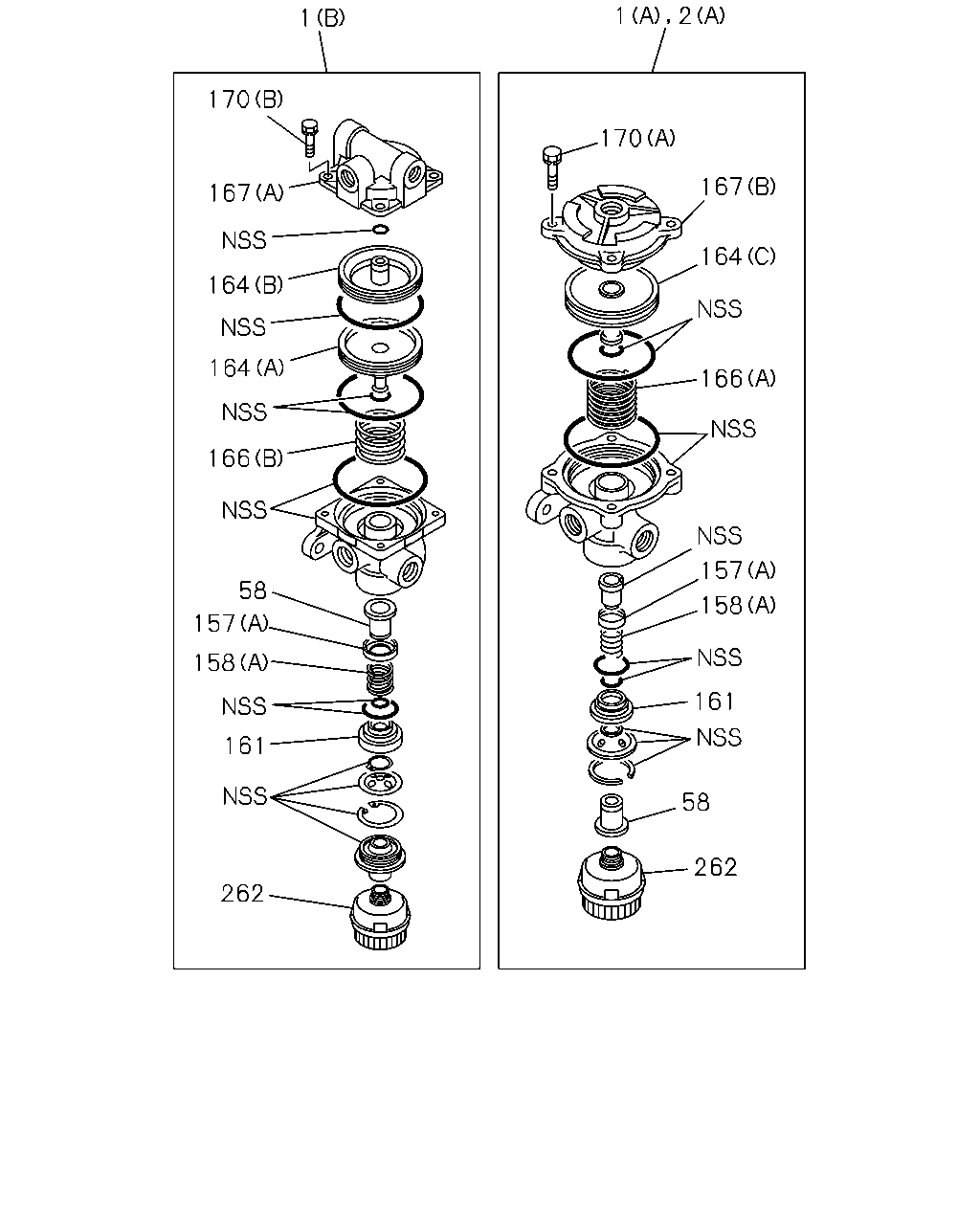

çizim 141770
2 1 1 170 170 167 167 164 164 164 166 166 157 58 158 157 158 161 161 58 262 262
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(C) 		1-48210-875-0 01 1 1006- ●
1 VALVE; RELAY RWD RR
(D) 		1-48240-041-1 01 1 1006- ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ●
2 VALVE; RELAY
(B) 		1-48210-875-0 01 1 1006- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
2 VALVE; RELAY
(A) 		1-48210-997-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 02 1 0710-1001 ●
58 ADAPTER 1-48219-154-0 03 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1006- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1006- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-1001 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 1002- ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 1006- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1006-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1006- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 1006-1008 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1006- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-1005 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1006- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-1001 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 1002- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1006- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1006- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-1005 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1006- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710-1001 ●
161 GUIDE; VALVE 1-48129-014-0 03 1 1002- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-1005 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-1005 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1002-1005 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 1002- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1002-1005 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1006- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1006- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 1002- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0710-1005 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 1006- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0710-1005 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 1006- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0710-1001 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0710-1001 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1002-1005 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006- ●
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 1002- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1002-1005 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1006- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1006- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 1002- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0710-1005 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0908 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0909-1001 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0909-1001 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1002-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 0909-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 08 1 0710-0908 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 1002- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1006- ●

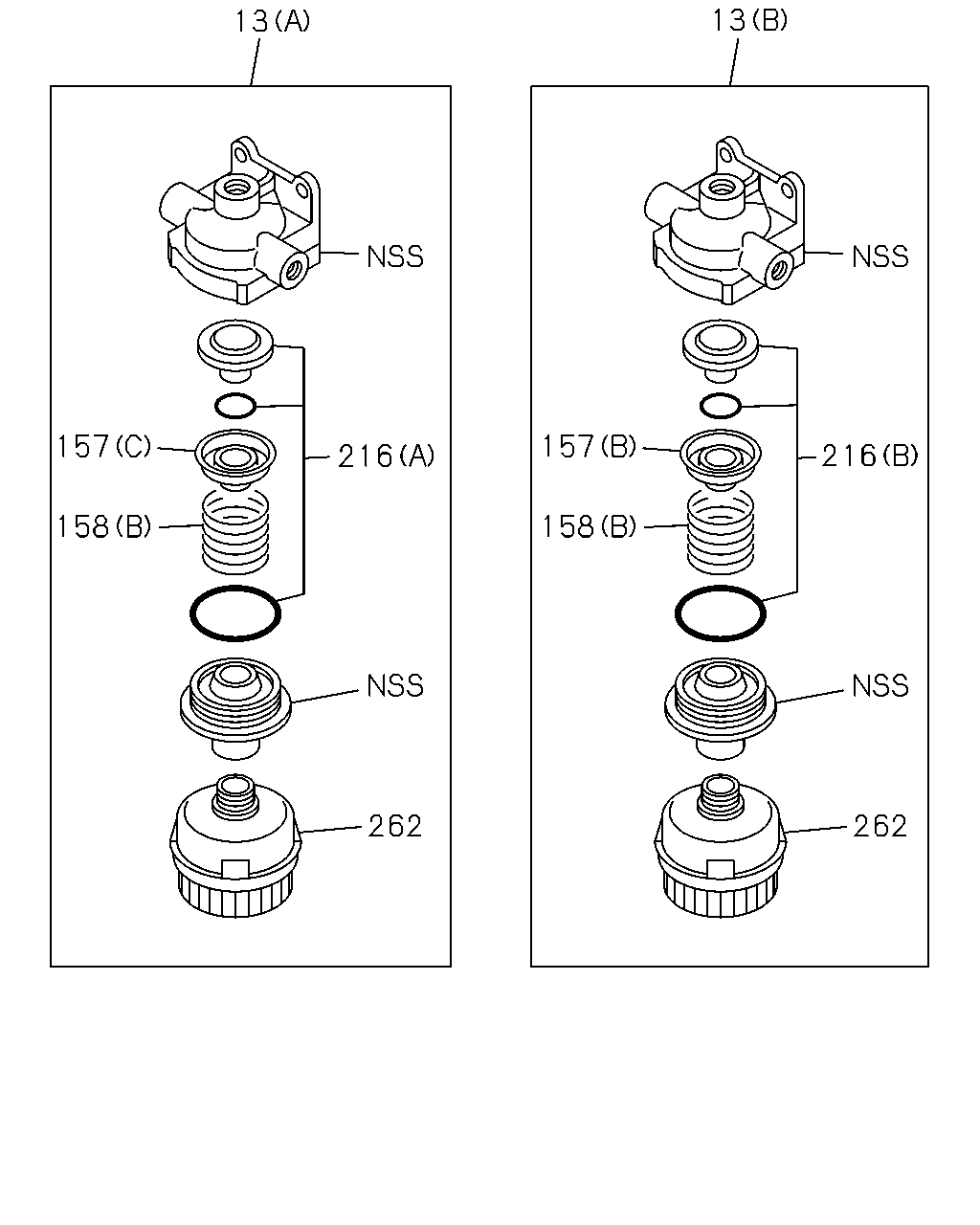

çizim 141815
13 13 157 157 216 216 158 158 262 262
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 01 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-0 04 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 1006- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1005 ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 1006-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1006- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1006- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-1001 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 1002- ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 1006- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1006-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1005 ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1006- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1005 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 1006-1008 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1006- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-1005 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1006- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-1001 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 1002- ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1006- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1005 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1006- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0710-1005 ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 1006-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 02 1 0710-1005 ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 02 1 1006-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 02 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 04 1 0710-1005 ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 04 1 1006-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 04 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 0710-1005 ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 1006-1008 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1009- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0908 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0909-1001 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0909-1001 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1002-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 0909-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 08 1 0710-0908 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 1002- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1006- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1006- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
