◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#1461) — 236 parça

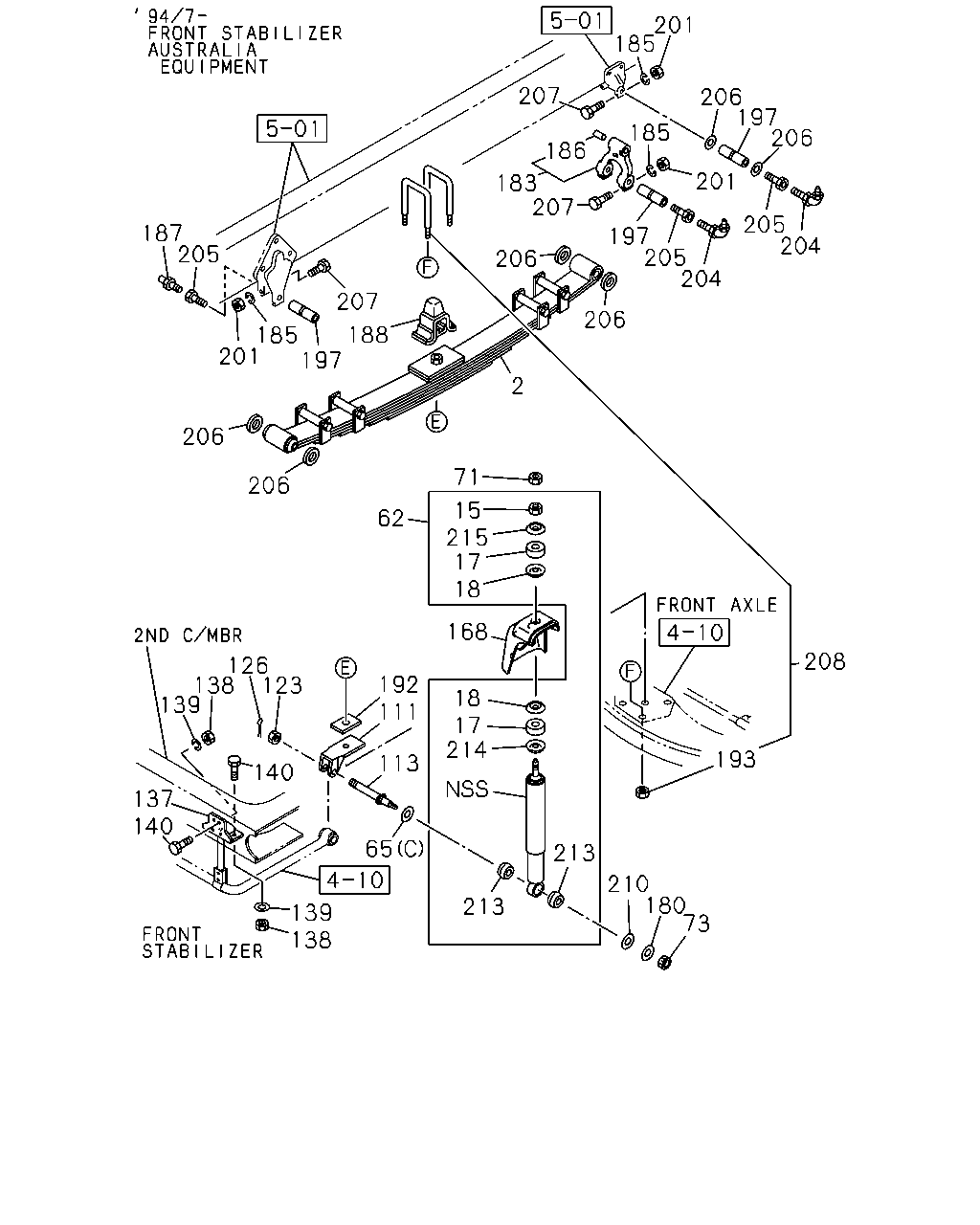

çizim 27247
201 185 207 206 197 206 185 186 201 183 207 205 204 187 205 197 205 204 206 207 206 185 188 201 197 2 206 71 206 15 215 17 18 62 168 208 126 138 123 139 192 111 18 17 214 113 193 140 137 140 65 213 210 180 73 213 139 138
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		1-51130-201-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51130-201-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51130-222-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9411-
15 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
17 BUSHING; RUBBER,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-51631-050-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9203-9406
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9407-
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9203-9406
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9407-
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) (C) ID=23 		1-51631-019-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9203-9406
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9203-9406
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9203-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9203-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-122-2 02 1 9203-9406
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51682-122-2 02 1 9407-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51682-127-1 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M24 		9-99116-424-0 02 1 9203-9406
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M24 		9-99116-424-0 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M22 		9-09116-522-0 02 1 9407-
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9203-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9203-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-410-0 08 1 9203-
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9203-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9408-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9203-9406
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9407-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9203-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9203-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9203-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9203-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9203-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9203-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9203-
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9203-
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9203-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9203-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9203-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9203-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9203-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-118-3 04 1 9203-9307
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9308-
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		1-51631-020-0 02 1 9407-
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-009-1 04 1 9407-
214 WASHER; S/ABS,UPR,INNER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9407-
215 WASHER; S/ABS,UPR,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9407-

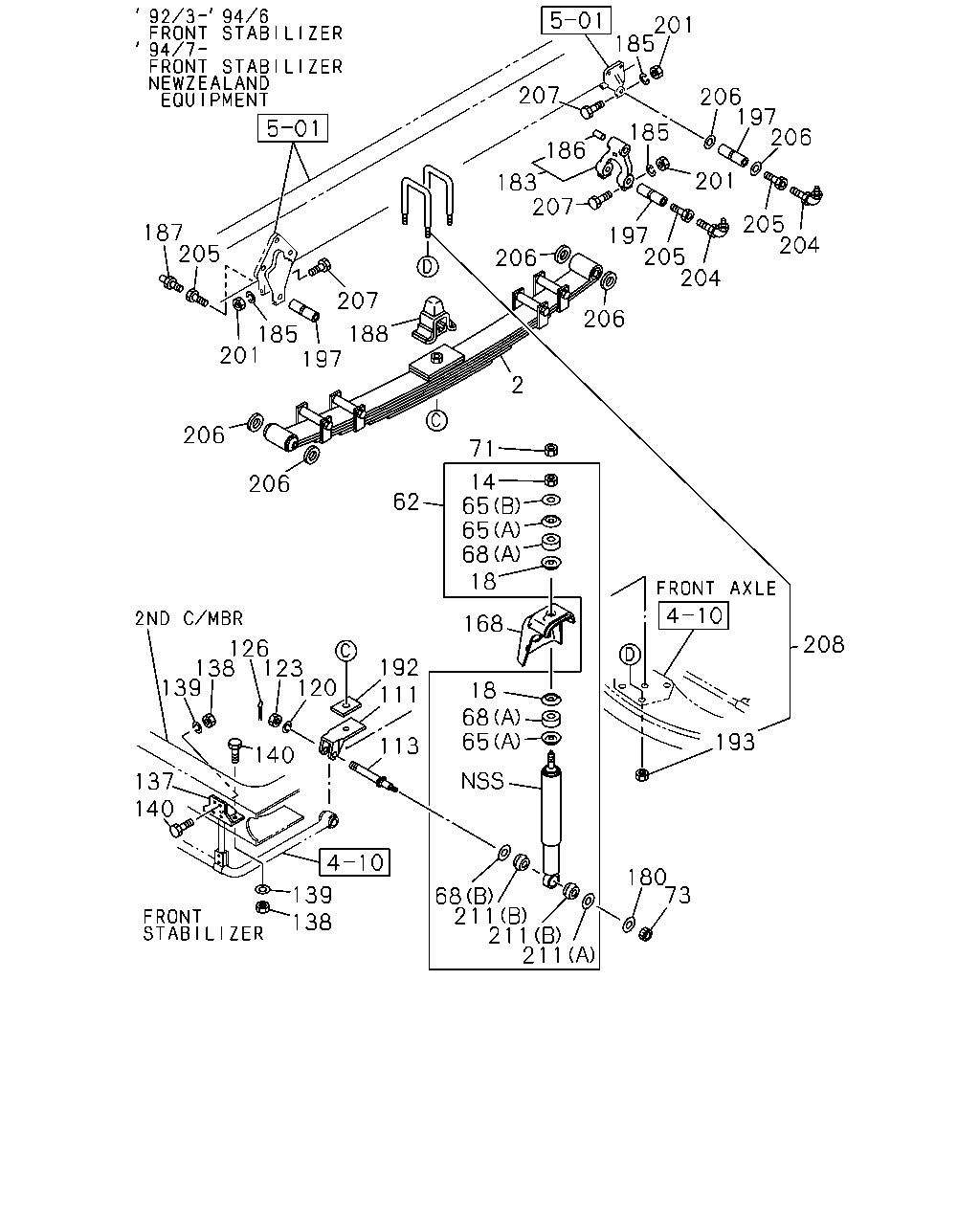

çizim 28990
201 185 207 206 197 206 185 186 201 183 207 205 204 187 205 197 205 204 206 207 206 185 188 201 197 2 206 71 14 65 65 68 18 206 62 168 208 126 138 123 139 120 192 111 18 68 65 113 193 140 137 140 180 73 139 138 68 211 211 211
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		1-51130-201-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51130-201-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51130-222-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9411-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9203-9406
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9203-9406
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9407-
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9203-9406
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9407-
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) (C) ID=23 		1-51631-019-0 02 1 9407-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9203-9406
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9203-9406
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) 		9-51631-026-0 04 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		9-51631-026-0 04 1 9407-
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9203-9406
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9203-9406
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9203-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9203-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-122-2 02 1 9203-9406
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51682-122-2 02 1 9407-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51682-127-1 02 1 9407-
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-09160-522-0 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M24 		9-99116-424-0 02 1 9203-9406
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M24 		9-99116-424-0 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M22 		9-09116-522-0 02 1 9407-
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9203-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9203-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-410-0 08 1 9203-
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9203-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9408-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9203-9406
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9407-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9203-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9203-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9203-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9203-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9203-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9203-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9203-
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9203-
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9203-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9203-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9203-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9203-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9203-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-118-3 04 1 9203-9307
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9308-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9203-9406
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9203-9406
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=21 		9-51631-028-0 02 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-028-0 02 1 9407-

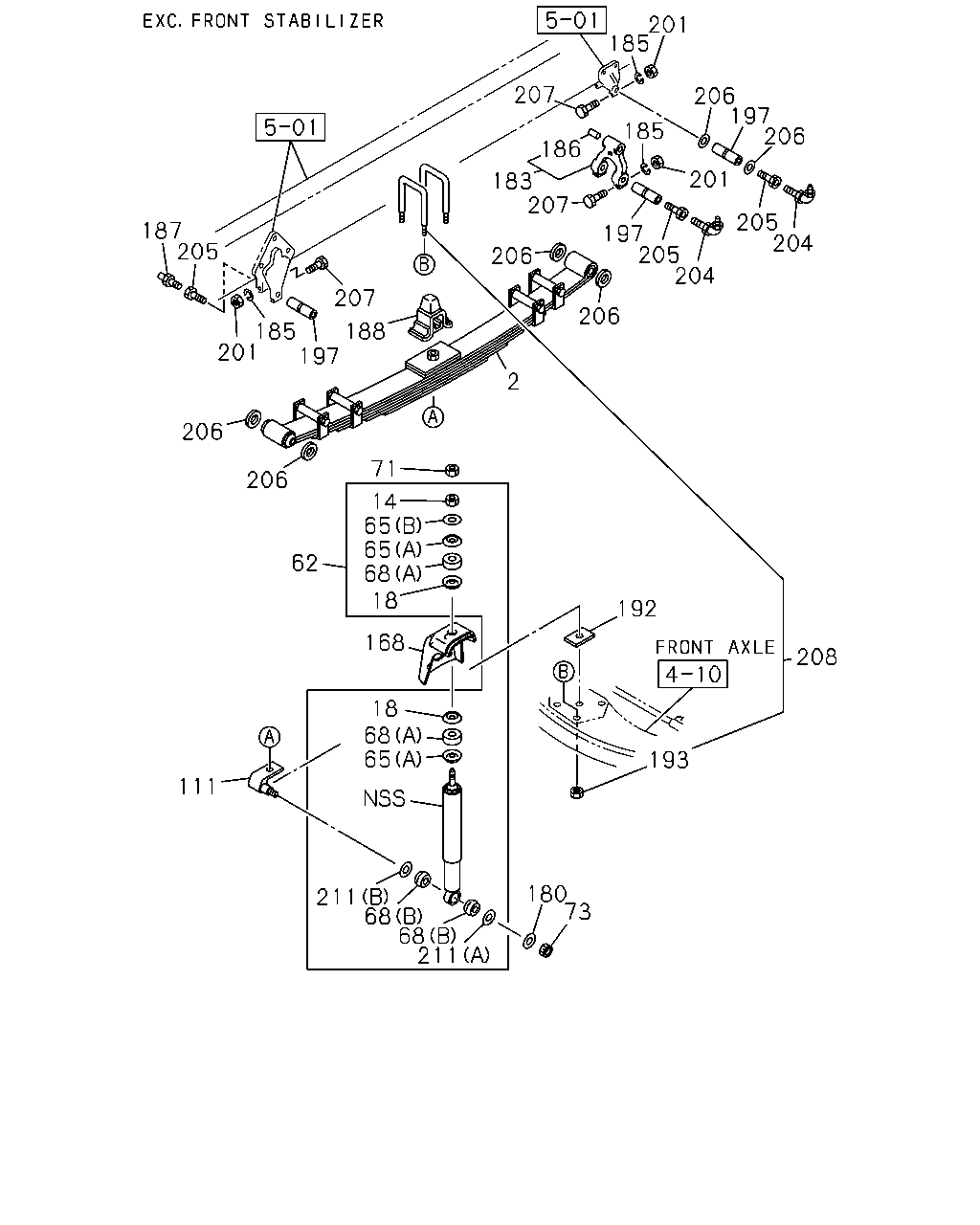

çizim 28991
201 185 207 206 197 206 185 186 201 183 207 205 204 187 205 197 205 204 206 207 206 185 188 201 197 2 206 71 206 14 65 65 68 18 62 192 168 208 18 68 65 193 111 180 73 211 68 68 211
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		1-51130-201-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51130-201-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9203-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51130-222-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9411-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9203-9406
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9203-9406
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9407-
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9203-9406
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9407-
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9203-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) (C) ID=23 		1-51631-019-0 02 1 9407-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9203-9406
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9203-9406
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) 		9-51631-026-0 04 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		9-51631-026-0 04 1 9407-
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9203-9406
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9203-9406
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9203-9406
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9203-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9203-
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9408-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9203-9406
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9407-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9203-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9203-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9203-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9203-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9203-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9203-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9203-
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9203-
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9203-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9203-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9203-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9203-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9203-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-118-3 04 1 9203-9307
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9308-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9203-9406
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9203-9406
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=21 		9-51631-028-0 02 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-028-0 02 1 9407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
