◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#14609) — 338 parça

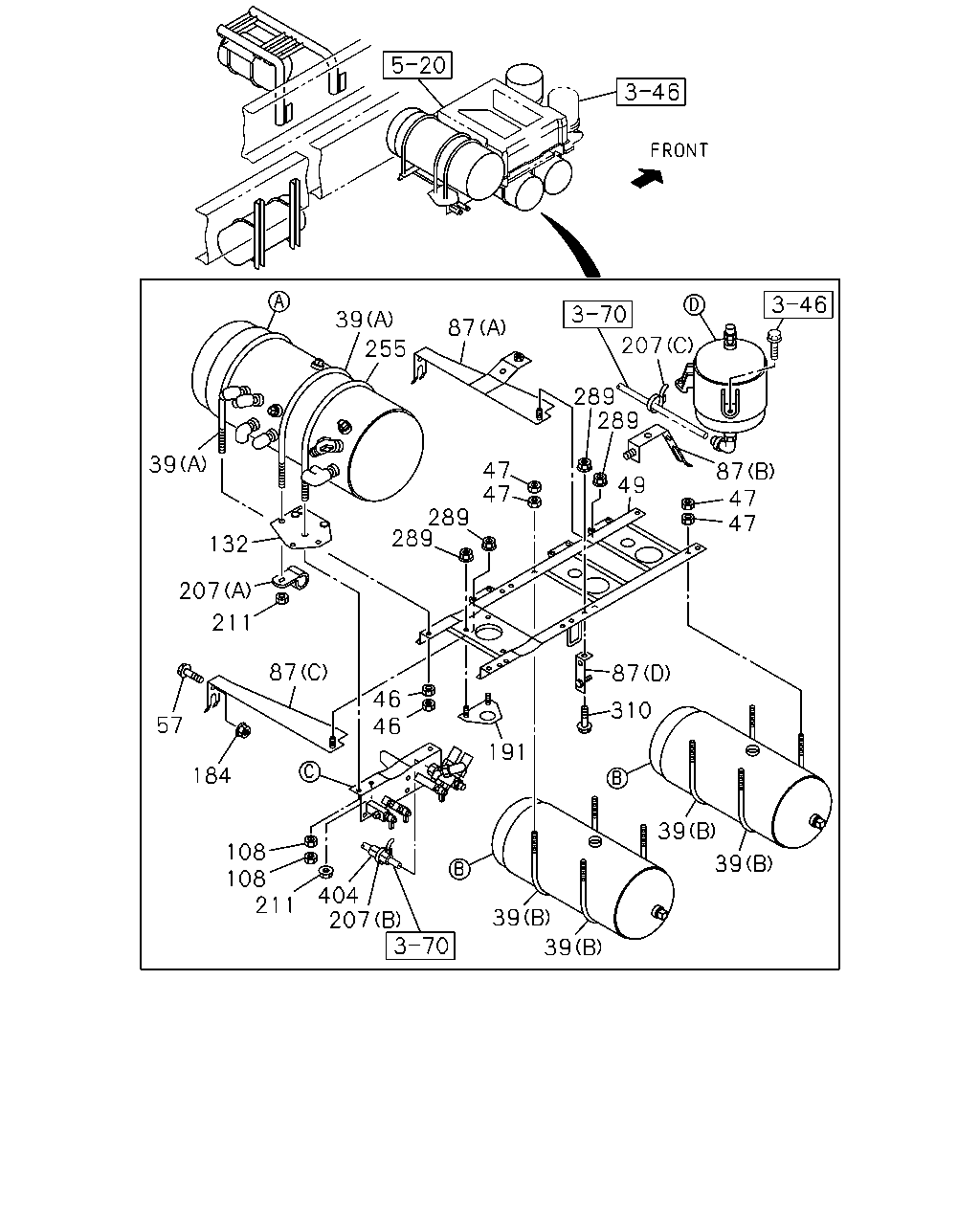

çizim 141557
39 87 207 255 289 289 39 47 47 87 47 47 49 289 289 132 207 211 87 87 46 46 310 57 191 184 39 108 108 211 39 404 207 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ●
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 0710-1005 ●
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1006- ● ●
49 BRACKET; AIR TANK 1-48316-065-1 01 1 0710-1005 ●
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1006- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0710-1005 ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1006- ● ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47471-189-0 02 1 0710-1005 ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47471-189-0 02 1 1006- ● ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 0710-1005 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1006- ● ●
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 0710-1005 ●
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1006- ● ●
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 0710-1005 ●
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 1006- ● ●
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 0710-1005 ●
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 1006- ● ●
132 BRACKET; STRING GUIDE 1-47471-204-0 01 1 0710-1005 ●
132 BRACKET; STRING GUIDE 1-47471-204-0 01 1 1006- ● ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
191 BRACKET; STOPPER,AIR TANK 1-48316-015-1 01 1 0710-1005 ●
191 BRACKET; STOPPER,AIR TANK 1-48316-015-1 01 1 1006- ● ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 14 1 0710-1005 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 14 1 1006- ● ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 0710-1005 ●
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1006- ● ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 0710-1005 ●
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1006- ● ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0710-1005 ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 1006- ● ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0710-1005 ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 1006- ● ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 05 1 0710-1005 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 05 1 1006- ● ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 01 1 0710-1005 ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 01 1 1006- ● ●
çizim 141561
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0710-1005 ●
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1006- ● ●

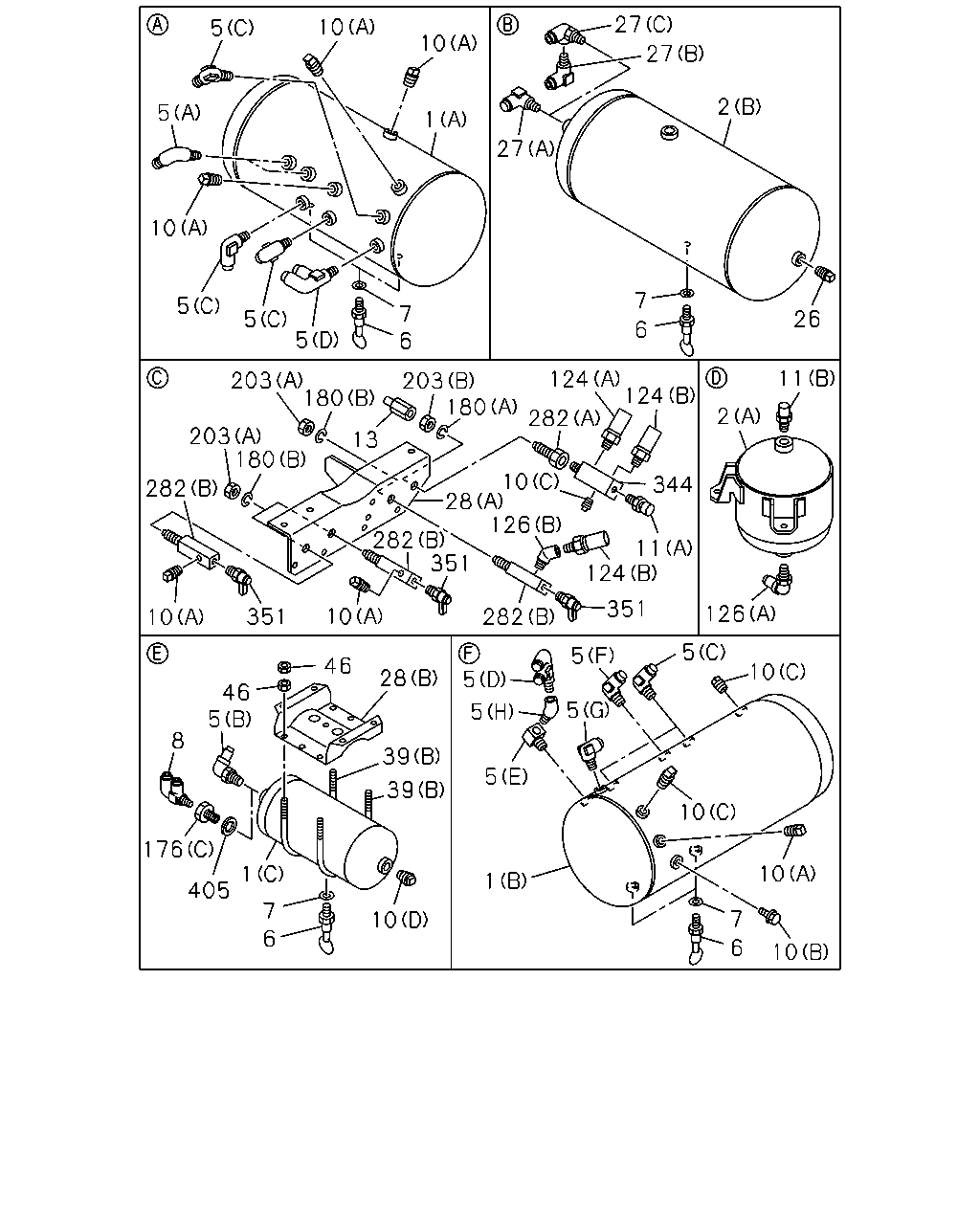

çizim 141568
27 10 5 10 27 2 5 1 27 10 7 5 7 6 26 5 5 6 11 124 124 203 180 203 180 2 282 203 180 13 282 351 10 28 126 344 282 11 124 351 126 10 351 282 10 5 5 5 46 10 28 46 5 5 5 8 5 39 10 176 10 1 1 405 7 6 7 10 6 10 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 0710-1005 ●
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1006- ● ●
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1006- ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 0710-1005 ●
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1006- ● ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 0710-1005 ●
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1006- ● ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 0710-1005 ●
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1006- ● ●
2 TANK; AIR
(B) 		1-48371-389-1 01 1 0710-0907 ●
2 TANK; AIR
(B) 		1-48371-389-1 01 1 0710-0907 ●
2 TANK; AIR
(B) 		1-48371-389-1 02 1 0908-1005 ●
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1006- ● ●
5 UNION; AIR TANK
(E) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(E) PT3/8 ELBOW 		1-09660-696-0 01 1 1006- ● ●
5 UNION; AIR TANK
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1006- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-1005 ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1006- ● ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-1005 ●
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1006- ● ●
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1006- ● ●
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1006- ● ●
5 UNION; AIR TANK
(G) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(G) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1006- ● ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1006- ● ●
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 0710-1005 ●
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 1006- ● ●
5 UNION; AIR TANK
(H) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0710-1005 ●
5 UNION; AIR TANK
(H) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 1006- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0710-0810 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 03 1 0811-0907 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0908-1005 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 04 1 1006- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 0710-1005 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 02 1 1006- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 04 1 0710-0810 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0811-0907 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0811-0907 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 04 1 0908-1005 ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1006- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 1006- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0810 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0811-0907 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0908-1005 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1006- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0710-1005 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1006- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0710-0810 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0811-0907 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0811-0907 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0908-1005 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1006- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1006- ●
8 CONNECTOR; AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1006- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 1006- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0909-1005 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1006- ● ●
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 0710-1005 ●
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 1006- ● ●
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 02 1 0710-1005 ●
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 02 1 1006- ● ●
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 01 1 0710-1005 ●
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 01 1 1006- ● ●
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 0710-1005 ●
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 1006- ● ●
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 1006- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 0710-1005 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 02 1 0710-0907 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0908-0908 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 02 1 0909- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1006- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0710-0907 ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0710-1005 ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1006- ● ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0710-1005 ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1006- ● ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0710-1005 ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1006- ● ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 01 1 0710-0907 ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 01 1 0710-0907 ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 0908-1005 ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1006- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-1005 ●
27 UNION; ELBOW,AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1006- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0710-1005 ●
27 UNION; ELBOW,AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 1006- ● ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 1006- ● ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1006- ● ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1006- ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 1006- ● ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 1006- ●
28 BRACKET; AIR TANK
(C) 		8-98085-690-0 02 1 0710-1005 ●
28 BRACKET; AIR TANK
(C) 		8-98085-690-0 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ●
124 SWITCH; AIR PRESSURE
(B) STAMP 5.5 		8-97609-249-0 02 1 1006- ●
124 SWITCH; AIR PRESSURE
(A) STAMP 6.5 		8-97609-252-0 01 1 1006- ●
124 SWITCH; AIR PRESSURE
(B) 		1-48340-065-0 02 1 0710- ●
124 SWITCH; AIR PRESSURE
(A) 		1-48340-066-0 01 1 0710- ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0710-1005 ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1006- ● ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0710-1005 ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 1006- ● ●
176 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1006- ● ●
176 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1006- ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0710-1005 ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1006- ● ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0710-1005 ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1006- ● ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0710-1005 ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 1006- ● ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 0710-1005 ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 1006- ● ●
203 NUT
(B) M16 		0-91110-516-0 01 1 0710-1005 ●
203 NUT
(B) M16 		0-91110-516-0 01 1 1006- ● ●
203 NUT
(A) M18 		0-91110-518-0 03 1 0710-1005 ●
203 NUT
(A) M18 		0-91110-518-0 03 1 1006- ● ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0710-1005 ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 1006- ● ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0710-1005 ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 1006- ● ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0710-1005 ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1006- ● ●
351 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 0710- ●
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1006- ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0710-1005 ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0710-1005 ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1006- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1006- ● ●

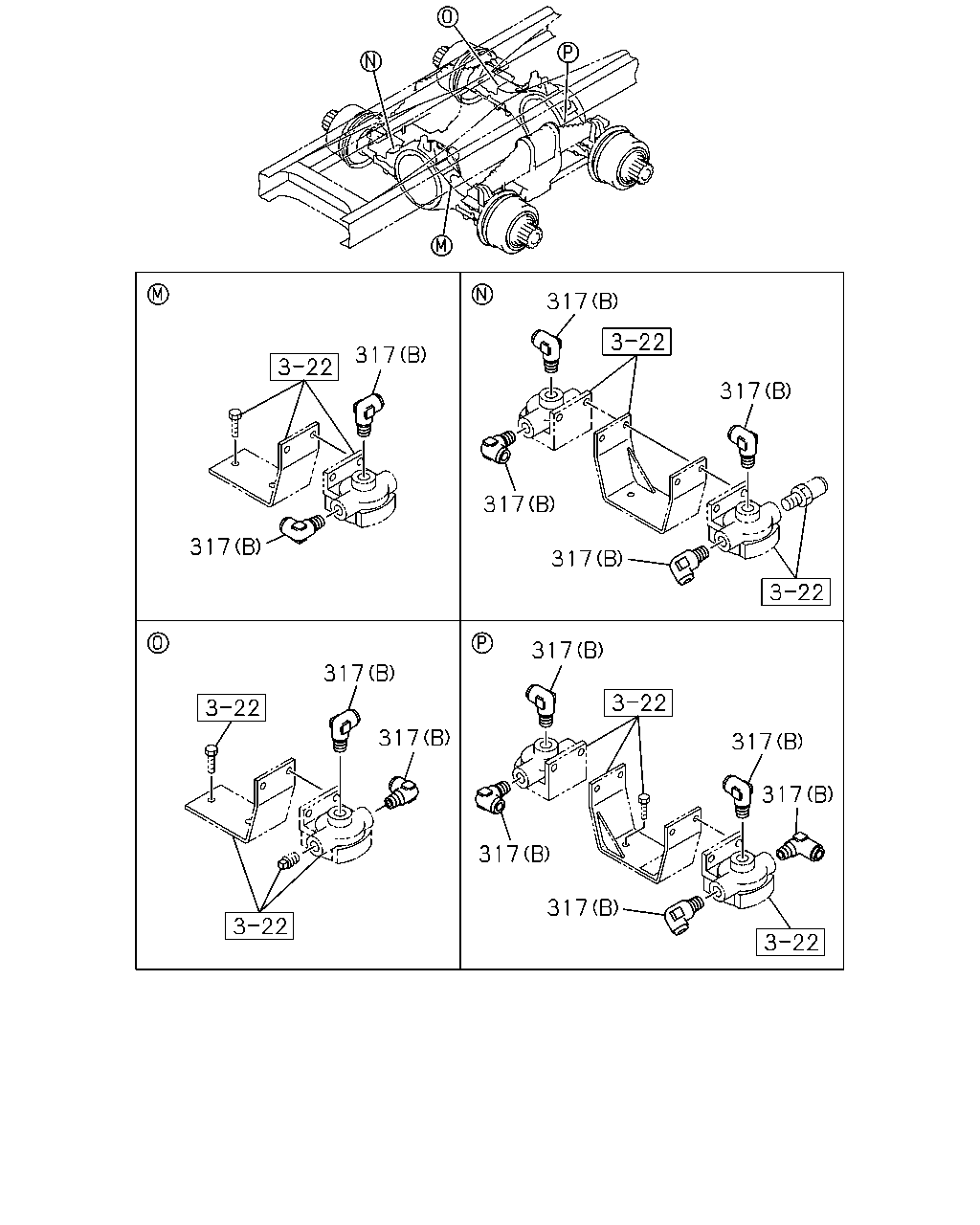

çizim 141573
317 317 317 317 317 317 317 317 317 317 317 317 317
BalonParca AdiParca NoAdetTipApplied Date A B
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ● ●

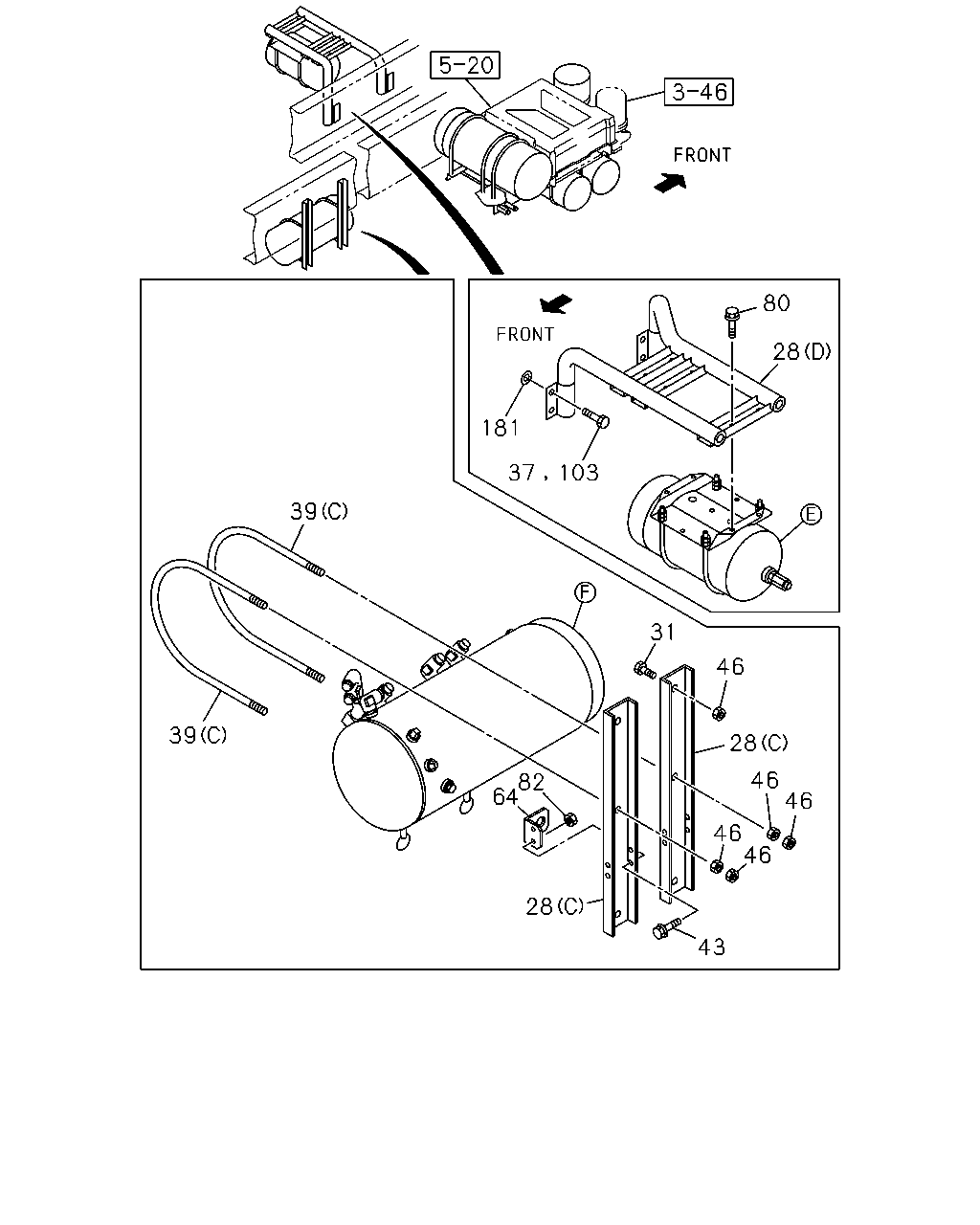

çizim 141575
80 28 181 37 103 39 31 46 39 28 46 46 82 64 46 46 28 43
BalonParca AdiParca NoAdetTipApplied Date A B
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 1006- ● ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1006- ● ●
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1006- ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 0710-1005 ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 1006- ● ●
28 BRACKET; AIR TANK
(D) 		1-48317-985-1 01 1 1006- ●
28 BRACKET; AIR TANK
(C) 		8-98085-690-0 02 1 0710-1005 ●
28 BRACKET; AIR TANK
(C) 		8-98085-690-0 02 1 1006- ● ●
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 04 1 0710-1005 ●
31 BOLT; BRKT TO FRAME
M12X40 FLANGE 		0-28651-240-0 04 1 1006- ● ●
37 BOLT; AIR TANK
M14X35 		0-20851-435-0 04 1 1006- ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 0710-1005 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1006- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 0710-1005 ●
39 U-BOLT; AIR TANK
(C) 		1-48317-675-0 02 1 1006- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
43 BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-1005 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1006- ●
64 STAY; AIR TANK,MAIN 8-98075-305-0 01 1 0710-1005 ●
64 STAY; AIR TANK,MAIN 8-98075-305-0 01 1 1006- ● ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0710-1005 ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1006- ● ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1006- ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
103 BOLT; BRKT
M14X35 		0-20851-435-0 04 1 0710-1005 ●
103 BOLT; BRKT
M14X35 		0-20851-435-0 04 1 1006- ● ●
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 0710-1005 ●
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1006- ● ●
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1006- ●

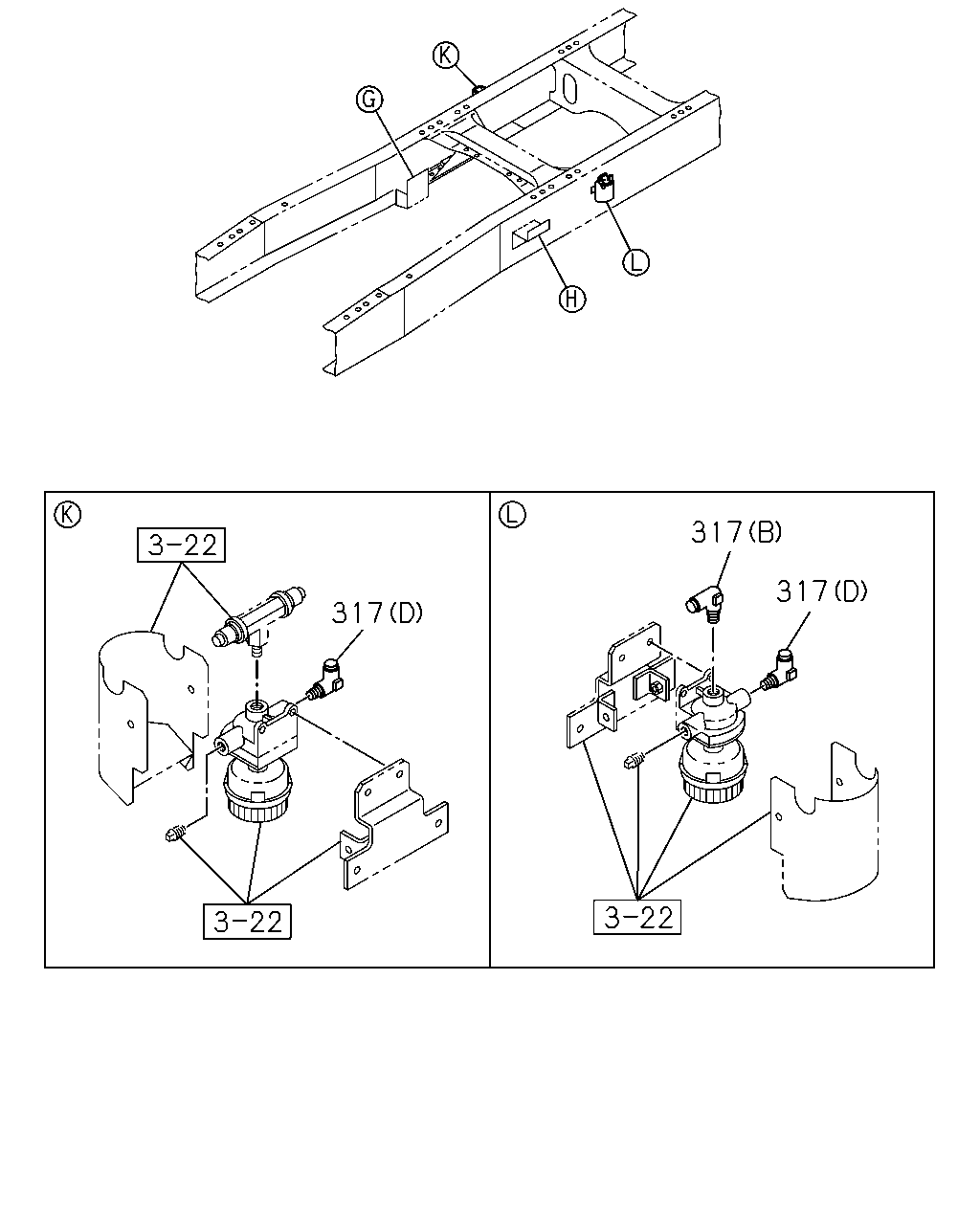

çizim 141657
317 317 317
BalonParca AdiParca NoAdetTipApplied Date A B
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ● ●

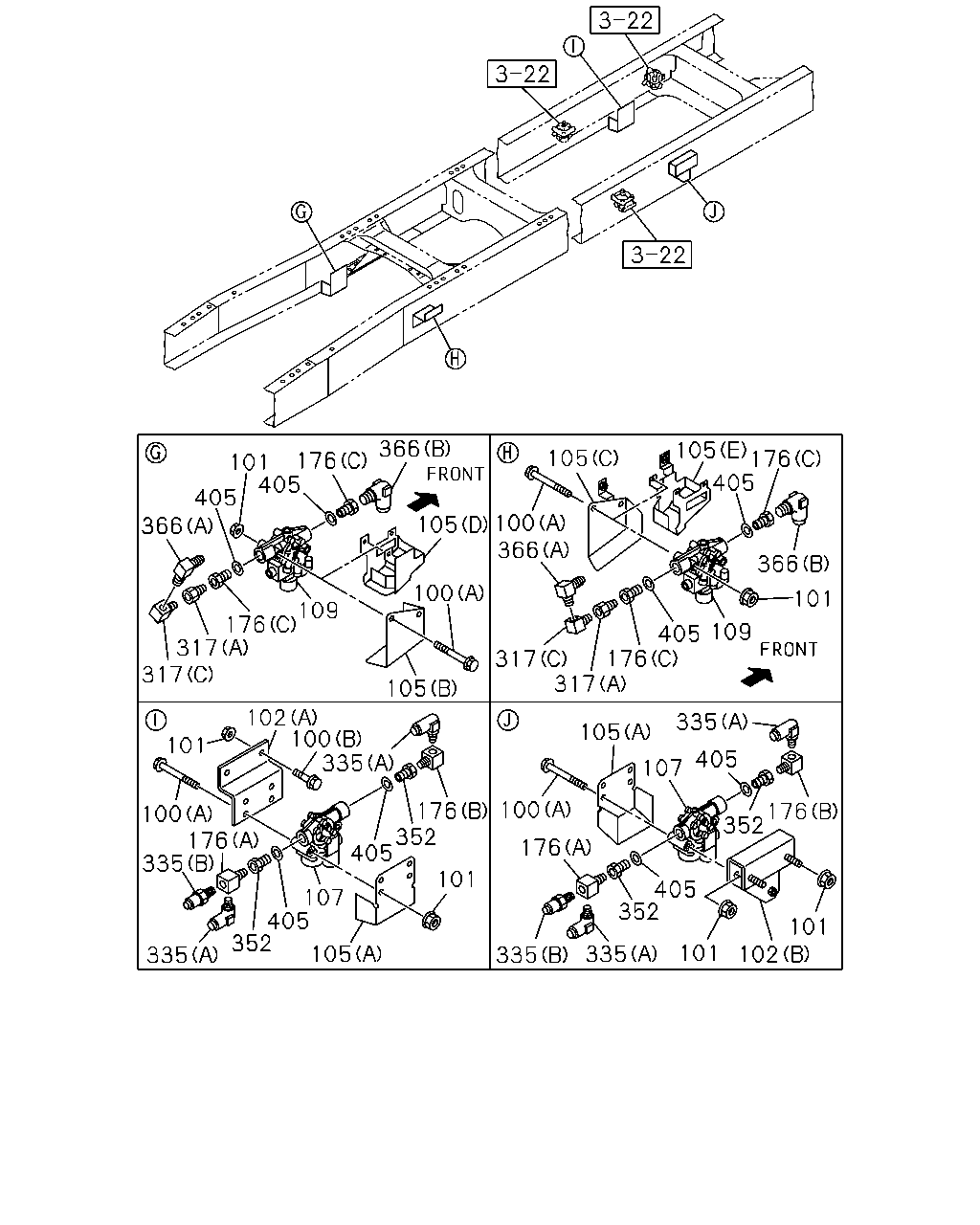

çizim 141682
101 176 366 105 100 105 176 317 317 366 405 109 405 105 05 176 00 366 176 317 317 405 109 101 366 105 335 05 107 352 100 76 405 176 352 101 335 335 101 102 102 100 335 176 352 101 107 105 405 176 100 335 335 352 405 101 405
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505- ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1005 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1005 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1006-1504 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1006-1504 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1505- ● ●
100 BOLT; MODULATOR
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710-1005 ●
100 BOLT; MODULATOR
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1006- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 0710-1005 ●
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 1006-1504 ● ●
102 BRACKET; MODULATOR
(A) 		8-98300-018-0 01 1 1505- ● ●
102 BRACKET; MODULATOR
(B) 		8-98043-398-0 01 1 0710-1005 ●
102 BRACKET; MODULATOR
(B) 		8-98043-398-0 01 1 1006-1504 ● ●
102 BRACKET; MODULATOR
(B) 		8-98300-022-0 01 1 1505- ● ●
105 COVER; MODULATOR
(A) 		8-98302-925-0 01 1 1505- ● ●
105 COVER; MODULATOR
(A) 		1-47471-354-0 02 1 0710-1005 ●
105 COVER; MODULATOR
(A) 		1-47471-354-0 02 1 1006-1504 ● ●
105 COVER; MODULATOR
(A) 		8-98302-924-0 01 1 1505- ● ●
105 COVER; MODULATOR
(B) 		8-98081-578-0 01 1 0710-1005 ●
105 COVER; MODULATOR
(B) 		8-98081-578-0 01 1 1006-1504 ● ●
105 COVER; MODULATOR
(D) 		8-98300-151-0 01 1 1505- ● ●
105 COVER; MODULATOR
(C) 		8-98081-826-0 01 1 0710-1005 ●
105 COVER; MODULATOR
(C) 		8-98081-826-0 01 1 1006-1504 ● ●
105 COVER; MODULATOR
(E) 		8-98300-153-0 01 1 1505- ● ●
107 MODULATOR; RR 1-48240-115-0 02 1 0710-1005 ●
107 MODULATOR; RR 1-48240-115-0 02 1 1006-1504 ● ●
107 MODULATOR; RR 8-98215-454-0 02 1 1505- ● ●
109 MODULATOR; FRT 1-48240-115-0 02 1 0710-1005 ●
109 MODULATOR; FRT 1-48240-115-0 02 1 1006-1504 ● ●
109 MODULATOR; FRT 8-98215-454-0 02 1 1505- ● ●
176 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1006- ● ●
176 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1006- ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0710-1005 ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1006- ● ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0710-1005 ●
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(A) PT3/8 		1-09664-210-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(D) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(C) PT3/8 ELBOW 		1-09660-696-0 02 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 13 1 1006- ● ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005 ●
317 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1006- ● ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710-1005 ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1006- ● ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710-1005 ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1006- ● ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710-1005 ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1006- ● ●
366 CONNECTOR; NYLON TUBE
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 0710-1005 ●
366 CONNECTOR; NYLON TUBE
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1006- ● ●
366 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-1005 ●
366 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1006- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1006- ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0710-1005 ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0710-1005 ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1006- ● ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
