◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#14605) — 77 parça

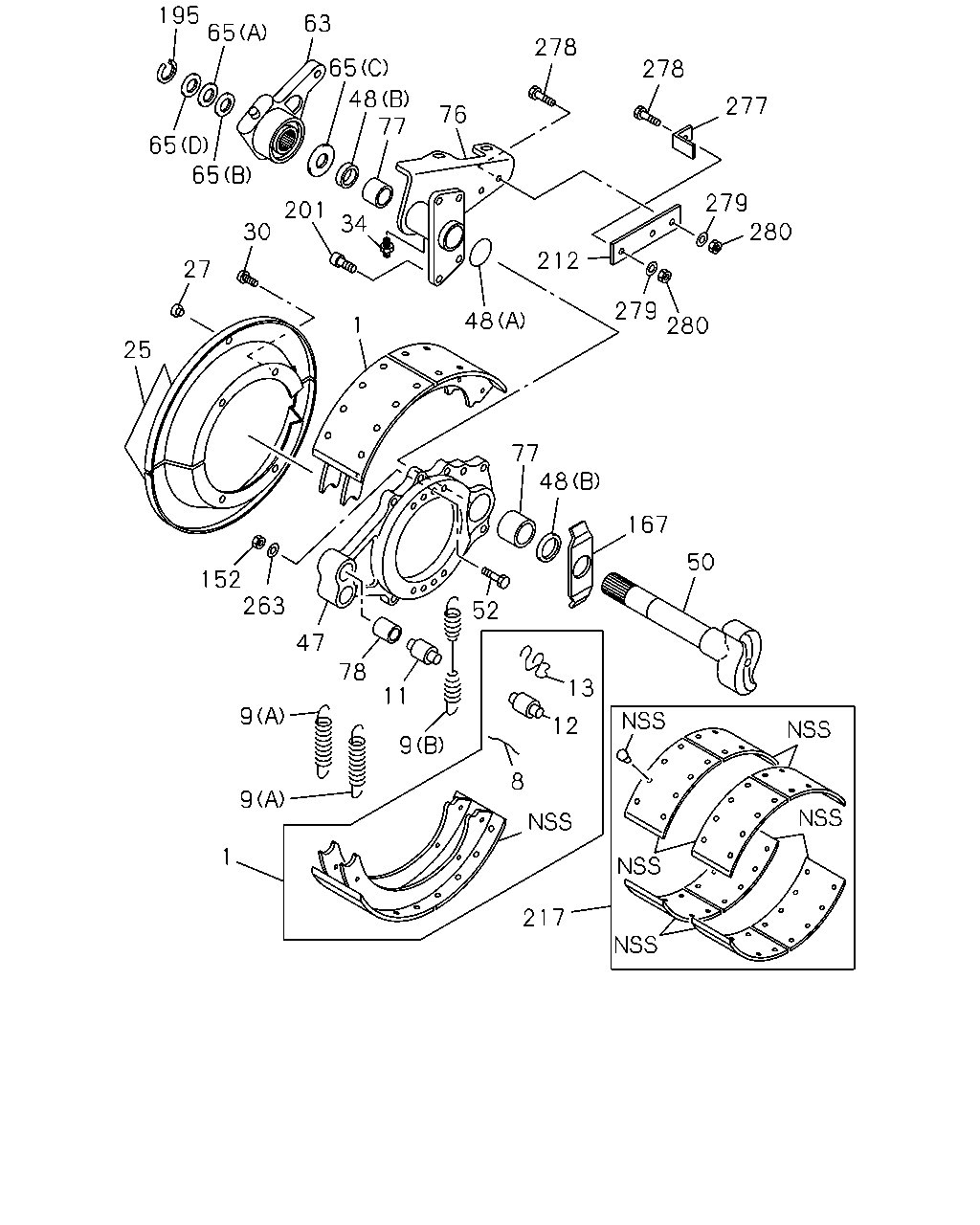

çizim 141674
195 65 63 278 65 278 48 77 277 76 65 65 279 280 201 34 30 212 27 279 280 48 1 25 77 48 167 50 152 263 52 47 78 13 11 9 12 9 8 9 1 217
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-734-0 08 1 0710-1005 ●
1 SHOE; BRK,RR 1-47120-734-0 08 1 1006- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 08 1 0710-1005 ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 08 1 1006- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 08 1 0710-1005 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 08 1 1006- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 04 1 0710-1005 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 04 1 1006- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 08 1 0710-1005 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 08 1 1006- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 08 1 0710-1005 ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 08 1 1006- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 08 1 0710-1005 ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 08 1 1006- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 04 1 0710-1005 ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 04 1 1006- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 08 1 0710-1005 ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 08 1 1006- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 24 1 0710-1005 ●
30 BOLT; DRUM COVER 1-47159-176-0 24 1 1006- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 04 1 0710-1005 ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 04 1 1006- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 04 1 0710-1005 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 04 1 1006- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 04 1 0710-1005 ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 04 1 1006- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 0710-1005 ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 1006- ● ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 02 1 0710-1005 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 02 1 1006- ● ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 02 1 0710-1005 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 02 1 1006- ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 32 1 0710-1005 ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 32 1 1006- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 04 1 0710-1005 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 04 1 1006- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 04 1 0710-1005 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 04 1 1006- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 04 1 0710-1005 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 04 1 1006- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 0710-1005 ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 1006- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 04 1 0710-1005 ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 04 1 1006- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 0710-1005 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 1006- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 0710-1005 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 1006- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 0710-1005 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 1006- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 0710-1005 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 1006- ● ●
77 BUSHING 1-47146-012-0 08 1 0710-1005 ●
77 BUSHING 1-47146-012-0 08 1 1006- ● ●
78 BUSHING; BRKT 1-47139-117-0 08 1 0710-1005 ●
78 BUSHING; BRKT 1-47139-117-0 08 1 1006- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 32 1 0710-1005 ●
152 NUT; ANCHOR BRKT 1-41229-169-0 32 1 1006- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 04 1 0710-1005 ●
167 WASHER; ADJ CAM 1-47149-077-0 04 1 1006- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 04 1 0710-1005 ●
195 RING; SNAP,CM/SHF 1-87050-005-0 04 1 1006- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 16 1 0710-1005 ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 16 1 1006- ● ●
212 STAY 1-47149-081-0 04 1 0710-1005 ●
212 STAY 1-47149-081-0 04 1 1006- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 02 1 0710-1005 ●
217 LINING KIT; RR BRK 1-87050-157-0 02 1 1006- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 32 1 0710-1005 ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 32 1 1006- ● ●
277 SUPPORT; BRKT 1-47149-084-0 04 1 0710-1005 ●
278 BOLT; SUPPORT 1-41329-038-0 12 1 0710-1005 ●
278 BOLT; SUPPORT 1-41329-038-0 12 1 1006- ● ●
279 WASHER; SUPPORT 1-47149-083-0 12 1 0710-1005 ●
279 WASHER; SUPPORT 1-47149-083-0 12 1 1006- ● ●
280 NUT; SUPPORT 1-47149-082-0 12 1 0710-1005 ●
280 NUT; SUPPORT 1-47149-082-0 12 1 1006- ● ●
