2-53 — TRANSMISSION OIL COOLER SYSTEM (#14601) — 71 parça

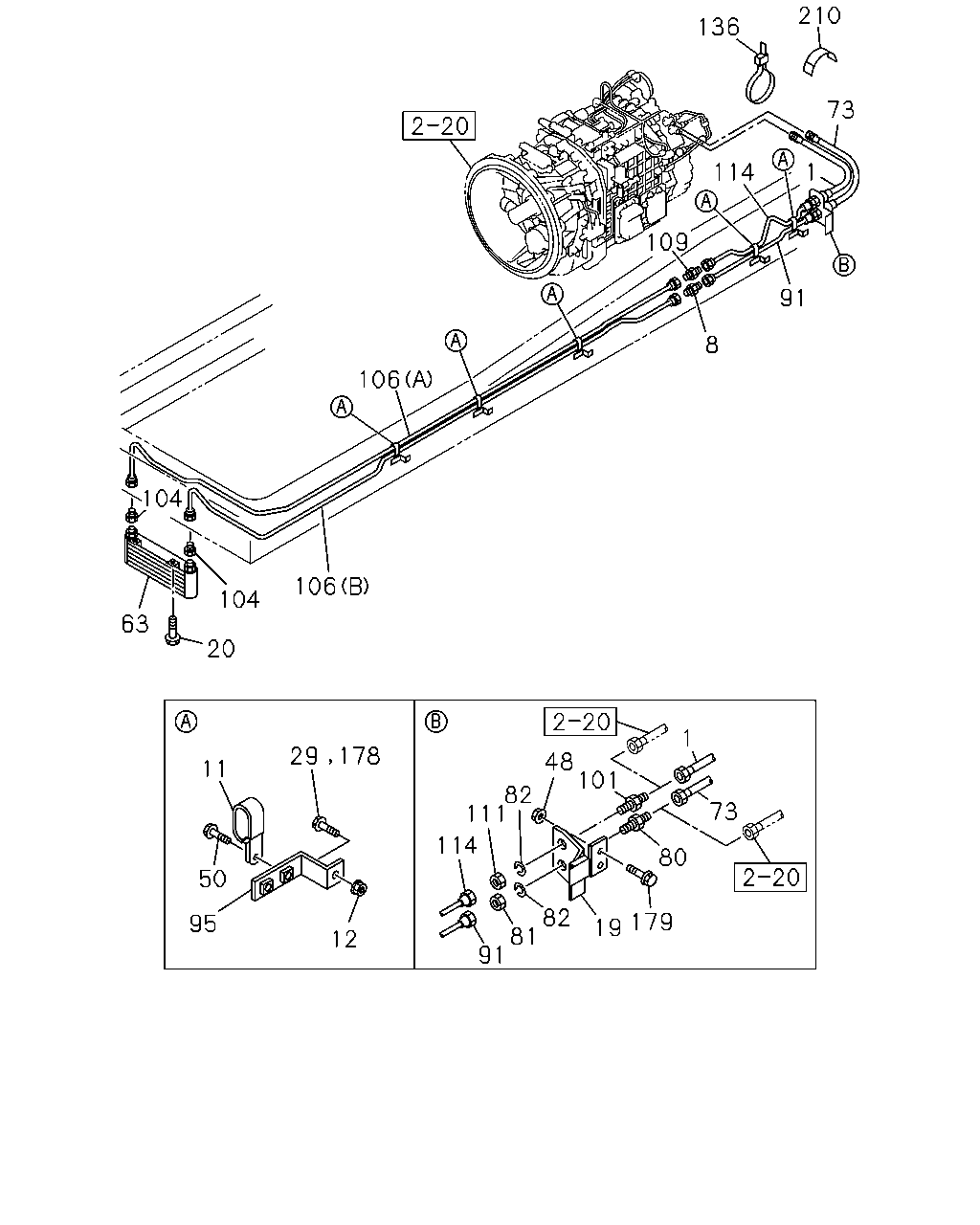

çizim 141565
210 136 73 1 114 109 91 8 106 104 106 104 63 20 1 29 178 48 101 11 82 111 73 114 80 50 82 81 91 179 95 19 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
MJX12P M/T SMOOTHER-G(Y4S) L=570 		1-09365-236-0 01 1 0710- ●
8 UNION
M22 L=51 		0-92123-015-0 01 1 0710-1005 ●
8 UNION
M22 L=51 		0-92123-015-0 01 1 1006- ● ●
11 CLIP; PIPE
ID=16X2 L=20 		0-95325-535-0 05 1 0710-1005 ●
11 CLIP; PIPE
ID=16X2 L=20 		0-95325-535-0 05 1 1006- ● ●
11 CLIP; PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-1005 ●
11 CLIP; PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1006- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0710-1005 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1006- ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98096-507-0 01 1 0710-1005 ●
19 BRACKET; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98096-507-0 01 1 1006- ●
19 BRACKET; FLEX HOSE 8-98096-507-0 01 1 1006- ●
19 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) 		1-47479-561-1 01 1 0710- ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0710-1005 ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 1006- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-1005 ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1006- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1006- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0710-1005 ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 1006- ● ●
63 COOLER; OIL
MJX M/T<Y9N> 		1-21700-394-0 01 1 0710-1405 ●
63 COOLER; OIL
MJX M/T<Y9N> 		8-98269-766-0 01 1 1406- ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-21700-395-0 01 1 0710-1005 ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-21700-395-1 01 1 1006- ● ●
73 HOSE; FLEX,TRANS
MJX12P M/T SMOOTHER-G(Y4S) L=550 		1-09365-231-0 01 1 0710- ●
80 UNION; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
80 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710-1005 ●
80 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 1006- ● ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0710-1005 ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 1006- ● ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710-1005 ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1006- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
MJX12P M/T SMOOTHER-G(Y4S) L=931 		8-98055-844-0 01 1 0710- ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) L=922 		8-98085-845-0 01 1 0710-1005 ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) L=922 		8-98085-845-0 01 1 1006- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=922 		8-98085-845-0 01 1 1006- ●
95 BRACKET; CLIP 1-47479-482-0 05 1 0710-1005 ●
95 BRACKET; CLIP 1-47479-482-0 05 1 1006- ● ●
101 UNION; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
101 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710-1005 ●
101 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 1006- ● ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0710-1005 ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 1006-1008 ● ●
104 CONNECTOR; COOLER
MJX12P M/T SMOOTHER-G(Y4S) 		1-09654-398-0 02 1 1009- ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1763 		8-98166-285-0 01 1 1009- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=2345 		8-98166-286-0 01 1 1009- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1750 		8-98096-141-0 01 1 0710-1005 ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1750 		8-98096-141-0 01 1 1006-1008 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
MJX12P M/T SMOOTHER-G(Y4S) (B) L=1750 		8-98096-141-0 01 1 1009- ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2344 		8-98056-487-0 01 1 0710-1005 ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2344 		8-98056-487-0 01 1 1006-1008 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
MJX12P M/T SMOOTHER-G(Y4S) (A) L=2344 		8-98056-487-0 01 1 1009- ●
109 UNION
M22 L=51 		0-92123-015-0 01 1 0710-1005 ●
109 UNION
M22 L=51 		0-92123-015-0 01 1 1006- ● ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0710-1005 ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 1006- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) L=858 		8-98067-363-0 01 1 0710- ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=841 		8-98085-846-0 01 1 0710-1005 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO189 18(Y4W) L=841 		8-98085-846-0 01 1 1006- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=841 		8-98085-846-0 01 1 1006- ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0710-1005 ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 1006- ● ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710-1005 ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1006- ● ●
