Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#14598) — 333 parça

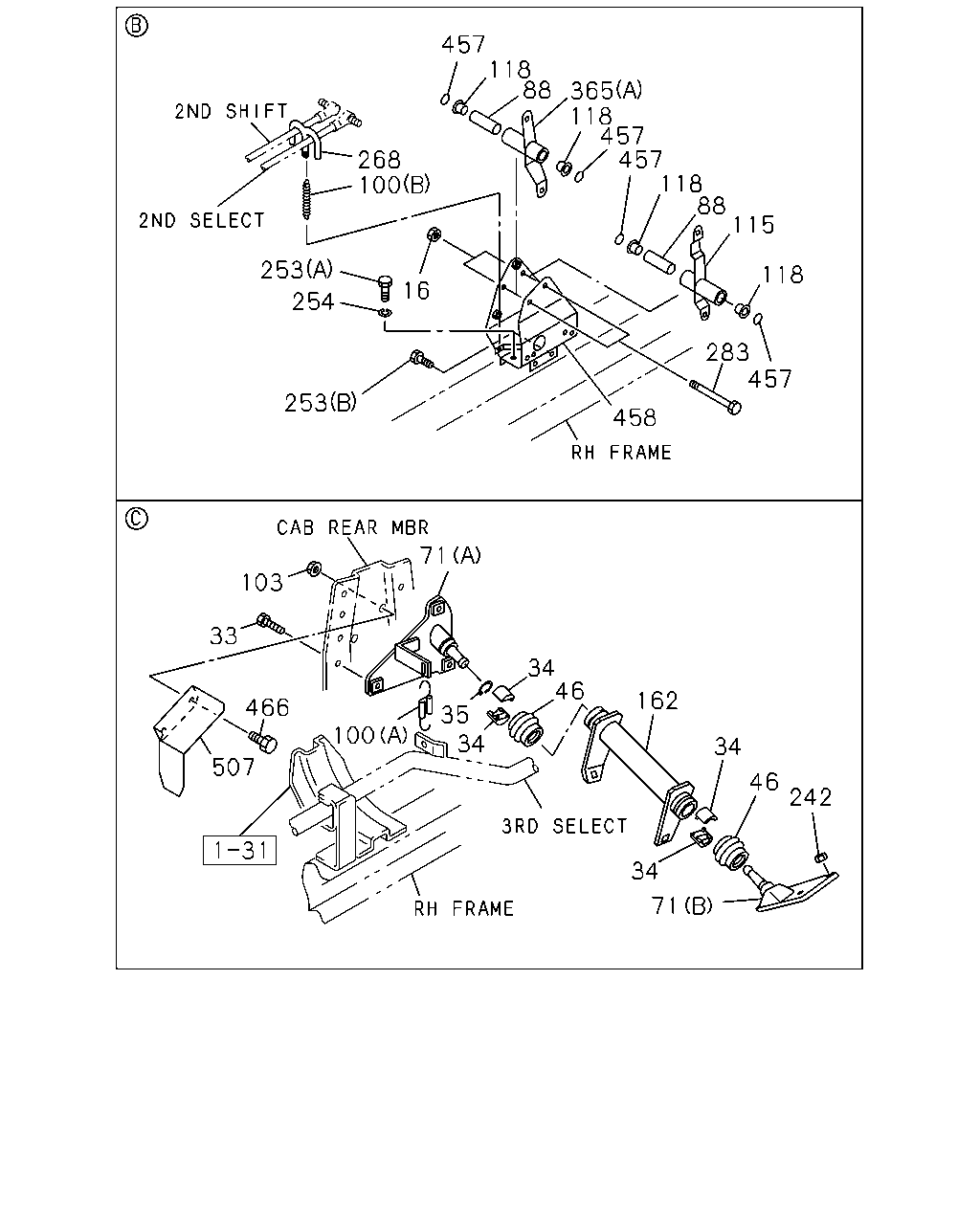

457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	0710-1005	●
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	1006-	●
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	1006-		●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28651-030-0	03	1	0710-1003	●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1004-1005	●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1006-	●
33	BOLT; BRKT,3RD RELAY LEVER M10X35 FLANGE	0-28651-035-0	03	1	1006-		●
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	0710-1005	●
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	1006-	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	1006-		●
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	0710-1005	●
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	1006-	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	1006-		●
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	0710-1005	●
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	1006-	●
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	1006-		●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	0710-1005	●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	1006-	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	1006-		●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	0710-1005	●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	1006-	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	1006-		●
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	0710-1005	●
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	1006-	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	1006-		●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	0710-1005	●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	1006-	●
100	SPRING (A)	1-09583-319-0	01	1	1006-		●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	0710-1005	●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	1006-	●
100	SPRING (B)	1-09583-351-0	01	1	1006-		●
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	1006-	●
103	NUT M8 FLANGE	0-91180-108-0	01	1	1006-		●
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	0710-1005	●
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	1006-	●
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	1006-		●
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	0710-1005	●
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	1006-	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	1006-		●
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	0710-1005	●
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	1006-	●
162	LEVER; RELAY	1-33651-625-1	01	1	1006-		●
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	0710-1005	●
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	1006-	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1006-		●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	0710-1005	●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	1006-	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	1006-		●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28651-025-0	02	1	0710-1005	●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28651-025-0	02	1	1006-	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28651-025-0	02	1	1006-		●
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	0710-1005	●
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	1006-	●
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	1006-		●
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	0710-1005	●
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	1006-	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	1006-		●
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	0710-1005	●
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	1006-	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1006-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	1006-	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1006-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	1006-	●
365	LEVER; RELAY,SELECT (B)	1-33651-822-3	01	1	1006-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	1006-	●
365	LEVER; RELAY,SELECT (C)	1-33651-823-3	01	1	1006-		●
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-594-0	04	1	0710-1005	●
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-594-0	04	1	1006-	●
457	GASKET	1-09623-594-0	04	1	1006-		●
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	0710-1005	●
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	1006-	●
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	1006-		●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0712	●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0801-1005	●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	1006-	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	01	1	1006-		●
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	8-98096-654-1	01	1	0710-1005	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	8-98096-654-1	01	1	1006-	●
507	PROTECTOR; HEAT	8-98096-654-1	01	1	1006-		●

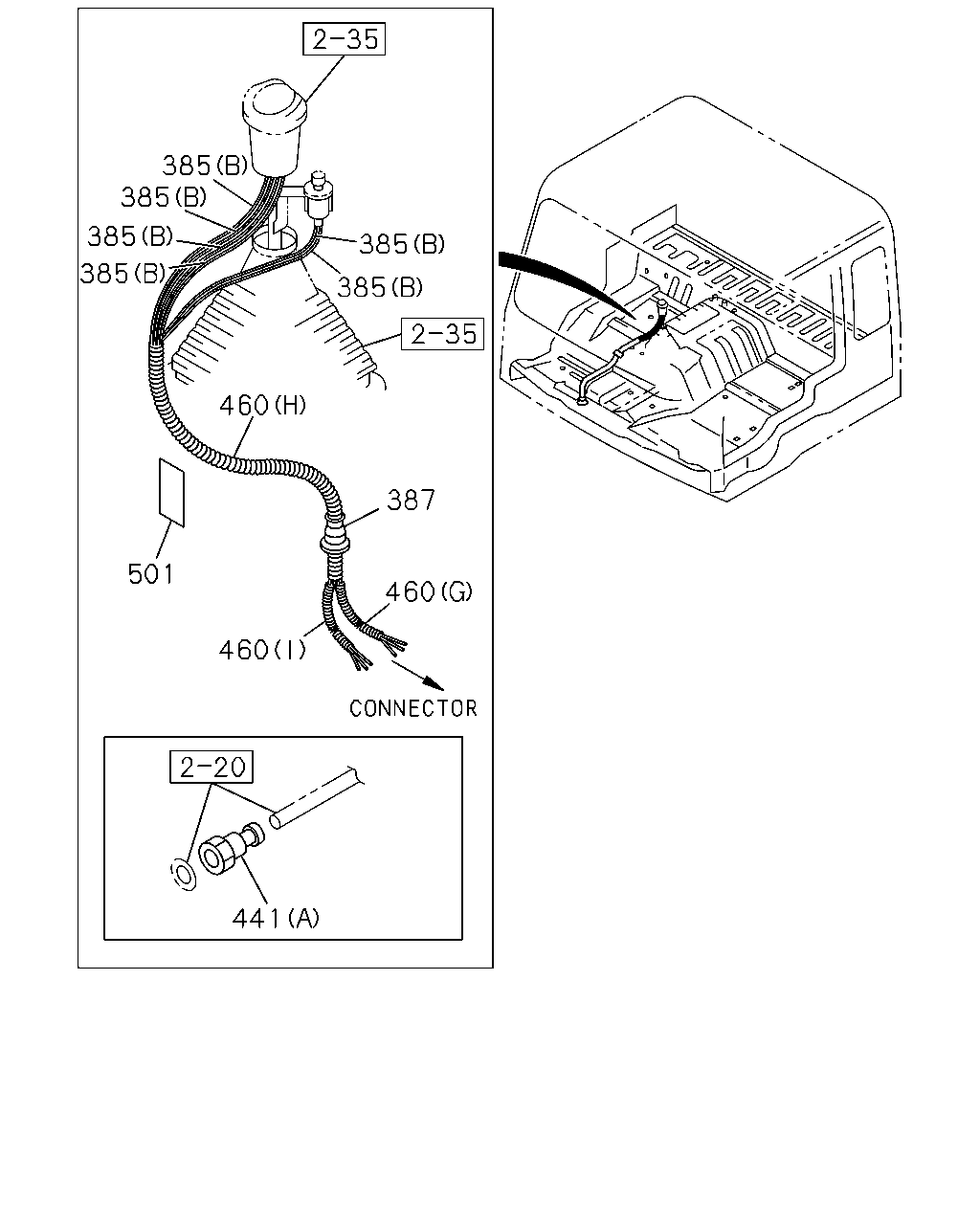

385 385 385 385 385 385 460 387 501 460 460 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
385	TUBE; NYLON (A) L=2700 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	1006-		●
385	TUBE; NYLON (A) L=3490 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	1006-		●
385	TUBE; NYLON (B) L=1760 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	1006-		●
385	TUBE; NYLON (B) L=1760 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1108-		●
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0710-1005	●
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	1006-	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	1006-		●
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1006-		●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1005	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1006-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	04	1	0710-0804	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	04	1	0805-	●
460	TUBE; CORRUGATE (D) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-		●
460	TUBE; CORRUGATE (A) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	1006-		●
460	TUBE; CORRUGATE (B) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	1006-	●
460	TUBE; CORRUGATE (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	1006-	●
460	TUBE; CORRUGATE (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	1006-	●
460	TUBE; CORRUGATE (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	1006-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-	●
460	TUBE; CORRUGATE (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-	●
460	TUBE; CORRUGATE (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1108-	●
460	TUBE; CORRUGATE (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1108-		●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0710-1005	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	1006-	●
501	SEAL; HARNESS PROTECTOR 180X40	1-72498-019-1	04	1	1006-		●

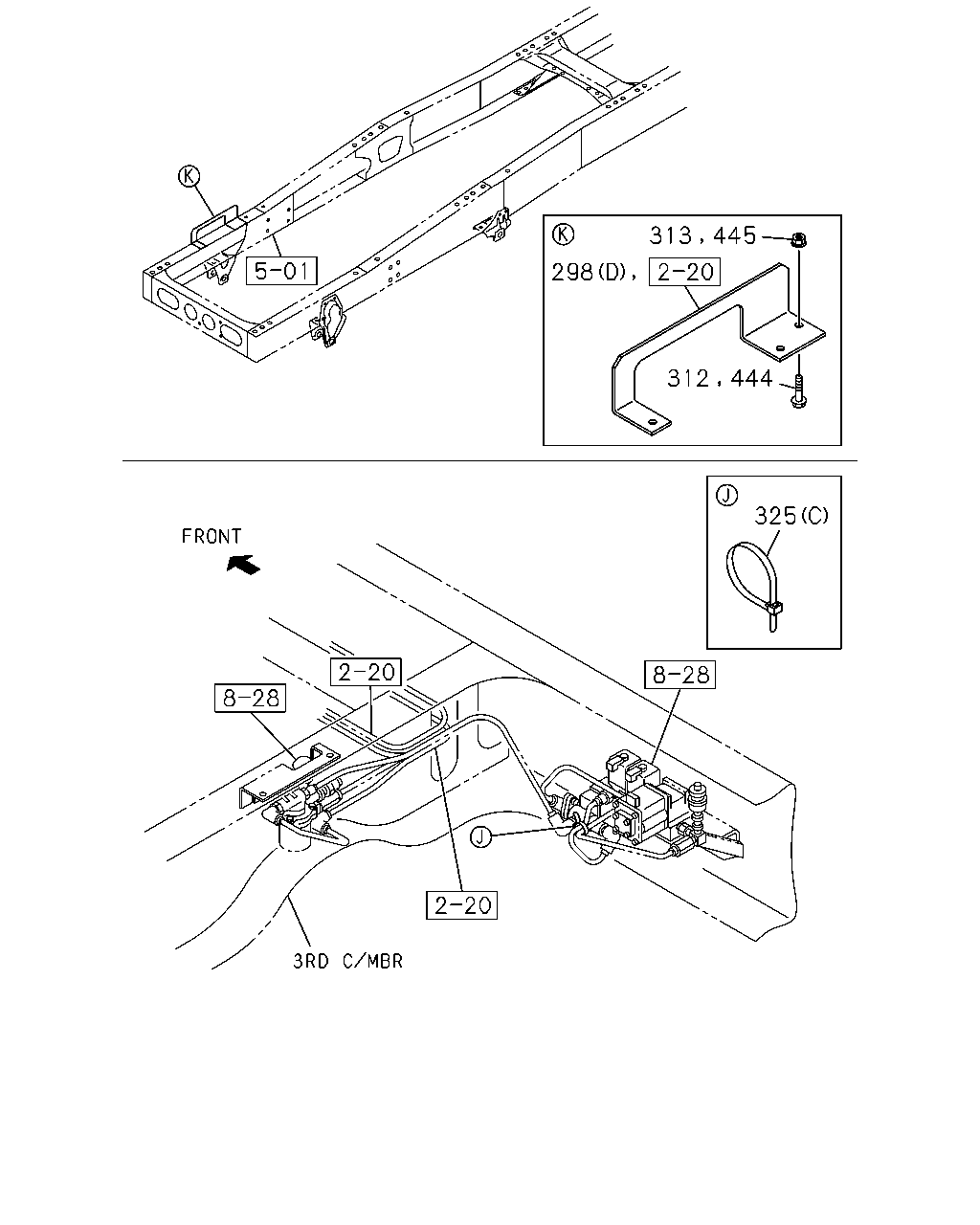

298 325 313 445 312 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
298	BRACKET MJX12P M/T SMOOTHER-G(Y4S) (D)	8-98085-703-1	01	1	0710-0803	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	1006-	●	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	1006-	●	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	1006-	●	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0710-0803	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0804-1005	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	1006-	●	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0804-1005	●
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1006-	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1006-		●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	01	1	0710-	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-1005	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	1006-	●
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1006-		●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-1005	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	1006-	●	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	03	1	0804-	●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
445	NUT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0804-	●

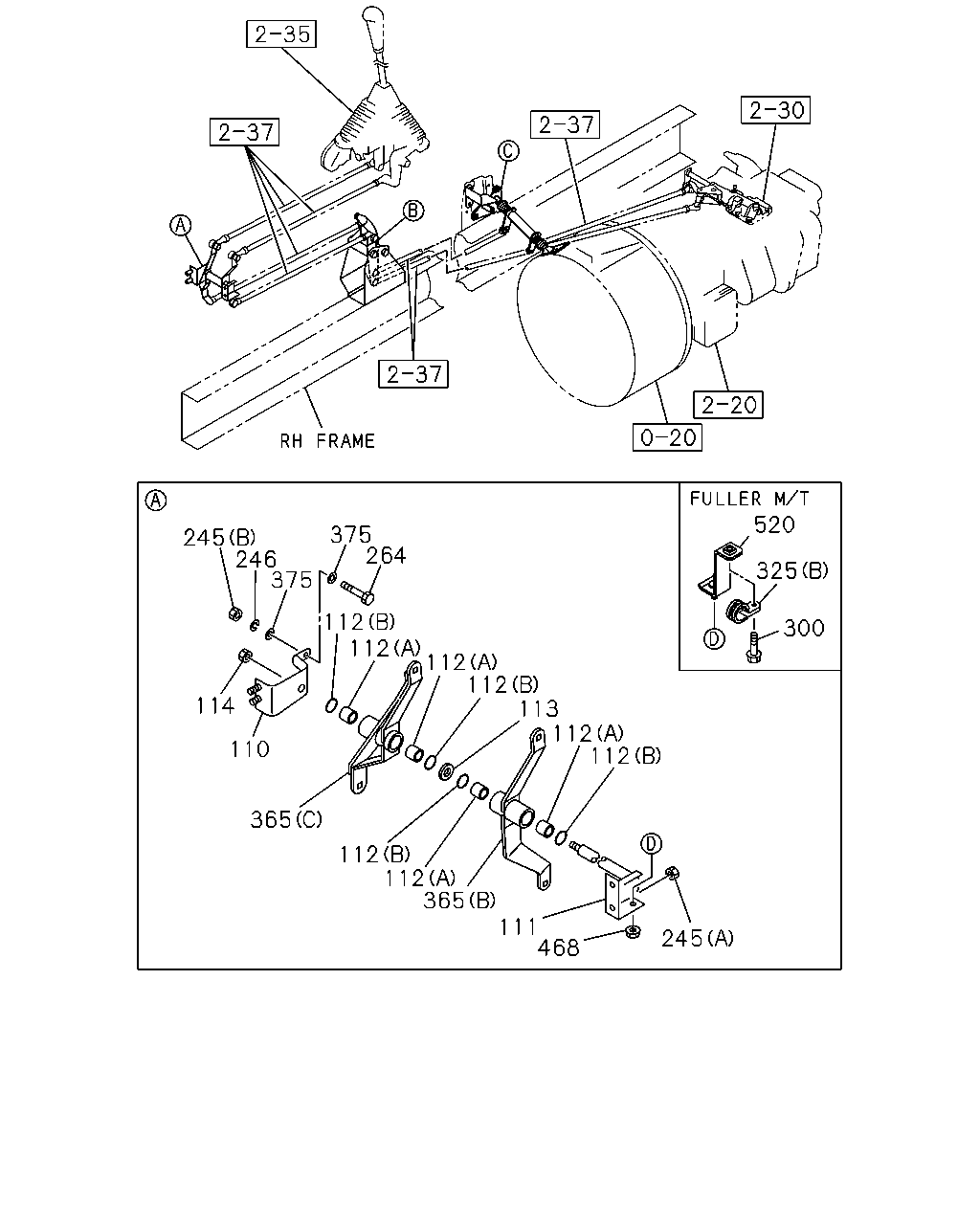

520 375 264 245 246 375 325 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0710-1005	●
110	BRACKET; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	1006-	●
110	BRACKET; RELAY LEVER,1ST	1-33657-839-1	01	1	1006-		●
111	SHAFT; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0710-1005	●
111	SHAFT; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	1006-	●
111	SHAFT; RELAY LEVER,1ST	1-33619-777-2	01	1	1006-		●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	0710-1005	●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	1006-	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	1006-		●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	0710-1005	●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	1006-	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	1006-		●
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	0710-1005	●
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	1006-	●
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	1006-		●
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	0710-1005	●
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	1006-	●
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	1006-		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	1006-1304	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	1006-1304		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-110-0	02	1	1305-	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-110-0	02	1	1305-		●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	0710-1005	●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	1006-	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	1006-		●
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	0710-1005	●
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	1006-	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	1006-		●
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	0710-1005	●
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	1006-	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	1006-		●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904	●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-1005	●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1006-	●
300	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1006-		●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	01	1	0710-	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-1005	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	1006-	●
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1006-		●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-1005	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	1006-	●	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	1006-	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1006-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	1006-	●
365	LEVER; RELAY,SELECT (B)	1-33651-822-3	01	1	1006-		●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-1005	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	1006-	●
365	LEVER; RELAY,SELECT (C)	1-33651-823-3	01	1	1006-		●
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0710-1005	●
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1006-	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1006-		●
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-1005	●
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1006-	●
468	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1006-		●
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	0710-1005	●
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	1006-	●
520	BRACKET; NYLON TUBE	1-79996-628-0	01	1	1006-		●

460 386 386 386 386 386 385 441 298 298 315 385 441 312 308 325 315 444 308 460 385 460 313 385 298 308 385 460 385 312 460 460 460 315 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
298	BRACKET MJX12P M/T SMOOTHER-G(Y4S) (D)	8-98085-703-1	01	1	0710-0803	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	1006-	●	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	1006-	●	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	0710-1005	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	1006-	●	●
308	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1006-		●
308	CLIP; PIPE (B) ID=19 H=70 L=25	1-09700-773-0	01	1	1006-		●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=16 L=20	0-95235-536-0	01	1	0710-	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28	0-95235-856-0	01	1	0710-1005	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28	0-95235-856-0	01	1	1006-	●	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0710-	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0710-0803	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0804-1005	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	1006-	●	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0804-1005	●
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1006-	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1006-		●
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0710-1005	●
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	1006-	●	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	01	1	0710-	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-1005	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	1006-	●
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1006-		●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-1005	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	1006-	●	●
385	TUBE; NYLON (A) L=2700 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	1006-		●
385	TUBE; NYLON (A) L=3490 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	1006-		●
385	TUBE; NYLON (B) L=1760 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	1006-		●
385	TUBE; NYLON (B) L=1760 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-		●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-1005	●
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-	●
385	TUBE; NYLON (B) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	1108-		●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-1005	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1006-1107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1108-	●
385	TUBE; NYLON (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	1108-		●
386	CLIP; CONT CABLE & TUBE L=350	1-09707-183-0	07	1	1006-		●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) L=350	1-09707-183-0	05	1	0710-	●
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1006-		●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1005	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1006-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	04	1	0710-0804	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	04	1	0805-	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	03	1	0804-	●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
460	TUBE; CORRUGATE (D) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-		●
460	TUBE; CORRUGATE (A) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	1006-		●
460	TUBE; CORRUGATE (B) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	1006-	●
460	TUBE; CORRUGATE (I) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	1006-	●
460	TUBE; CORRUGATE (G) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	1006-		●
460	TUBE; CORRUGATE FULLER M/T<X9B> (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	0710-1005	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	1006-	●
460	TUBE; CORRUGATE (H) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	1006-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-	●
460	TUBE; CORRUGATE (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-	●
460	TUBE; CORRUGATE (F) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1108-		●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-1005	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1006-1107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1108-	●
460	TUBE; CORRUGATE (E) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1108-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
