2-20A — MANUAL TRANSMISSION ASM AND CASE (#14588) — 133 parça

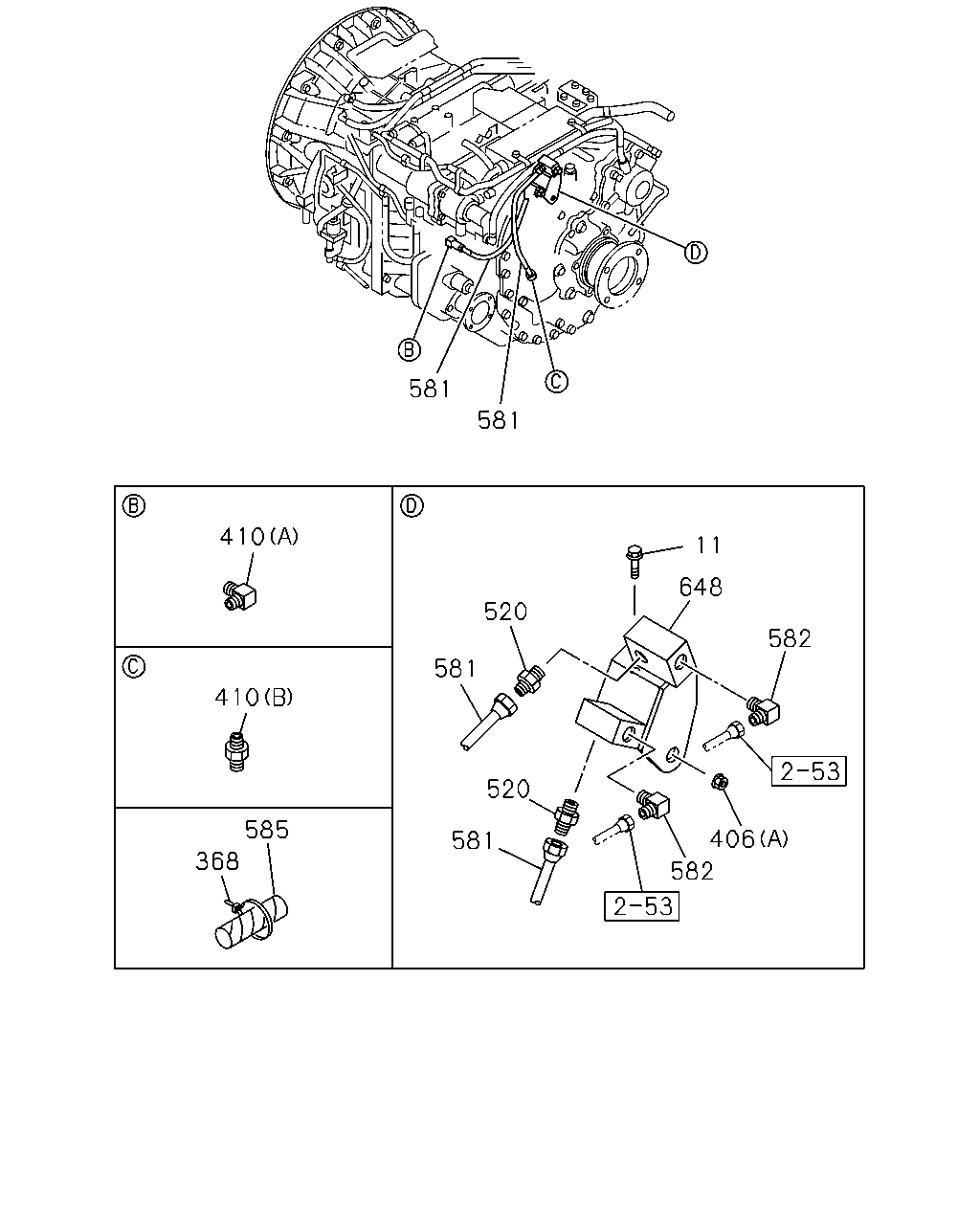

çizim 141518
581 581 410 11 648 520 582 581 410 520 585 406 581 368 582
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 01 1 0710-
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 0710-
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 0710-
520 CONNECTOR
R1/4 & M16 		0-92306-008-0 02 1 0710-
581 HOSE; OIL COOLER
L=370 		8-98065-298-0 02 1 0710-
582 NIPPLE; ELBOW
R3/8 & M22 ELBOW 		1-09660-612-1 02 1 0710-
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710-
648 UNION ASM 1-47470-670-0 01 1 0710-

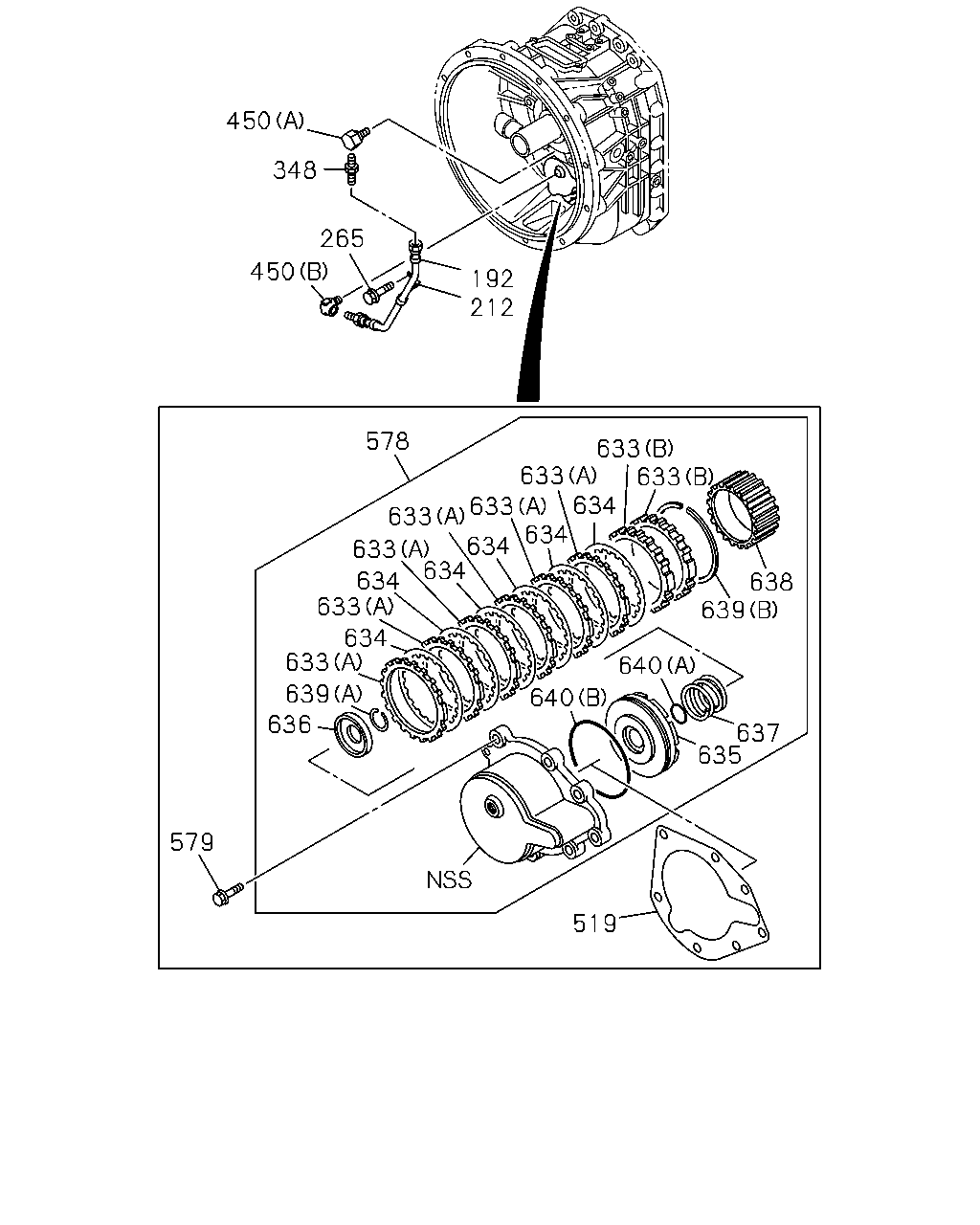

çizim 141523
450 348 265 450 192 212 578 633 633 633 633 634 634 634 634 633 633 634 633 638 639 634 633 640 639 640 636 637 635 579 519
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 0710-
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 0710-
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0710-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 0710-
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 0710-
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
519 GASKET; SHAFT 1-34142-034-0 01 1 0710-
578 BRAKE; COUNTER SHAFT 1-33316-005-1 01 1 0710-
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 0710-
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 02 1 0710-
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 0710-
635 PISTON; BRAKE
T=4.90 		1-33319-230-0 01 1 0710-
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 0710-
637 SPRING; BRAKE 1-33319-215-0 01 1 0710-
638 HUB; BRAKE 1-33319-220-0 01 1 0710-
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 0710-
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 0710-
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 0710-
640 GASKET; BRAKE
(B) 		1-33319-219-0 01 1 0710-

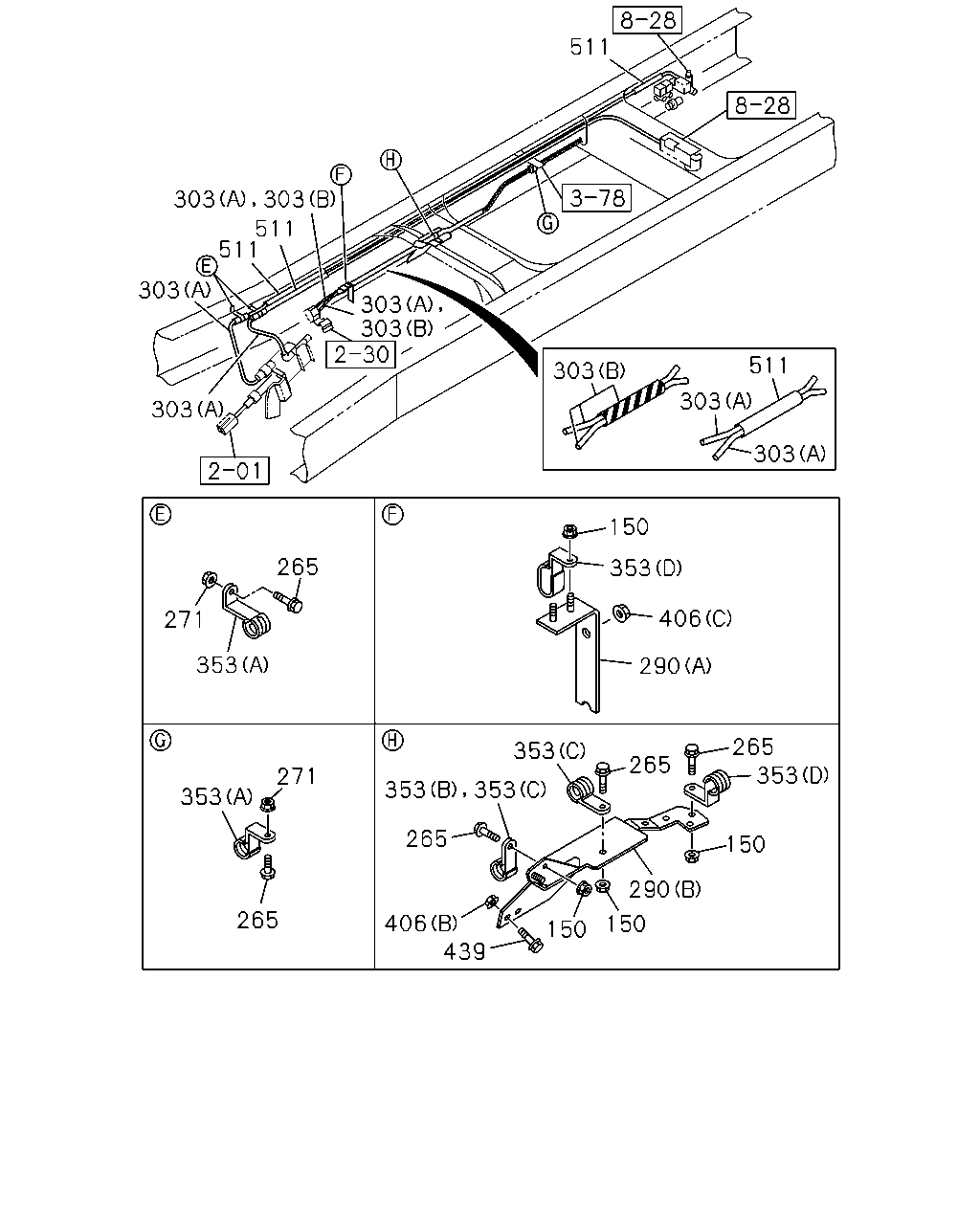

çizim 141526
511 303 511 511 303 303 303 511 303 303 303 303 150 265 353 406 271 353 290 265 353 265 353 271 353 265 150 290 265 406 439 150 150 303 353 353
BalonParca AdiParca NoAdetTipApplied Date
150 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-0805
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0710-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0805
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0806-
290 BRACKET; CLIP
(A) 		8-97611-316-1 01 1 0710-
290 BRACKET; CLIP
(B) 		8-98095-618-0 01 1 0710-0805
290 BRACKET; CLIP
(B) 		8-98119-208-0 01 1 0806-
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-98095-620-0 01 1 0710-0805
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-98119-287-0 01 1 0806-
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0710-
303 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 03 1 0710-
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0710-
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0710-
353 CLIP; NYLON TUBE
(D) ID=19 L=24 H=21 		1-09700-109-1 02 1 0710-0805
353 CLIP; NYLON TUBE
(D) ID=20 H=23 L=27 		1-09700-861-0 02 1 0806-
353 CLIP; NYLON TUBE
(C) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (C) ID=19 L=32 		1-09701-235-0 01 1 0710-0805
353 CLIP; NYLON TUBE
(C) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (C) ID=21 L=24 		8-94176-807-1 01 1 0806-
353 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (B) ID=27 L=26 		8-98096-216-0 01 1 0710-
353 CLIP; NYLON TUBE
(A) ID=16 L=50 H=25 		1-09700-838-0 02 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
439 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
511 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0710-0805
511 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0806-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0710-

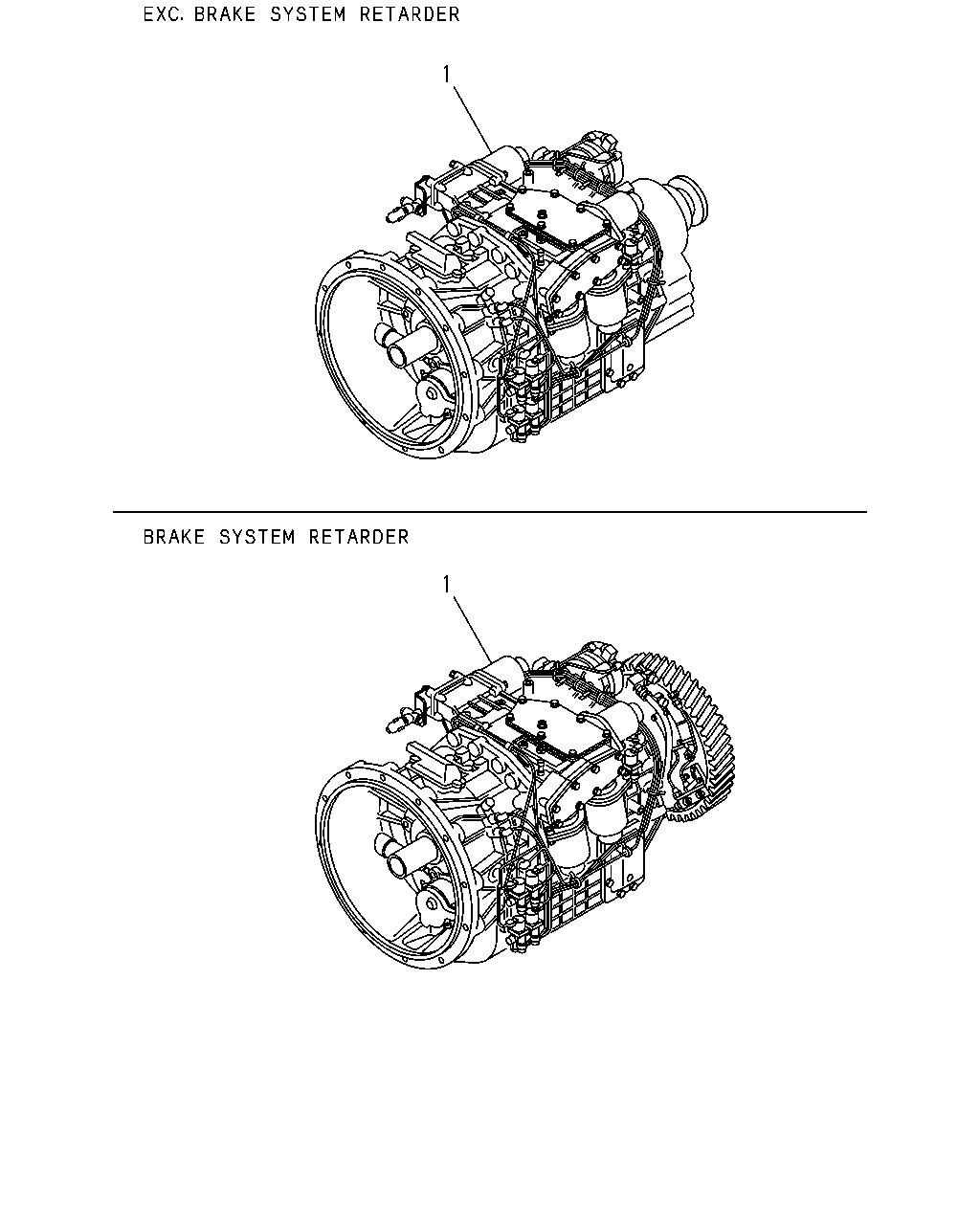

çizim 141527
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33044-064-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> 		1-33044-064-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33044-062-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> 		1-33044-062-0 01 1 0710-

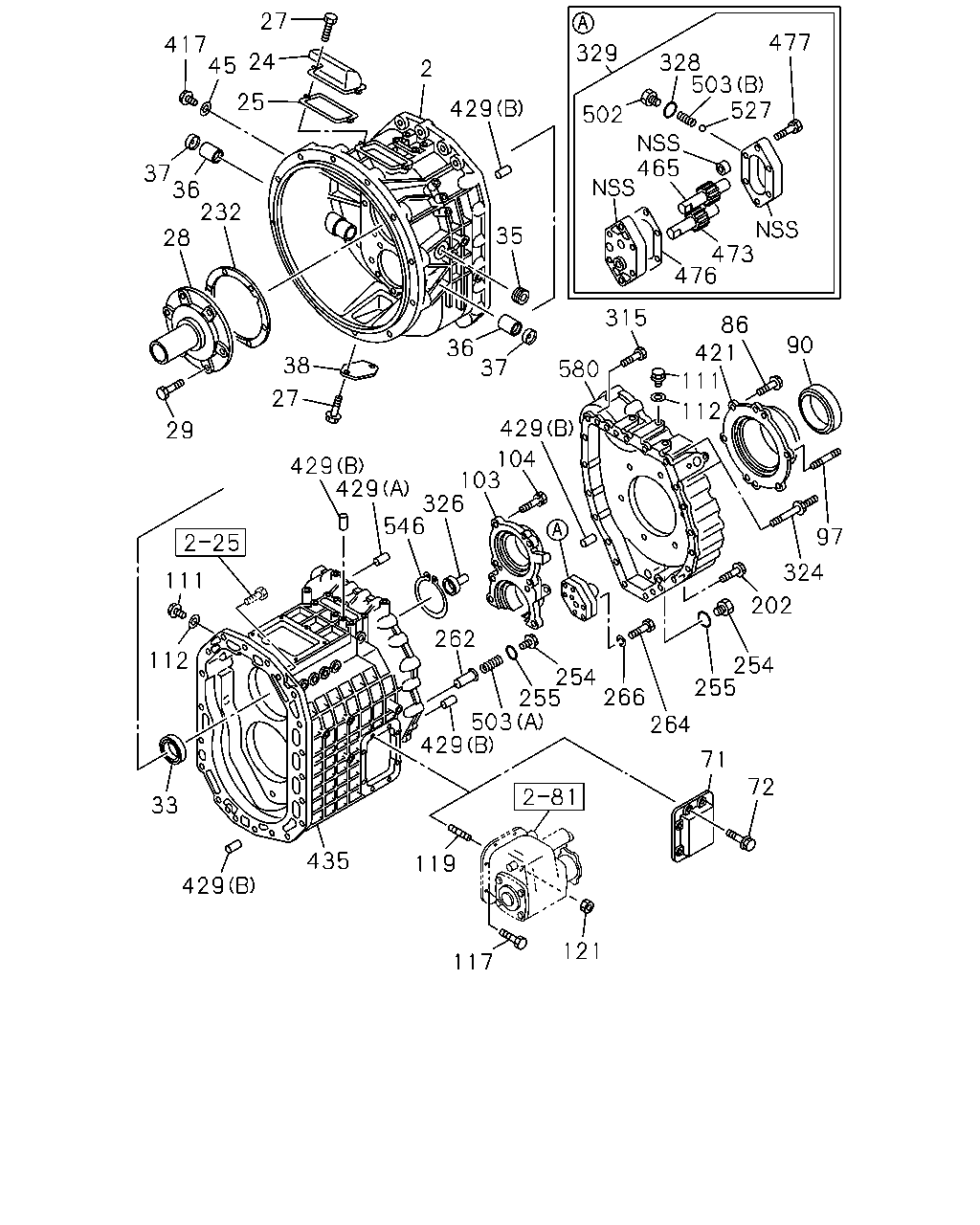

çizim 141533
27 477 417 45 329 24 328 503 527 2 25 429 502 465 37 36 232 473 476 35 28 315 86 421 90 36 37 38 580 111 27 112 429 29 104 103 326 546 429 429 97 324 111 202 262 112 254 255 254 255 266 503 264 429 71 72 33 435 119 429 121 117
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98052-280-0 01 1 0710-1003
2 HOUSING; CLU 8-98168-737-0 01 1 1004-
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 0710-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 0710-1406
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1407-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
28 COVER; FRT,TRANS CASE 1-33121-153-0 01 1 0710-
29 BOLT; FRT COVER
M10X40 FLANGE 		0-28161-040-0 06 1 0710-1211
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1212-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-624-0 01 1 0710-
35 GROMMET; CLU HSG
OD=31 		9-09575-796-0 01 1 0710-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 0710-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 0710-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 0710-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0710-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33141-066-0 01 1 0710-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X35 FLANGE 		0-28751-035-0 08 1 0710-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 0710-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 0710-
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> M16X45 L=69 		9-04411-645-0 04 1 0710-
103 RETAINER; BRG 1-33151-060-1 01 1 0710-
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 0710-
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 02 1 0710-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0710-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		0-28181-028-0 02 1 0710-0805
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		8-98044-944-0 02 1 0806-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40 		0-44011-025-0 06 1 0710-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE 		0-91180-210-0 06 1 0710-
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 0710-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 0710-
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 0710-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0710-
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 0710-
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 0710-
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 0710-
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 0710-
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 0710-
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 0710-
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 0710-
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 0710-
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 0710-
328 GASKET; PLUG 1-34159-100-0 01 1 0710-
329 PUMP ASM; OIL 1-34150-117-0 01 1 0710-1408
329 PUMP ASM; OIL 8-98283-996-0 01 1 1409-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
421 COVER; RR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33131-256-0 01 1 0710-
421 COVER; RR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33131-238-0 01 1 0710-
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 0710-
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 0710-
435 CASE; TRANS 1-33111-351-1 01 1 0710-1502
435 CASE; TRANS 8-98249-273-0 01 1 1503-
465 GEAR; IDLE,OIL PUMP 1-34151-013-0 01 1 0710-1408
473 GEAR; OUTPUT,OIL PUMP 1-34151-012-0 01 1 0710-1408
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 0710-
477 BOLT; OIL PUMP
M8X32 W/LK WASHER 		9-01900-832-0 02 1 0710-1408
502 PLUG; OIL PUMP 1-34159-101-0 01 1 0710-
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 0710-
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 0710-
527 BALL; OIL PUMP 9-00097-531-0 01 1 0710-
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 0710-
580 CASE; RANGE 1-33115-052-0 01 1 0710-
çizim 141650
351
BalonParca AdiParca NoAdetTipApplied Date
351 BRACKET; UNION,FLEX HOSE
CXZ(CX****) 		8-98085-703-1 01 1 0804-
