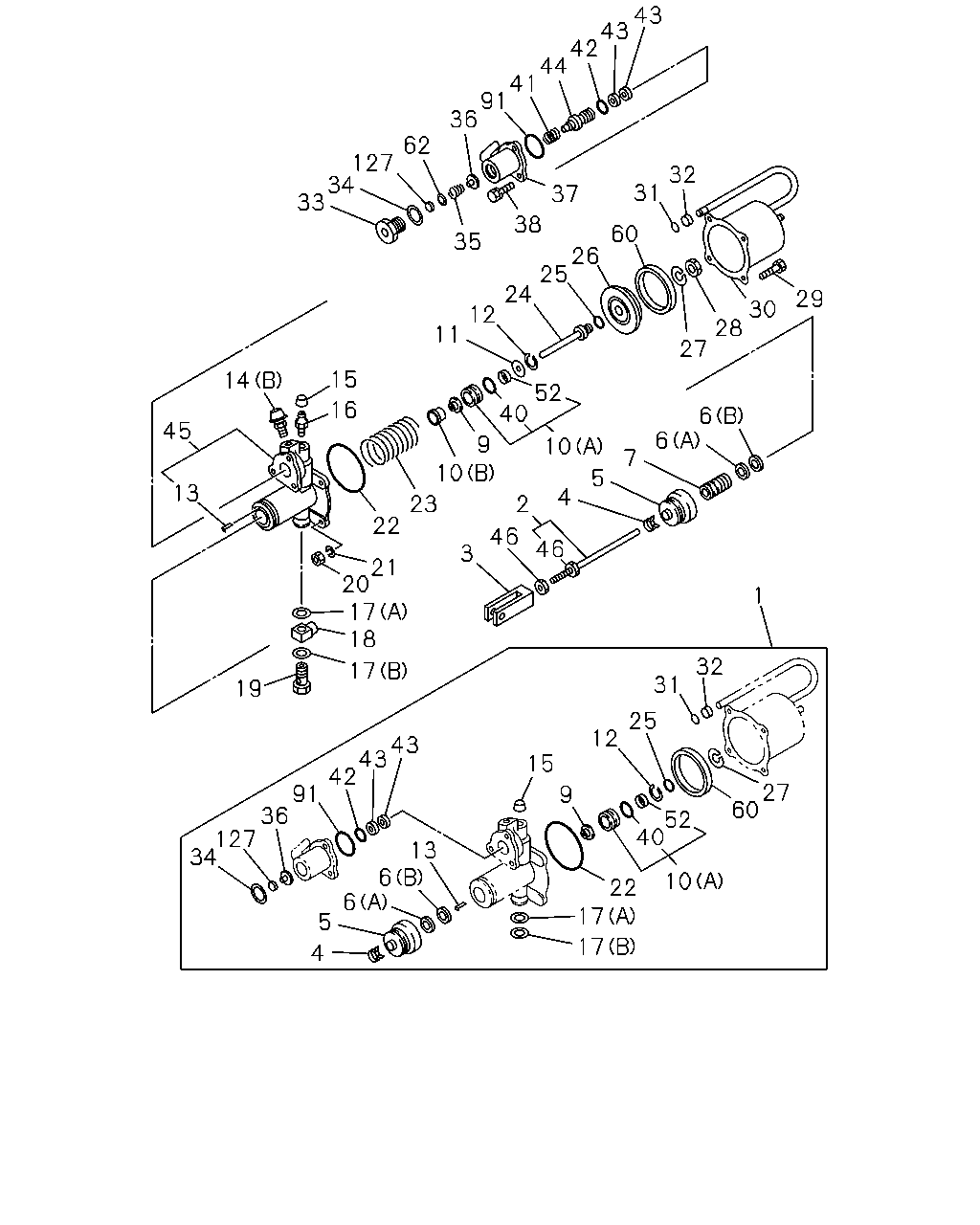

2-07B — CLUTCH BOOSTER; MINIPACK (#14585) — 129 parça

43 43 42 44 41 91 36 62 127 34 33 32 31 37 38 60 26 2 24 12 29 30 28 27 11 15 14 16 6 45 6 9 10 10 7 5 13 4 23 22 2 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 91 36 127 34 9 13 6 10 22 17 6 5 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER CYZ(CY****)	1-31829-551-0	01	1	1006-
1	REPAIR KIT; CLU BOOSTER	1-31829-552-0	01	1	0710-1005
1	REPAIR KIT; CLU BOOSTER CXZ(CX****)	1-31829-552-0	01	1	1006-
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	0710-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	0710-
4	CLAMP; BOOSTER	1-31829-168-0	01	1	0710-
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0710-
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0710-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0710-1107
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0710-1107
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0710-1107
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0710-1107
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0710-
13	PIN; SPR	1-31829-109-0	01	1	0710-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-365-0	01	1	0710-1107
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0710-1107
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0710-1107
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0710-1107
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0710-1107
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0710-1107
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0710-1107
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0710-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0710-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0710-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0710-
24	ROD; PUSH,CLU BOOSTER	1-31829-334-0	01	1	0710-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0710-
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0710-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0710-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0710-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0710-
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0710-
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0710-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0710-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0710-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0710-1107
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0710-1107
37	BODY; UPR,VLV,CLU BOOSTER CYZ(CY****)	1-31811-092-0	01	1	1006-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-084-0	01	1	0710-1005
37	BODY; UPR,VLV,CLU BOOSTER CXZ(CX****)	1-31811-084-0	01	1	1006-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0710-1107
41	SPRING; DIAPH,CLU BOOSTER CYZ(CY****)	1-31829-420-0	01	1	1006-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-329-0	01	1	0710-1005
41	SPRING; DIAPH,CLU BOOSTER CXZ(CX****)	1-31829-329-0	01	1	1006-
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	0710-
43	GASKET; UPR VLV,CLU BOOSTER CYZ(CY****)	1-31829-083-0	02	1	1006-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-069-0	02	1	0710-1005
43	GASKET; UPR VLV,CLU BOOSTER CXZ(CX****)	1-31829-069-0	02	1	1006-
44	PISTON; UPR VLV,CLU BOOSTER CYZ(CY****)	1-31821-030-0	01	1	1006-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-055-0	01	1	0710-1005
44	PISTON; UPR VLV,CLU BOOSTER CXZ(CX****)	1-31821-055-0	01	1	1006-
45	PLATE; END,CLU BOOSTER CYZ(CY****)	1-31811-064-0	01	1	1006-
45	PLATE; END,CLU BOOSTER	1-31811-065-0	01	1	0710-1005
45	PLATE; END,CLU BOOSTER CXZ(CX****)	1-31811-065-0	01	1	1006-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0710-1005
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1006-1105
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1106-
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0710-
62	RETAINER; POPPET	1-31829-489-0	01	1	0710-1107
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0710-1107
127	FILTER; POPPET	1-31829-495-0	01	1	0710-

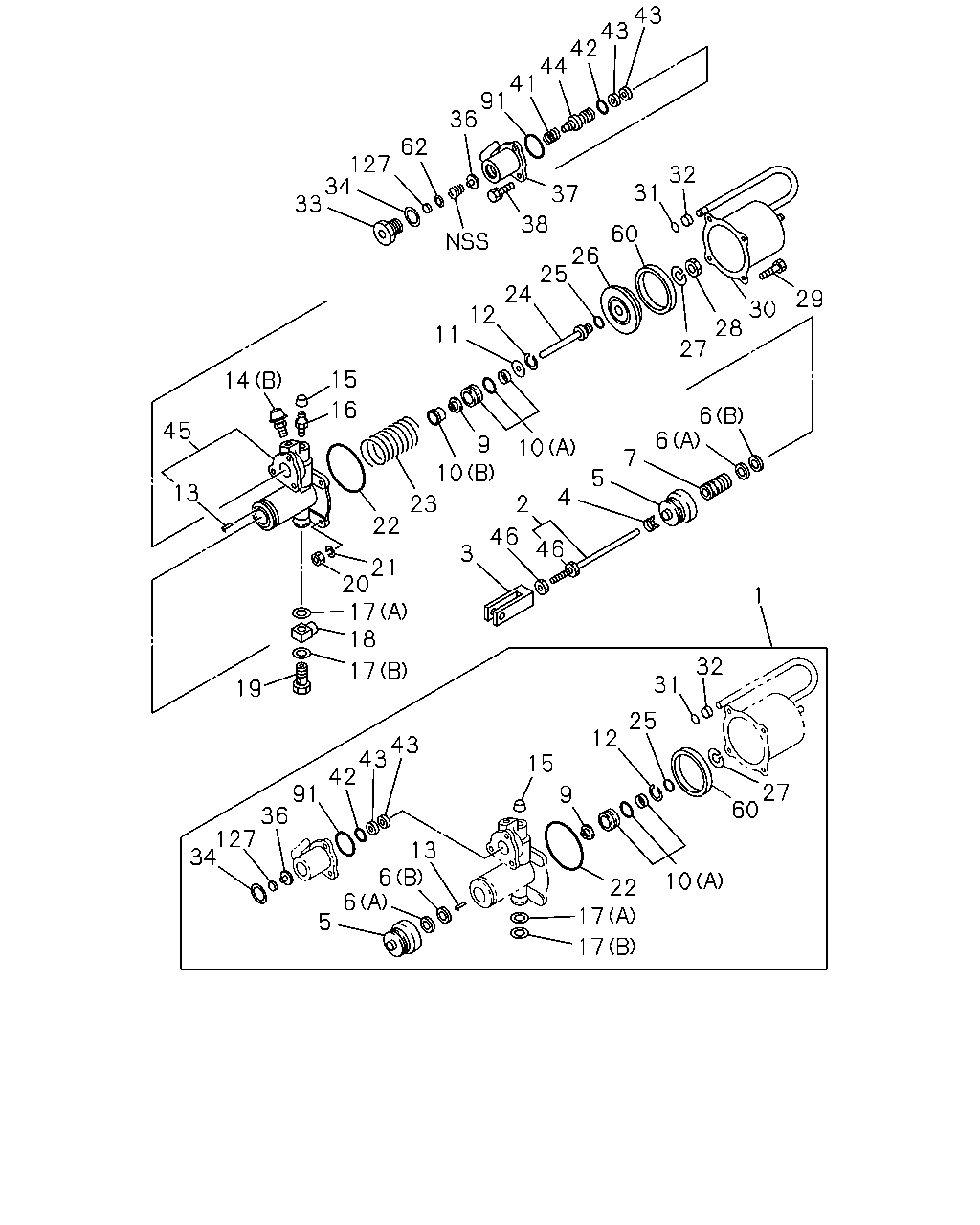

43 43 42 44 41 91 36 62 127 34 33 32 31 37 38 60 35 26 2 24 12 29 30 28 27 11 15 14 52 40 16 6 45 6 9 10 10 7 5 13 4 23 22 2 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 91 36 127 34 9 52 40 13 6 10 22 17 6 5 17 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER CYZ(CY****)	1-31829-551-0	01	1	1006-
1	REPAIR KIT; CLU BOOSTER	1-31829-552-0	01	1	0710-1005
1	REPAIR KIT; CLU BOOSTER CXZ(CX****)	1-31829-552-0	01	1	1006-
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	0710-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	0710-
4	CLAMP; BOOSTER	1-31829-168-0	01	1	0710-
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0710-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0710-
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0710-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0710-1107
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0710-1107
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0710-1107
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0710-1107
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0710-
13	PIN; SPR	1-31829-109-0	01	1	0710-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-365-0	01	1	0710-1107
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0710-1107
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0710-1107
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0710-1107
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0710-1107
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0710-1107
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0710-1107
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0710-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0710-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0710-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0710-
24	ROD; PUSH,CLU BOOSTER	1-31829-334-0	01	1	0710-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0710-
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0710-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0710-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0710-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0710-
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0710-
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0710-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0710-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0710-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0710-1107
35	SPRING; POPPET VLV,CLU BOOSTER CYZ(CY****)	1-31829-451-0	01	1	1006-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0710-1107
37	BODY; UPR,VLV,CLU BOOSTER CYZ(CY****)	1-31811-092-0	01	1	1006-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-084-0	01	1	0710-1005
37	BODY; UPR,VLV,CLU BOOSTER CXZ(CX****)	1-31811-084-0	01	1	1006-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0710-1107
40	GASKET; PISTON,CLU BOOSTER CYZ(CY****)	1-31829-037-0	01	1	1006-
41	SPRING; DIAPH,CLU BOOSTER CYZ(CY****)	1-31829-420-0	01	1	1006-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-329-0	01	1	0710-1005
41	SPRING; DIAPH,CLU BOOSTER CXZ(CX****)	1-31829-329-0	01	1	1006-
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	0710-
43	GASKET; UPR VLV,CLU BOOSTER CYZ(CY****)	1-31829-083-0	02	1	1006-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-069-0	02	1	0710-1005
43	GASKET; UPR VLV,CLU BOOSTER CXZ(CX****)	1-31829-069-0	02	1	1006-
44	PISTON; UPR VLV,CLU BOOSTER CYZ(CY****)	1-31821-030-0	01	1	1006-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-055-0	01	1	0710-1005
44	PISTON; UPR VLV,CLU BOOSTER CXZ(CX****)	1-31821-055-0	01	1	1006-
45	PLATE; END,CLU BOOSTER CYZ(CY****)	1-31811-064-0	01	1	1006-
45	PLATE; END,CLU BOOSTER	1-31811-065-0	01	1	0710-1005
45	PLATE; END,CLU BOOSTER CXZ(CX****)	1-31811-065-0	01	1	1006-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0710-1005
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1006-1105
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1106-
52	SEAL; OIL,END PLATE,CLU BOOSTER CYZ(CY****)	1-47819-027-0	01	1	1006-
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0710-
62	RETAINER; POPPET	1-31829-489-0	01	1	0710-1107
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0710-1107
127	FILTER; POPPET	1-31829-495-0	01	1	0710-
