◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#145830) — 342 parça

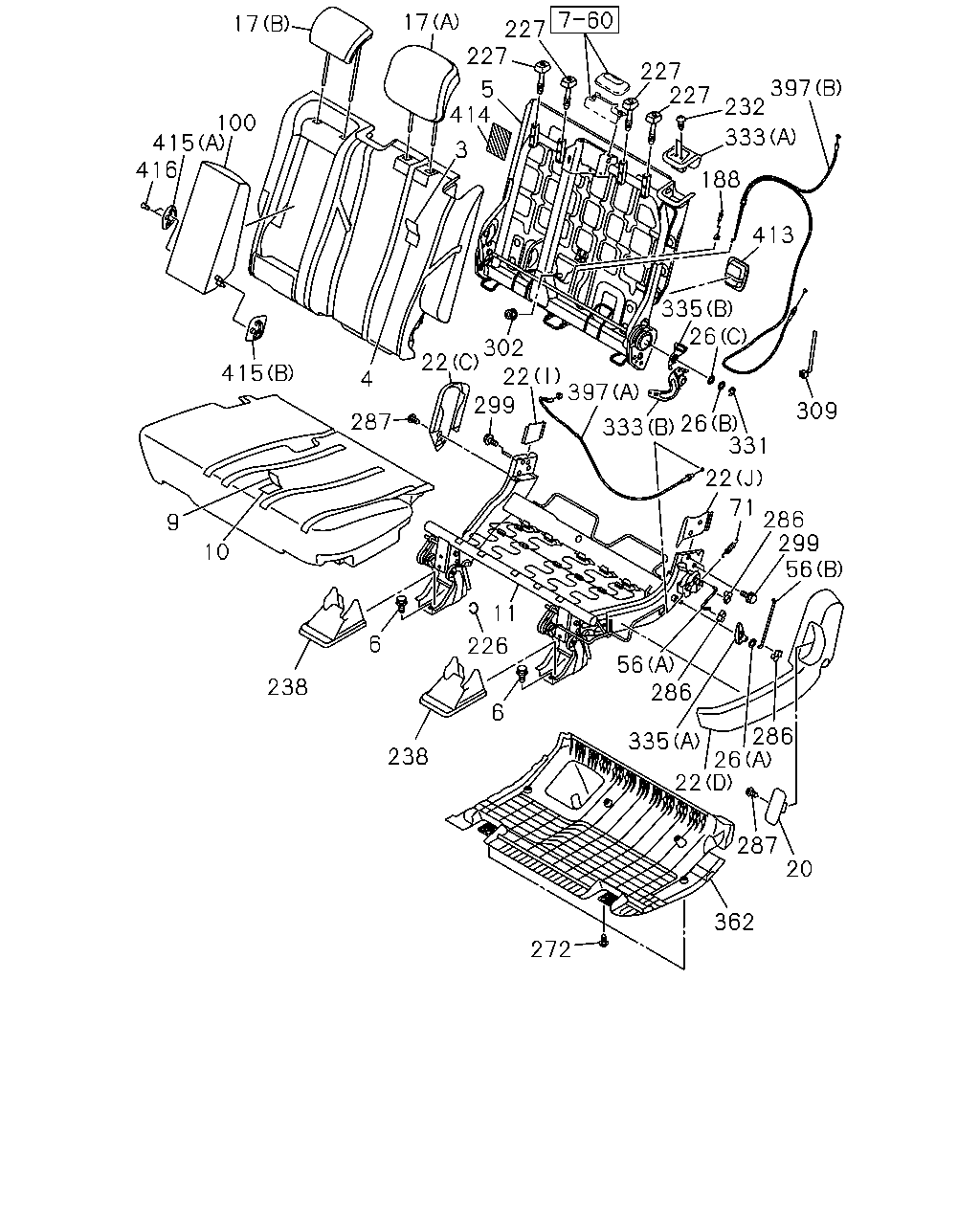

çizim 432095
397 232 33 188 413 335 26 309 331 22 71 286 299 56 56 286 335 22 286 26 287 20 362 272 6 238 226 11 6 238 10 9 287 4 415 22 302 22 299 397 333 26 416 415 100 17 17 227 5 414 3 227 227 227
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-202-0 01 1 1407- ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-203-0 01 1 1407- ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
5 16.720 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1407- ● ●
5 16.720 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1407- ● ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-196-1 01 1 1407- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-197-1 01 1 1407- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1407- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98253-543-1 01 1 1407-1407 ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1408- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1409- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1407- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1409- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1407- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
20 16.682 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1407- ● ●
20 16.682 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1409- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1409- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1409- ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1409- ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1409- ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1409- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-263-0 01 1 1407- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-246-0 01 1 1407- ● ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97428-209-0 01 1 1407- ●
100 15.039 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97428-209-0 01 1 1407- ●
188 16.674 WIRE ASM; RR SEAT 8-98253-613-1 01 1 1407- ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 11 1 1407-1408 ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 27 1 1409- ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 16 1 1407-1408 ● ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 12 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 12 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 29 1 1409- ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 29 1 1409- ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 17 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 17 1 1407-1408 ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 04 1 1409- ● ●
238 16.674 COVER; LEG
BLACK 		8-97424-474-1 04 1 1407- ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 05 1 1407-1408 ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 11 1 1409- ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 06 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 06 1 1409- ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 02 1 1407-1408 ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 06 1 1409- ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 08 1 1409- ● ●
302 16.715 NUT; RR SEAT 8-98253-635-0 01 1 1407- ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 01 1 1407-1408 ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 01 1 1407-1408 ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 02 1 1409- ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 02 1 1409- ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1409- ● ●
333 16.724 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1407- ● ●
333 16.724 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1407- ● ●
362 16.682 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1407- ● ●
362 16.682 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1407- ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1409- ● ●
397 16.686 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1407- ● ●
397 16.686 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1407- ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 01 1 1407-1408 ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1409- ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 02 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1409- ● ●
415 16.724 COVER; ARM REST
(A) 		8-98253-628-0 01 1 1407- ● ●
415 16.724 COVER; ARM REST
(B) 		8-98253-629-0 01 1 1407- ● ●
416 16.714 BOLT; ARM REST 8-98253-642-0 02 1 1407- ● ●

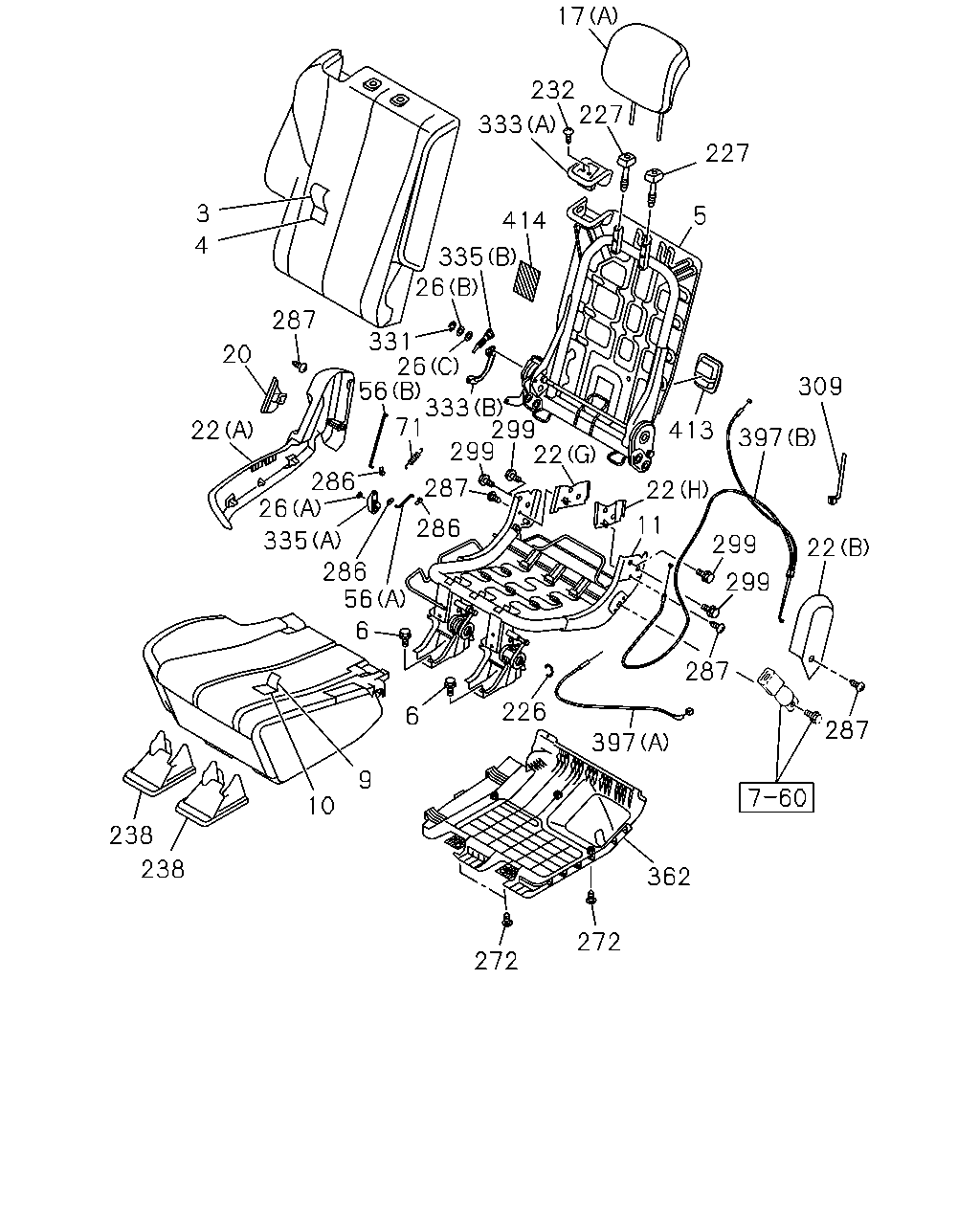

çizim 432117
227 5 309 397 22 287 362 272 272 238 238 10 9 6 6 56 286 335 26 22 20 287 4 3 17 232 333 227 414 335 26 331 26 56 286 286 287 299 333 299 22 22 413 11 299 299 287 397 226 71
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-202-0 01 1 1407- ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-203-0 01 1 1407- ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1407- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1407- ● ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
4 16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1407- ●
5 16.720 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1407- ● ●
5 16.720 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1407- ● ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-196-1 01 1 1407- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-197-1 01 1 1407- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1407- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1407- ● ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1407- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1407- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98253-543-1 01 1 1407-1407 ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1408- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1409- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1407- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 01 1 1407-1408 ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1409- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1407- ● ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 01 1 1407-1408 ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1409- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
17 16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1407- ●
20 16.682 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1407- ● ●
20 16.682 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1409- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1409- ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 01 1 1407-1408 ● ●
26 16.682 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1409- ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1409- ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 01 1 1407-1408 ● ●
56 16.724 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1409- ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 01 1 1407-1408 ● ●
71 16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1409- ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 11 1 1407-1408 ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 27 1 1409- ● ●
226 16.674 RING; HOG
SEAT TRIM LEATHER<6TB> 16.724 		8-98220-068-0 16 1 1407-1408 ● ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 12 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 12 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 29 1 1409- ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 29 1 1409- ●
226 16.674 RING; HOG
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 17 1 1407-1408 ●
226 16.674 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724 		8-98220-068-0 17 1 1407-1408 ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 02 1 1407-1408 ● ●
232 16.680 SCREW; RR SEAT 8-98253-634-0 04 1 1409- ● ●
238 16.674 COVER; LEG
BLACK 		8-97424-474-1 04 1 1407- ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 05 1 1407-1408 ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 11 1 1409- ● ●
272 16.720 SCREW; COVER
16.680 		8-98253-634-0 06 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 03 1 1407-1408 ● ●
286 16.716 COVER; HINGE 8-98253-646-0 06 1 1409- ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 02 1 1407-1408 ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 06 1 1409- ● ●
287 16.716 SCREW; COVER
16.680 		8-98253-634-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 04 1 1407-1408 ● ●
299 16.716 BOLT; LEG 8-98253-643-0 08 1 1409- ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 01 1 1407-1408 ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 01 1 1407-1408 ● ●
309 11.628 CLIP; SEAT
16.686 		8-98220-048-0 02 1 1409- ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 01 1 1407-1408 ● ●
331 16.724 RING; SNAP,PIN 8-98271-945-0 02 1 1409- ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 01 1 1407-1408 ● ●
333 16.724 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1409- ● ●
333 16.724 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1407- ● ●
333 16.724 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1407- ● ●
335 17.204 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1407- ● ●
362 16.682 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1407- ● ●
362 16.682 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1407- ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 01 1 1407-1408 ● ●
397 16.686 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1409- ● ●
397 16.686 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1407- ● ●
397 16.686 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1407- ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 01 1 1407-1408 ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1409- ● ●
413 16.724 COVER; TETHER
BLACK 		8-97428-208-0 02 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 01 1 1407-1408 ● ●
414 07.831 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1409- ● ●

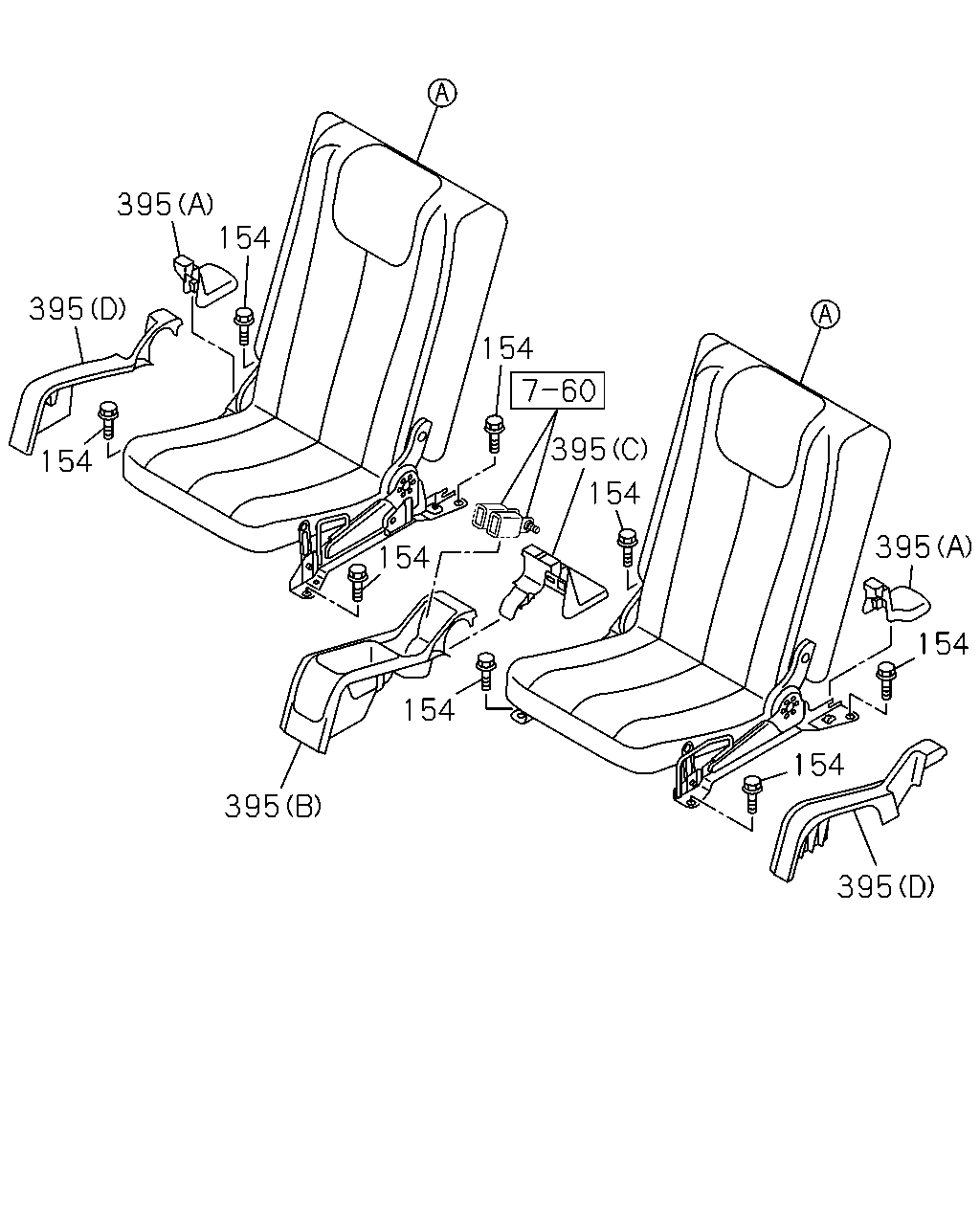

çizim 433967
395 154 154 395 154 395 154 154 154 395 154 395 154 395
BalonParca AdiParca NoAdetTipApplied Date A B
154 16.674 BOLT; STRIKER TO FLOOR
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(A) BLACK 		8-97424-468-3 01 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(A) BLACK 		8-97424-469-3 01 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(B) BLACK 		8-97424-470-2 01 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(C) BLACK 		8-97424-471-2 01 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(D) BLACK 		8-97424-472-2 01 1 1407- ● ●
395 16.686 COVER; 3RD SEAT
(D) BLACK 		8-97424-473-2 01 1 1407- ● ●

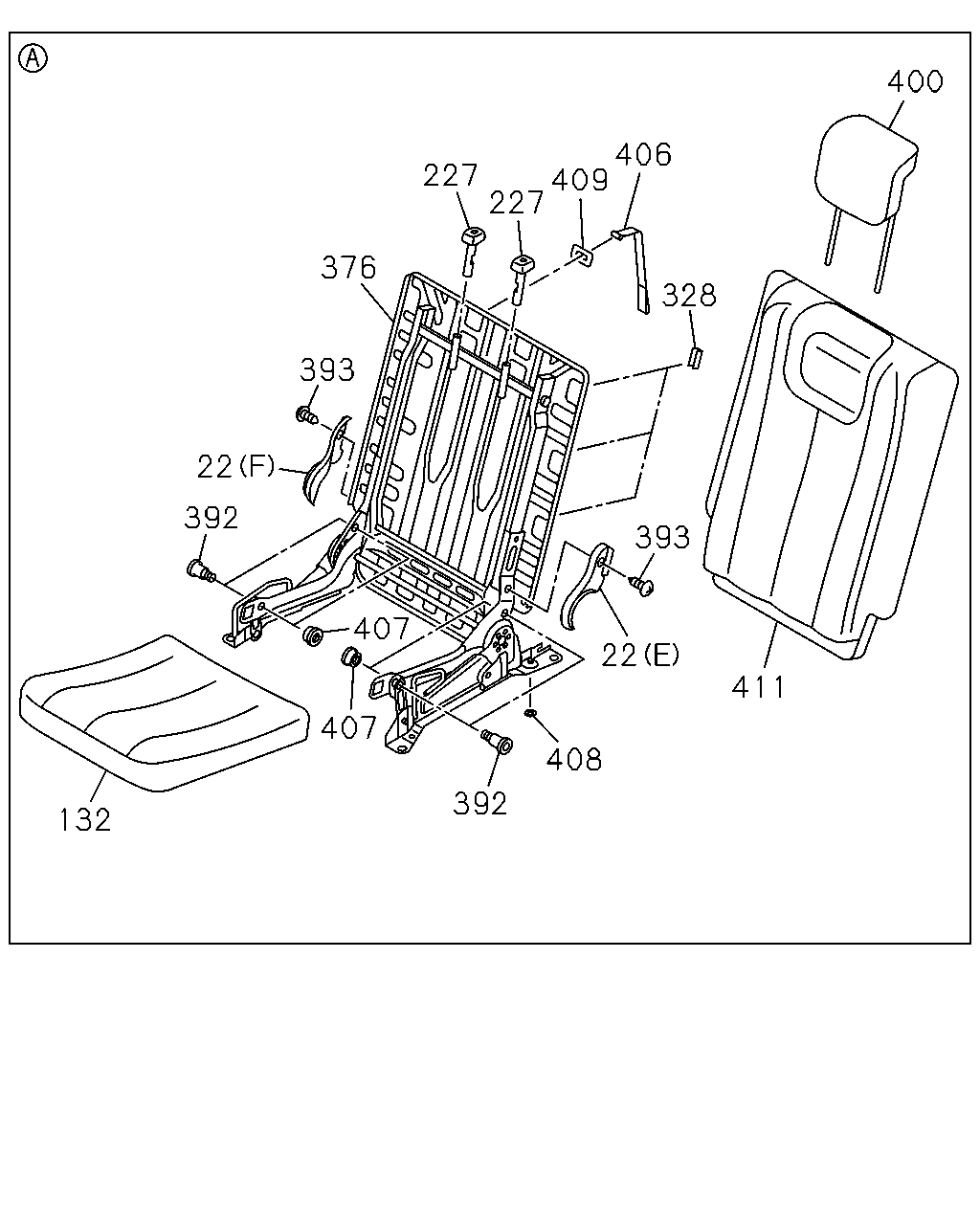

çizim 434000
400 406 409 227 227 376 393 22 392 132 407 407 392 408 22 393 328 411
BalonParca AdiParca NoAdetTipApplied Date A B
22 16.682 COVER; RECLINING ADJ
(E) 3RD BLACK 		8-97428-149-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(F) 3RD BLACK 		8-97428-150-0 02 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1407- ● ●
22 16.682 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1407- ● ●
132 16.715 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-171-0 02 1 1407- ● ●
132 16.715 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-163-0 02 1 1407- ● ●
132 16.715 CUSHION; RR SEAT,3RD
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-142-0 02 1 1407- ●
132 16.715 CUSHION; RR SEAT,3RD
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-157-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1407- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 02 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 01 1 1407-1408 ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1409- ● ●
227 16.718 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 02 1 1407-1408 ● ●
328 16.674 FASTENER; MAGIC 8-98253-019-0 12 1 1407- ● ●
376 16.720 FRAME ASM; 3RD SEAT BACK 8-98253-001-0 01 1 1407- ● ●
376 16.720 FRAME ASM; 3RD SEAT BACK 8-98253-002-0 01 1 1407- ● ●
392 16.716 BOLT; 3RD SEAT 8-98253-079-0 08 1 1407- ● ●
393 16.680 SCREW; 3RD SEAT 8-98253-008-0 04 1 1407- ● ●
400 16.718 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-166-0 02 1 1407- ● ●
400 16.718 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-158-0 02 1 1407- ● ●
400 16.718 REST; HD,3RD SEAT
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-136-0 02 1 1407- ●
400 16.718 REST; HD,3RD SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-152-0 02 1 1407- ● ●
406 16.682 STRAP
BLACK 		8-97428-139-0 02 1 1407- ● ●
407 16.682 COLLAR; CUSHION
FRONT 		8-98253-021-0 04 1 1407- ● ●
407 16.682 COLLAR; CUSHION
REAR 		8-98253-022-0 04 1 1407- ● ●
408 16.682 SPONGE 8-98253-023-0 02 1 1407- ● ●
409 16.682 COVER; STRAP
BLACK 		8-97428-151-0 02 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-169-0 01 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-184-0 01 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-161-0 01 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-181-0 01 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-140-0 01 1 1407- ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97428-175-0 01 1 1407- ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-155-0 01 1 1407- ● ●
411 16.715 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-178-0 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
