Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#14583) — 301 parça

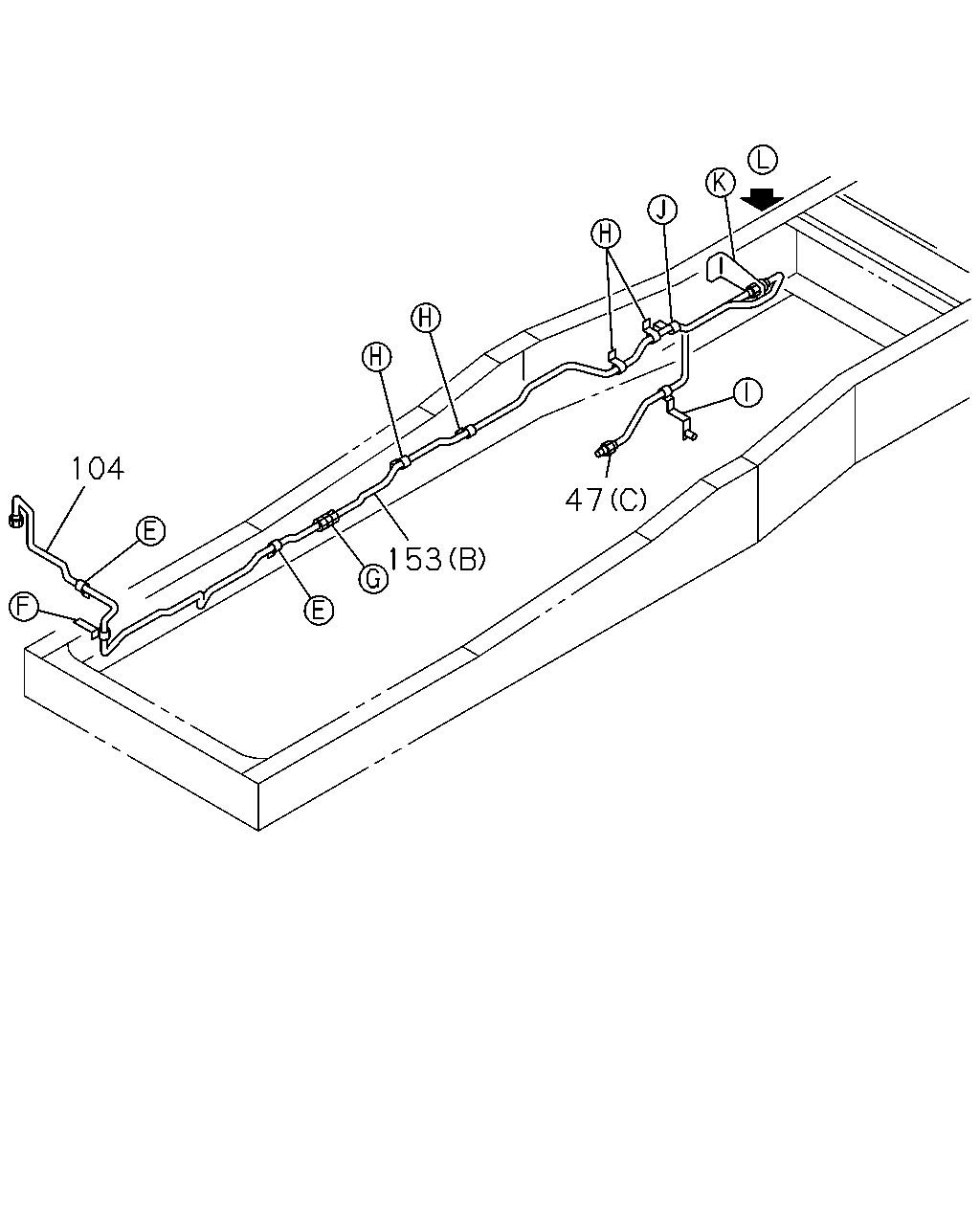

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-1005	●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1006-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-1005	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1006-	●	●
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	0710-1005	●
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	1006-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0710-1005	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-1005	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2181 SERVICED BY L=2400	1-47428-771-0	01	1	0710-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2182 SERVICED BY L=2400	1-47428-771-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1757 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	0805-1005	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0710-1005	●
167	BRACKET; UNION	1-71117-183-3	01	1	1006-	●	●

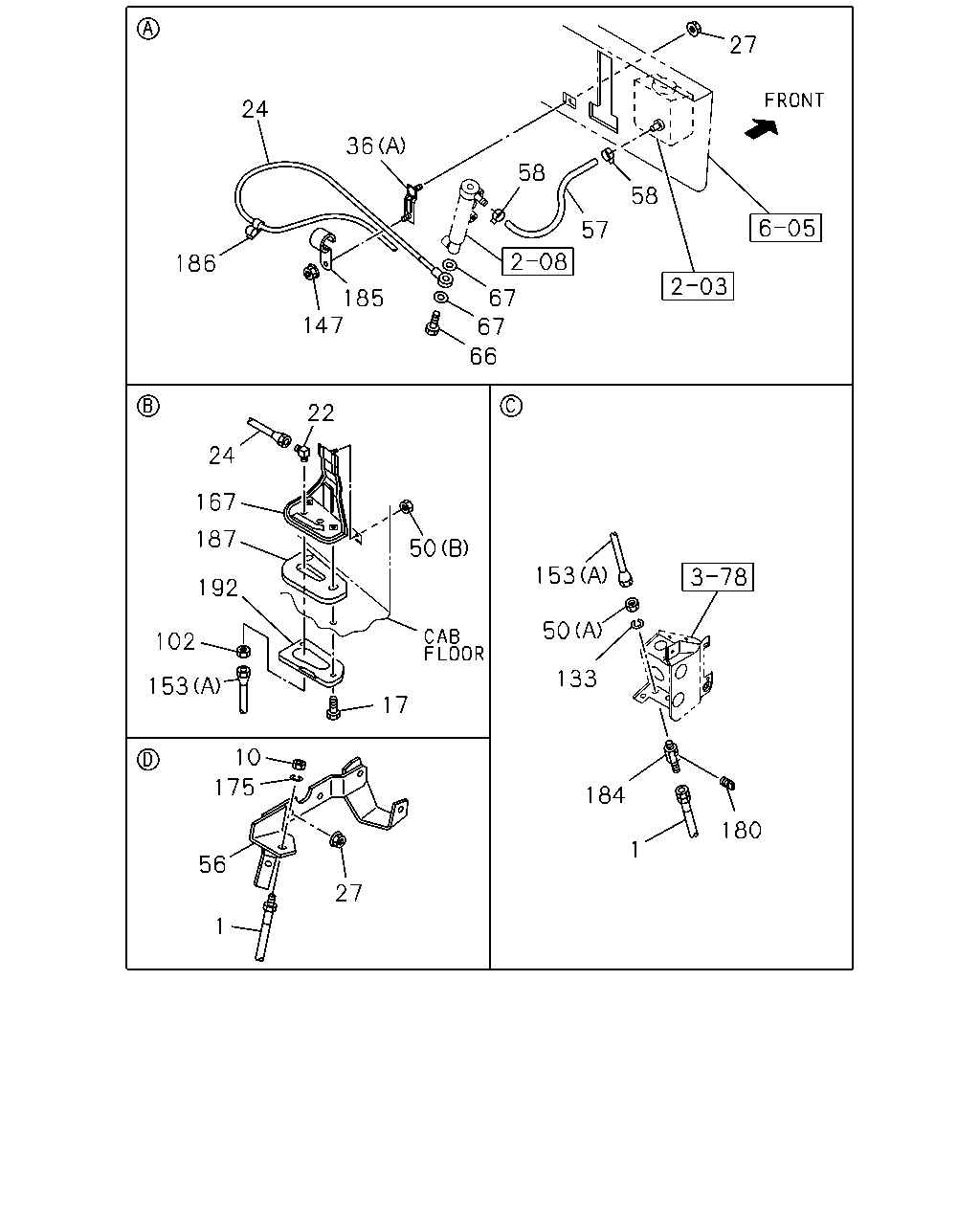

27 24 36 58 58 57 186 67 67 185 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 175 184 180 1 56 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-1005	●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1006-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-1005	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1006-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0710-1005	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	1006-	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0710-1005	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1006-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-1005	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1006-	●	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1006-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-1005	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1006-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-1005	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1006-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=95	1-82699-085-0	01	1	0710-	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97610-103-0	01	1	0710-	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0710-1005	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	1006-	●
36	BRACKET; CLIP (C)	8-98060-696-0	01	1	1006-		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0710-1005	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	1006-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-1005	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1006-	●	●
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	0710-1005	●
56	BRACKET; FLEX HOSE	8-98085-695-0	01	1	1006-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0710-1005	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1006-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0710-1005	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1006-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-1005	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1006-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1005	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1006-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-1005	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1006-	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0710-1005	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1006-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-1005	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-1005	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2181 SERVICED BY L=2400	1-47428-771-0	01	1	0710-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2182 SERVICED BY L=2400	1-47428-771-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1757 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	0805-1005	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0710-1005	●
167	BRACKET; UNION	1-71117-183-3	01	1	1006-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-1005	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1006-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0710-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0710-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-1005	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	1006-	●	●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0710-1005	●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1006-	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	0710-1005	●
186	HOLDER; CLIP	8-94107-710-0	02	1	1006-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	0710-1005	●
187	SEAL; BRKT	1-71117-222-0	01	1	1006-	●	●
192	PLATE	1-71117-221-0	01	1	0710-1005	●
192	PLATE	1-71117-221-0	01	1	1006-	●	●

27 29 30 106 28 28 26 25 29 37 117 117 34 36 4 33 36 35 4 210 37 43 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (A) ID=16 L=28	1-09700-872-0	01	1	0710-	●
4	CLIP; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0710-	●
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-1005	●
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	1006-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-1005	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1006-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-1005	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1006-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-1005	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	1006-	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-1005	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1006-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-1005	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1006-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
33	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-1005	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1006-	●	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-1005	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-	●
33	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-1005	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1006-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1006-		●
34	BOLT; PIPE CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	0710-1005	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	1006-	●	●
35	NUT; PIPE CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	04	1	0710-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1006-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1006-		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0710-1005	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	1006-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-1005	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1006-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=95	1-82699-085-0	01	1	0710-	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97610-103-0	01	1	0710-	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0710-1005	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	1006-	●
36	BRACKET; CLIP (C)	8-98060-696-0	01	1	1006-		●
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (A)	8-98085-776-0	01	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-446-0	01	1	0710-1005	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-446-0	01	1	1006-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47471-446-0	01	1	1006-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-1005	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1006-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-1005	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-1005	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1006-	●	●
117	BOLT; CLIP,FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
117	BOLT; CLIP,FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
210	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0710-	●

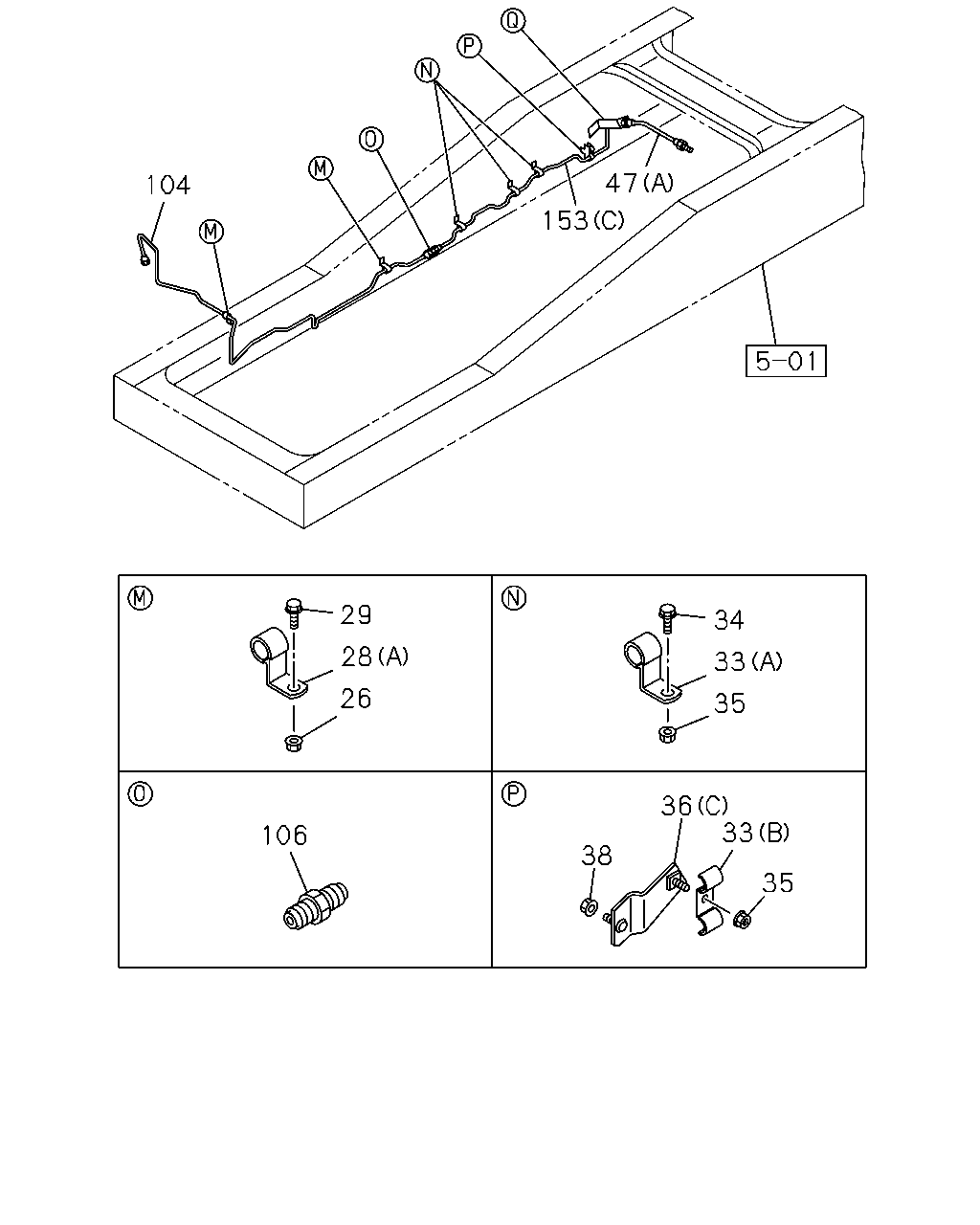

47 104 153 29 34 28 33 26 35 36 33 106 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-1005	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-1005	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	1006-	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-1005	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1006-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-1005	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1006-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
33	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-1005	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1006-	●	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-1005	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-	●
33	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-		●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-1005	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1006-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1006-		●
34	BOLT; PIPE CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	0710-1005	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	1006-	●	●
35	NUT; PIPE CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	04	1	0710-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1006-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1006-		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0710-1005	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	1006-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-1005	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1006-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=95	1-82699-085-0	01	1	0710-	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97610-103-0	01	1	0710-	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0710-1005	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	1006-	●
36	BRACKET; CLIP (C)	8-98060-696-0	01	1	1006-		●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1006-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1006-		●
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (C) L=700	1-09364-456-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	1006-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0710-1005	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1006-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-1005	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-1005	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2181 SERVICED BY L=2400	1-47428-771-0	01	1	0710-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2182 SERVICED BY L=2400	1-47428-771-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1757 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	0805-1005	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-		●

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1006-		●
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (C) L=700	1-09364-456-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	1006-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0710-1005	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-1005	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2181 SERVICED BY L=2400	1-47428-771-0	01	1	0710-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2182 SERVICED BY L=2400	1-47428-771-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1757 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	0805-1005	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-		●

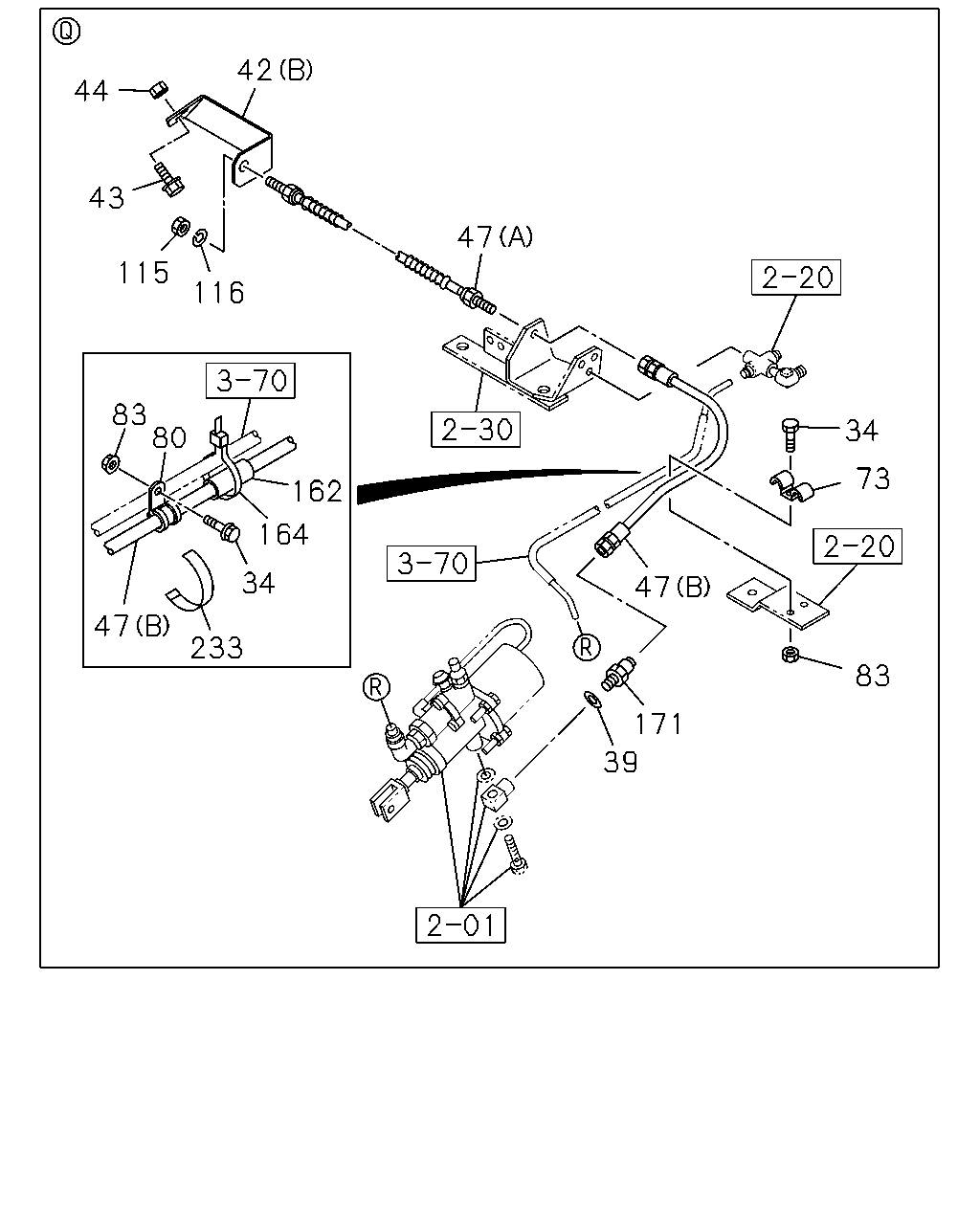

42 44 43 47 115 116 83 80 34 73 162 164 34 47 47 233 83 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-1005	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1006-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1006-		●
34	BOLT; PIPE CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	0710-1005	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	03	1	1006-	●	●
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-1005	●
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	1006-	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	1006-		●
42	BRACKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (A)	8-98085-776-0	01	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-446-0	01	1	0710-1005	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-446-0	01	1	1006-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47471-446-0	01	1	1006-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-1005	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1006-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-1005	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1006-		●
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (C) L=700	1-09364-456-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	1006-		●
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-1005	●
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-	●
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1006-		●
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0710-1005	●
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	1006-	●
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	1006-		●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0710-1005	●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	1006-	●
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	1006-		●
115	NUT; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) M14	0-91111-514-0	01	1	0710-	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	0710-1005	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1006-	●	●
116	WASHER; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) ID=14.2	0-91510-514-0	01	1	0710-	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	0710-1005	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1006-	●	●
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-1005	●
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	1006-	●
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	1006-		●
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0710-1005	●
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	1006-	●
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	1006-		●
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0710-1005	●
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	1006-	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	1006-		●
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0710-1005	●
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	1006-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1006-		●

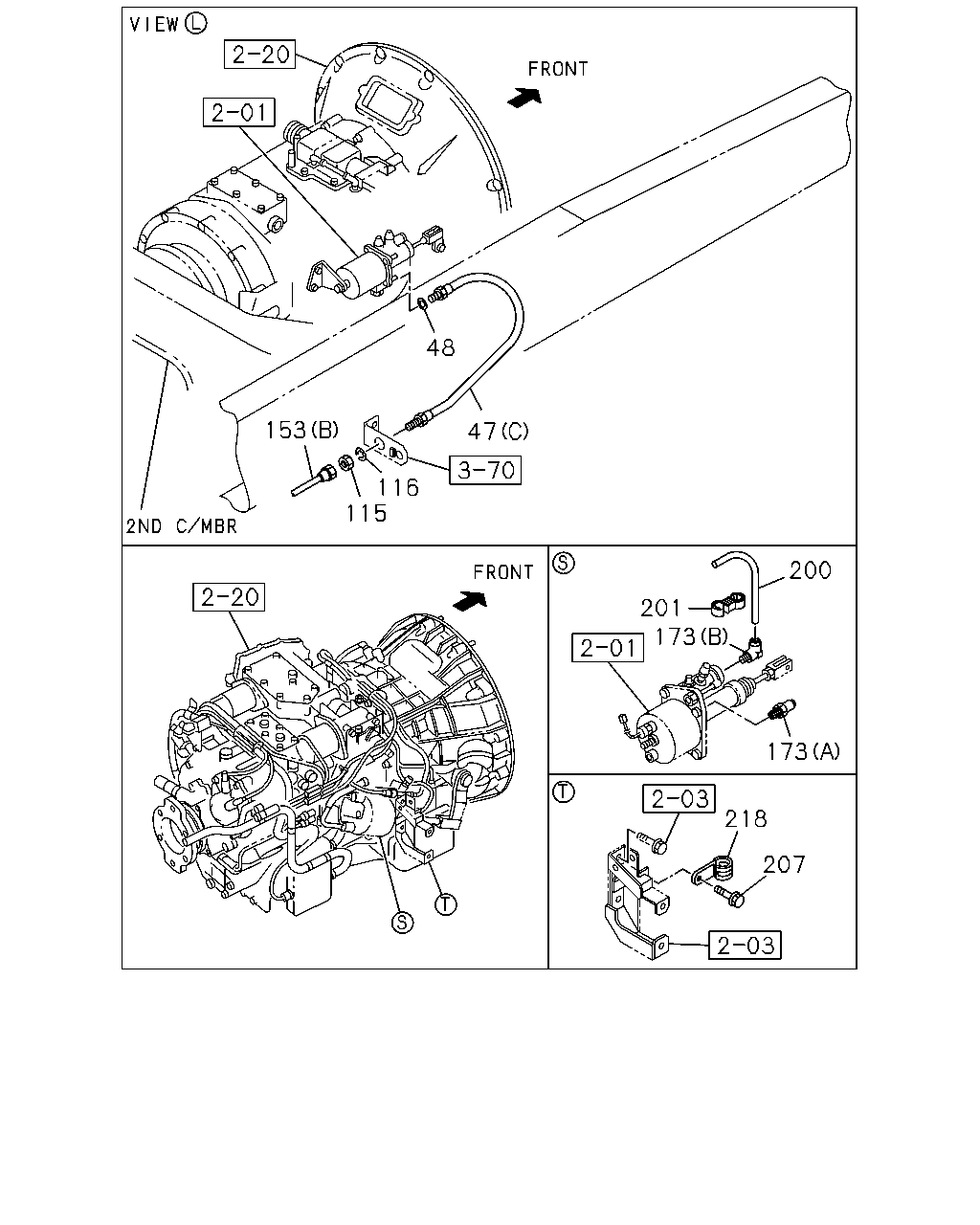

48 153 47 116 115 200 201 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1006-		●
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (C) L=700	1-09364-456-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	0710-1005	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=400	1-09364-263-0	01	1	1006-	●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09364-263-0	01	1	1006-		●
48	GASKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-	●
115	NUT; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) M14	0-91111-514-0	01	1	0710-	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	0710-1005	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1006-	●	●
116	WASHER; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) ID=14.2	0-91510-514-0	01	1	0710-	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	0710-1005	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-1005	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1006-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2181 SERVICED BY L=2400	1-47428-771-0	01	1	0710-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2182 SERVICED BY L=2400	1-47428-771-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1757 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0804	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	0805-1005	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1751 SERVICED BY L=1800	1-47428-768-0	01	1	1006-		●
173	CONNECTOR SMOOTHER-G(C1W) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0710-	●
173	CONNECTOR SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0710-	●
200	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0710-	●
201	CLIP; NYLON TUBE SMOOTHER-G(C1W) ID=6.35 & 12	1-09709-275-1	01	1	0710-	●
207	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
218	CLIP SMOOTHER-G(C1W) ID=11 L=20	0-95235-035-0	01	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
