Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#145829) — 215 parça

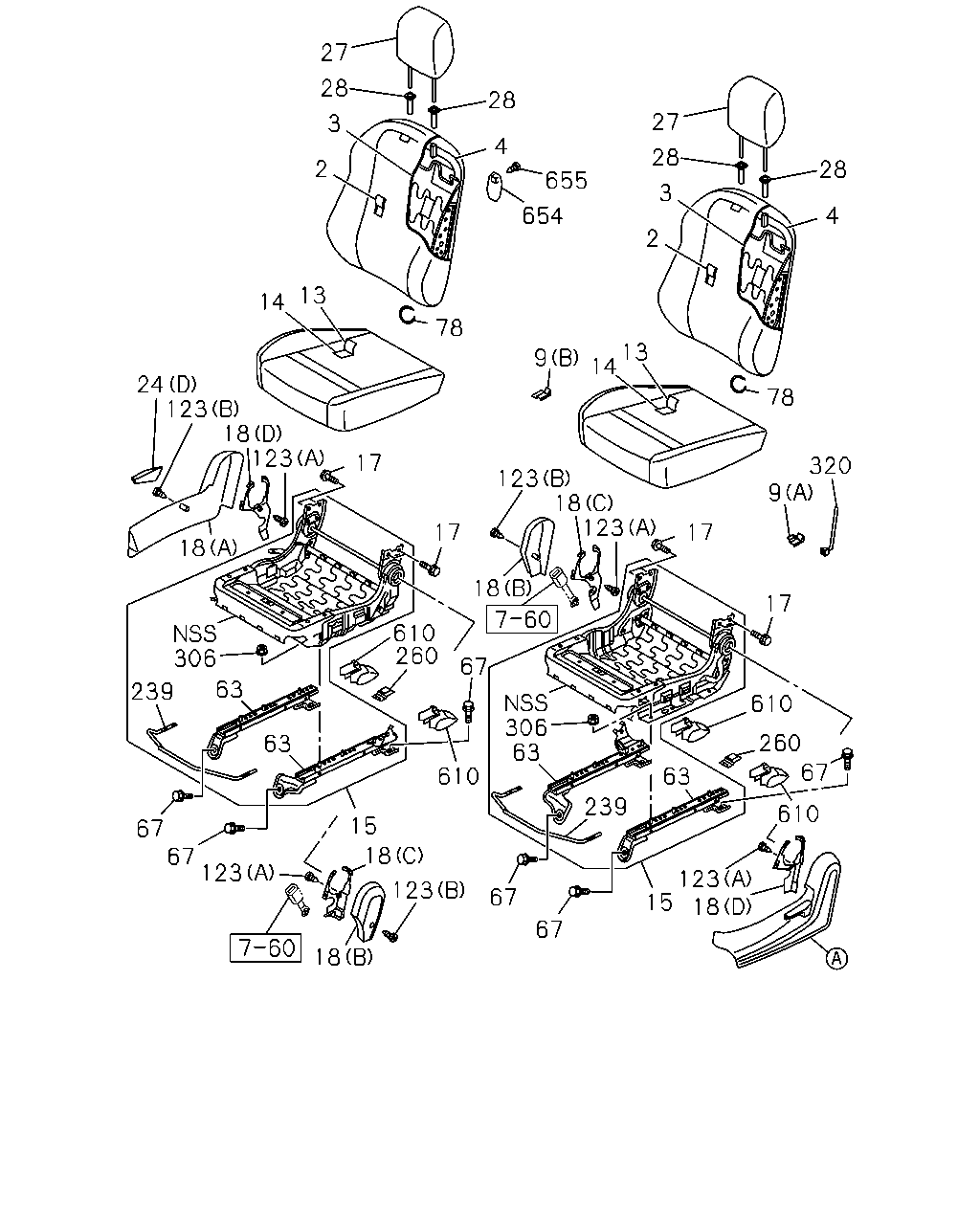

27 28 28 4 3 655 654 2 78 27 28 3 2 28 4 78 320 9 13 14 9 17 17 123 18 123 17 17 13 14 24 18 123 123 18 610 260 67 18 306 63 239 610 67 67 123 15 18 63 15 18 123 18 123 67 67 239 63 63 306 610 260 67 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-328-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-354-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-325-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-351-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-277-0	01	1	1407-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-277-0	01	1	1407-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-294-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-295-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB>	8-98187-527-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>	8-98187-525-0	01	1	1407-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-525-0	01	1	1407-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-525-0	01	1	1407-		●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-526-0	01	1	1407-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-534-0	01	1	1407-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-533-0	01	1	1407-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-533-0	01	1	1407-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-533-0	01	1	1407-		●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) OUTER BLACK	8-97428-378-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) INNER BLACK	8-97428-380-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-374-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-376-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-342-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-368-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-339-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-365-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-284-0	01	1	1407-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-285-0	01	1	1407-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-309-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-312-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-563-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-567-2	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-568-2	01	1	1407-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1407-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1407-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1407-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> (A) BLACK	8-97424-092-0	01	1	1407-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-186-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-187-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> INNER	8-98220-096-1	01	1	1407-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98220-097-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1407-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-267-0	01	1	1407-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1407-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1407-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-637-0	01	1	1407-	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M5X15	8-98224-171-0	01	1	1407-	●	●

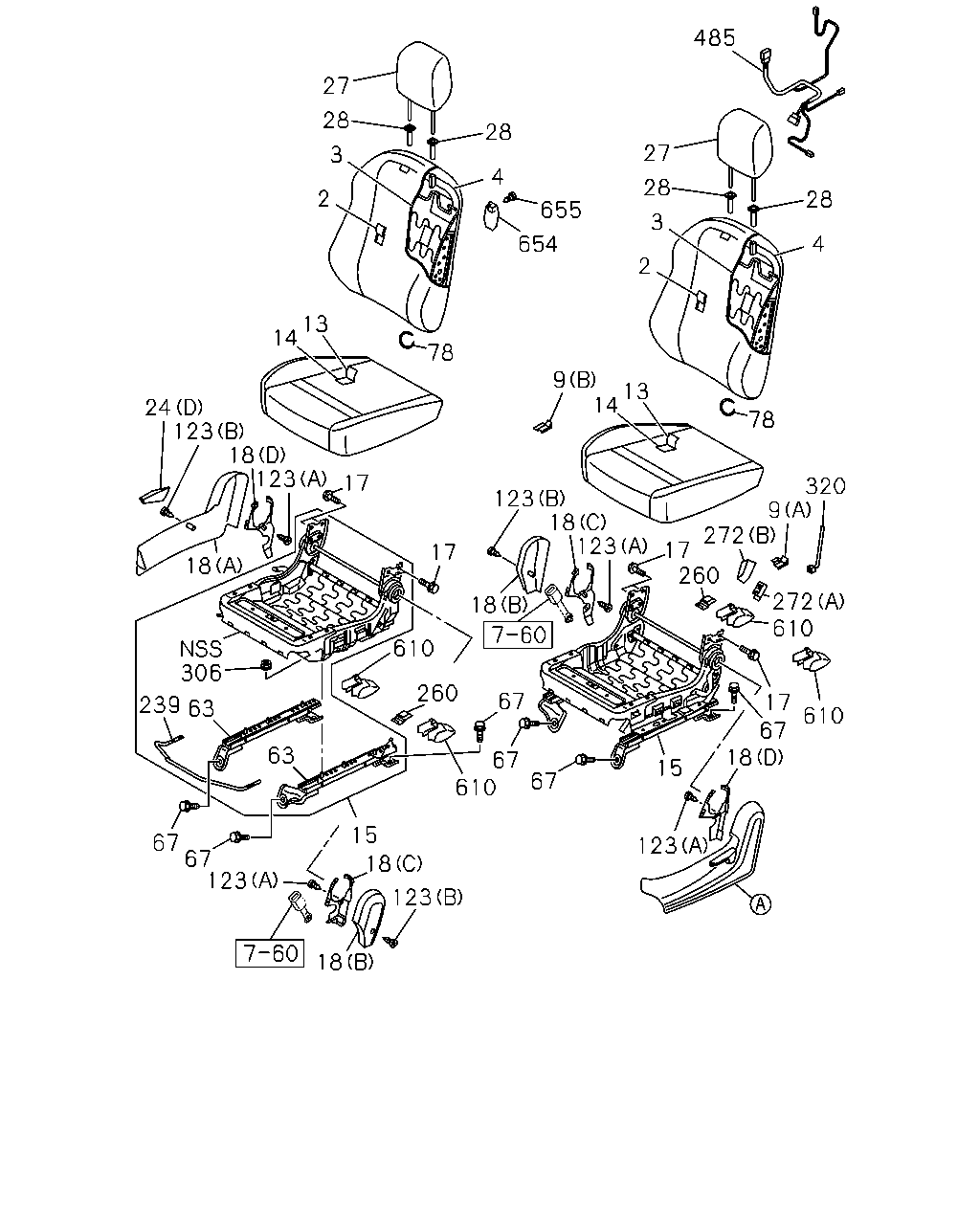

485 28 4 27 3 28 2 78 320 9 272 272 610 610 17 67 18 123 15 67 67 67 610 260 610 17 18 123 123 17 260 18 14 13 9 654 655 4 28 28 27 3 2 13 14 24 18 123 123 17 78 18 306 239 63 63 67 67 123 15 18 123 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-328-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-354-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-325-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-351-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-277-0	01	1	1407-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-277-0	01	1	1407-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-294-0	01	1	1407-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-295-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB>	8-98187-527-0	01	1	1407-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>	8-98187-525-0	01	1	1407-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-525-0	01	1	1407-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-525-0	01	1	1407-		●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-526-0	01	1	1407-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-534-0	01	1	1407-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-533-0	01	1	1407-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-533-0	01	1	1407-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-533-0	01	1	1407-		●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) OUTER BLACK	8-97428-378-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) INNER BLACK	8-97428-380-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-374-0	01	1	1407-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-376-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-342-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-368-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-339-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-365-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-284-0	01	1	1407-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> BLACK	8-97428-285-0	01	1	1407-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-309-0	01	1	1407-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-312-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB>	8-98187-563-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1407-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-567-2	01	1	1407-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-568-2	01	1	1407-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1407-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1407-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1407-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> (A) BLACK	8-97424-092-0	01	1	1407-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1407-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1407-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-186-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-187-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> INNER	8-98220-096-1	01	1	1407-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98220-097-1	01	1	1407-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1407-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1407-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1407-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-267-0	01	1	1407-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97428-382-0	01	1	1407-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97428-383-0	01	1	1407-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1407-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1407-	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-308-0	01	1	1407-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1407-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-637-0	01	1	1407-	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M5X15	8-98224-171-0	01	1	1407-	●	●

486 601 18 24 24 18 123 228 24 20 228 228 24 18 24 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> (A) BLACK	8-97424-092-0	01	1	1407-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-515-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-516-0	01	1	1407-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1407-	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-600-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) BLACK	8-97424-518-0	01	1	1407-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1407-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	03	1	1407-		●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1407-	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X10	8-98224-268-0	03	1	1407-	●	●
486	16.682 SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-263-0	01	1	1407-	●	●
601	16.682 SCREW; SWITCH SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M4X12	8-98224-269-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
