◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#145828) — 93 parça

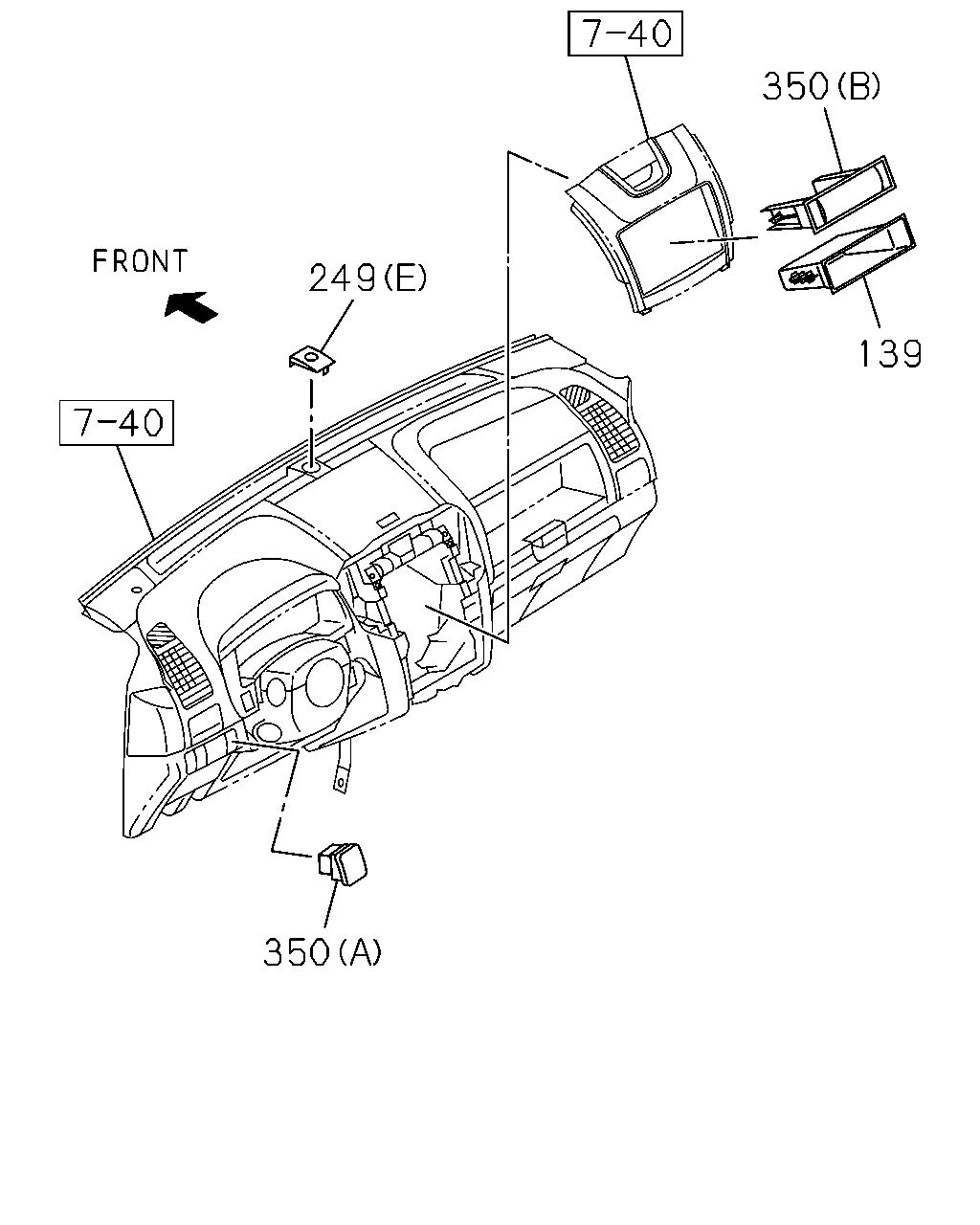

çizim 432759
350 139 350 249
BalonParca AdiParca NoAdetTipApplied Date A B
139 16.650 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1407- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1503- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1503- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) BLACK 		8-97417-414-2 01 1 1503- ●
249 16.674 COVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1407- ● ●
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1407- ●
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-153-1 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (A) BLACK 		8-97417-151-2 01 1 1407- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (A) BLACK 		8-97417-150-2 01 1 1407- ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1407- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1407- ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1407- ● ●
350 16.650 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1407- ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1407- ● ●
350 16.650 COVER; CONSOLE
EXC. REAR COOLER WO/HEATER<C69> (A) 		8-98103-424-2 01 1 1407- ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 02 1 1407- ● ●

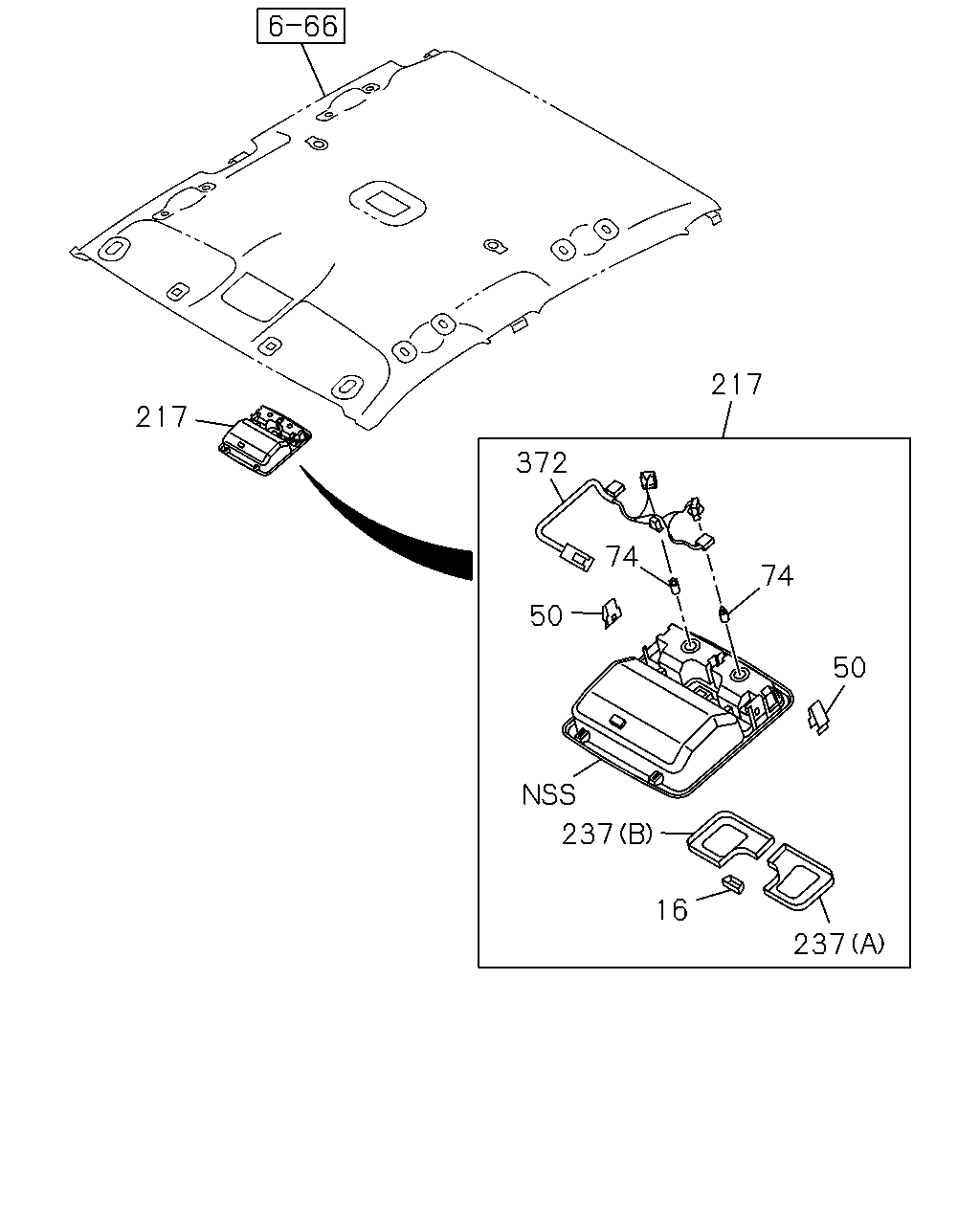

çizim 433599
217 217 372 74 74 50 237 16 237 50
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1407- ●
16 16.650 KNOB ASM
GRAY 		8-97423-261-0 01 1 1407- ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> 		8-98192-891-0 02 1 1407- ●
50 04.010 CLIP; CONSOLE 8-98192-891-0 02 1 1407- ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1407- ●
74 08.991 BULB; CONSOLE
12V 5W 		8-94124-595-0 02 1 1407- ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1407- ●
217 16.745 CONSOLE; HEADER
GRAY 		8-97416-690-5 01 1 1407- ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1407- ●
237 16.650 LENS; HEADER CONSOLE
(A) 		8-98192-893-0 01 1 1407- ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1407- ●
237 16.650 LENS; HEADER CONSOLE
(B) 		8-98192-894-0 01 1 1407- ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1407- ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO 8-98192-890-0 01 1 1407- ●

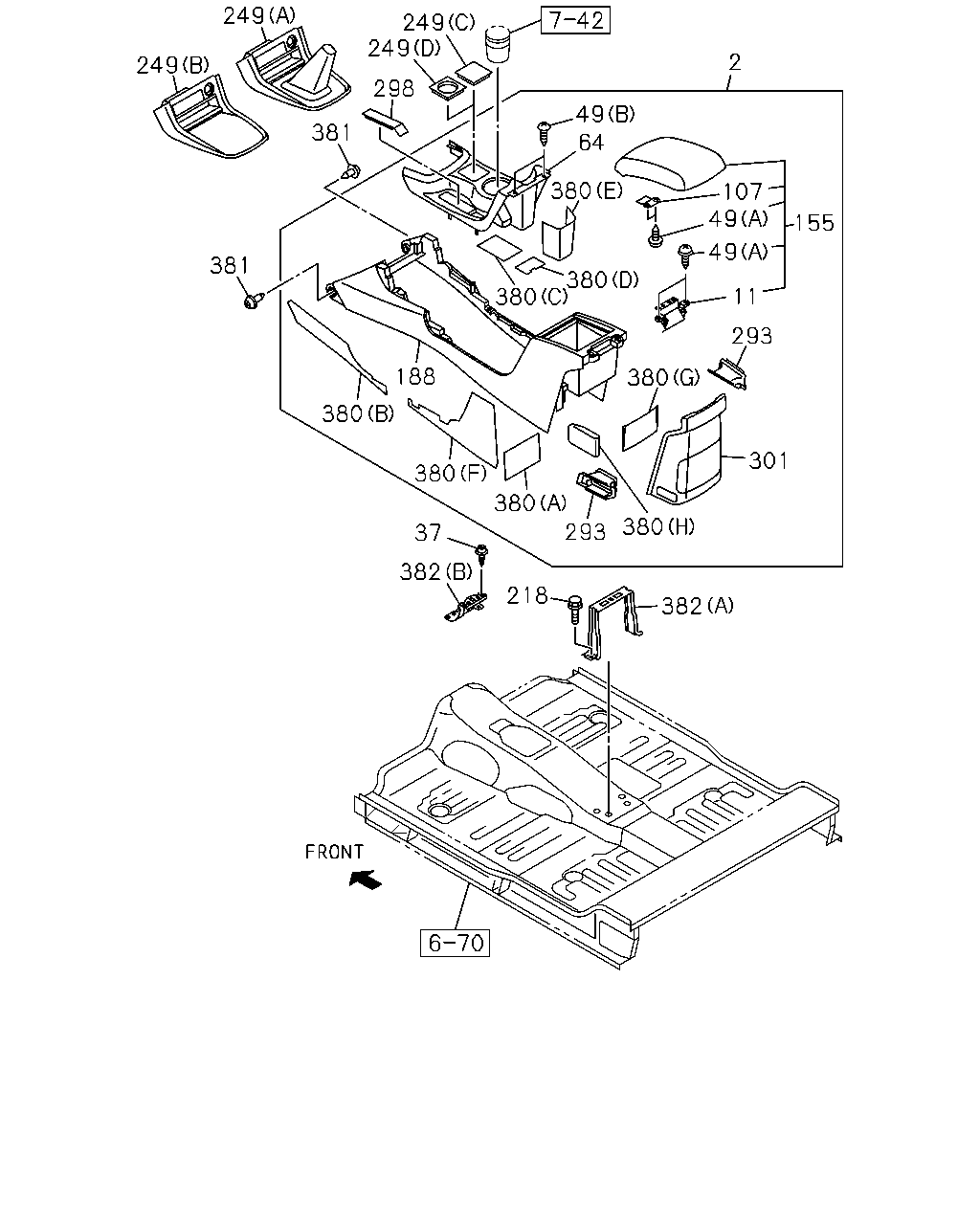

çizim 433667
249 249 381 298 249 249 381 49 64 2 380 380 380 188 380 380 37 382 218 382 380 293 380 301 380 293 11 49 49 107 155
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) FLOOR CONSOLE W/LID<D55> BLACK 		8-97427-530-0 01 1 1407- ●
2 16.081 CONSOLE; CENTER
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97427-530-0 01 1 1407- ●
2 16.081 CONSOLE; CENTER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-332-1 01 1 1407- ● ●
11 16.650 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1407- ●
11 16.650 HINGE; CONSOLE LID
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1407- ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1407- ●
37 16.650 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1407- ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1407- ●
49 04.017 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1407- ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1407- ●
49 04.017 SCREW; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1407- ●
64 16.650 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1407- ●
64 16.650 BEZEL; CENTER CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1407- ●
107 16.650 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1407- ●
107 16.650 LOCK; LID,RR CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1407- ●
155 16.650 LID; PARCEL BOX
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1407- ●
155 16.650 LID; PARCEL BOX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1407- ●
188 16.650 CONSOLE; RR
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1407- ●
188 16.650 CONSOLE; RR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1407- ●
218 16.650 BOLT; BRKT
FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1407- ●
218 16.650 BOLT; BRKT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1503- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1503- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) BLACK 		8-97417-414-2 01 1 1503- ●
249 16.674 COVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1407- ● ●
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1407- ●
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-153-1 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (B) BLACK 		8-97417-152-1 01 1 1407- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (A) BLACK 		8-97417-151-2 01 1 1407- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) (A) BLACK 		8-97417-150-2 01 1 1407- ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1407- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1407- ●
293 16.650 DUCT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR CONSOLE W/LID<D55> 		8-98134-786-0 01 1 1407- ● ●
293 16.650 DUCT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR CONSOLE W/LID<D55> 		8-98134-787-0 01 1 1407- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97416-651-2 01 1 1407- ● ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1407- ●
301 16.650 BEZEL; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) FLOOR CONSOLE W/LID<D55> (H) 		8-98245-194-0 02 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (H) 		8-98245-194-0 02 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1407- ●
380 16.650 INSULATOR; CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1407- ●
381 16.100 RETAINER; FLOOR CONSOLE
BLACK 		8-97360-070-0 02 1 1407- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1407- ●
382 16.100 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1407- ●
382 16.100 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1407- ●
382 16.100 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) FLOOR CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1407- ●
