Isuzu WW
▶
SUV
▶
UCR
▶
51517 - UCR/UCS-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#145827) — 27 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

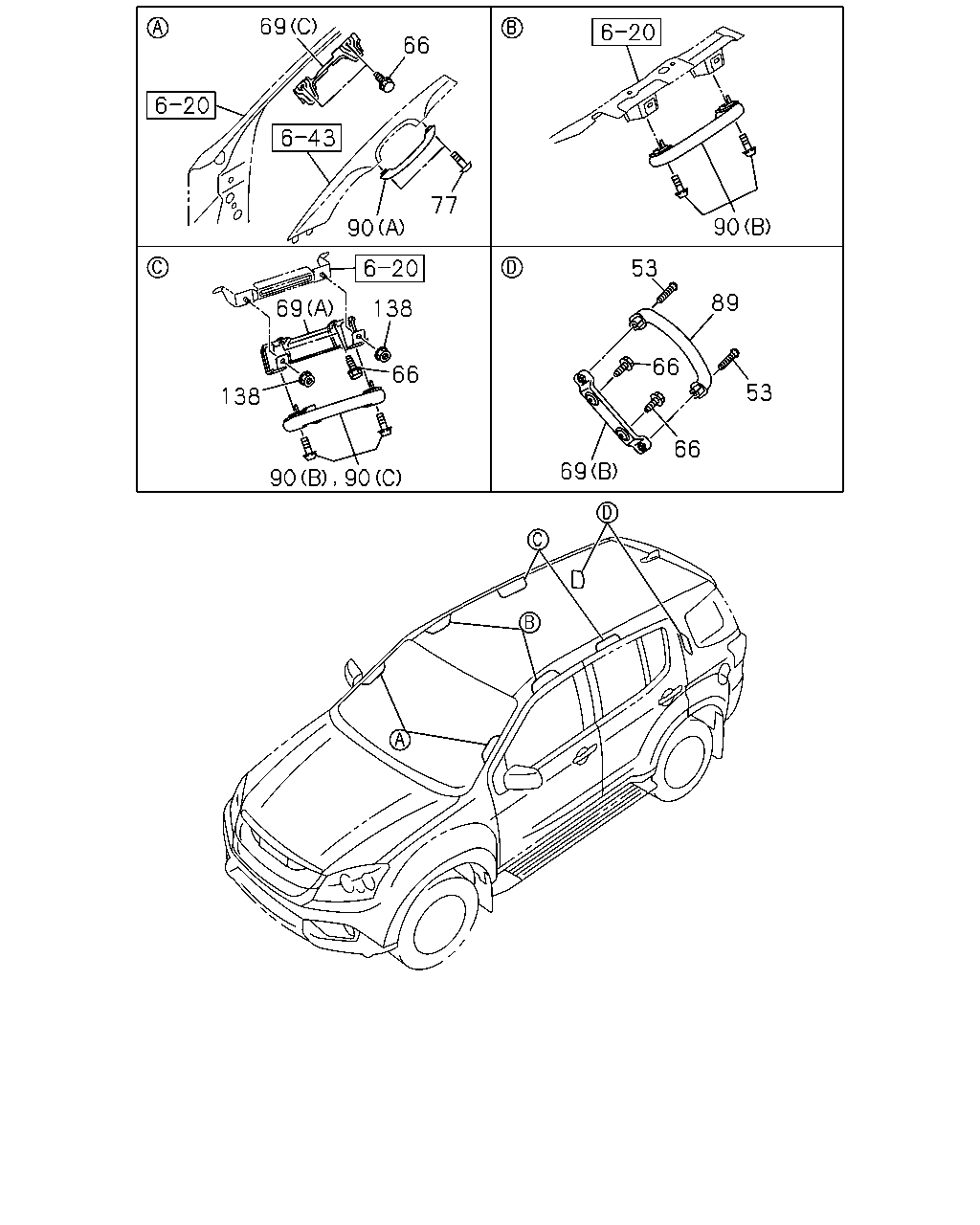

[743A] GRIP (18 parça)

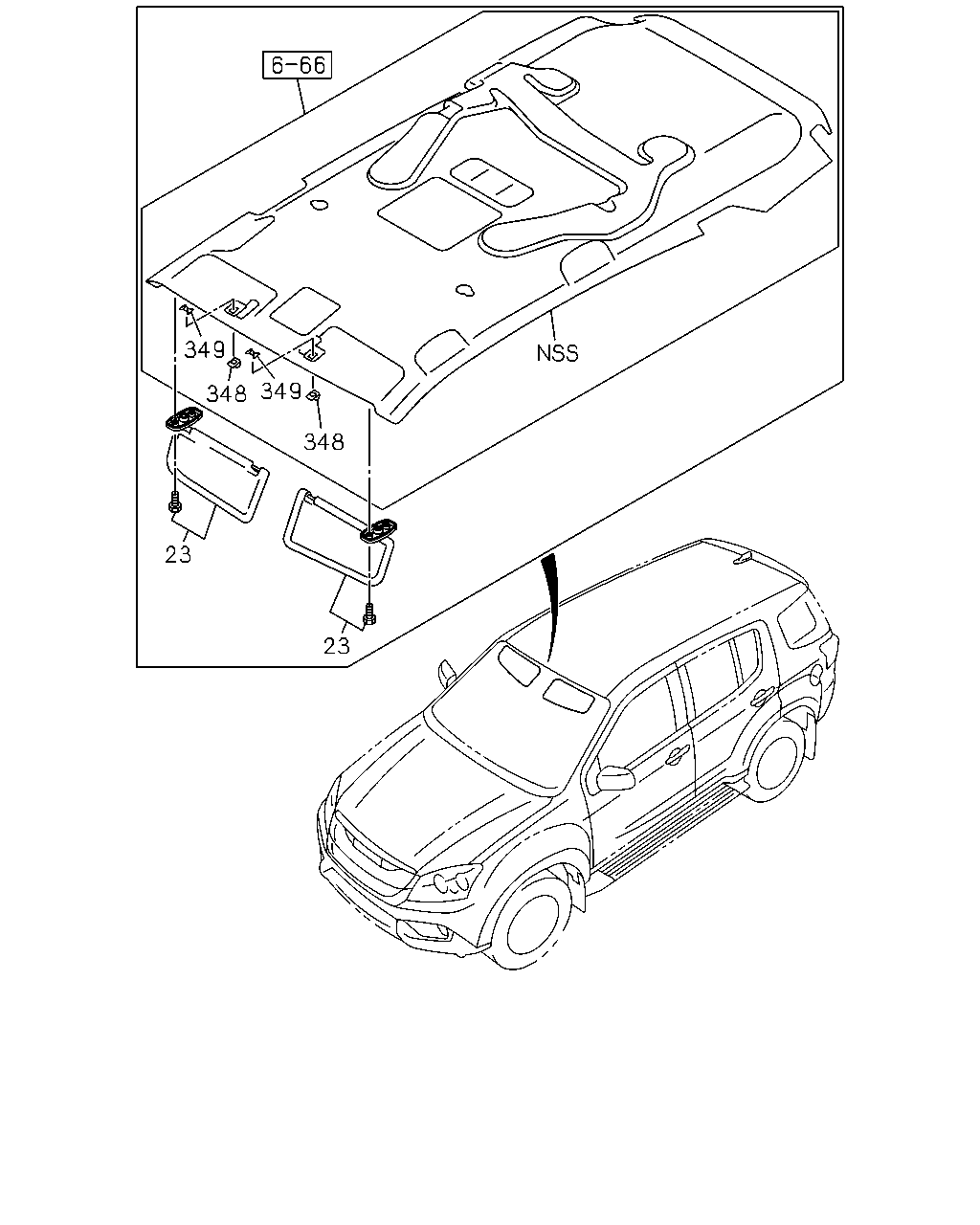

[743A] SUN VISOR (9 parça)
▶
69
66
77
90
69
138
66
90
90
138
69
66
53
89
53
66
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
16.450 SCREW; ASSIST HANDLE
M6X32
8-97811-323-0
04
1
1407-
●
●
66
16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE
8-98050-320-0
04
1
1407-
●
●
66
16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE
8-98050-320-0
08
1
1407-
●
●
69
16.450 BRACKET; ASSIST GRIP
(A)
8-98198-262-0
02
1
1407-
●
●
69
16.450 BRACKET; ASSIST GRIP
(B)
8-98198-281-0
01
1
1407-
●
●
69
16.450 BRACKET; ASSIST GRIP
(B)
8-98198-282-0
01
1
1407-
●
●
69
16.450 BRACKET; ASSIST GRIP
(C)
8-98220-691-0
01
1
1407-
●
●
69
16.450 BRACKET; ASSIST GRIP
(C)
8-98220-692-0
01
1
1407-
●
●
77
16.450 SCREW; ASSIST GRIP
M6X25
0-36230-625-0
04
1
1407-
●
●
89
16.560 HANDLE; ASSIST
GRAY
8-97424-381-0
02
1
1407-
●
●
90
16.450 GRIP; ASSIST,ROOF
(B) GRAY
8-97419-356-5
02
1
1407-
●
●
90
16.450 GRIP; ASSIST,ROOF
INTERIOR BASIC(RBA) (B) GRAY
8-97419-356-5
02
1
1407-
●
90
16.450 GRIP; ASSIST,ROOF
INTERIOR CUSTOM(RBD) (C) GRAY
8-97419-357-6
01
1
1407-
●
90
16.450 GRIP; ASSIST,ROOF
(C) GRAY
8-97419-357-6
01
1
1407-
●
90
16.450 GRIP; ASSIST,ROOF
INTERIOR CUSTOM(RBD) (C) GRAY
8-97423-347-4
01
1
1407-
●
90
16.450 GRIP; ASSIST,ROOF
(C) GRAY
8-97423-347-4
01
1
1407-
●
90
16.450 GRIP; ASSIST,ROOF
(A) GRAY
8-97416-698-4
02
1
1407-
●
●
138
16.742 NUT; BRKT,HEADER SHELF
01.062 M6 FLANGE
0-91180-106-0
04
1
1407-
●
●
349
348
349
348
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY
8-97417-452-4
01
1
1407-
●
23
16.070 SUN VISOR
GRAY
8-97417-452-4
01
1
1407-
●
23
16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY
8-97419-373-3
01
1
1407-
●
23
16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY
8-97416-682-2
01
1
1407-
●
23
16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY
8-97417-449-2
01
1
1407-
●
23
16.070 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY
8-97416-681-2
01
1
1407-
●
23
16.070 SUN VISOR
GRAY
8-97417-453-2
01
1
1407-
●
348
16.070 RETAINER; SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY
8-97403-990-0
02
1
1407-
●
●
349
16.070 CLIP; RETAINER SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>
8-97307-749-0
02
1
1407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
