◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#145825) — 109 parça

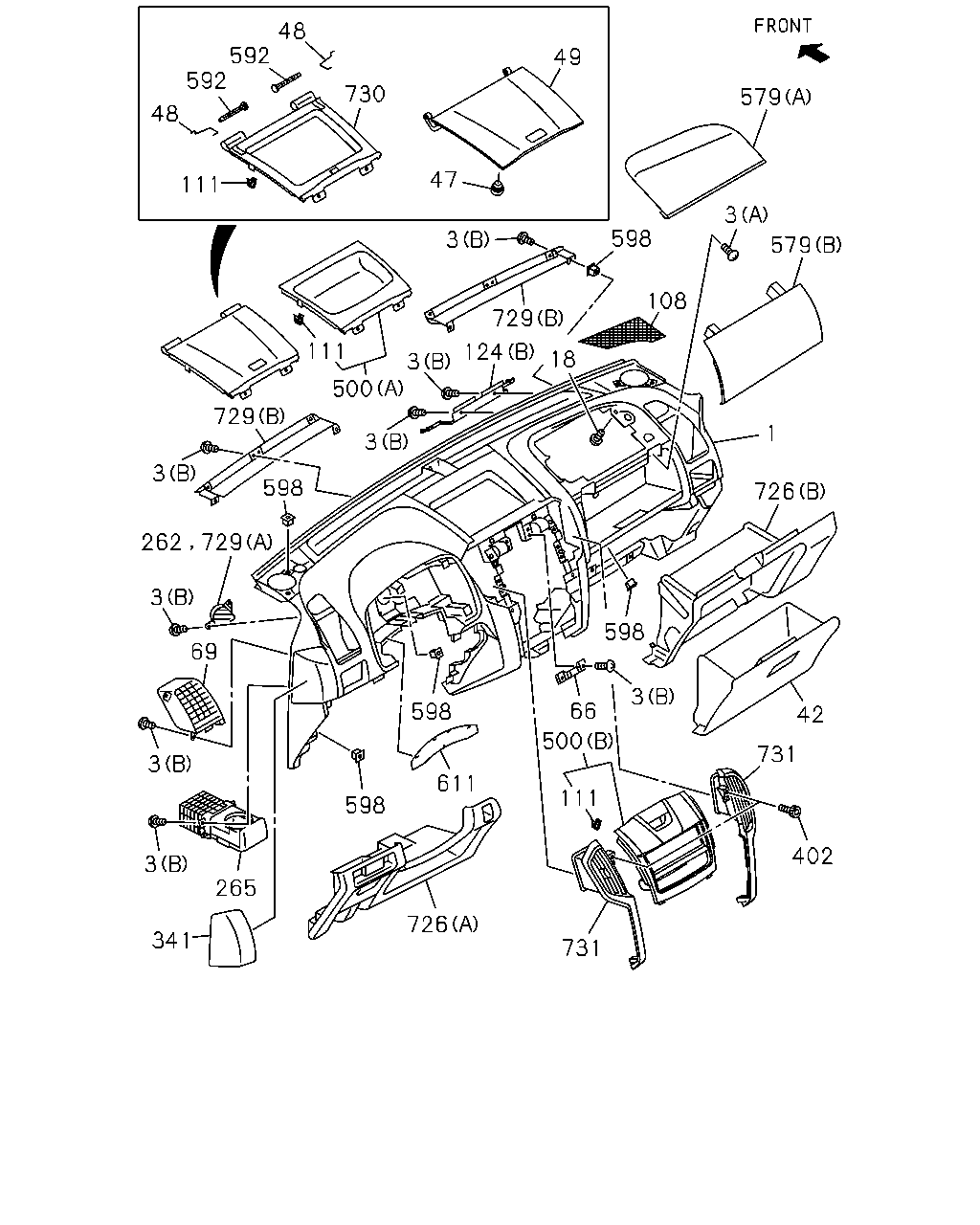

çizim 432087
402 731 42 726 1 579 3 731 111 500 66 3 598 598 611 726 598 265 3 341 3 69 3 262 729 598 3 729 500 3 3 111 729 124 18 108 598 3 579 47 49 730 48 592 592 48 111
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1407- ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1407- ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16 		8-98246-739-0 31 1 1407- ●
3 16.081 SCREW; BINDER HD
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) (B) M5X16 		8-98246-739-0 31 1 1407- ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16 		8-98246-739-0 32 1 1407- ●
3 16.081 SCREW; BINDER HD
COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 32 1 1407- ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16 		8-98246-739-0 35 1 1407- ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 00.685 M8X40 FLANGE 		0-28650-840-0 02 1 1407- ●
18 16.085 BOLT; BRKT
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 1407- ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> BLACK 		8-97416-629-2 01 1 1407- ●
42 16.100 BOX; GLOVE,INST PNL
BLACK 		8-97416-629-2 01 1 1407- ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> BLACK 		8-97416-631-2 01 1 1407- ●
47 16.100 STOPPER; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-179-1 03 1 1407- ●
47 16.100 STOPPER; GLOVE BOX LID 8-98194-179-1 03 1 1407- ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-177-1 01 1 1407-1411 ●
48 16.110 SPRING; GLOVE BOX LID 8-98194-177-1 01 1 1407-1411 ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-678-0 01 1 1412- ●
48 16.110 SPRING; GLOVE BOX LID 8-98298-678-0 01 1 1412- ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-178-1 01 1 1407-1411 ●
48 16.110 SPRING; GLOVE BOX LID 8-98194-178-1 01 1 1407-1411 ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-679-0 01 1 1412- ●
48 16.110 SPRING; GLOVE BOX LID 8-98298-679-0 01 1 1412- ●
49 16.110 LID; GLOVE BOX
INTERIOR CUSTOM(RBD) BLACK 		8-97423-320-1 01 1 1407- ●
49 16.110 LID; GLOVE BOX
BLACK 		8-97423-320-1 01 1 1407- ●
66 16.085 REINFORCEMENT; INST PANEL 8-98187-112-0 01 1 1407- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-071-2 01 1 1407- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-072-2 01 1 1407- ● ●
108 09.264 GRILLE; INST PNL
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-627-2 01 1 1407- ● ●
108 09.264 GRILLE; INST PNL
BLACK 		8-97416-626-2 01 1 1407- ● ●
108 09.264 GRILLE; INST PNL
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-625-2 01 1 1407- ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5) 16.165 		8-98164-677-0 04 1 1407- ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.165 		8-98164-677-0 02 1 1407- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1407- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98064-648-1 01 1 1407- ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-648-1 01 1 1407- ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) 		8-98064-650-1 01 1 1407- ●
262 09.264 GRILLE; DEFROSTER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) BLACK 		8-97423-076-0 01 1 1407- ● ●
262 09.264 GRILLE; DEFROSTER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) BLACK 		8-97423-077-0 01 1 1407- ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-073-0 01 1 1407- ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-074-0 01 1 1407- ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-611-3 01 1 1407- ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-612-3 01 1 1407- ● ●
402 09.264 SCREW; VENT GRILLE,INST
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1407- ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR BASIC(RBA) (A) BLACK 		8-97427-625-0 01 1 1407- ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) (B) BLACK 		8-97416-624-2 01 1 1407- ● ●
579 16.080 COVER; INST PNL
(B) BLACK 		8-97423-084-3 01 1 1407- ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) BLACK 		8-97423-085-0 01 1 1407- ●
592 16.115 HINGE; LID
INTERIOR CUSTOM(RBD) 		8-98194-176-1 02 1 1407- ●
592 16.115 HINGE; LID 8-98194-176-1 02 1 1407- ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1407- ● ●
611 16.081 SHEET 8-98187-119-0 01 1 1407- ● ●
726 16.080 PANEL; INST LW
PASSIVE ENTRY AND START SYSTEM<AP3> (A) BLACK 		8-97427-832-2 01 1 1407- ● ●
726 16.080 PANEL; INST LW
INTERIOR BASIC(RBA) (B) BLACK 		8-97428-092-0 01 1 1407- ●
726 16.080 PANEL; INST LW
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97423-220-0 01 1 1407- ●
726 16.080 PANEL; INST LW
(B) BLACK 		8-97423-220-0 01 1 1407- ●
726 16.080 PANEL; INST LW
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) BLACK 		8-97417-398-1 01 1 1407- ● ●
729 16.085 COVER; GRILLE
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) BLACK 		8-97423-079-0 01 1 1407- ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (A) BLACK 		8-97423-079-0 01 1 1407- ●
729 16.085 COVER; GRILLE
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) BLACK 		8-97423-080-0 01 1 1407- ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (A) BLACK 		8-97423-080-0 01 1 1407- ●
729 16.085 COVER; GRILLE
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) BLACK 		8-97423-081-0 01 1 1407- ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (B) BLACK 		8-97423-081-0 01 1 1407- ●
729 16.085 COVER; GRILLE
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) BLACK 		8-97423-082-0 01 1 1407- ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (B) BLACK 		8-97423-082-0 01 1 1407- ●
730 16.115 BEZEL; LID
INTERIOR CUSTOM(RBD) BLACK 		8-97423-319-0 01 1 1407- ●
730 16.115 BEZEL; LID
BLACK 		8-97423-319-0 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-639-4 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-640-4 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-637-4 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
09.264 SILVER 		8-97416-637-4 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-638-4 01 1 1407- ●
731 16.085 GRILLE; VENTILATOR
09.264 SILVER 		8-97416-638-4 01 1 1407- ●

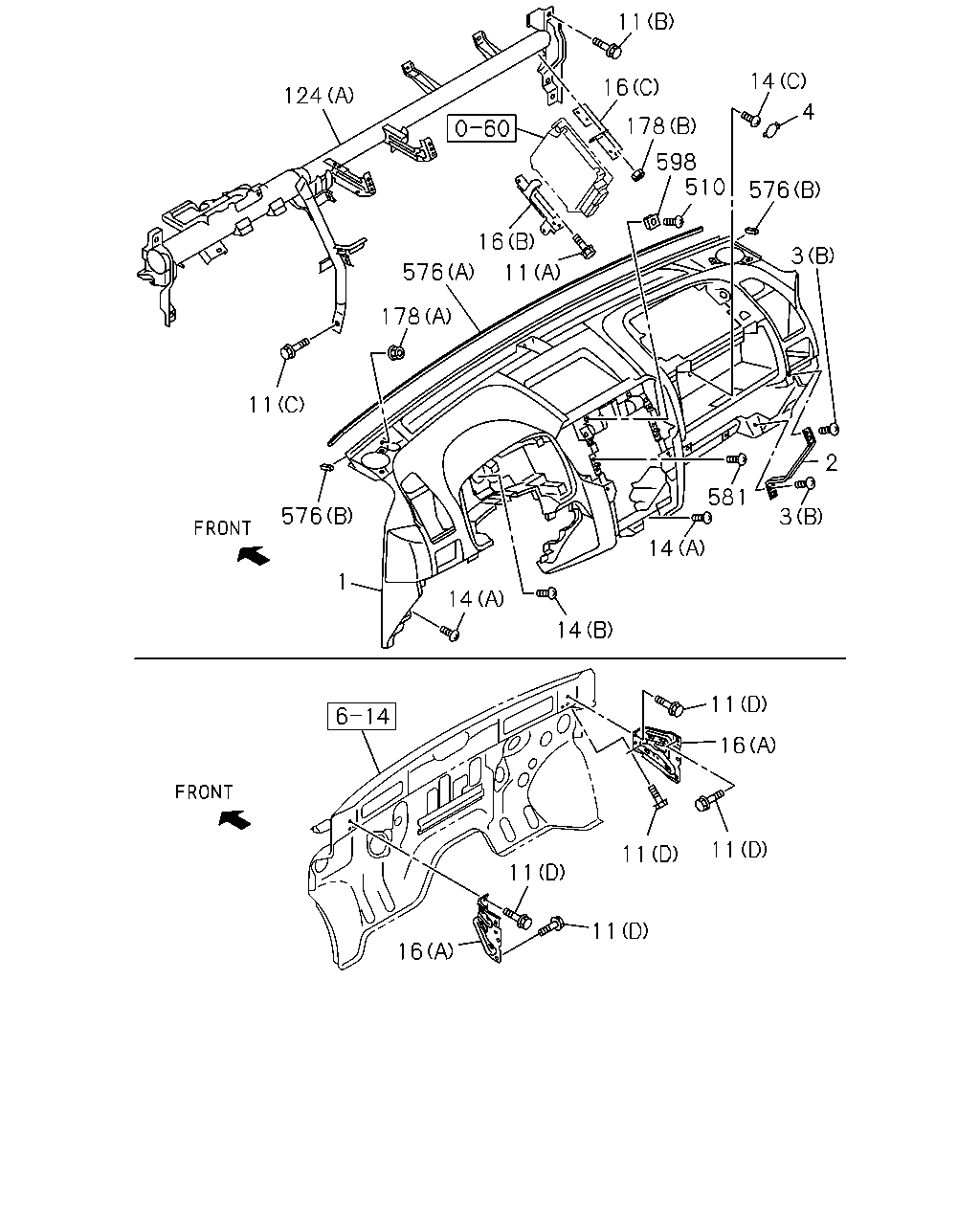

çizim 433922
124 11 16 178 598 4 14 576 510 3 16 11 576 178 11 581 2 3 14 14 14 1 576 11 11 11 11 16 11 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1407- ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-98232-644-1 01 1 1407- ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1407- ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16 		8-98246-739-0 31 1 1407- ●
3 16.081 SCREW; BINDER HD
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61) (B) M5X16 		8-98246-739-0 31 1 1407- ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16 		8-98246-739-0 32 1 1407- ●
3 16.081 SCREW; BINDER HD
COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 32 1 1407- ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16 		8-98246-739-0 35 1 1407- ●
4 16.080 COVER; INST PNL
16.165 BLACK 		8-97416-610-0 01 1 1407- ● ●
11 16.090 BOLT; INST PNL
08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1407- ● ●
11 16.090 BOLT; INST PNL
4JK1-TCX ENG(LR0) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1407-1508 ● ●
11 16.090 BOLT; INST PNL
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1509-1509 ● ●
11 16.090 BOLT; INST PNL
08.077 (A) M6X20 W/PL WASHER 		8-97370-668-0 01 1 1510- ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1407- ● ●
11 16.090 BOLT; INST PNL
01.540 (D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1407- ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 03 1 1407- ● ●
14 16.085 SCREW; INST PNL
08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1407- ● ●
14 16.085 SCREW; INST PNL
16.345 (C) M5X14 TAPPING 		8-98184-363-0 01 1 1407- ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 04 1 1407- ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1407- ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1407- ● ●
16 16.085 BRACKET; INST PNL
4JK1-TCX ENG(LR0) (B) 		8-98222-758-1 01 1 1407-1508 ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-98222-758-1 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
4JK1-TCX ENG(LR0) (C) 		8-98229-118-1 01 1 1407-1508 ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98229-118-1 01 1 1509- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1407- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98064-648-1 01 1 1407- ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-648-1 01 1 1407- ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) 		8-98064-650-1 01 1 1407- ●
178 16.085 NUT; INST PANEL
08.915 (A) M6 FLANGE 		8-98055-704-0 03 1 1407- ● ●
178 16.085 NUT; INST PANEL
4JK1-TCX ENG(LR0) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1407-1508 ● ●
178 16.085 NUT; INST PANEL
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
510 16.081 SCREW; CENTER CLUSTER
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1407- ● ●
576 16.085 CUSHION
(A) 		8-98232-668-0 01 1 1407- ● ●
576 16.085 CUSHION
(B) 		8-98232-669-0 02 1 1407- ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1407- ● ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1407- ● ●
