◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#14582) — 79 parça

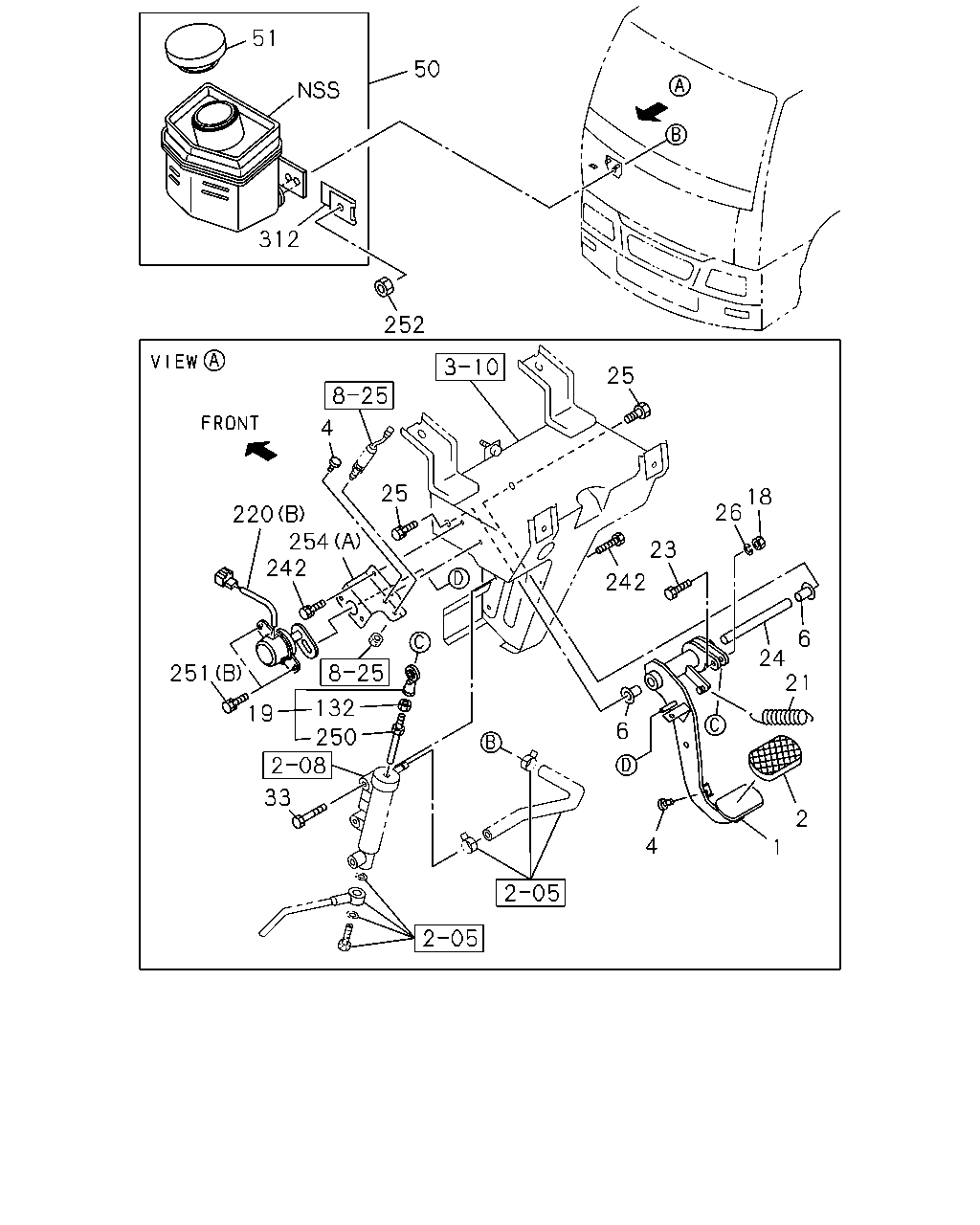

çizim 141510
51 50 312 252 25 4 25 18 26 220 254 242 23 242 6 24 21 251 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73907-474-1 01 1 0710-1005 ●
1 PEDAL; CLU 1-73907-474-1 01 1 1006- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0710-1005 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1006- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0710-1005 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1006- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0710-1005 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1006- ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0710-1005 ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1006- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0710-1005 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1006- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0710-1005 ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1006- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0710-1005 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1006- ● ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0710-1005 ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 1006- ● ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0710-1005 ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 1006- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0710-1005 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1006- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710-1005 ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1006- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0710-1005 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 1006- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0710-1005 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1006- ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0710-1005 ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1006- ● ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710-1502 ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		8-98131-123-0 01 1 1503- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0710-1005 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 1006- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0710-1005 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1006- ● ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0710-1005 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1006- ● ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-1005 ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1006- ● ●
254 BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0710- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0710-1005 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1006- ● ●

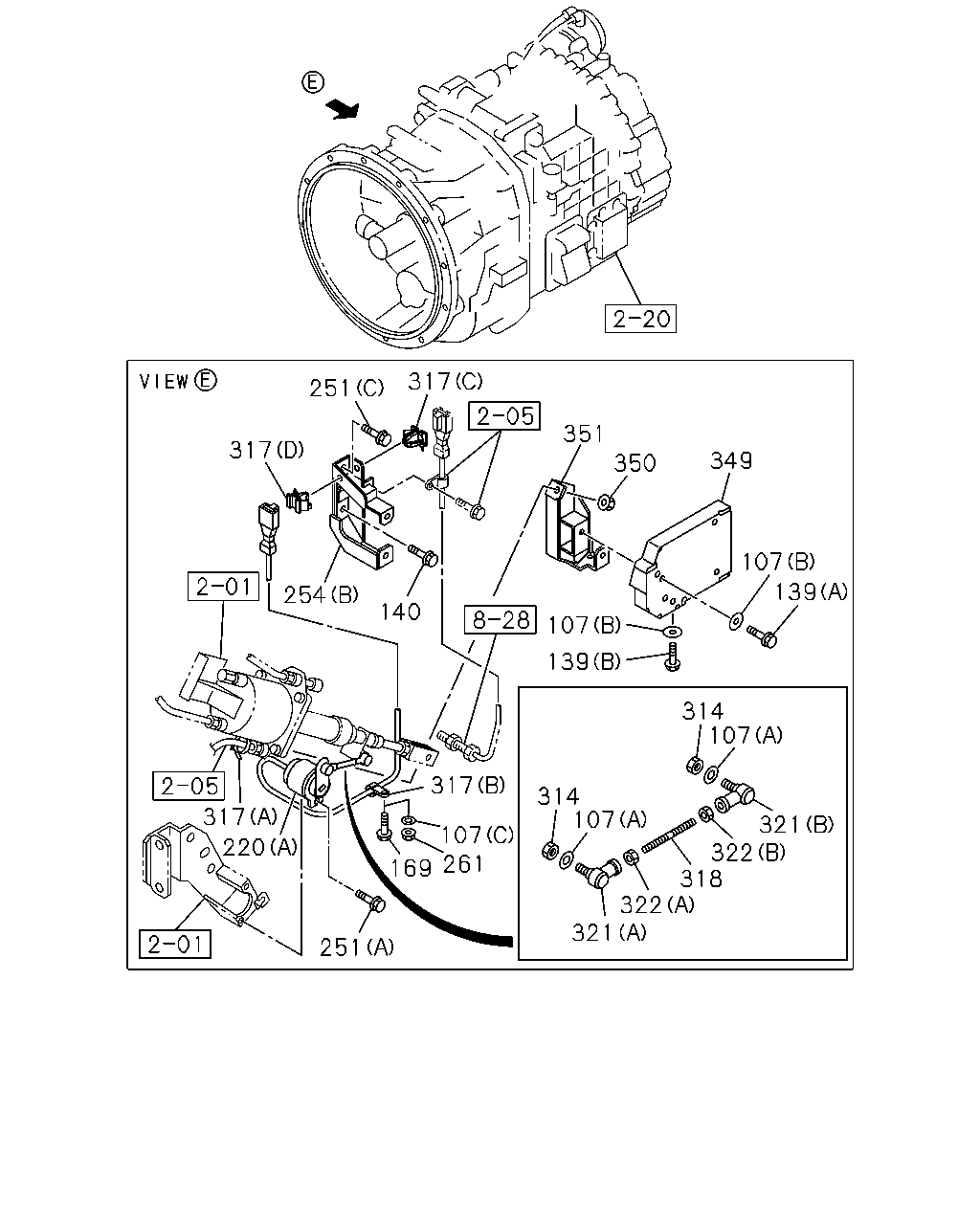

çizim 141513
317 251 351 317 349 350 107 139 254 140 107 139 314 107 317 314 107 317 220 321 322 318 322 321 107 261 169 251
BalonParca AdiParca NoAdetTipApplied Date A B
107 WASHER; PL
SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 0710- ●
107 WASHER; PL
SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 0710- ●
107 WASHER; PL
SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 0710- ●
139 BOLT; COVER
SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0710- ●
139 BOLT; COVER
SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
140 BOLT; BRKT
SMOOTHER-G(C1W) M10X30 FLANGE 		0-28751-030-0 01 1 0710- ●
169 BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-97320-627-0 01 1 0710-0805 ●
169 BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710-1502 ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		8-98131-123-0 01 1 1503- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-1005 ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1006- ● ●
254 BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0710- ●
261 NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-208-0 01 1 0710-0811 ●
261 NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
314 NUT; ROD
SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710- ●
318 ROD; CLU
SMOOTHER-G(C1W) 		0-84100-506-0 01 1 0710- ●
321 END; ROD
SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 0710- ●
321 END; ROD
SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 0710- ●
322 NUT; ROD END
SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 0710- ●
322 NUT; ROD END
SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 0710- ●
349 COVER; SENSOR
SMOOTHER-G(C1W) 		1-31349-075-0 01 1 0710- ●
350 NUT; COVER
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
351 BRACKET; COVER
SMOOTHER-G(C1W) 		1-31349-079-0 01 1 0710- ●
