6-83 — BACK DOOR LOCK AND HANDLE (#145816) — 21 parça

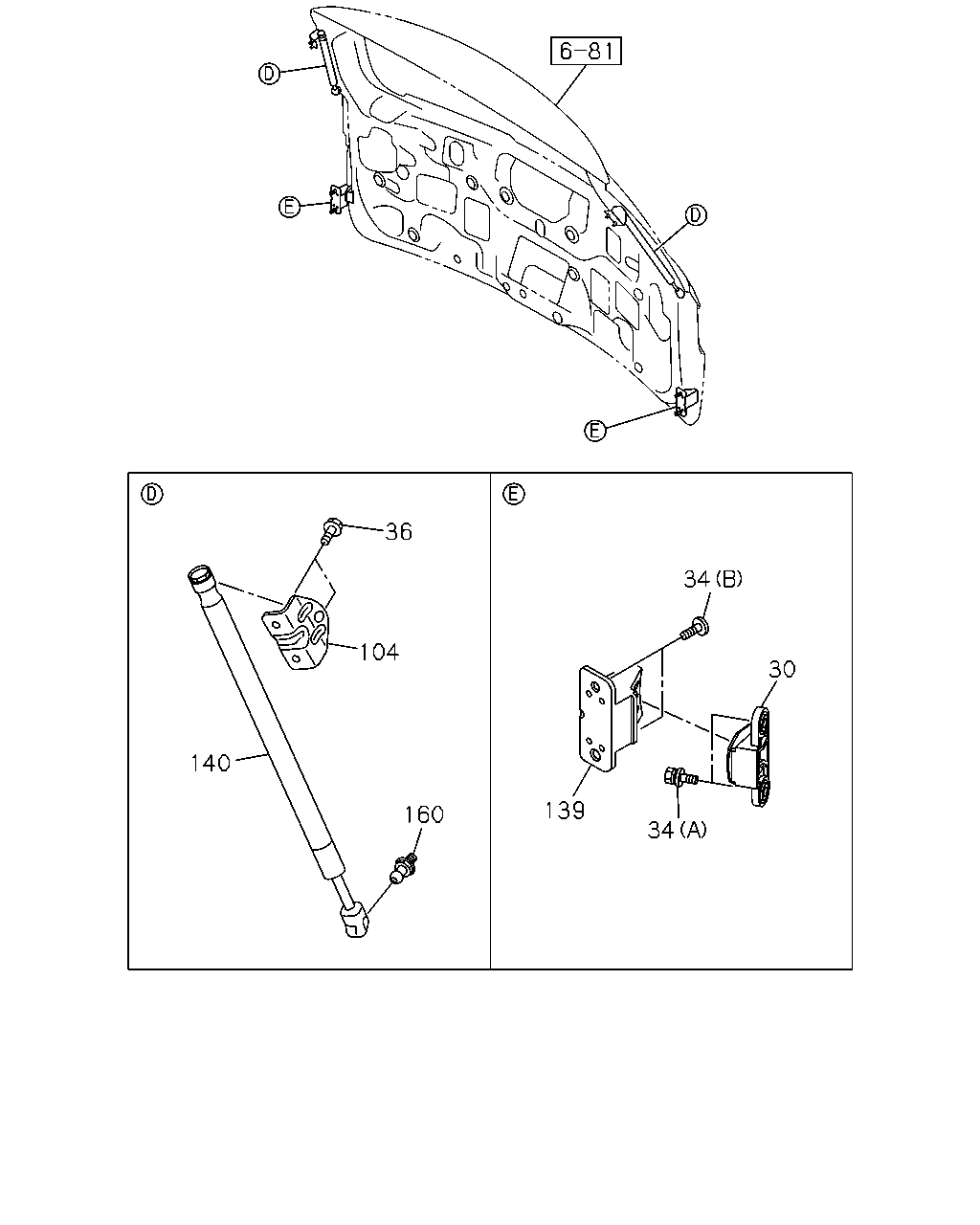

çizim 431981
34 30 34 139 160 104 36 140
BalonParca AdiParca NoAdetTipApplied Date A B
30 16.335 DOVETAIL; BACK DOOR 8-98189-933-2 02 1 1407- ● ●
34 16.335 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER 		8-98125-360-0 04 1 1407- ● ●
34 16.335 BOLT; DOVETAIL TO BACK DOOR
(B) 		8-98228-811-0 04 1 1407- ● ●
36 16.341 BOLT; LINK
03.895 M6X16 FLANGE 		8-98049-357-0 04 1 1407- ● ●
104 17.198 BRACKET 8-98220-920-0 02 1 1407- ● ●
139 16.335 DOVETAIL; BODY 8-98189-854-1 02 1 1407- ● ●
140 17.198 STAY; TAIL GATE 8-98188-524-1 01 1 1407- ● ●
140 17.198 STAY; TAIL GATE 8-98188-525-1 01 1 1407- ● ●
160 16.335 STUD; BACK DOOR 8-98220-953-0 02 1 1407- ● ●

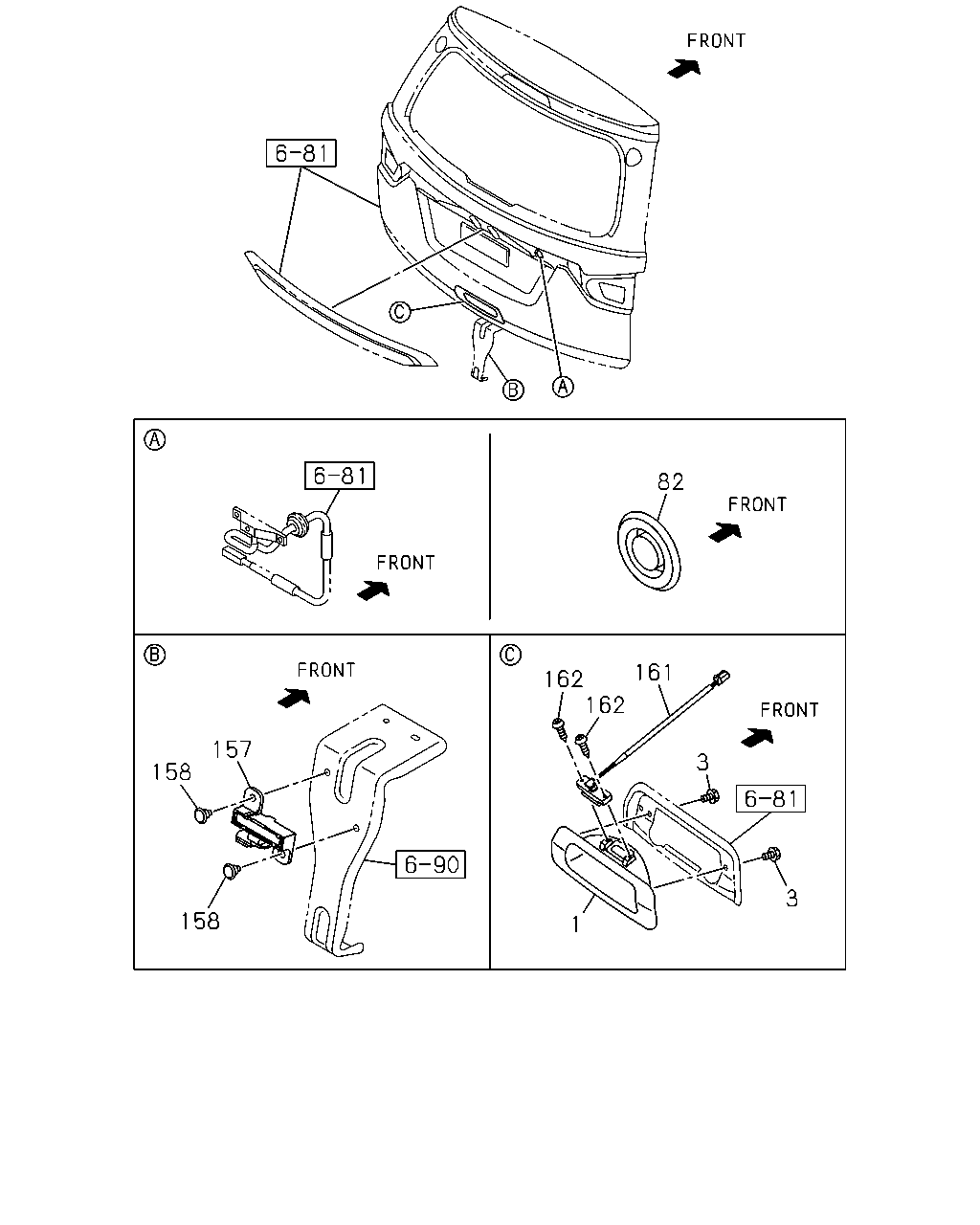

çizim 432045
82 161 162 162 3 3 1 158 158 157
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR COSMIC BLACK MICA(523) BLACK 		8-97425-503-0 01 1 1407- ● ●
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SPLASH WHITE(527) WHITE 		8-97425-504-0 01 1 1407- ● ●
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR TITANIUM SILVER MET(529) SILVER 		8-97425-505-0 01 1 1407- ● ●
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97425-506-0 01 1 1407- ● ●
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ULURU BROWN MET(544) BROWN 		8-97425-507-0 01 1 1407- ● ●
1 16.350 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR FJORD BLUE MET(545) LIGHT BLUE 		8-97425-508-0 01 1 1407- ● ●
3 17.208 BOLT; TAIL GATE HANDLE
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1407- ● ●
82 16.549 PLUG; BACK DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=30 		8-94107-655-0 01 1 1407- ● ●
157 16.320 ANTENNA; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-526-1 01 1 1407- ● ●
158 16.320 FASTENER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 03.602 		8-97372-006-0 02 1 1407- ● ●
161 16.320 SWITCH; BACK DOOR LK 8-98211-442-0 01 1 1407- ● ●
162 16.335 SCREW; SWITCH, BACK DOOR LK 8-98235-426-0 02 1 1407- ● ●
