6-78 — FLOOR HOLE PLUG (#145812) — 32 parça

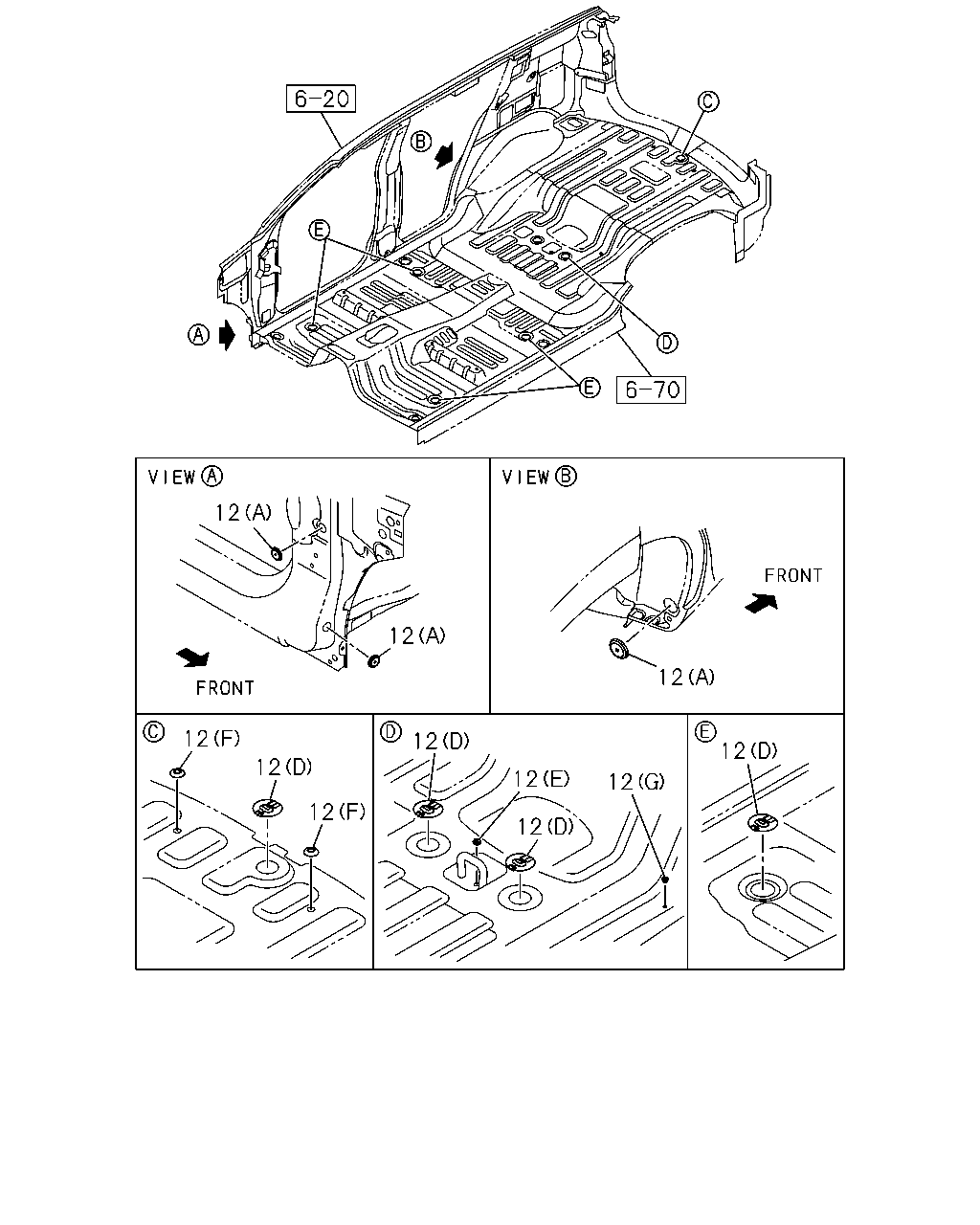

çizim 433912

12 12 12 12 12 12 12 12 12 12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0	8-94279-040-0	04	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (B) OD=15.0	8-94279-040-0	04	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (C) OD=35	8-97320-908-0	10	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (C) OD=35	8-97320-908-0	10	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR 09.775 (D)	8-97324-563-0	07	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) 09.775 (D)	8-97324-563-0	07	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (E)	8-98233-151-0	01	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (E)	8-98233-151-0	01	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (F)	8-98233-595-1	02	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (F)	8-98233-595-1	02	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR 16.550 (G) OD=12	9-09956-122-0	01	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) 16.550 (G) OD=12	9-09956-122-0	01	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35	8-97320-908-0	06	1	1407-	●	●

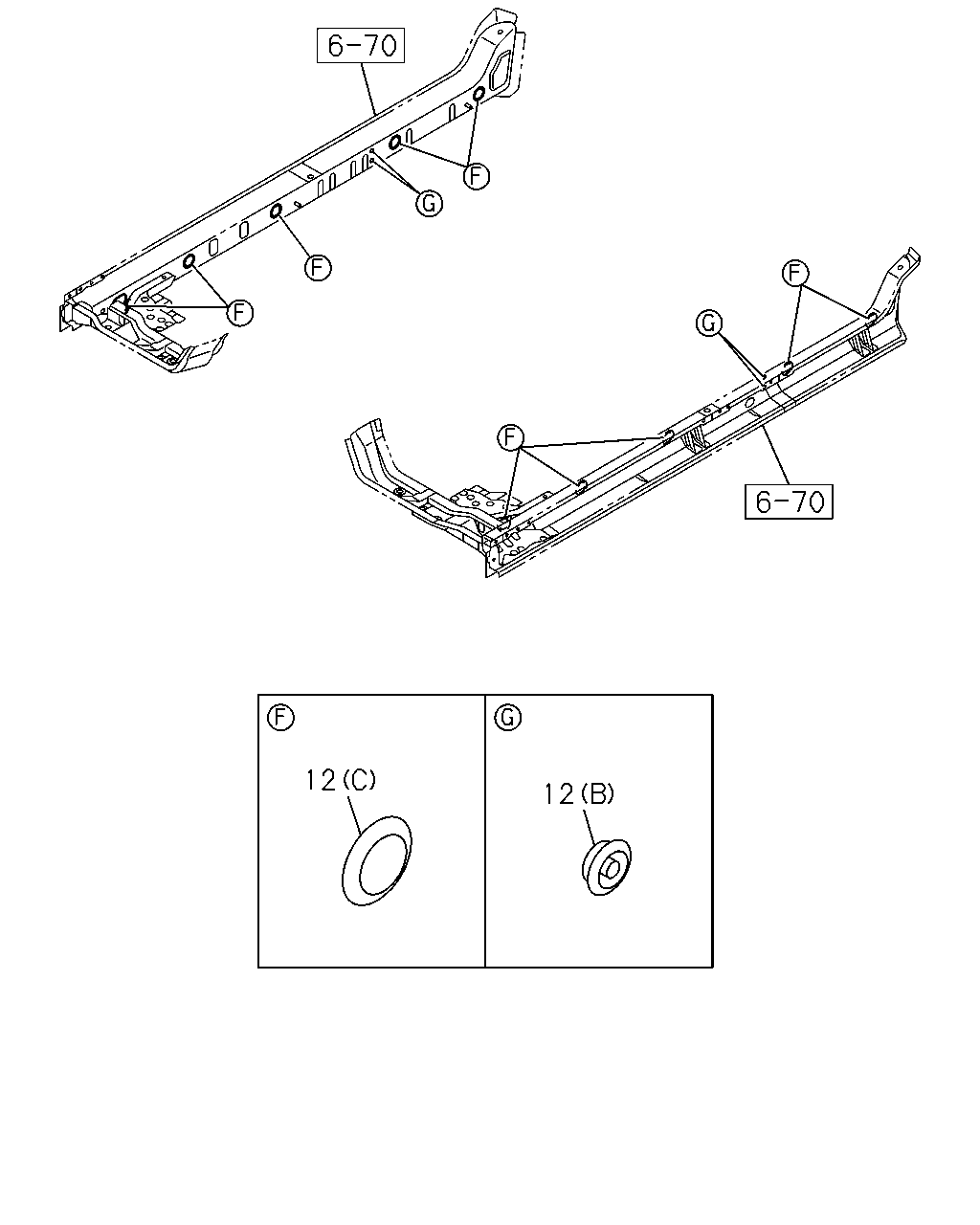

çizim 433914

12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0	8-94279-040-0	04	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (B) OD=15.0	8-94279-040-0	04	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (C) OD=35	8-97320-908-0	10	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (C) OD=35	8-97320-908-0	10	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR 09.775 (D)	8-97324-563-0	07	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) 09.775 (D)	8-97324-563-0	07	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (E)	8-98233-151-0	01	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (E)	8-98233-151-0	01	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (F)	8-98233-595-1	02	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) (F)	8-98233-595-1	02	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR 16.550 (G) OD=12	9-09956-122-0	01	1	1407-	●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR A/T 5 SPEED-AISIN(MA1) 16.550 (G) OD=12	9-09956-122-0	01	1	1407-		●
	12	16.547 GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35	8-97320-908-0	06	1	1407-	●	●

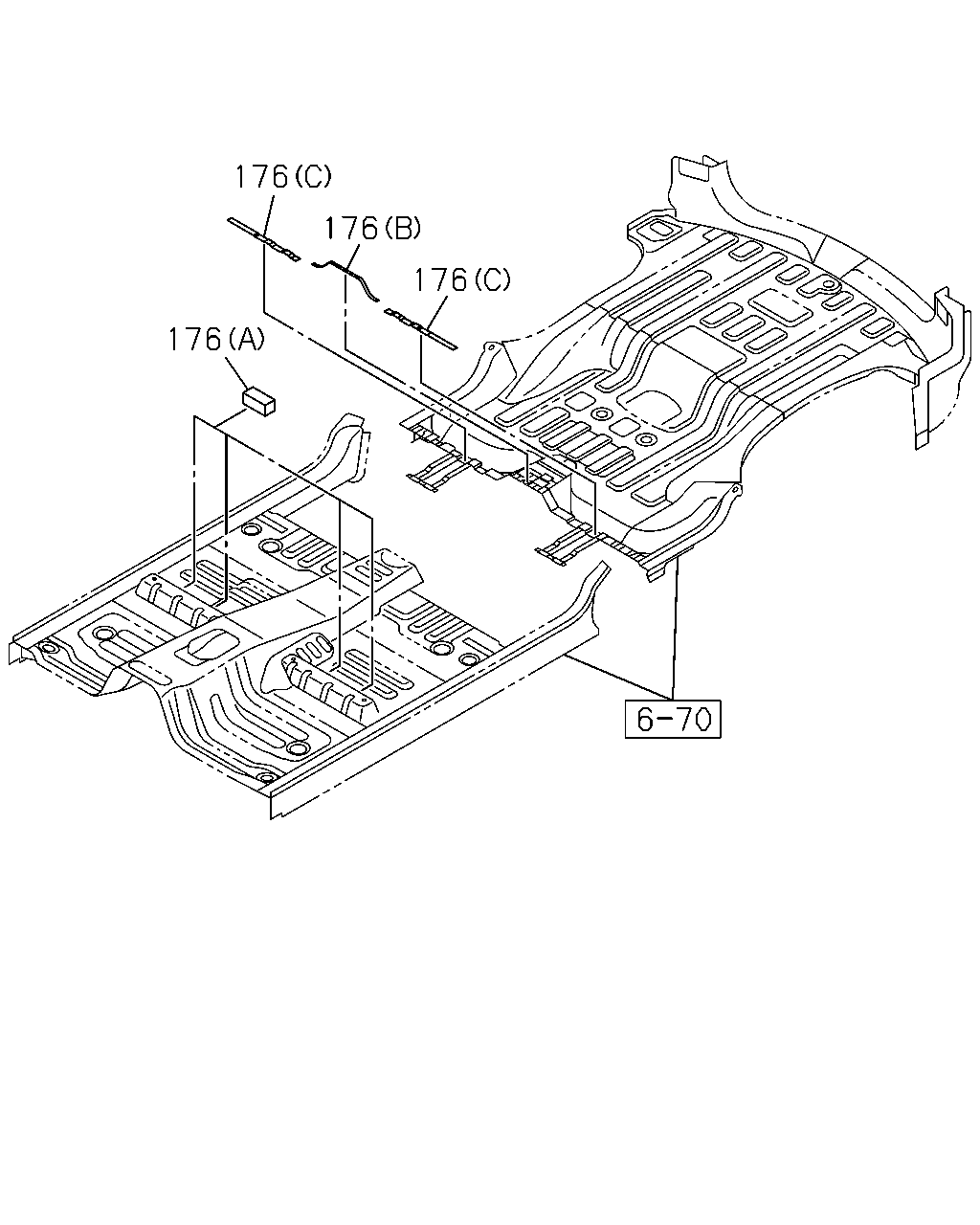

çizim 433952

176 176 176 176

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	176	09.775 SEAL; FLOOR PANEL 16.800 (B)	8-94336-915-0	01	1	1407-	●
	176	09.775 SEAL; FLOOR PANEL A/T 5 SPEED-AISIN(MA1) 16.800 (B)	8-94336-915-0	01	1	1407-		●
	176	09.775 SEAL; FLOOR PANEL 16.800 (C)	8-98178-885-0	02	1	1407-	●
	176	09.775 SEAL; FLOOR PANEL A/T 5 SPEED-AISIN(MA1) 16.800 (C)	8-98178-885-0	02	1	1407-		●
	176	09.775 SEAL; FLOOR PANEL (A)	8-98244-503-0	04	1	1407-	●
	176	09.775 SEAL; FLOOR PANEL A/T 5 SPEED-AISIN(MA1) (A)	8-98244-503-0	04	1	1407-		●
