Sayfa 6-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶

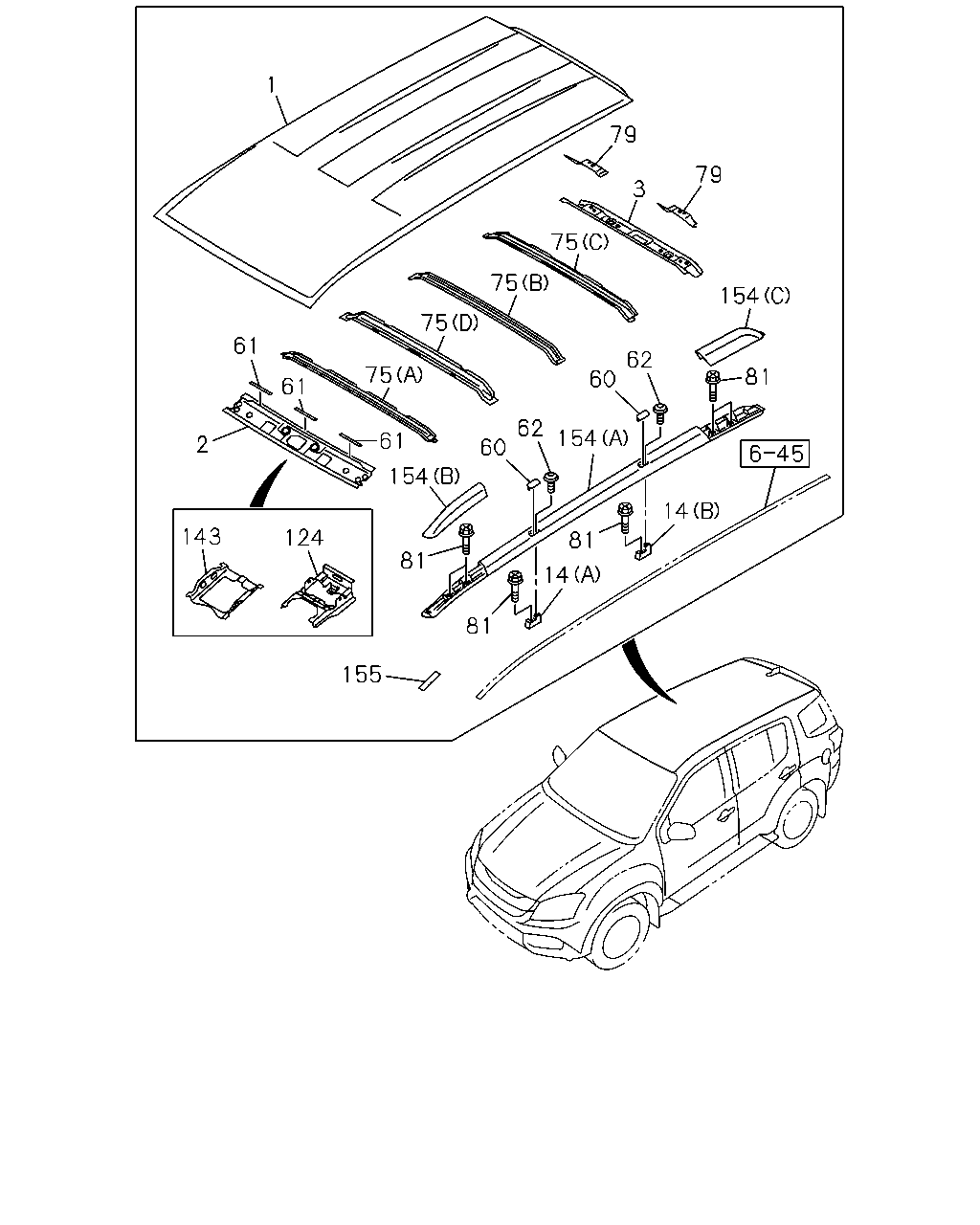

6-60 — ROOF PANEL (#145807) — 63 parça

79 79 3 75 75 154 81 62 60 62 60 154 75 75 61 61 61 2 143 124 155 81 81 14 14 81 1 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.585 PANEL; ROOF HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) ROOF RAIL<7LC>	8-98198-968-1	01	1	1407-1502	●
1	16.585 PANEL; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5)	8-98198-968-1	01	1	1407-1502		●
1	16.585 PANEL; ROOF HEADER CONSOLE<DK6> ROOF RAIL<7LC>	8-98198-968-1	01	1	1503-	●
1	16.585 PANEL; ROOF	8-98198-968-1	01	1	1503-		●
1	16.585 PANEL; ROOF AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. ROOF RAIL<7LC>	8-98207-855-1	01	1	1407-1502	●
1	16.585 PANEL; ROOF EXC. ROOF RAIL<7LC>	8-98207-855-1	01	1	1503-	●
2	16.585 PANEL; ROOF,CENTER	8-98103-964-5	01	1	1407-	●	●
3	16.585 PANEL; ROOF,RR	8-98198-975-0	01	1	1407-	●	●
14	16.585 SUPPORT; ROOF ROOF RAIL<7LC> (A)	8-98234-873-1	01	1	1407-	●
14	16.585 SUPPORT; ROOF (A)	8-98234-873-1	01	1	1407-		●
14	16.585 SUPPORT; ROOF ROOF RAIL<7LC> (A)	8-98234-874-1	01	1	1407-	●
14	16.585 SUPPORT; ROOF (A)	8-98234-874-1	01	1	1407-		●
14	16.585 SUPPORT; ROOF ROOF RAIL<7LC> (B)	8-98234-875-1	01	1	1407-	●
14	16.585 SUPPORT; ROOF (B)	8-98234-875-1	01	1	1407-		●
14	16.585 SUPPORT; ROOF ROOF RAIL<7LC> (B)	8-98234-876-1	01	1	1407-	●
14	16.585 SUPPORT; ROOF (B)	8-98234-876-1	01	1	1407-		●
60	16.585 COVER; ROOF ROOF RAIL<7LC> SILVER	8-97425-942-0	04	1	1407-	●
60	16.585 COVER; ROOF SILVER	8-97425-942-0	04	1	1407-		●
61	16.642 SEAL; ROOF COVER	8-98207-100-0	03	1	1407-	●	●
62	16.585 BOLT; ROOF COVER ROOF RAIL<7LC>	8-98241-842-0	04	1	1407-	●
62	16.585 BOLT; ROOF COVER	8-98241-842-0	04	1	1407-		●
75	16.585 BOW; ROOF (A)	8-98199-000-1	01	1	1407-	●	●
75	16.585 BOW; ROOF (B)	8-98199-025-1	01	1	1407-	●	●
75	16.585 BOW; ROOF (C)	8-98199-031-1	01	1	1407-	●	●
75	16.585 BOW; ROOF (D)	8-98204-987-0	01	1	1407-	●	●
79	16.570 REINFORCEMENT; ROOF PANEL,RR	8-98198-980-0	01	1	1407-	●	●
79	16.570 REINFORCEMENT; ROOF PANEL,RR	8-98198-981-0	01	1	1407-	●	●
81	16.585 BOLT; ROOF ROOF RAIL<7LC> M8X42 W/PL WASHER	8-98247-037-0	12	1	1407-	●
81	16.585 BOLT; ROOF M8X42 W/PL WASHER	8-98247-037-0	12	1	1407-		●
124	16.585 BRACKET; ROOM LAMP AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. HEADER CONSOLE<DK6>,ROOF RAIL<7LC>	8-98198-972-0	01	1	1407-1502	●
124	16.585 BRACKET; ROOM LAMP EXC. HEADER CONSOLE<DK6>,ROOF RAIL<7LC>	8-98198-972-0	01	1	1503-	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 16.570	8-98103-962-1	01	1	1407-1502	●
143	16.584 BRACKET; CONSOLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) 16.570	8-98103-962-1	01	1	1407-1502		●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6> 16.570	8-98103-962-1	01	1	1503-	●
143	16.584 BRACKET; CONSOLE 16.570	8-98103-962-1	01	1	1503-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (A) BLACK	8-97425-930-2	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (A) BLACK	8-97425-930-2	01	1	1407-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (A) BLACK	8-97425-932-2	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (A) BLACK	8-97425-932-2	01	1	1407-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (B) BLACK	8-97425-934-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (B) BLACK	8-97425-934-1	01	1	1407-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (B) BLACK	8-97425-936-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (B) BLACK	8-97425-936-1	01	1	1407-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (C) BLACK	8-97425-938-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (C) BLACK	8-97425-938-1	01	1	1407-		●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> ROOF RAIL<7LC> (C) BLACK	8-97425-940-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP FIXED ON BODY<6TC> (C) BLACK	8-97425-940-1	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (A) DARK GRAY	8-97425-931-2	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (A) DARK GRAY	8-97425-931-2	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (A) DARK GRAY	8-97425-933-2	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (A) DARK GRAY	8-97425-933-2	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (B) DARK GRAY	8-97425-935-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (B) DARK GRAY	8-97425-935-1	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (B) DARK GRAY	8-97425-937-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (B) DARK GRAY	8-97425-937-1	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (C) DARK GRAY	8-97425-939-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (C) DARK GRAY	8-97425-939-1	01	1	1407-		●
154	16.585 RAIL; ROOF ROOF RAIL<7LC> SIDE STEP COLOR<8PL> (C) DARK GRAY	8-97425-941-1	01	1	1407-	●
154	16.585 RAIL; ROOF SIDE STEP COLOR<8PL> (C) DARK GRAY	8-97425-941-1	01	1	1407-		●
155	16.585 EXTENSION ROOF RAIL<7LC>	8-98234-877-2	01	1	1407-	●
155	16.585 EXTENSION	8-98234-877-2	01	1	1407-		●
155	16.585 EXTENSION ROOF RAIL<7LC>	8-98234-878-2	01	1	1407-	●
155	16.585 EXTENSION	8-98234-878-2	01	1	1407-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
