6-47 — MUD GUARD AND INSULATOR (#145802) — 31 parça

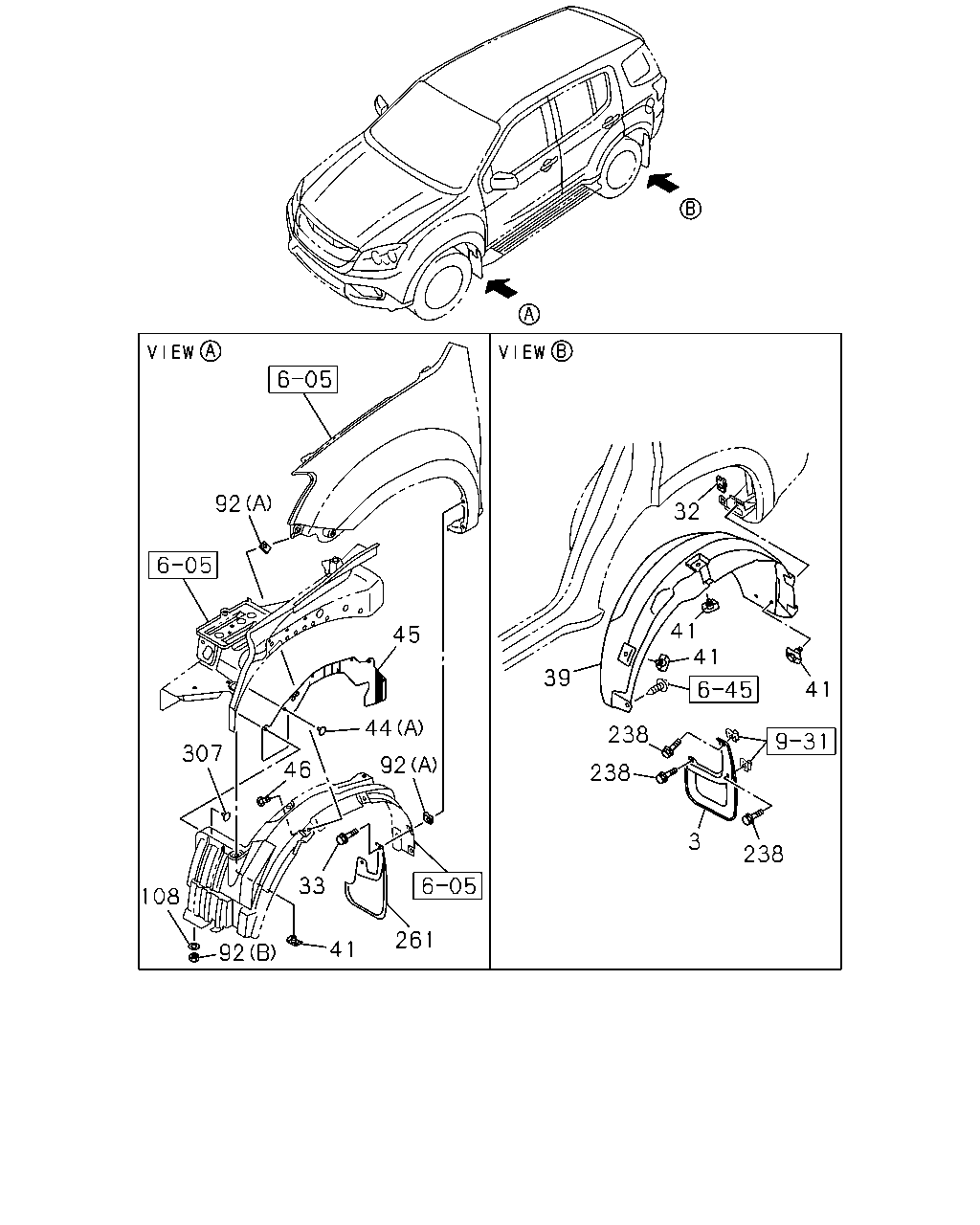

çizim 433580
41 32 41 41 39 238 238 3 238 92 261 41 33 92 108 307 46 45 44 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 08.153 GUARD; MUD,RR 8-98189-866-1 01 1 1407- ● ●
3 08.153 GUARD; MUD,RR 8-98189-867-1 01 1 1407- ● ●
32 08.155 NUT; MUD GUARD 8-97125-519-0 02 1 1407- ● ●
33 08.155 BOLT; MUD COVER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1407- ● ●
39 08.131 LINER; FENDER 8-98190-330-1 01 1 1407- ● ●
39 08.131 LINER; FENDER 8-98190-331-1 01 1 1407- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 24 1 1407- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 02 1 1407- ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1407- ●
44 08.154 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (A) OD=22 L=10.7 		8-94215-211-0 10 1 1407- ●
44 08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1407- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-268-1 01 1 1407- ●
45 08.153 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) 		8-98077-268-1 01 1 1407- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1407- ●
45 08.153 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) 		8-98077-270-0 01 1 1407- ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1407- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 10 1 1407- ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1407- ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1407- ● ●
238 08.153 SCREW; MUD GUARD
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1407- ● ●
261 08.155 RUBBER; FRT,MUD GUARD 8-98077-272-0 01 1 1407- ● ●
261 08.155 RUBBER; FRT,MUD GUARD 8-98077-274-0 01 1 1407- ● ●
307 08.155 RETAINER 8-98050-462-0 02 1 1407- ● ●

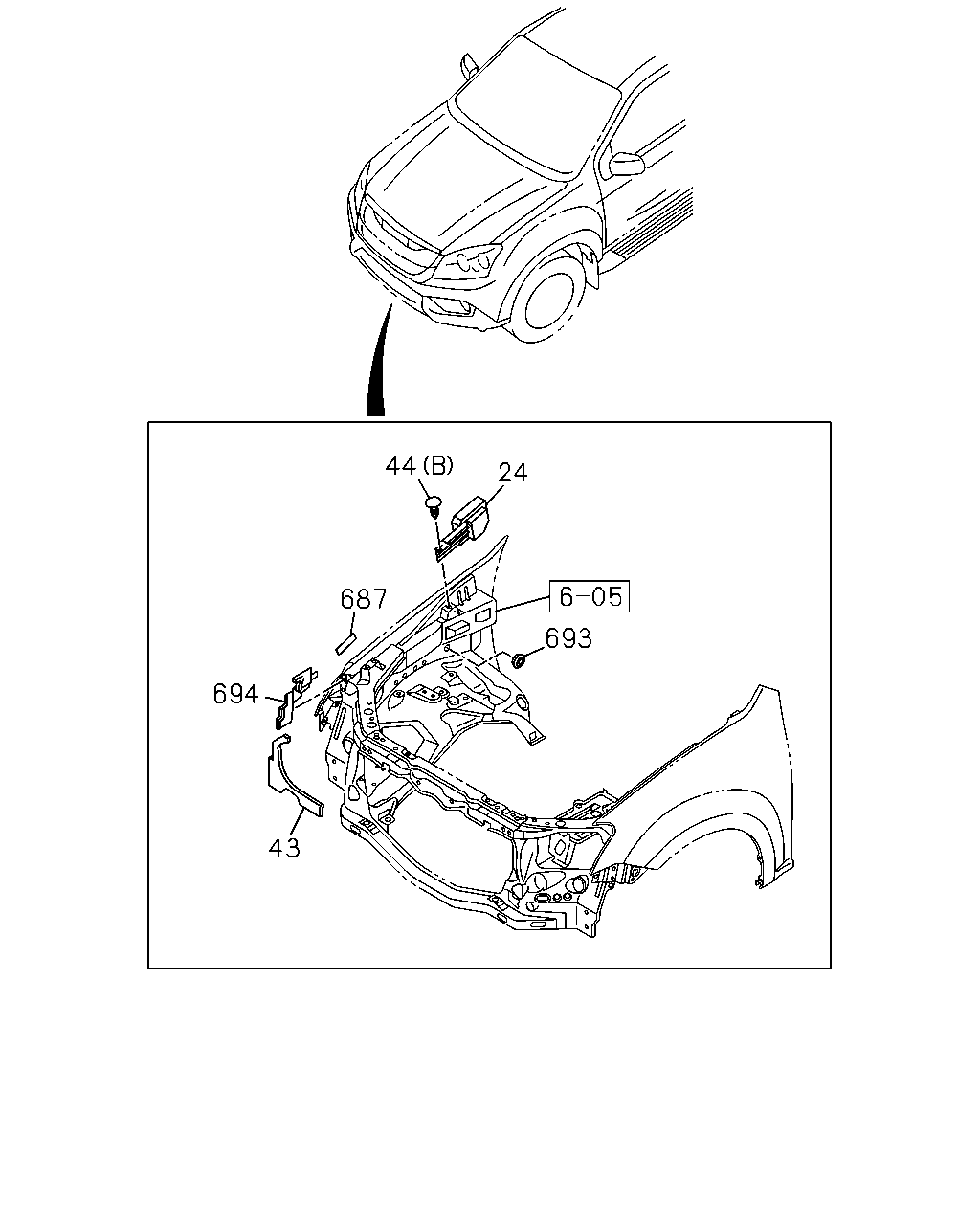

çizim 433688
44 24 693 687 694 43
BalonParca AdiParca NoAdetTipApplied Date A B
24 08.155 PLATE; MUD COVER 8-98187-805-0 01 1 1407- ● ●
43 08.153 INSULATION; FENDER SIDE 8-98189-338-2 01 1 1407- ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1407- ●
44 08.154 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (A) OD=22 L=10.7 		8-94215-211-0 10 1 1407- ●
44 08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1407- ● ●
687 08.155 TAPE; PROTECT 8-98191-602-1 02 1 1407- ● ●
693 08.155 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1407- ● ●
694 08.155 PROTECTOR; WHEEL HOUSE 8-98187-814-0 01 1 1407- ● ●
