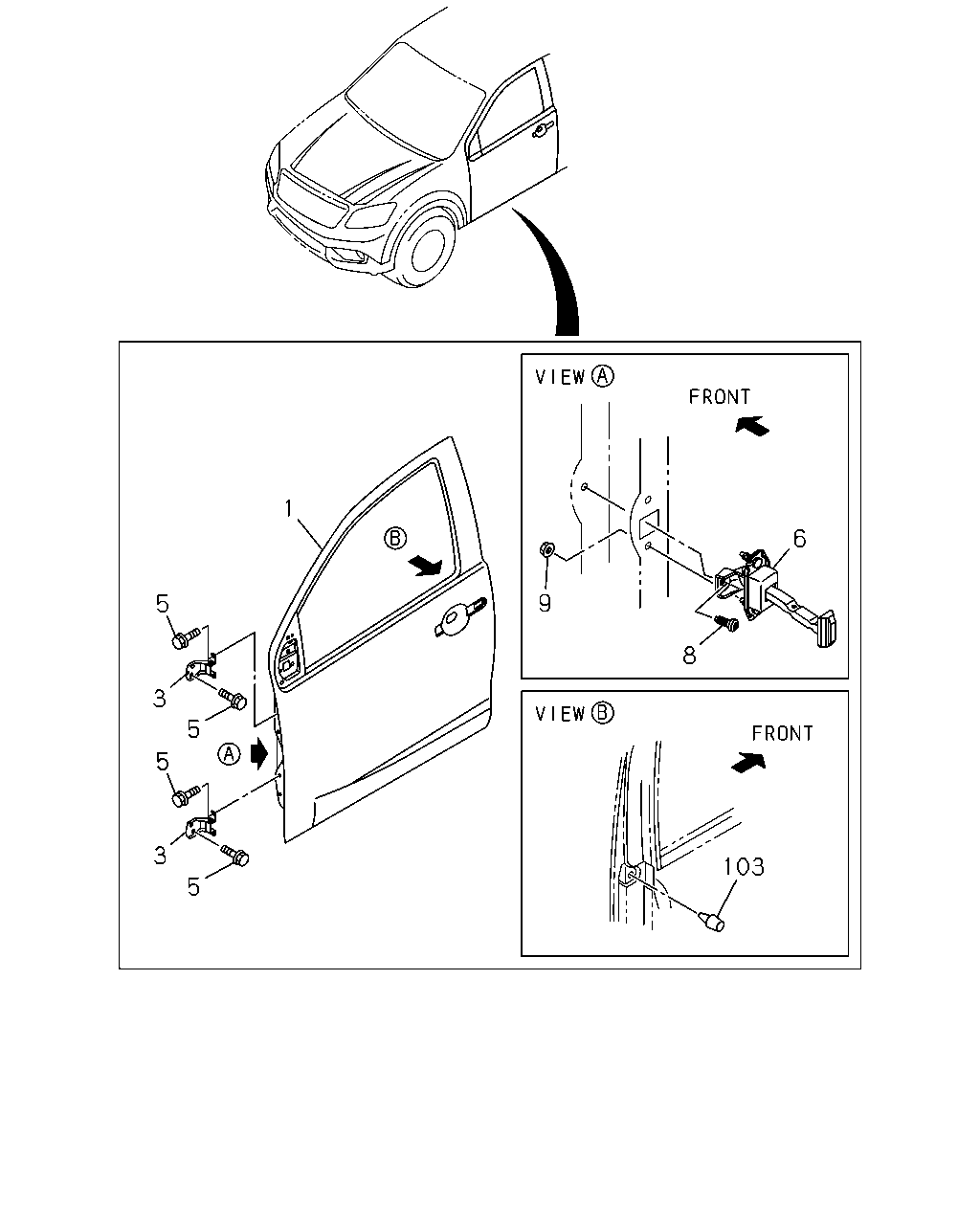

6-30 — FRONT DOOR AND HINGE (#145795) — 16 parça

1 5 3 5 5 3 5 9 8 6 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98108-131-4	01	1	1407-1503	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98268-839-0	01	1	1504-	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98108-132-4	01	1	1407-1503	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>	8-98268-838-0	01	1	1504-	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR MANUAL MATERIAL BLACK<RT9>	8-98108-129-4	01	1	1407-1503	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR MANUAL MATERIAL BLACK<RT9>	8-98268-841-0	01	1	1504-	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR MANUAL MATERIAL BLACK<RT9>	8-98108-130-4	01	1	1407-1503	●
1	16.150 DOOR ASM; FRT,WO/TRIM DOOR MIRROR MANUAL MATERIAL BLACK<RT9>	8-98268-840-0	01	1	1504-	●
3	16.320 HINGE; DOOR FRT UPR RH & LWR LH	8-98105-296-0	02	1	1407-	●	●
3	16.320 HINGE; DOOR FRT LWR RH & UPR LH	8-98105-297-0	02	1	1407-	●	●
5	16.320 BOLT; HINGE 09.171 M8X23 FLANGE	8-98005-842-0	08	1	1407-	●	●
5	16.320 BOLT; HINGE 09.171 M8X23 FLANGE	8-98005-842-0	08	1	1407-	●	●
6	16.320 ARM; CHECK,FRT DOOR	8-98103-030-5	02	1	1407-	●	●
8	16.320 BOLT; CHECK ARM M8X23	8-98166-694-0	02	1	1407-	●	●
9	16.320 NUT; CHECK ARM M6 FLANGE	8-98049-362-0	04	1	1407-	●	●
103	16.165 PROTECTOR; FRT DOOR	8-98202-864-0	04	1	1407-	●	●
