51517 - UCR/UCS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

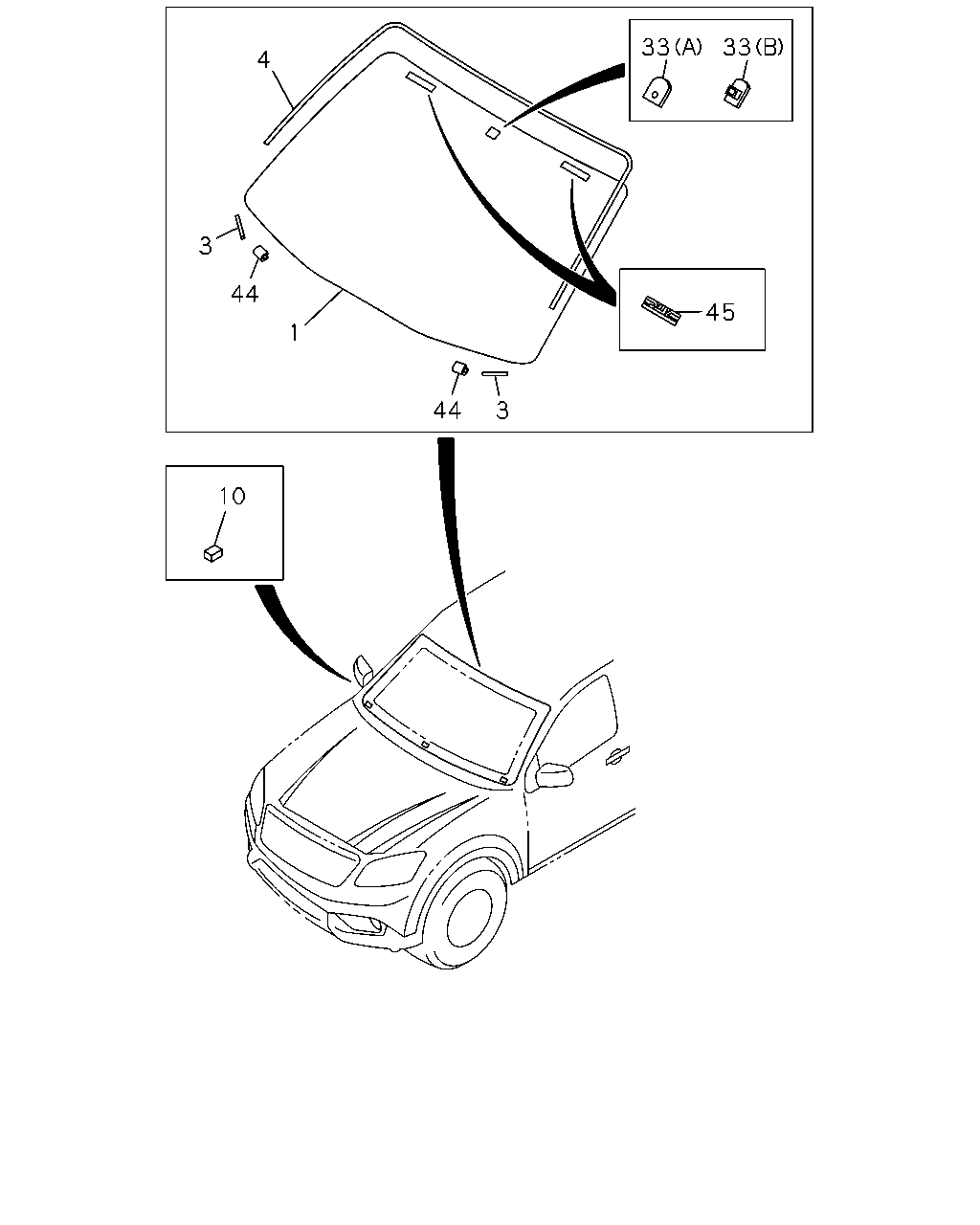

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#145791) — 10 parça
Tümü
A - UCB6VC
B - UCS6VC
3
45
33
33
4
1
44
3
44
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31>
8-98140-681-3
01
1
1407-
●
●
1
16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
8-98140-682-3
01
1
1407-
●
●
3
16.470 MOLDING; WINDSHIELD
8-98194-205-0
01
1
1407-
●
●
3
16.470 MOLDING; WINDSHIELD
8-98194-206-0
01
1
1407-
●
●
4
16.475 MOLDING; WINDSHIELD,UPR
8-98140-685-0
01
1
1407-
●
●
10
08.160 SPACER; WINDSHIELD GLASS
12.180
8-94434-770-0
03
1
1407-
●
●
33
08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A)
8-15954-649-0
01
1
1407-
●
●
33
08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B)
8-97331-592-0
01
1
1407-
●
●
44
16.041 SPONGE
8-98194-202-0
02
1
1407-
●
●
45
16.041 SUPPORT; WINDSHIELD
8-98140-687-0
02
1
1407-
●
●
