Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

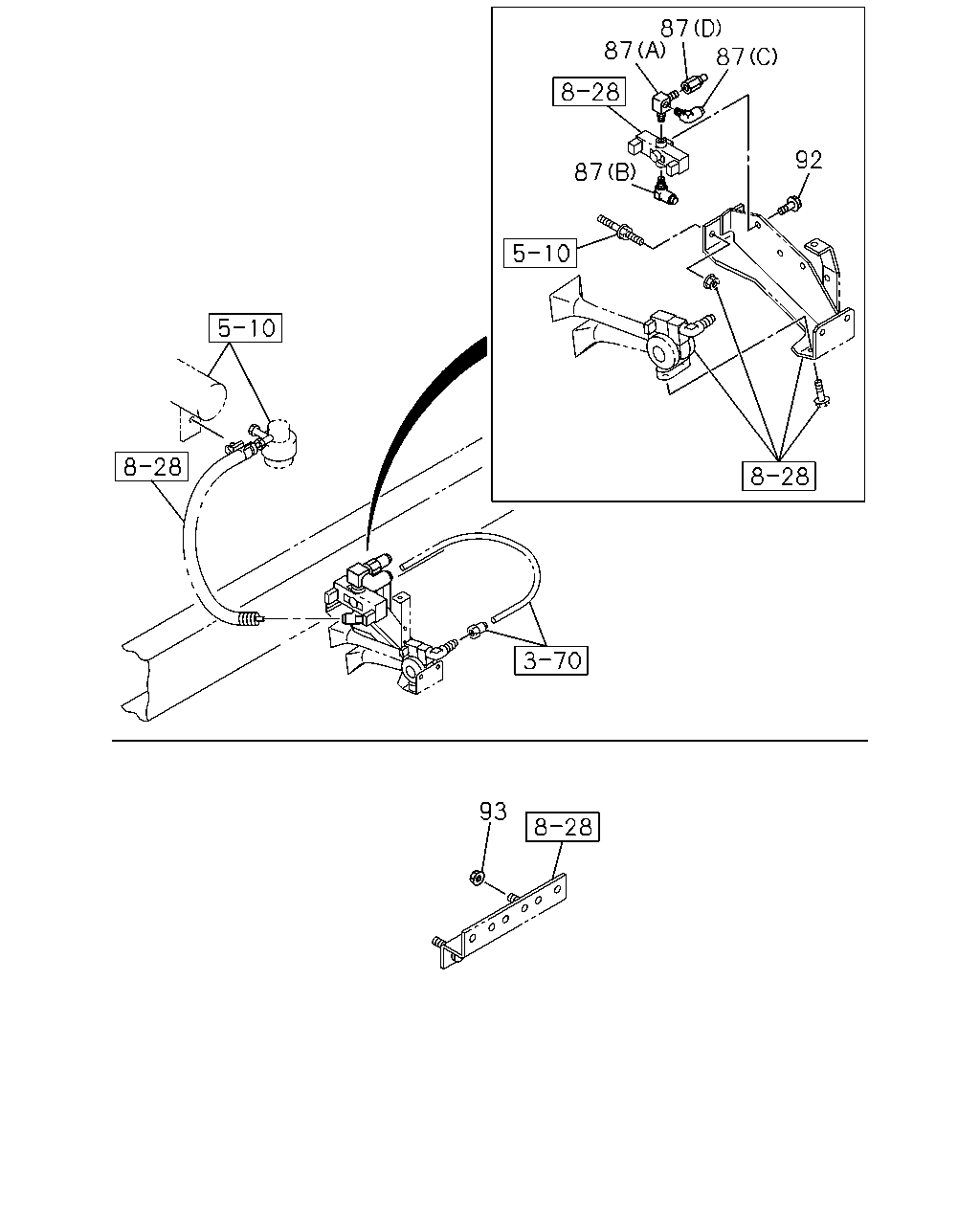

1-56 — EXHAUST BRAKE SYSTEM
(#14579) — 16 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
C - 6WG1 TC-N
87
87
87
92
87
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09656-666-0
01
1
0710-1005
●
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09656-666-0
01
1
1006-1107
●
●
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09656-666-0
01
1
1108-
●
●
●
87
CONNECTOR
(B) DIN6 & R1/8 ELBOW
1-09661-066-0
01
1
0710-1005
●
87
CONNECTOR
(B) DIN6 & R1/8 ELBOW
1-09661-066-0
01
1
1006-1107
●
●
87
CONNECTOR
(B) DIN6 & R1/8 ELBOW
1-09661-066-0
01
1
1108-
●
●
●
87
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
0710-1005
●
87
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1006-1107
●
●
87
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1108-
●
●
●
87
CONNECTOR
(D) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
0710-1005
●
87
CONNECTOR
(D) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1006-1107
●
●
87
CONNECTOR
(D) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1108-
●
●
●
92
BOLT; MAG VLV
M8X16 FLANGE
0-28050-816-0
01
1
0710-1005
●
92
BOLT; MAG VLV
M8X16 FLANGE
0-28050-816-0
01
1
1006-1107
●
●
92
BOLT; MAG VLV
M8X16 FLANGE
0-28050-816-0
01
1
1108-
●
●
●
93
NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE
0-91180-108-0
02
1
0710-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
