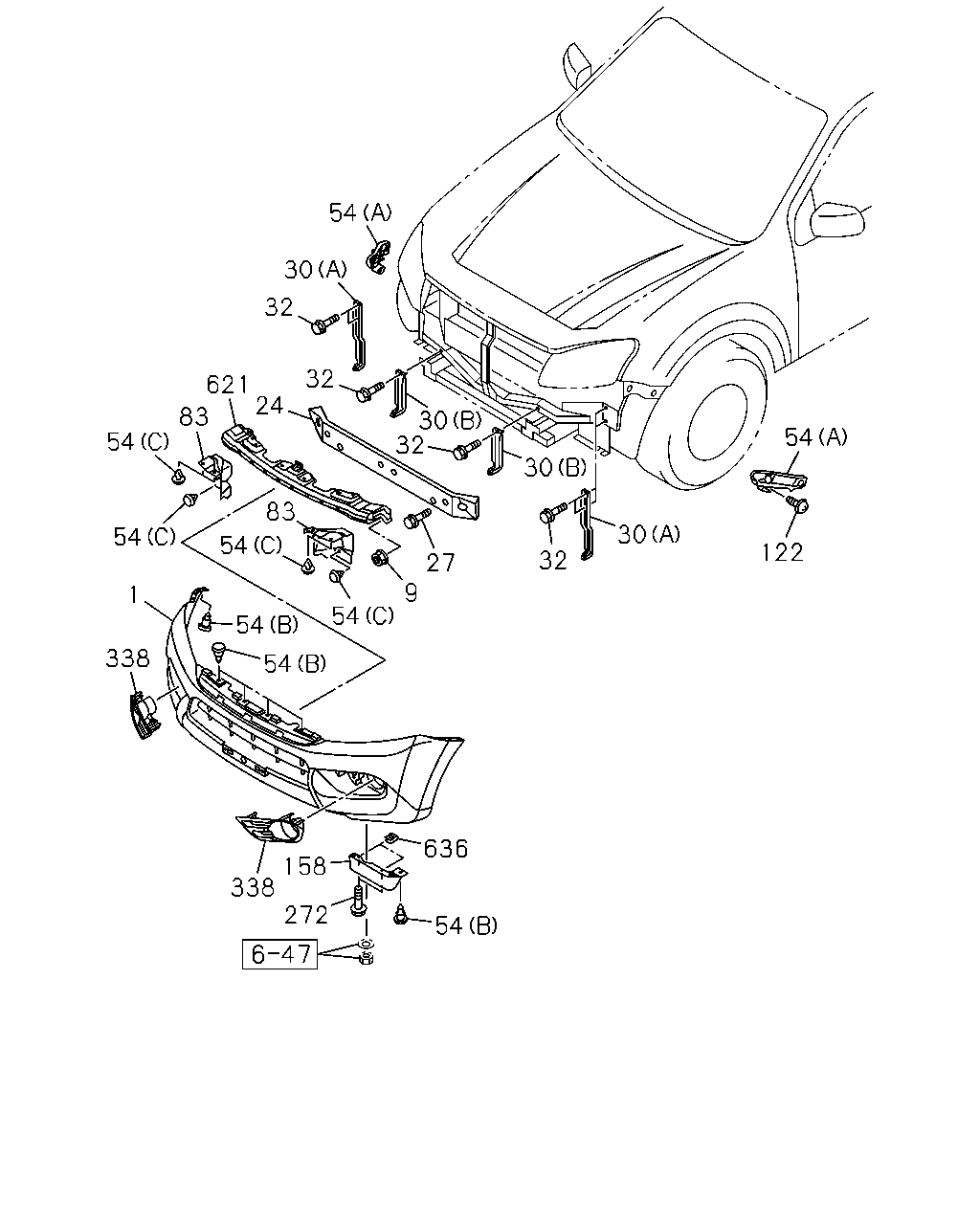

6-01 — FRONT BUMPER (#145788) — 32 parça

272 54 636 158 338 338 1 54 54 54 27 9 32 30 122 54 54 54 54 83 24 621 32 83 30 32 30 32 30 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<VT4> UPR; PRIMER,LWR; COLOR PAINTED DARK GRAY	8-98253-374-1	01	1	1407-	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> PRIMER	8-98249-950-2	01	1	1407-	●	●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE	0-91180-106-0	06	1	1407-	●	●
24	07.869 BAR; FRT BUMPER	8-98165-112-1	01	1	1407-	●	●
27	07.833 BOLT; BUMPER TO BACK BAR M10X25 FLANGE	0-28661-025-0	04	1	1407-	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-98087-391-2	02	1	1407-	●	●
30	07.869 BRACKET; FRT BUMPER (B)	8-98087-392-0	02	1	1407-	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1407-	●	●
54	07.832 RETAINER; FRT BUMPER (B)	8-97301-188-0	10	1	1407-	●	●
54	07.832 RETAINER; FRT BUMPER 08.155 (C)	8-98050-462-0	06	1	1407-	●	●
54	07.832 RETAINER; FRT BUMPER (A)	8-98210-025-0	01	1	1407-	●	●
54	07.832 RETAINER; FRT BUMPER (A)	8-98210-026-0	01	1	1407-	●	●
83	07.833 GUIDE; AIR,FRT BUMPER	8-98139-694-0	01	1	1407-	●	●
83	07.833 GUIDE; AIR,FRT BUMPER	8-98139-695-0	01	1	1407-	●	●
122	07.874 BOLT; RET,FRT BUMPER M6X16 TAPPING W/PL WASHER	0-74160-616-0	02	1	1407-	●	●
158	07.833 EXTENSION; FRT BUMPER	8-98101-950-0	01	1	1407-	●	●
158	07.833 EXTENSION; FRT BUMPER	8-98101-951-0	01	1	1407-	●	●
272	07.874 BOLT; BUMPER TO EXT M6X15 TAPPING W/PL WASHER	8-98164-799-0	04	1	1407-	●	●
338	07.832 BEZEL; FOG LAMP FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5)	8-98187-265-0	01	1	1407-1502	●
338	07.832 BEZEL; FOG LAMP AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5)	8-98187-265-0	01	1	1407-1502		●
338	07.832 BEZEL; FOG LAMP FOG LAMP<T96>	8-98187-265-0	01	1	1503-	●
338	07.832 BEZEL; FOG LAMP	8-98187-265-0	01	1	1503-		●
338	07.832 BEZEL; FOG LAMP FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5)	8-98187-266-0	01	1	1407-1502	●
338	07.832 BEZEL; FOG LAMP AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5)	8-98187-266-0	01	1	1407-1502		●
338	07.832 BEZEL; FOG LAMP FOG LAMP<T96>	8-98187-266-0	01	1	1503-	●
338	07.832 BEZEL; FOG LAMP	8-98187-266-0	01	1	1503-		●
338	07.832 BEZEL; FOG LAMP AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. FOG LAMP<T96>	8-98187-267-0	01	1	1407-1502	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-98187-267-0	01	1	1503-	●
338	07.832 BEZEL; FOG LAMP AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5) EXC. FOG LAMP<T96>	8-98187-268-0	01	1	1407-1502	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-98187-268-0	01	1	1503-	●
621	07.831 SUPPORT; FRT BUMPER	8-98087-390-1	01	1	1407-	●	●
636	07.833 NUT; EXT,FRT BUMPER	8-98072-786-0	04	1	1407-	●	●
