◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#145776) — 9 parça

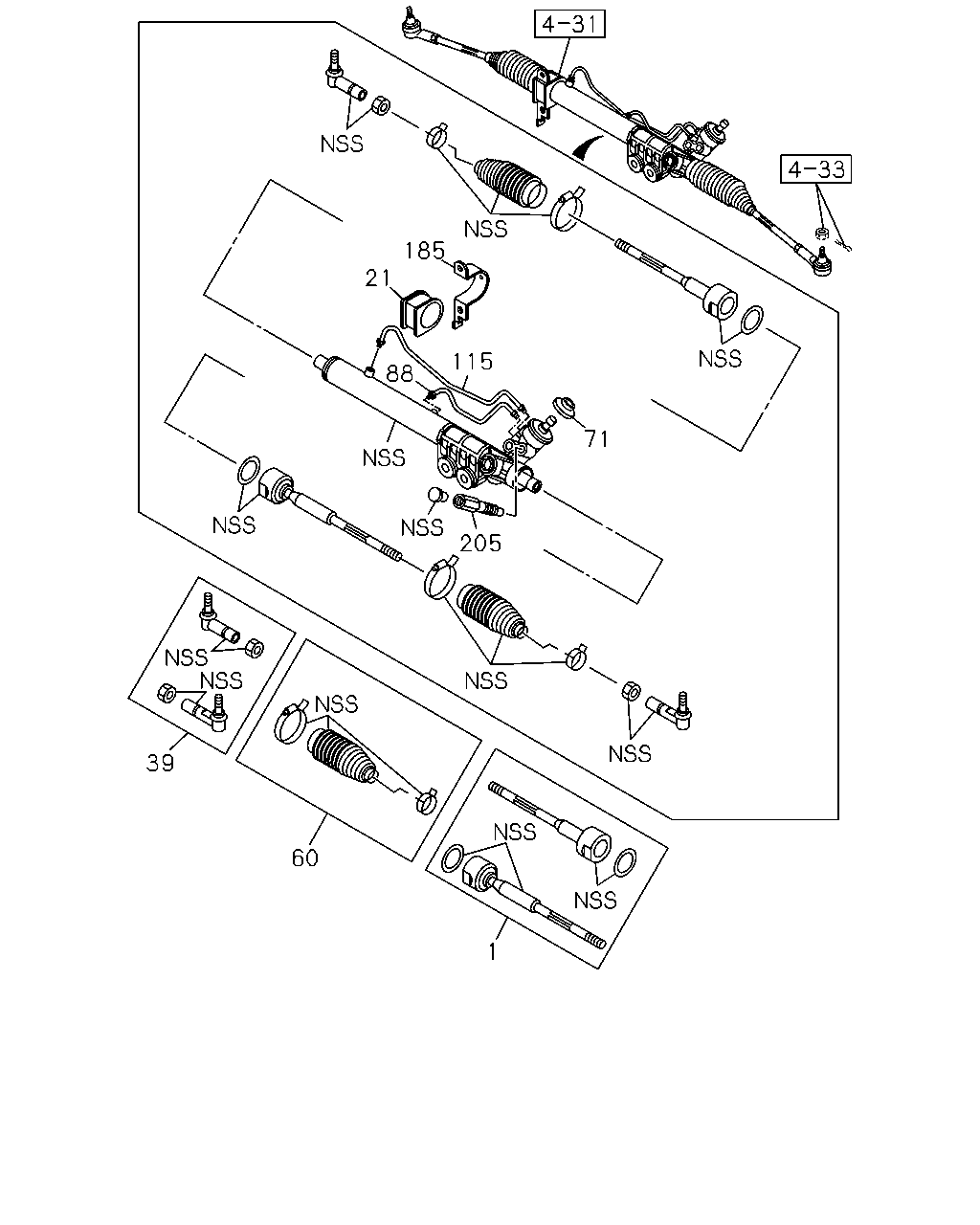

çizim 433349
185 21 115 71 205 60 39 1 88
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98231-300-0, 98231300 		8-98164-967-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98231-300-0, 98231300 		8-97945-426-0 01 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-98231-300-0, 98231300 		8-98056-551-0 01 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-98231-300-0, 98231300 		8-97945-423-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-98231-300-0, 98231300 		8-98164-972-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-98231-300-0, 98231300 		8-98185-988-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-98231-300-0, 98231300 		8-98185-987-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-98231-300-0, 98231300 		8-98164-968-0 01 1 -
205 06.550 VALVE ASM; CHECK
ASM PART: A = 8-98231-300-0, 98231300 		8-98231-309-0 01 1 -
