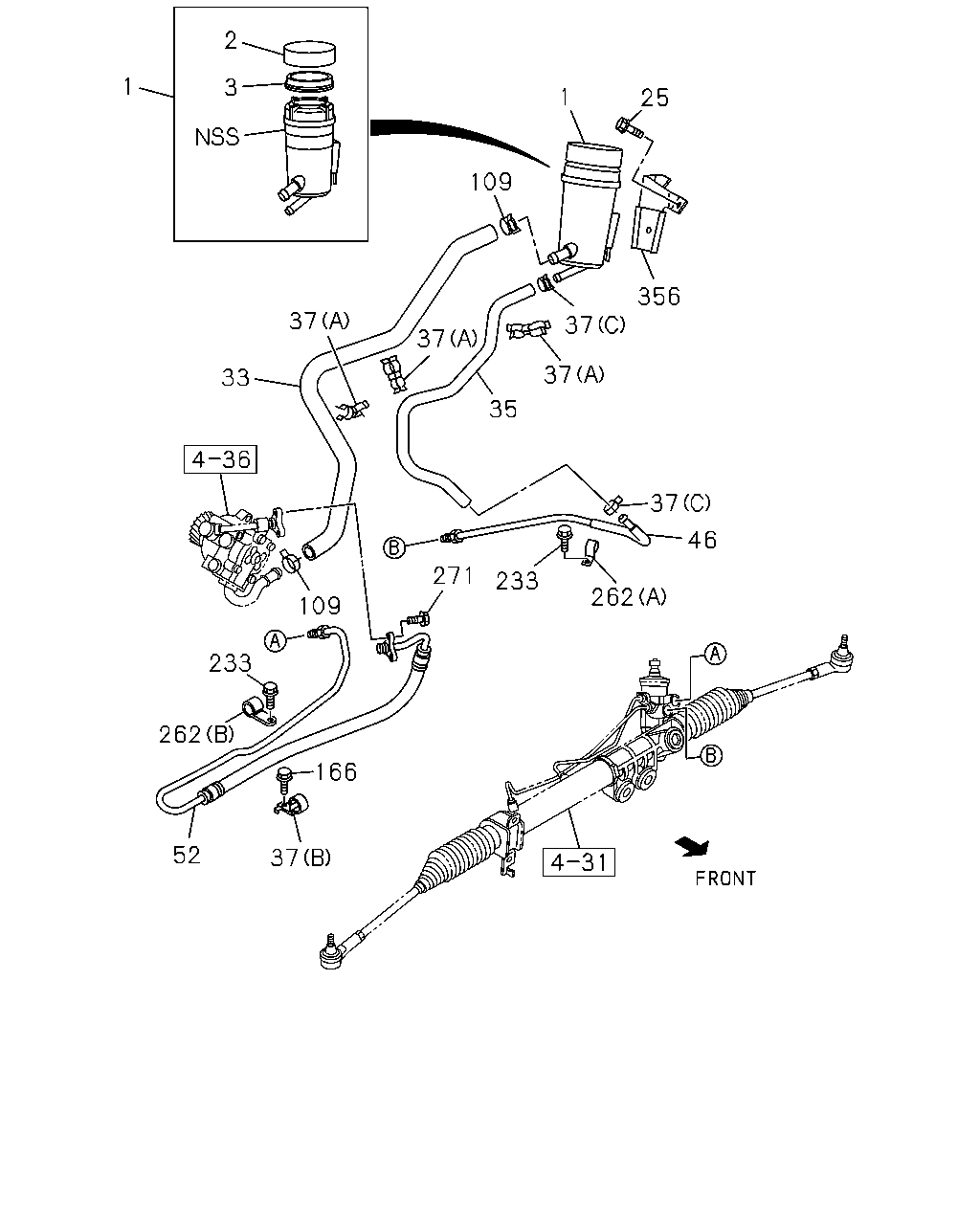

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#145774) — 18 parça

1 2 3 109 1 25 356 37 37 35 37 37 37 33 271 233 262 46 109 233 262 166 37 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1407-	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1407-	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1407-	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1407-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1407-	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	03	1	1407-	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1407-	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5	8-98242-629-0	01	1	1407-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98231-298-1	01	1	1407-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98231-297-1	01	1	1407-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 ID=20.8	8-97944-127-0	02	1	1407-	●	●
166	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1407-	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1407-	●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1407-	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1407-	●	●
