3-58 — FIXING PARTS; OIL PIPING (#145762) — 98 parça

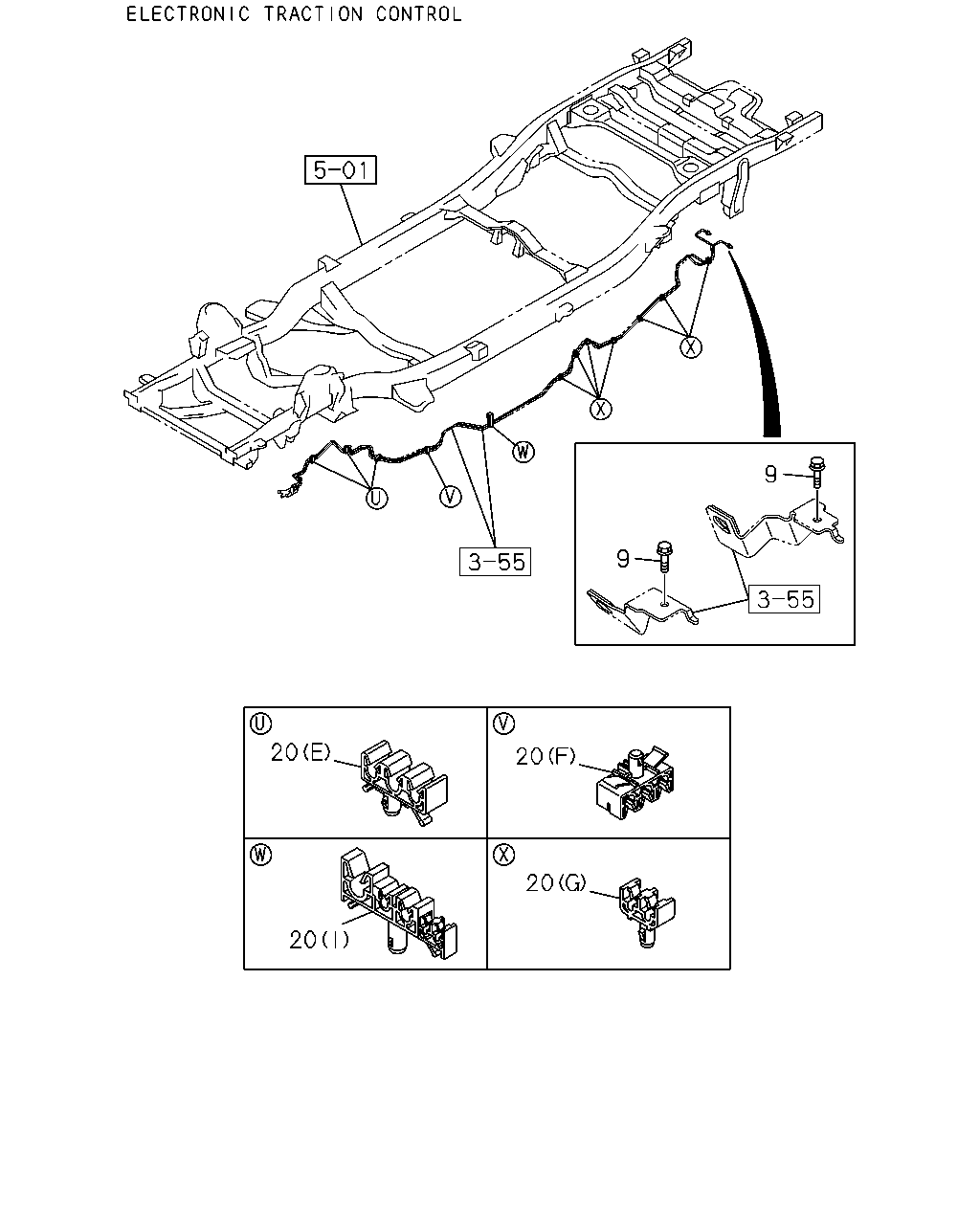

9 9 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	04.686 BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1407-	●	●
9	04.686 BOLT; BRKT EXC. ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	07	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (M)	8-98113-392-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1407-1409	●
20	04.686 CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1407-	●	●

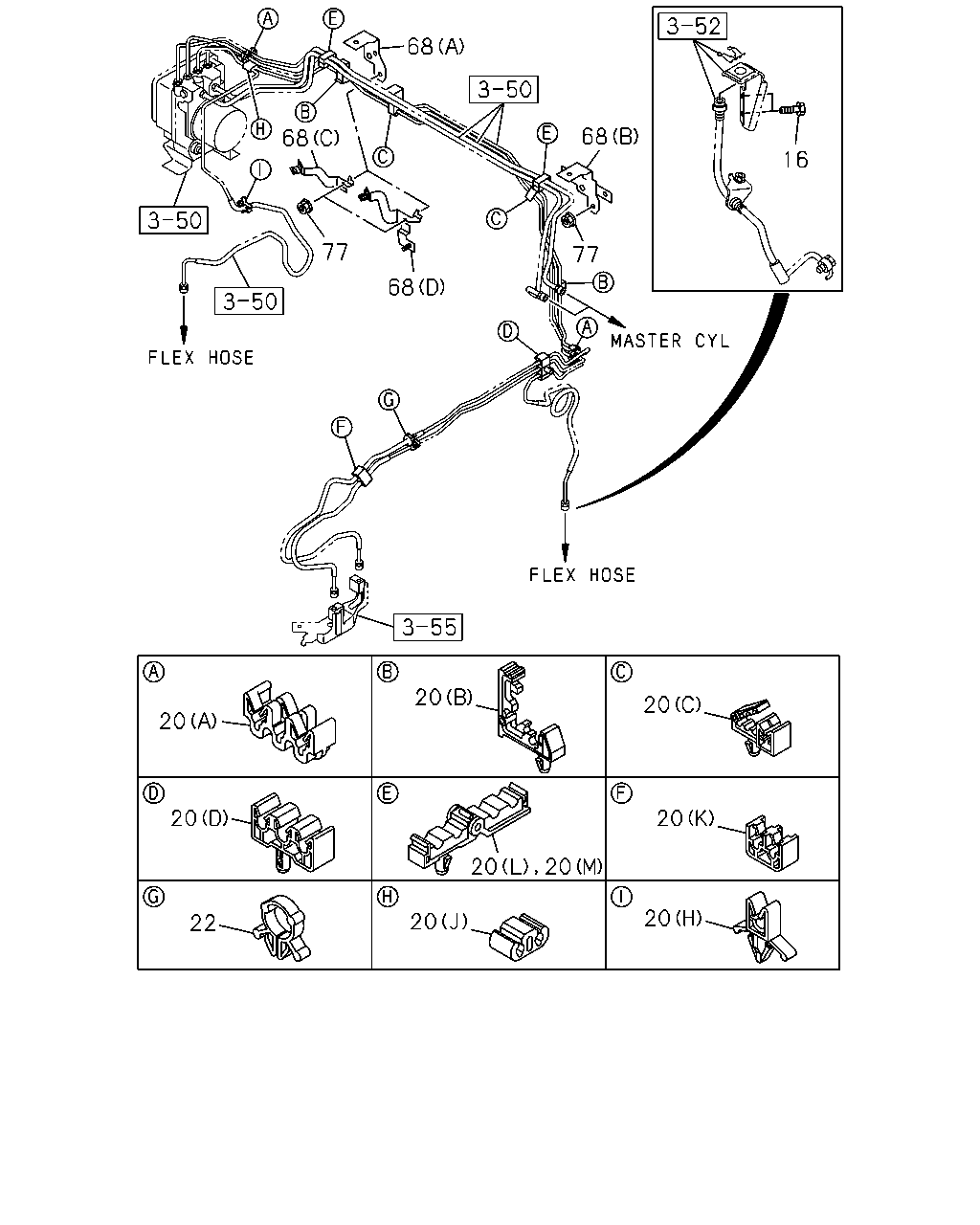

68 77 68 68 77 68 16 20 20 22 20 20 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	07	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (M)	8-98113-392-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1407-1409	●
20	04.686 CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1407-	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1407-	●	●
68	04.686 BRACKET; CLIP REAR COOLER WO/HEATER<C69> 06.522 (C)	8-98278-683-1	01	1	1407-	●
68	04.686 BRACKET; CLIP 06.522 (C)	8-98278-683-1	01	1	1407-		●
68	04.686 BRACKET; CLIP EXC. REAR COOLER WO/HEATER<C69> 06.522 (D)	8-98187-830-0	01	1	1407-	●
68	04.686 BRACKET; CLIP (A)	8-98099-790-0	01	1	1407-	●	●
68	04.686 BRACKET; CLIP (B)	8-98099-791-0	01	1	1407-	●	●
77	04.686 NUT; BRKT,OIL PIPE REAR COOLER WO/HEATER<C69> 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●
77	04.686 NUT; BRKT,OIL PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-		●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	1407-1508	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●

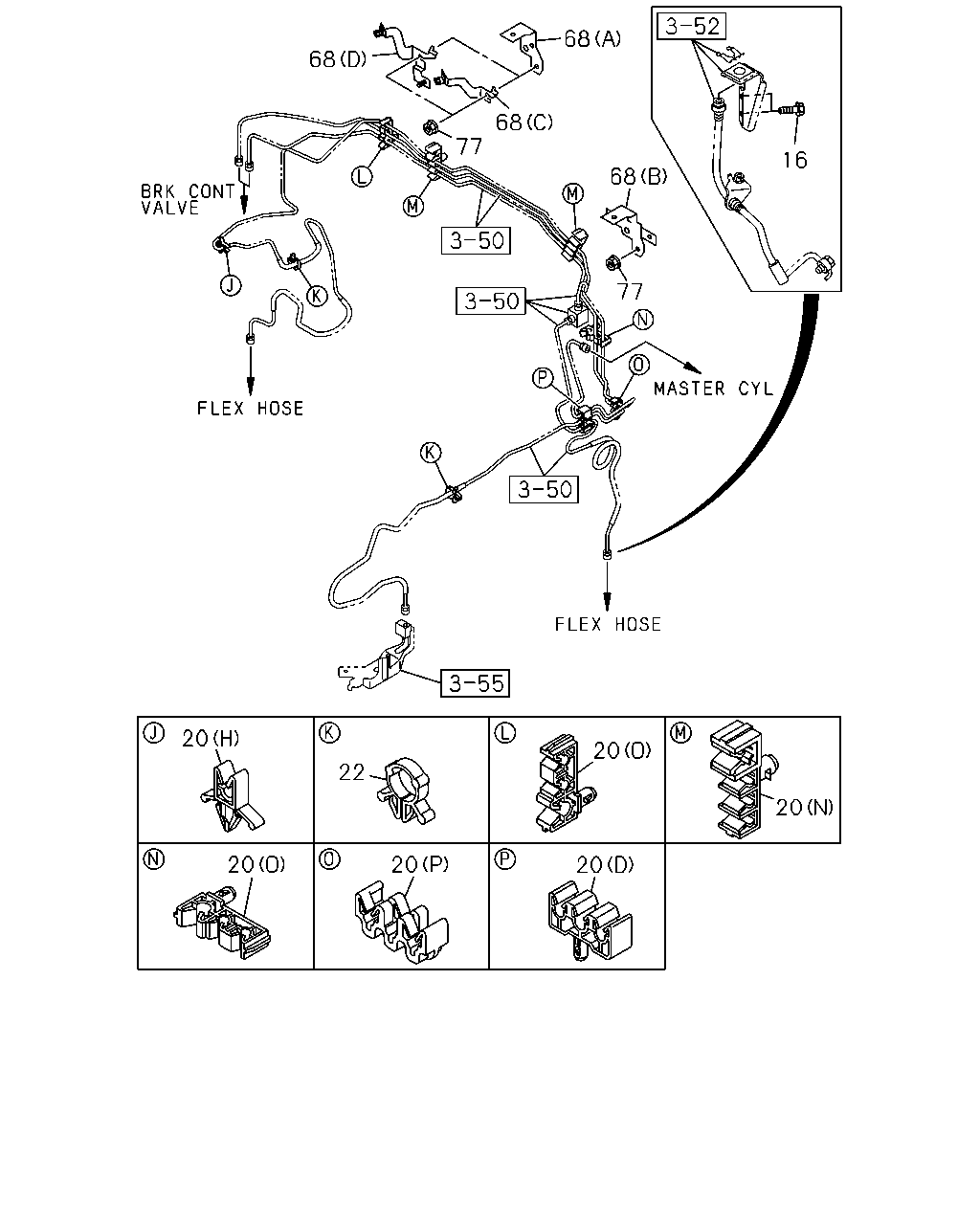

68 77 68 68 68 77 16 20 20 22 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	07	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (M)	8-98113-392-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1407-1409	●
20	04.686 CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1407-	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1407-	●	●
68	04.686 BRACKET; CLIP REAR COOLER WO/HEATER<C69> 06.522 (C)	8-98278-683-1	01	1	1407-	●
68	04.686 BRACKET; CLIP 06.522 (C)	8-98278-683-1	01	1	1407-		●
68	04.686 BRACKET; CLIP EXC. REAR COOLER WO/HEATER<C69> 06.522 (D)	8-98187-830-0	01	1	1407-	●
68	04.686 BRACKET; CLIP (A)	8-98099-790-0	01	1	1407-	●	●
68	04.686 BRACKET; CLIP (B)	8-98099-791-0	01	1	1407-	●	●
77	04.686 NUT; BRKT,OIL PIPE REAR COOLER WO/HEATER<C69> 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●
77	04.686 NUT; BRKT,OIL PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATICCONT(C61),COOLER W/FRESH AIR(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-		●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	1407-1508	●	●
77	04.686 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●

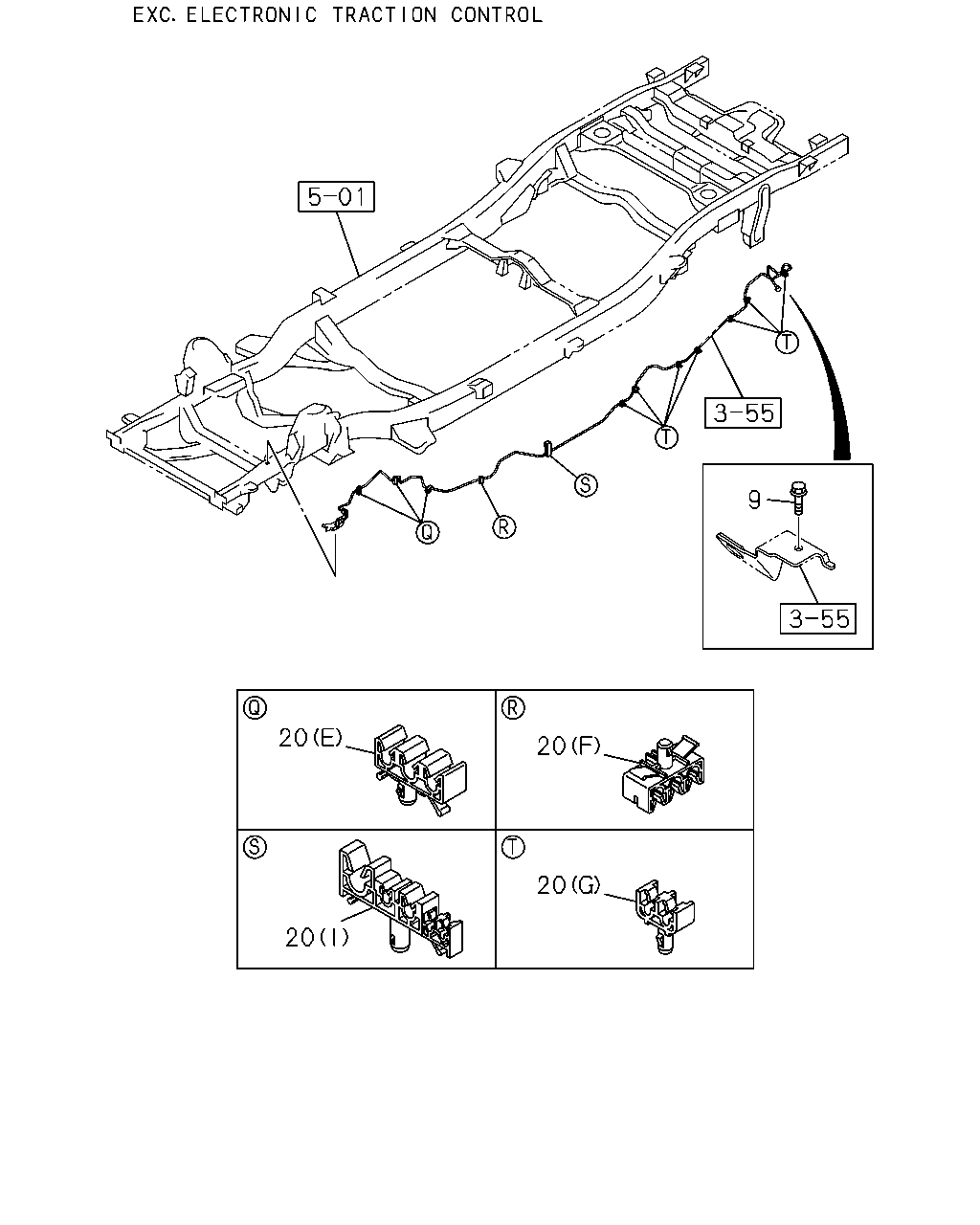

9 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	04.686 BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1407-	●	●
9	04.686 BOLT; BRKT EXC. ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (J) ID=4.8X2	8-94389-060-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1407-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	07	1	1407-	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	01	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (M)	8-98113-392-0	02	1	1407-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1407-1409	●
20	04.686 CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (P) ID=4.8X3	8-94487-369-0	01	1	1410-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (O) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1407-	●
20	04.686 CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1407-	●	●
