◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#145761) — 67 parça

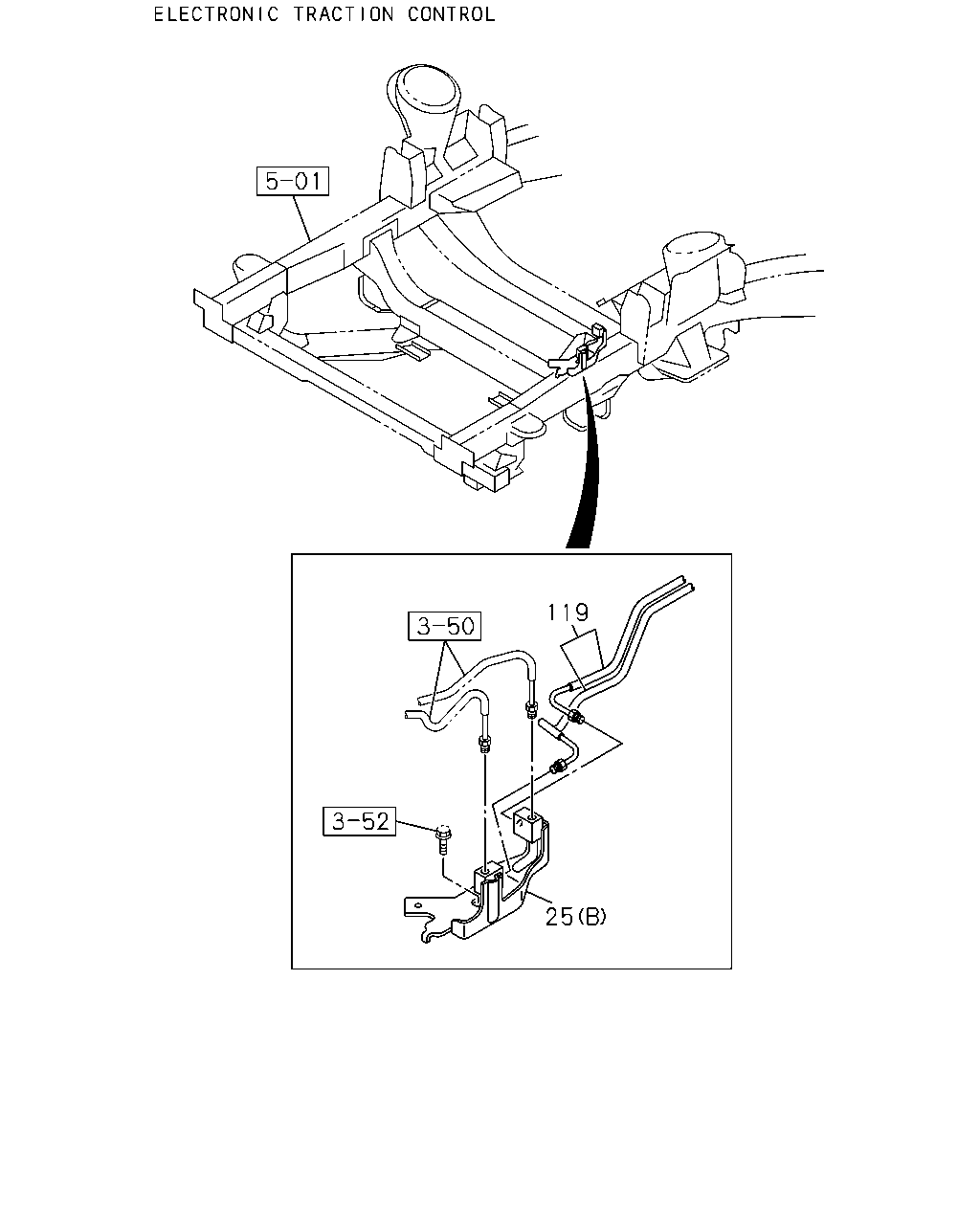

çizim 432367
119 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 04.686 CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1407- ● ●
25 04.686 CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-850-0 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-849-0 01 1 1407- ● ●
çizim 432465
119 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 04.686 CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1407- ● ●
25 04.686 CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-850-0 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-849-0 01 1 1407- ● ●
çizim 433309
119 8 3 9 1 12 9 135 124 66 129 66 9 9 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98198-321-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98198-322-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98198-320-0 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98198-325-0 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98198-326-0 01 1 1407- ● ●
8 04.686 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1407- ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1407- ● ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98191-433-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98191-433-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98191-434-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98191-434-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98191-435-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98191-435-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98191-436-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98191-436-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. VAC POWER 4 WHL DISC BRAKE<JF8>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98191-437-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. VAC POWER 4 WHL DISC BRAKE<JF8>, ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98191-438-0 01 1 1407- ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 1407- ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98197-852-0 01 1 1407- ● ●
60 04.685 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98197-851-0 01 1 1407- ● ●
66 04.686 GASKET; BRK HOSE
VAC POWER 4 WHL DISC BRAKE<JF8> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1407- ●
66 04.686 GASKET; BRK HOSE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1407- ●
119 04.685 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-850-0 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-849-0 01 1 1407- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
VAC POWER 4 WHL DISC BRAKE<JF8> 04.681 M10X22 		8-98014-005-0 02 1 1407- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1407- ●
129 04.680 HOSE; FLEX,RR DISC
VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98198-323-0 02 1 1407- ●
129 04.680 HOSE; FLEX,RR DISC 8-98198-323-0 02 1 1407- ●
135 04.686 CLIP; FLEX HOSE
VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97360-054-0 02 1 1407- ●
135 04.686 CLIP; FLEX HOSE 8-97360-054-0 02 1 1407- ●

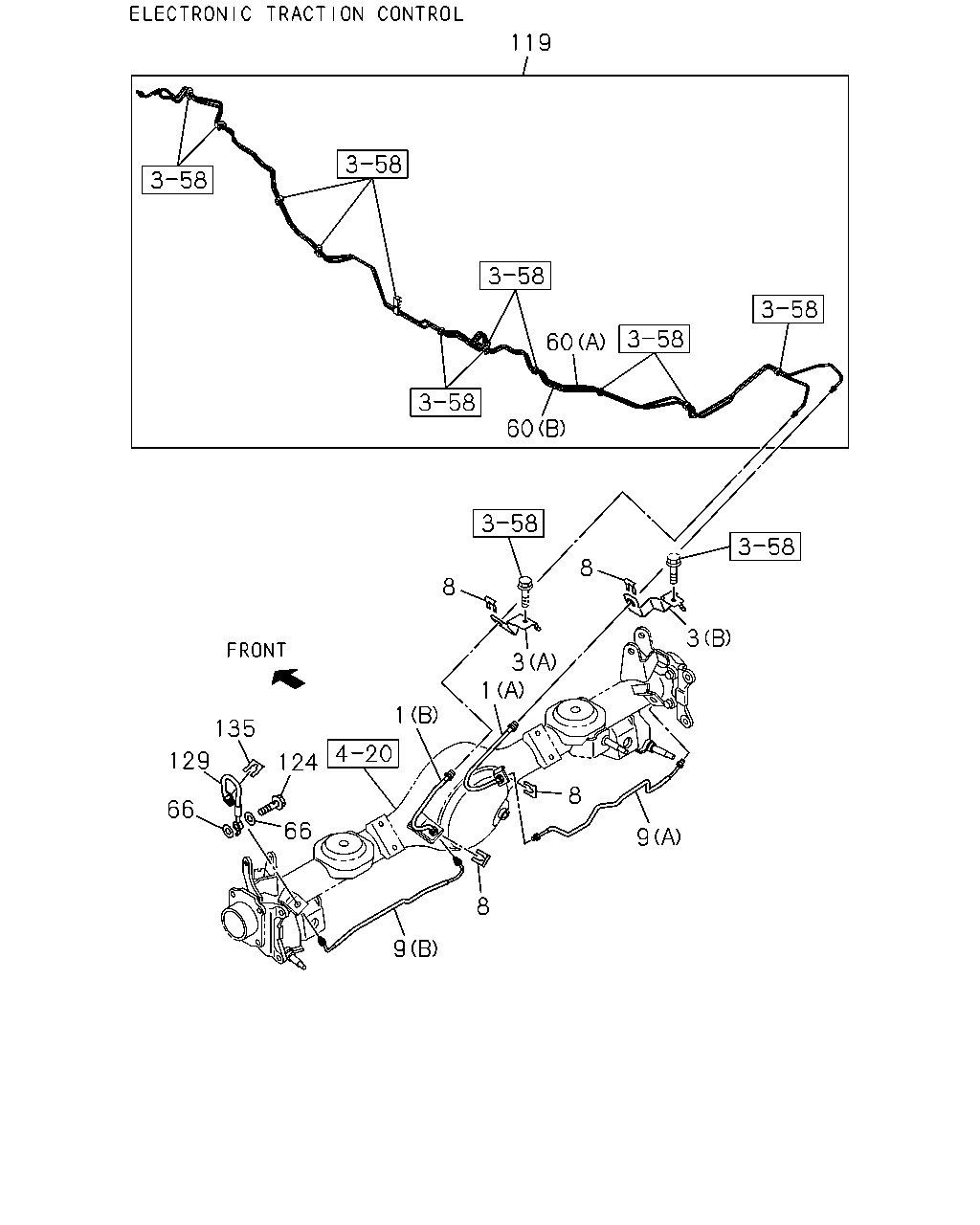

çizim 433338
60 60 8 8 3 1 1 135 129 66 66 124 9 8 8 9 3 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98198-321-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98198-322-0 01 1 1407- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98198-320-0 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98198-325-0 01 1 1407- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98198-326-0 01 1 1407- ● ●
8 04.686 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1407- ● ●
8 04.686 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1407- ● ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98191-433-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98191-433-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98191-434-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98191-434-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98191-435-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98191-435-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98191-436-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98191-436-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. VAC POWER 4 WHL DISC BRAKE<JF8>, ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98191-437-0 01 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. VAC POWER 4 WHL DISC BRAKE<JF8>, ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98191-438-0 01 1 1407- ●
60 04.685 PIPE ASM; BRK
(A) 		8-98197-852-0 01 1 1407- ● ●
60 04.685 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98197-851-0 01 1 1407- ● ●
66 04.686 GASKET; BRK HOSE
VAC POWER 4 WHL DISC BRAKE<JF8> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1407- ●
66 04.686 GASKET; BRK HOSE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1407- ●
119 04.685 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-850-0 01 1 1407- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98197-849-0 01 1 1407- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
VAC POWER 4 WHL DISC BRAKE<JF8> 04.681 M10X22 		8-98014-005-0 02 1 1407- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1407- ●
129 04.680 HOSE; FLEX,RR DISC
VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98198-323-0 02 1 1407- ●
129 04.680 HOSE; FLEX,RR DISC 8-98198-323-0 02 1 1407- ●
135 04.686 CLIP; FLEX HOSE
VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97360-054-0 02 1 1407- ●
135 04.686 CLIP; FLEX HOSE 8-97360-054-0 02 1 1407- ●
