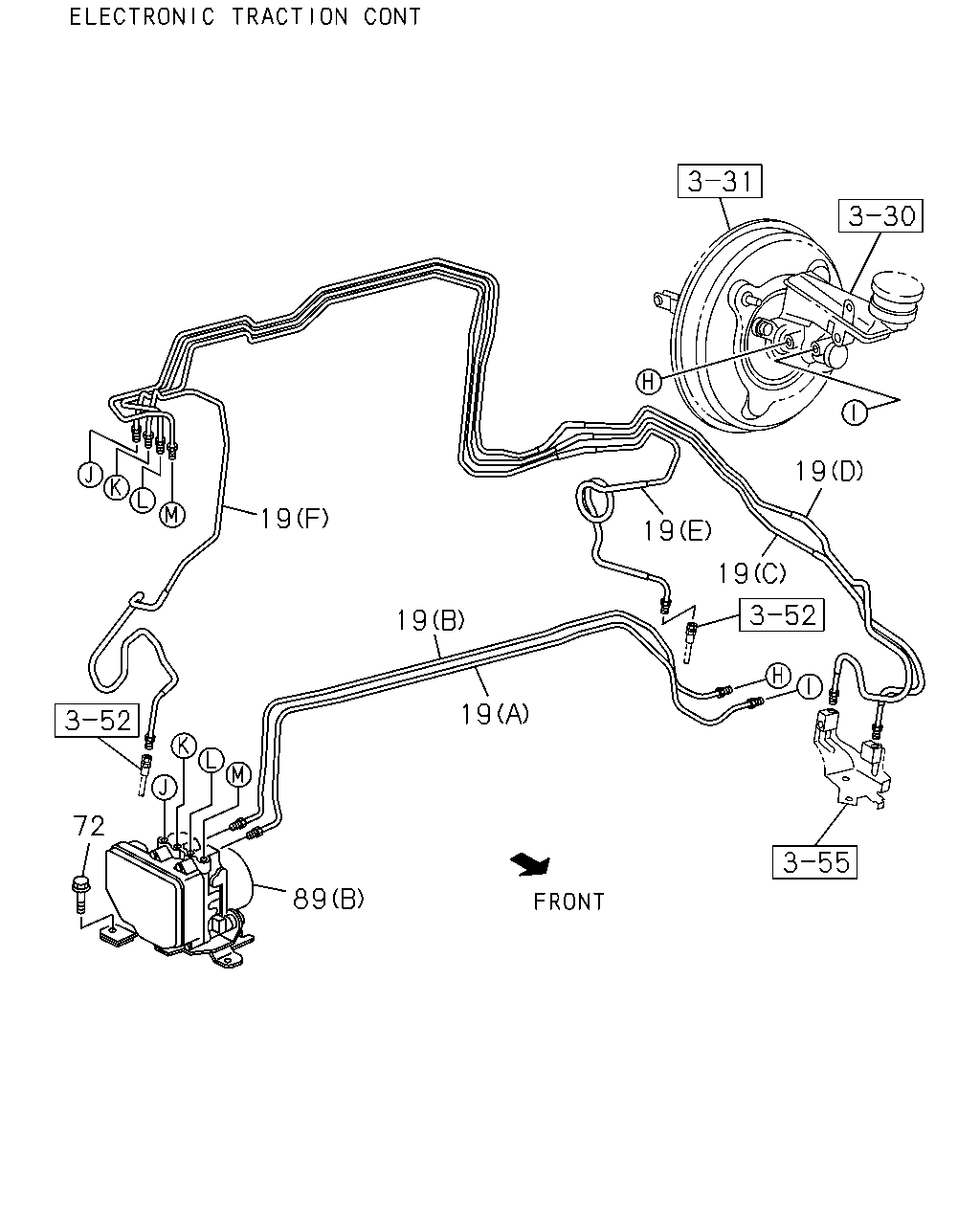

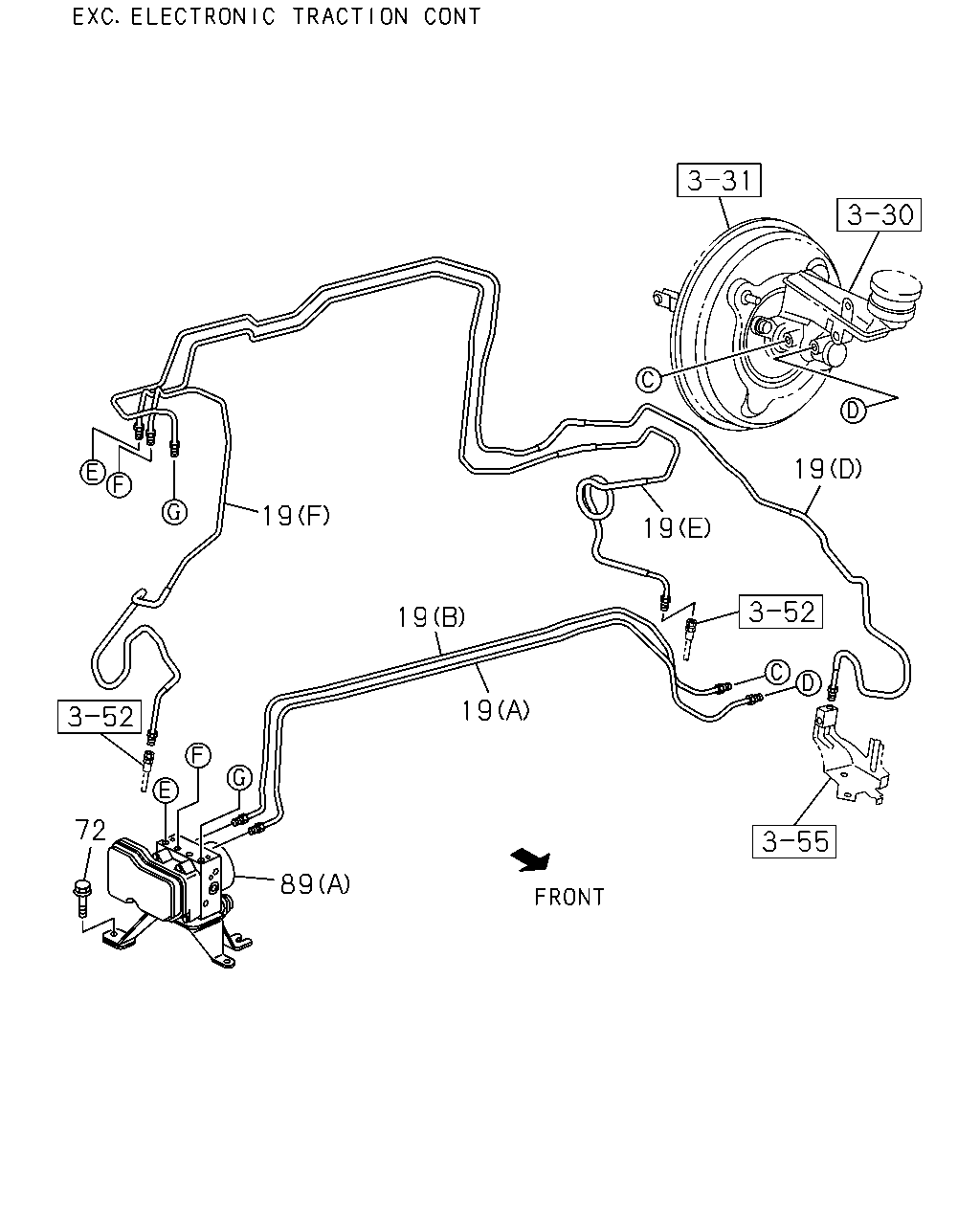

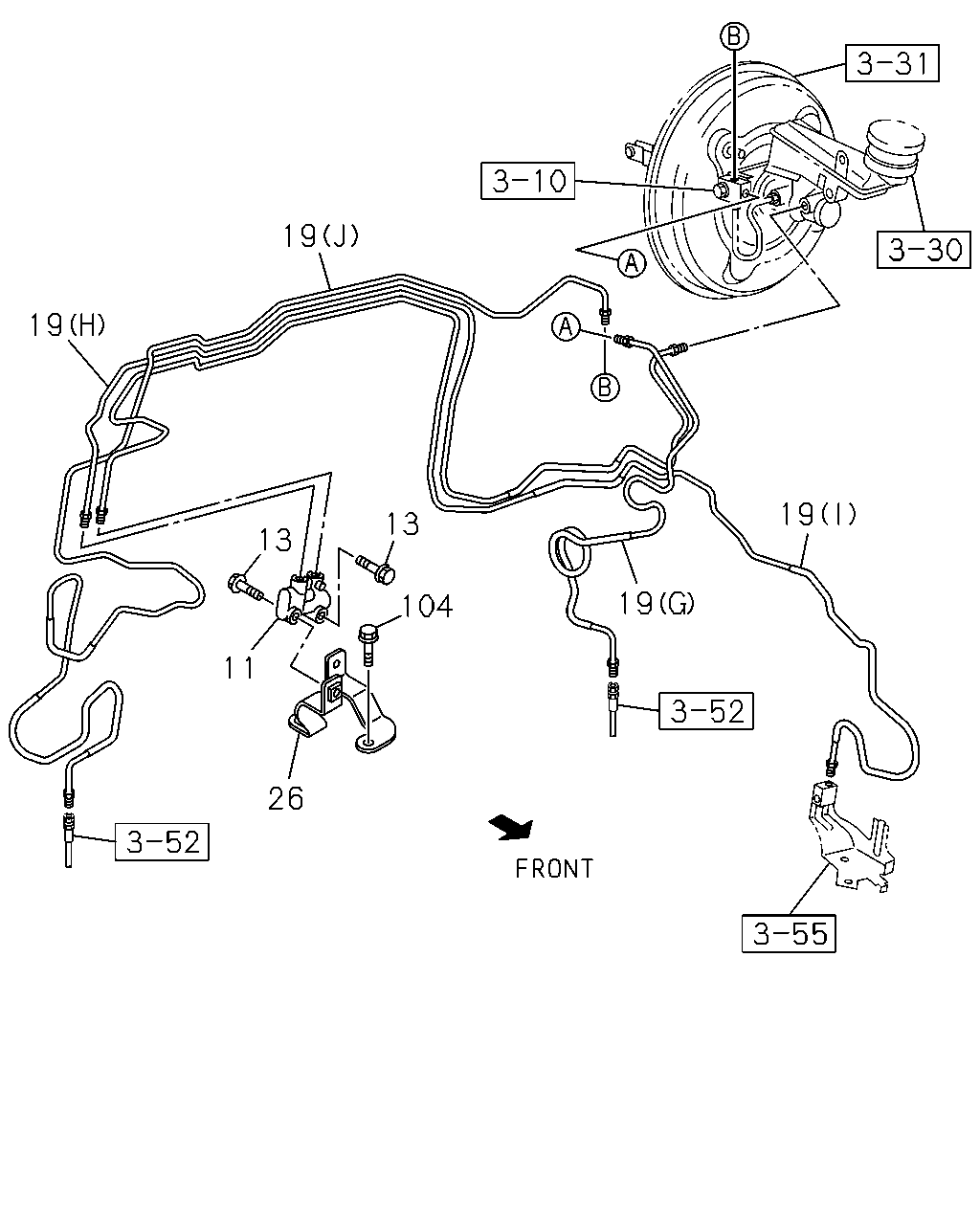

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#145759) — 93 parça

19 13 11 26 104 13 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-97235-339-2	01	1	1407-	●
13	04.686 BOLT; VLV TO BRKT EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> M8X45 FLANGE	0-29260-845-0	02	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98221-723-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98185-884-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98185-885-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (I)	8-98185-886-0	01	1	1407-	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-98194-685-0	01	1	1407-	●
104	04.730 BOLT; BRKT TO BODY EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-	●

19 19 19 19 72 89 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98221-723-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98185-884-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98185-885-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (I)	8-98185-886-0	01	1	1407-	●
72	04.686 BOLT; BRKT TO BODY ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98197-807-1	01	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-803-0	01	1	1407-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-188-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98250-548-0	01	1	1407-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-804-0	01	1	1407-1508		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-189-0	01	1	1509-		●

72 89 19 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98221-723-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1407-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (H)	8-98185-884-0	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98185-885-1	01	1	1407-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (I)	8-98185-886-0	01	1	1407-	●
72	04.686 BOLT; BRKT TO BODY ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1407-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98197-807-1	01	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-803-0	01	1	1407-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-188-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98250-548-0	01	1	1407-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-804-0	01	1	1407-1508		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-189-0	01	1	1509-		●

95 184 107 116 96 184 129 129 129 96 129 129 184 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

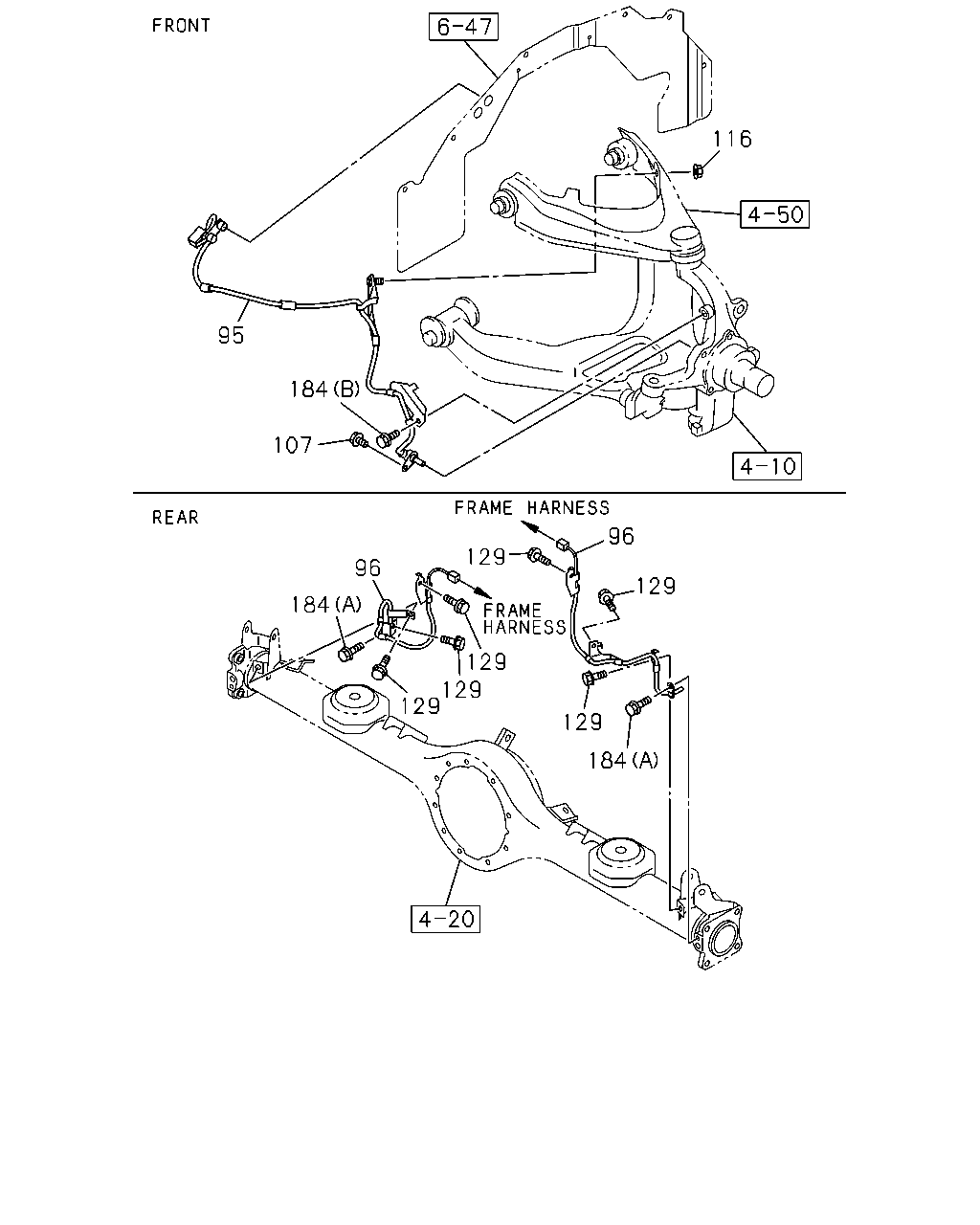

95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98052-119-1	01	1	1407-1509	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1407-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98292-432-0	01	1	1510-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-		●
95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98052-120-1	01	1	1407-1509	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1407-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98292-433-0	01	1	1510-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-		●
96	04.710 SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98196-302-0	01	1	1407-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1407-		●
96	04.710 SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98196-303-0	01	1	1407-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1407-		●
107	04.710 BOLT; WHEEL SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1407-1509		●
107	04.710 BOLT; WHEEL SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-		●
116	04.686 NUT ABS W/EBD BRAKE ASSIST<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-		●
129	04.710 BOLT; BRKT ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1407-	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1407-		●
184	04.681 BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1407-1509	●
184	04.681 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1407-1509		●
184	04.681 BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-		●
184	04.681 BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-	●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-		●

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

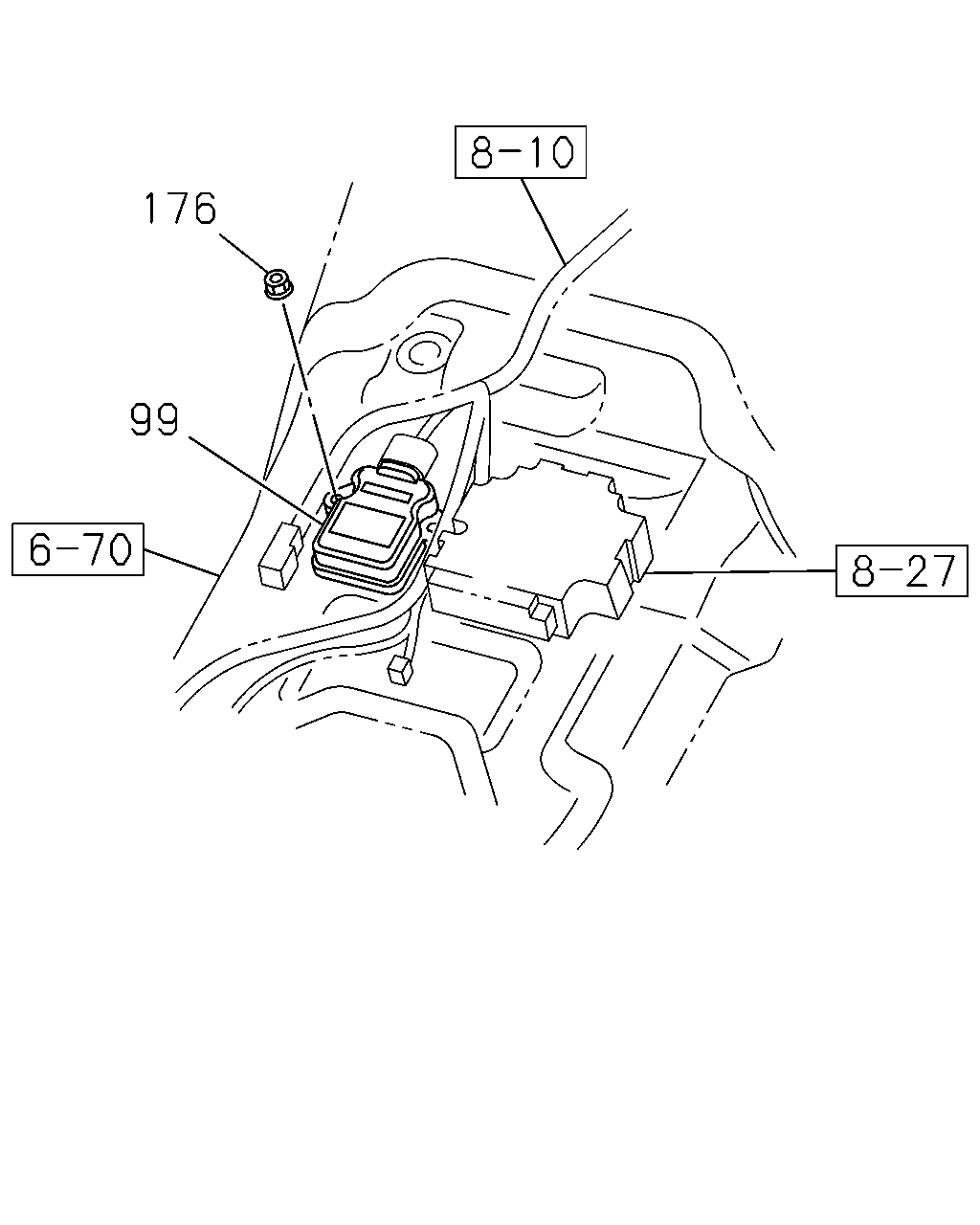

	99	04.710 SENSOR; DECELERATION ELECTRONIC TRACTION CONTROL<NW9>	8-98052-116-1	01	1	1407-	●	●
	176	04.730 NUT; SENSOR ELECTRONIC TRACTION CONTROL<NW9> 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-	●	●
