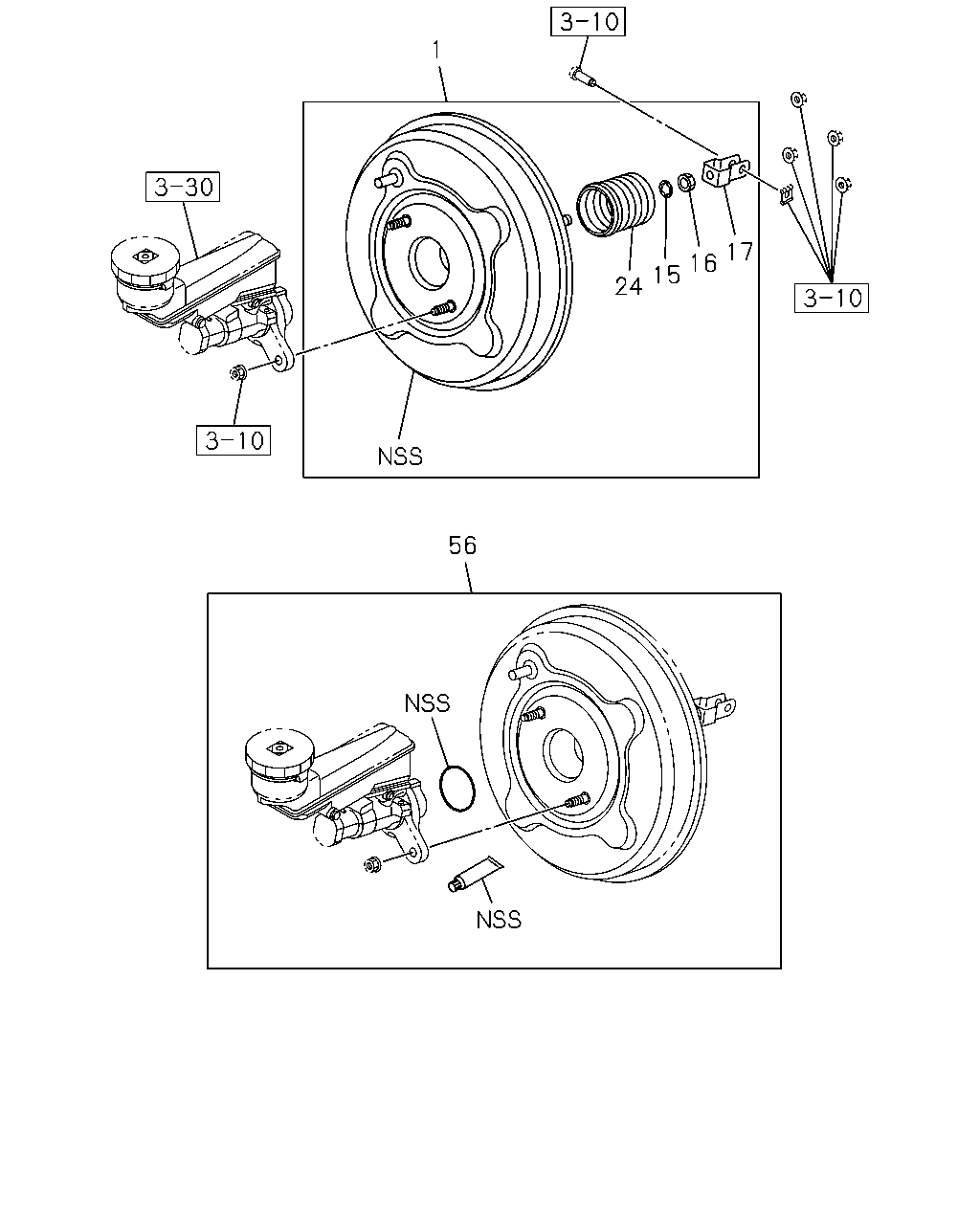

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#145758) — 8 parça

1 24 15 16 17 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.901 MASTER VAC ASM; BRK ABS W/EBD BRAKE ASSIST<JE5>	8-98163-232-1	01	1	1407-	●
1	04.901 MASTER VAC ASM; BRK A/T 5 SPEED-AISIN(MA1)	8-98163-232-1	01	1	1407-		●
1	04.901 MASTER VAC ASM; BRK EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-98163-231-1	01	1	1407-	●
15	04.906 RETAINER; GUARD,M/VAC	8-98048-040-0	01	1	1407-	●	●
16	04.662 NUT; VLV ROD,M/VAC	8-98048-038-0	01	1	1407-	●	●
17	04.662 CLEVIS; YOKE,M/VAC	8-98048-039-0	01	1	1407-	●	●
24	04.906 GUARD; VLV BODY,M/VAC	8-98185-212-0	01	1	1407-	●	●
56	04.910 GASKET KIT; M/CYL TO SERVO UNIT	8-98185-211-0	01	1	1407-	●	●
