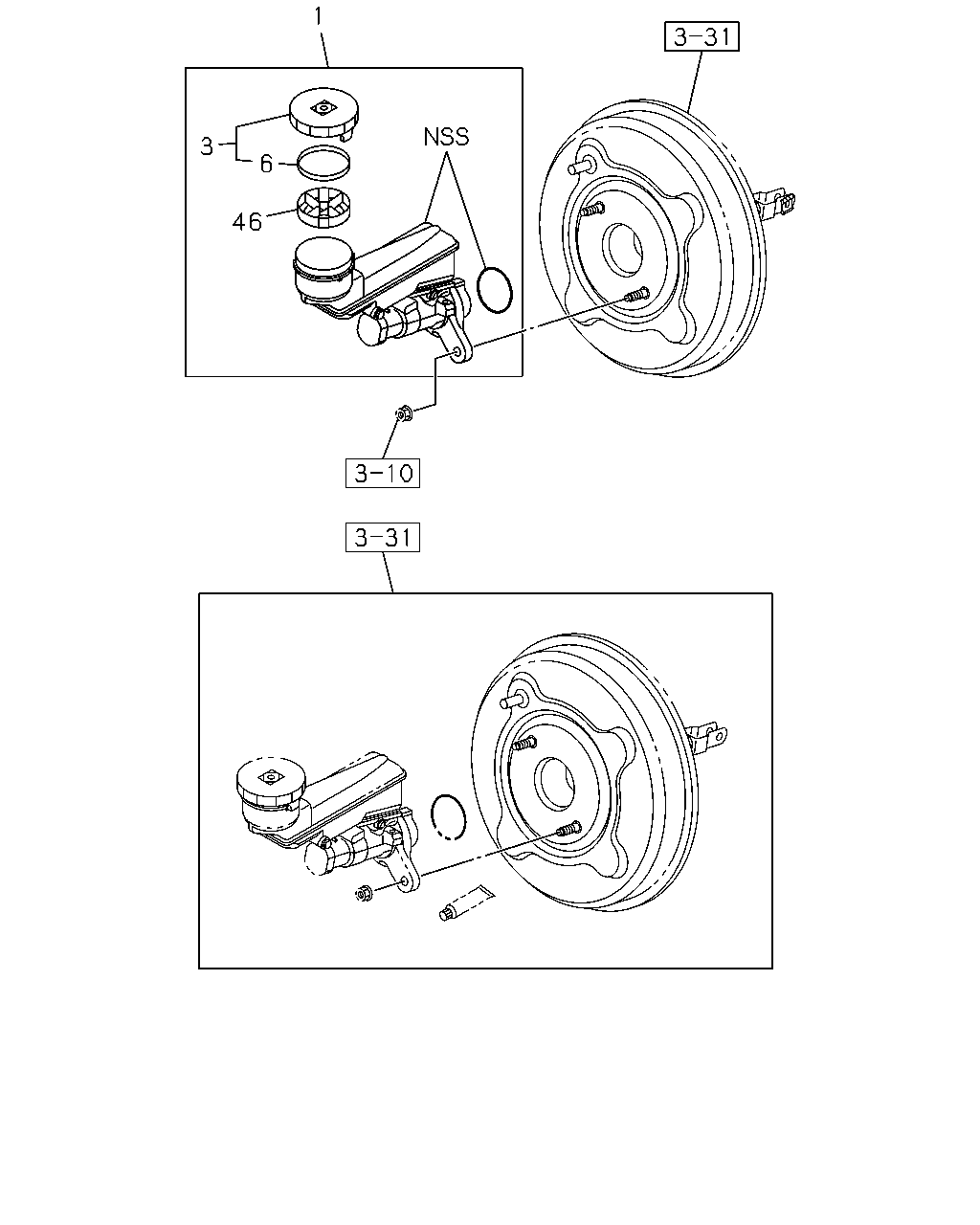

3-30 — BRAKE MASTER CYLINDER (#145757) — 7 parça

1 3 46 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.650 CYLINDER ASM; BRK MASTER A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9>	8-98163-230-0	01	1	1407-	●	●
1	04.650 CYLINDER ASM; BRK MASTER A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98163-228-0	01	1	1407-	●	●
1	04.650 CYLINDER ASM; BRK MASTER M/T MUA 5 SPEED 5H(MWQ) ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98163-229-0	01	1	1407-	●
1	04.650 CYLINDER ASM; BRK MASTER M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98163-227-0	01	1	1407-	●
3	04.651 CAP; OIL TANK	8-98047-704-0	01	1	1407-	●	●
6	04.651 DIAPHRAGM; BRK M/CYL	8-98047-706-0	01	1	1407-	●	●
46	04.651 FILTER; OIL TANK,M/CYL	8-98047-702-0	01	1	1407-	●	●
