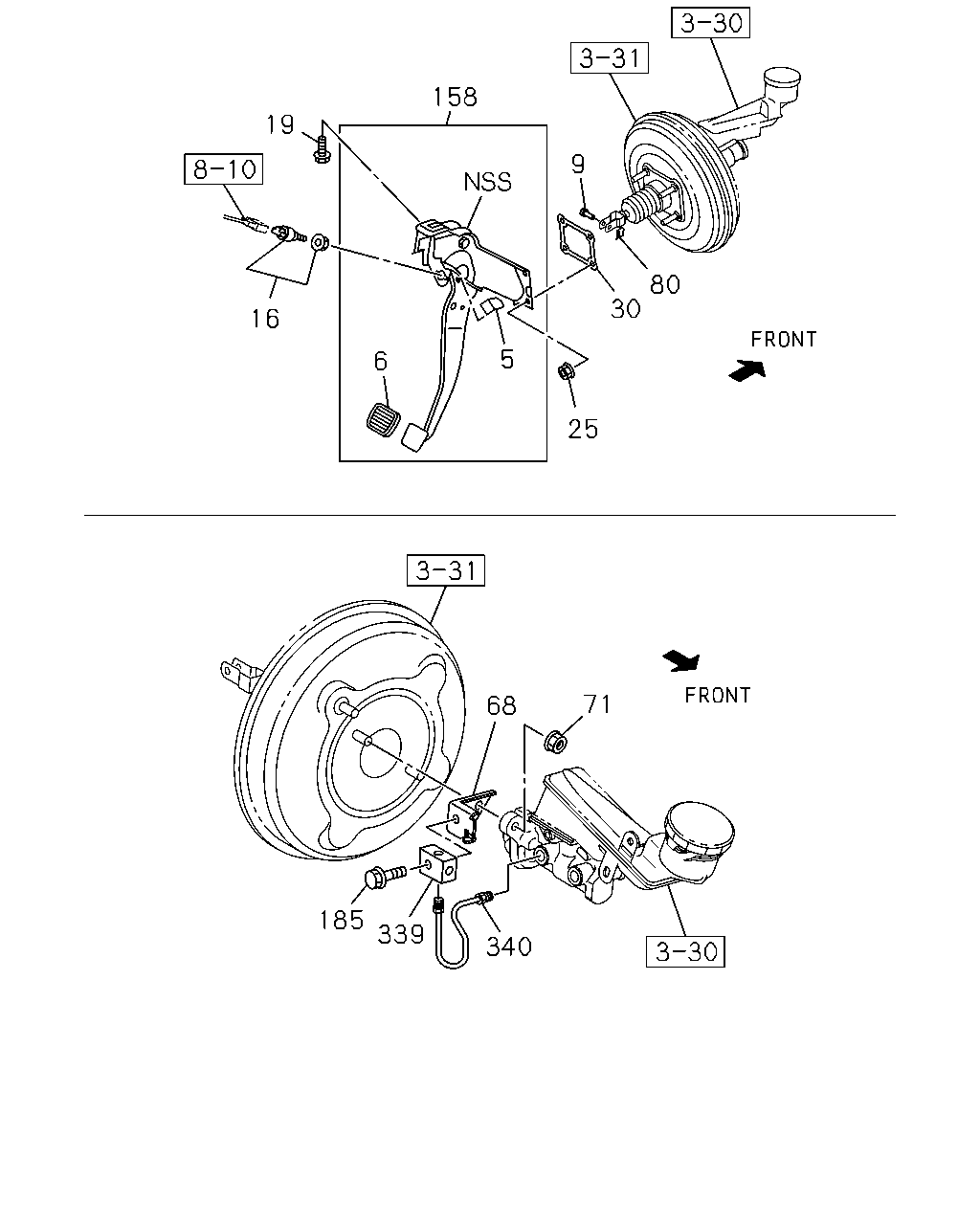

3-10 — BRAKE PEDAL AND CONTROL (#145755) — 18 parça

158 19 16 5 6 30 80 25 9 68 71 340 339 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	04.634 STOPPER; BRK PEDAL	8-98029-187-0	01	1	1407-	●	●
6	04.630 COVER; BRK PEDAL A/T 5 SPEED-AISIN(MA1)	8-97263-035-0	01	1	1407-	●	●
6	04.630 COVER; BRK PEDAL M/T MUA 5 SPEED 5H(MWQ)	8-97318-799-0	01	1	1407-	●
9	04.634 PIN; JAW JOINT	8-97311-602-0	01	1	1407-	●	●
16	02.447 SWITCH; STOP LAMP AUTO CRUISE CONT<K30>	8-98140-487-0	01	1	1407-	●	●
16	02.447 SWITCH; STOP LAMP M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30>	8-98140-487-0	01	1	1407-	●
16	02.447 SWITCH; STOP LAMP A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>	8-98140-486-0	01	1	1407-	●	●
19	04.634 BOLT; BRKT M8X22.5 W/PL WASHER	8-97947-104-1	01	1	1407-	●	●
25	04.634 NUT; FLANGE,MTG BRKT TO BODY M8 FLANGE	8-97581-233-0	04	1	1407-	●	●
30	04.910 GASKET; M/VAC TO BODY	8-97943-457-0	01	1	1407-	●	●
68	04.634 BRACKET; SERVO TO DASH PANEL EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-98163-234-0	01	1	1407-	●
71	04.650 NUT; BRK M/CYL	8-98031-675-0	02	1	1407-	●	●
80	04.634 PIN; SNAP,BRK PEDAL 00.833	8-98007-161-0	01	1	1407-	●	●
158	04.625 PEDAL ASM; BRK A/T 5 SPEED-AISIN(MA1)	8-98061-820-0	01	1	1407-	●	●
158	04.625 PEDAL ASM; BRK M/T MUA 5 SPEED 5H(MWQ)	8-98061-819-0	01	1	1407-	●
185	04.634 BOLT; BRKT EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9> M8X35 FLANGE	8-97947-755-0	01	1	1407-	●
339	04.685 CONNECTOR; OIL PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-98163-269-0	01	1	1407-	●
340	04.685 PIPE; BRK M/CYL EXC. ABS W/EBD BRAKE ASSIST<JE5>, ELECTRONIC TRACTION CONTROL<NW9>	8-97947-756-0	01	1	1407-	●
