51517 - UCR/UCS-LHD
▶
3 - Brakes, Brake System
▶

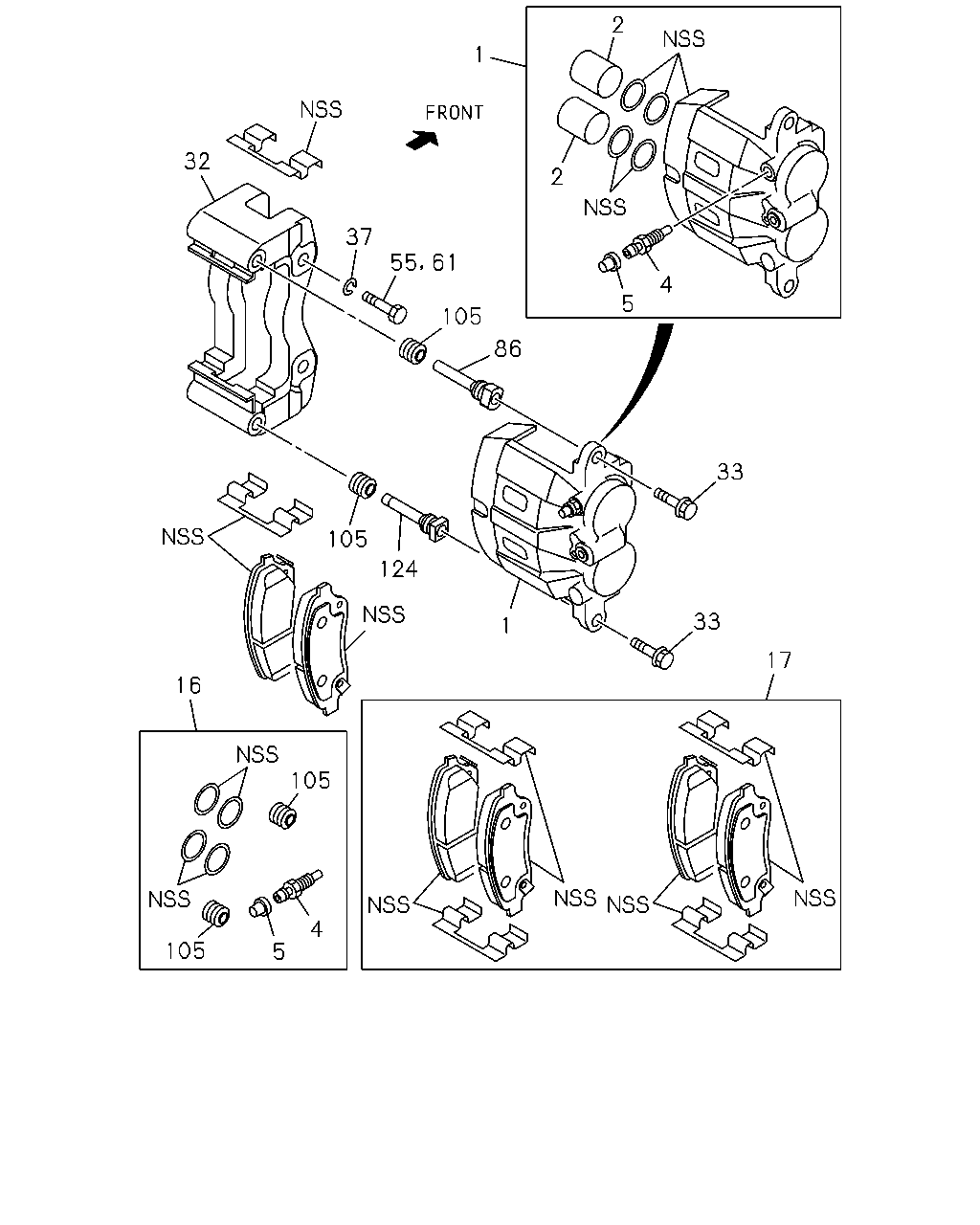

3-02 - FRONT DISC BRAKE CALIPER
▶
3-02 — FRONT DISC BRAKE CALIPER
(#145751) — 15 parça
Tümü
A - UCB6VC
B - UCS6VC
1
2
2
5
4
33
33
17
4
5
105
105
16
124
105
37
105
32
55
61
86
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.665 CALIPER; FRT DISC BRK
8-98077-996-0
01
1
1407-
●
●
1
04.665 CALIPER; FRT DISC BRK
8-98077-997-0
01
1
1407-
●
●
2
04.668 PISTON; CALIPER,DISC BRK,FRT
8-98078-000-0
04
1
1407-
●
●
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
8-98050-476-0
02
1
1407-
●
●
5
04.666 CAP; BLEEDER,DISC BRK,FRT
8-98050-479-0
02
1
1407-
●
●
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98079-105-0
01
1
1407-
●
●
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-97947-571-0
01
1
1407-
●
●
32
04.665 SUPPORT; FRT DISC BRK
8-97947-221-0
02
1
1407-
●
●
33
04.665 BOLT; SUPPORT BRKT TO DISC BRK
8-98078-192-0
04
1
1407-
●
●
37
04.665 WASHER; LK
06.174 ID=14.2
0-91510-814-0
04
1
1407-
●
●
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
8-98037-731-0
02
1
1407-
●
●
61
04.665 BOLT; SUPPORT BRKT TO KNUCKLE
04.681
8-98037-731-0
02
1
1407-
●
●
86
04.665 PIN; GUIDE
8-98078-175-0
02
1
1407-
●
●
105
04.665 BOOT; CALIPER
8-98078-193-0
04
1
1407-
●
●
124
04.665 PIN ASM; W/BUSH
8-98078-176-0
02
1
1407-
●
●
