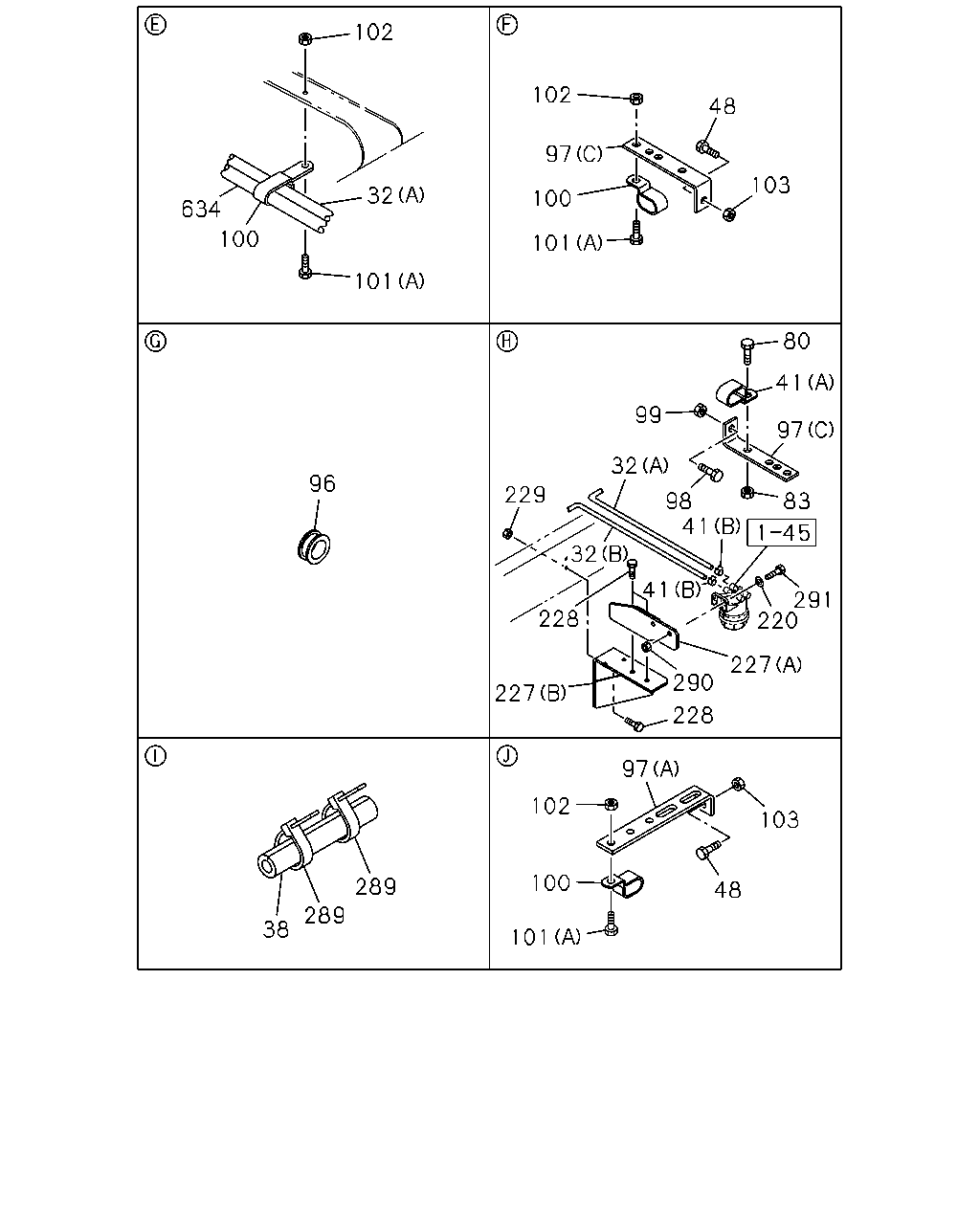

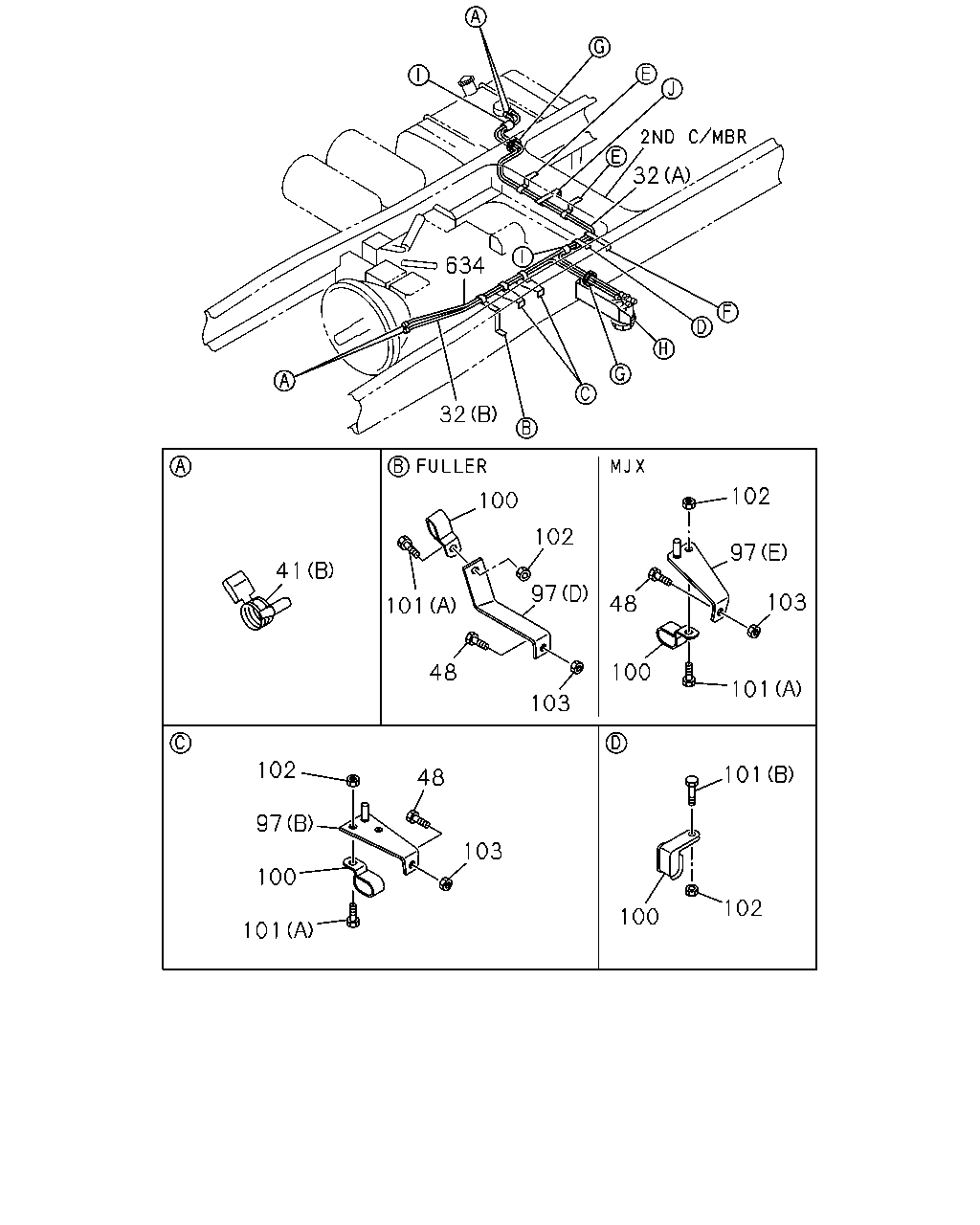

1-41 — FUEL PIPING; CHASSIS (#14575) — 174 parça

32 634 32 102 100 102 97 41 97 103 48 101 100 48 101 103 102 101 48 97 103 100 102 100 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=2650 SERVICED BY L=3000	0-01260-300-0	01	1	0710-1005	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2650 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●	●
32	PIPE; DELIVERY,FUEL TANK MJX12P M/T SMOOTHER-G(Y4S) (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	0710-1005	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	1006-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	1006-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1006-1107	●	●
41	CLIP; FUEL PIPE,FUEL TANK JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1006-	●	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0710-1005	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	1006-	●	●
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	0710-1005	●
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	1006-	●	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-1005	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1006-	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-	●	●
97	BRACKET; CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	1-82698-358-0	01	1	1108-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-1005	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	1006-	●
97	BRACKET; CLIP (D)	1-47479-646-0	01	1	1006-		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	07	1	0712-1005	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	07	1	1006-	●	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	0710-0711	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0712-1005	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1006-	●	●
101	BOLT; CLIP,FUEL PIPE MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-1005	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1006-1107	●	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-		●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-1005	●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	1006-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	0710-1005	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	1006-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0710-1005	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1006-	●	●
634	HOSE; RUBBER RETURN L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0710-1005	●
634	HOSE; RUBBER RETURN L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1006-	●	●

102 102 48 97 103 32 100 634 100 101 101 80 41 99 97 32 96 229 83 98 41 32 41 291 220 228 227 290 227 228 97 102 103 289 48 289 38 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=2650 SERVICED BY L=3000	0-01260-300-0	01	1	0710-1005	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2650 SERVICED BY L=3000	0-01260-300-0	01	1	1006-	●	●
32	PIPE; DELIVERY,FUEL TANK MJX12P M/T SMOOTHER-G(Y4S) (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	0710-1005	●
32	PIPE; DELIVERY,FUEL TANK TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	1006-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1100 SERVICED BY L=3000	0-01262-300-0	01	1	1006-		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-1005	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1006-1107	●	●
41	CLIP; FUEL PIPE,FUEL TANK JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=14	1-09704-102-0	04	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0710-1005	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1006-	●	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0710-1005	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	1006-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-1005	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1006-1107	●	●
80	BOLT; CLIP,FUEL TANK JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X20 FLANGE	0-28650-820-0	01	1	1108-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1108-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1006-1107	●	●
83	NUT; CLIP,FUEL TANK JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	01	1	1108-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1108-		●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	02	1	0710-1005	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	02	1	1006-	●	●
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	0710-1005	●
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	1006-	●	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-1005	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1006-	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-	●	●
97	BRACKET; CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	1-82698-358-0	01	1	1108-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-1005	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	1006-	●
97	BRACKET; CLIP (D)	1-47479-646-0	01	1	1006-		●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1006-1107	●	●
98	BOLT; BRKT,FUEL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X30 FLANGE	0-28650-830-0	01	1	1108-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1108-		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-1005	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1006-1107	●	●
99	NUT; BRKT,CLIP,FUEL TANK JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	01	1	1108-	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1108-		●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	07	1	0712-1005	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	07	1	1006-	●	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	0710-0711	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	0712-1005	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1006-	●	●
101	BOLT; CLIP,FUEL PIPE MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-1005	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1006-1107	●	●
101	BOLT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-		●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-1005	●
101	BOLT; CLIP,FUEL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	1006-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	0710-1005	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	09	1	1006-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0710-1005	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1006-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0710-1005	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1006-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	8-98079-082-0	01	1	0710-1005	●
227	BRACKET; FUEL SEDIMENTER (A)	8-98079-082-0	01	1	1006-1107	●	●
227	BRACKET; FUEL SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98079-082-0	01	1	1108-	●
227	BRACKET; FUEL SEDIMENTER (A)	8-98079-082-0	01	1	1108-		●
227	BRACKET; FUEL SEDIMENTER (B)	8-98079-083-0	01	1	0710-1005	●
227	BRACKET; FUEL SEDIMENTER (B)	8-98079-083-0	01	1	1006-1107	●	●
227	BRACKET; FUEL SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	8-98079-083-0	01	1	1108-	●
227	BRACKET; FUEL SEDIMENTER (B)	8-98079-083-0	01	1	1108-		●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28051-035-0	04	1	0710-1005	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28051-035-0	04	1	1006-1107	●	●
228	BOLT; BRKT,SEDIMENTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE	0-28051-035-0	04	1	1108-	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28051-035-0	04	1	1108-		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	1006-1107	●	●
229	NUT; BRKT,FUEL FILTER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE	0-91180-210-0	02	1	1108-	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	1108-		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0710-1005	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1006-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1006-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1006-1107		●
291	BOLT; FILER TO BRKT EURO5 SPECIFICATION<NT5> M10X60 FLANGE	0-28051-060-0	02	1	1108-	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1108-		●
291	BOLT; FILER TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0710-1107	●
291	BOLT; FILER TO BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE	0-28051-035-0	02	1	1108-	●
634	HOSE; RUBBER RETURN L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0710-1005	●
634	HOSE; RUBBER RETURN L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1006-	●	●

187 187 187 303 303 417 187 187 416 185 303 304 97 416 304 416 167 304 187 417 416 303 167 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	0710-1005	●
97	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	01	1	1006-	●	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	0710-1005	●
97	BRACKET; CLIP (B)	1-47479-723-0	02	1	1006-	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	0710-1005	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1006-1107	●	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-	●	●
97	BRACKET; CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	1-82698-358-0	01	1	1108-	●
97	BRACKET; CLIP (C)	1-82698-358-0	01	1	1108-		●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (F)	1-53461-494-1	01	1	0710-	●
97	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (E)	1-47479-639-0	01	1	0710-	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	0710-1005	●
97	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47479-646-0	01	1	1006-	●
97	BRACKET; CLIP (D)	1-47479-646-0	01	1	1006-		●
167	BRACKET FUEL TANK 400L+400L<NAR>	1-47478-031-0	02	1	0710-	●

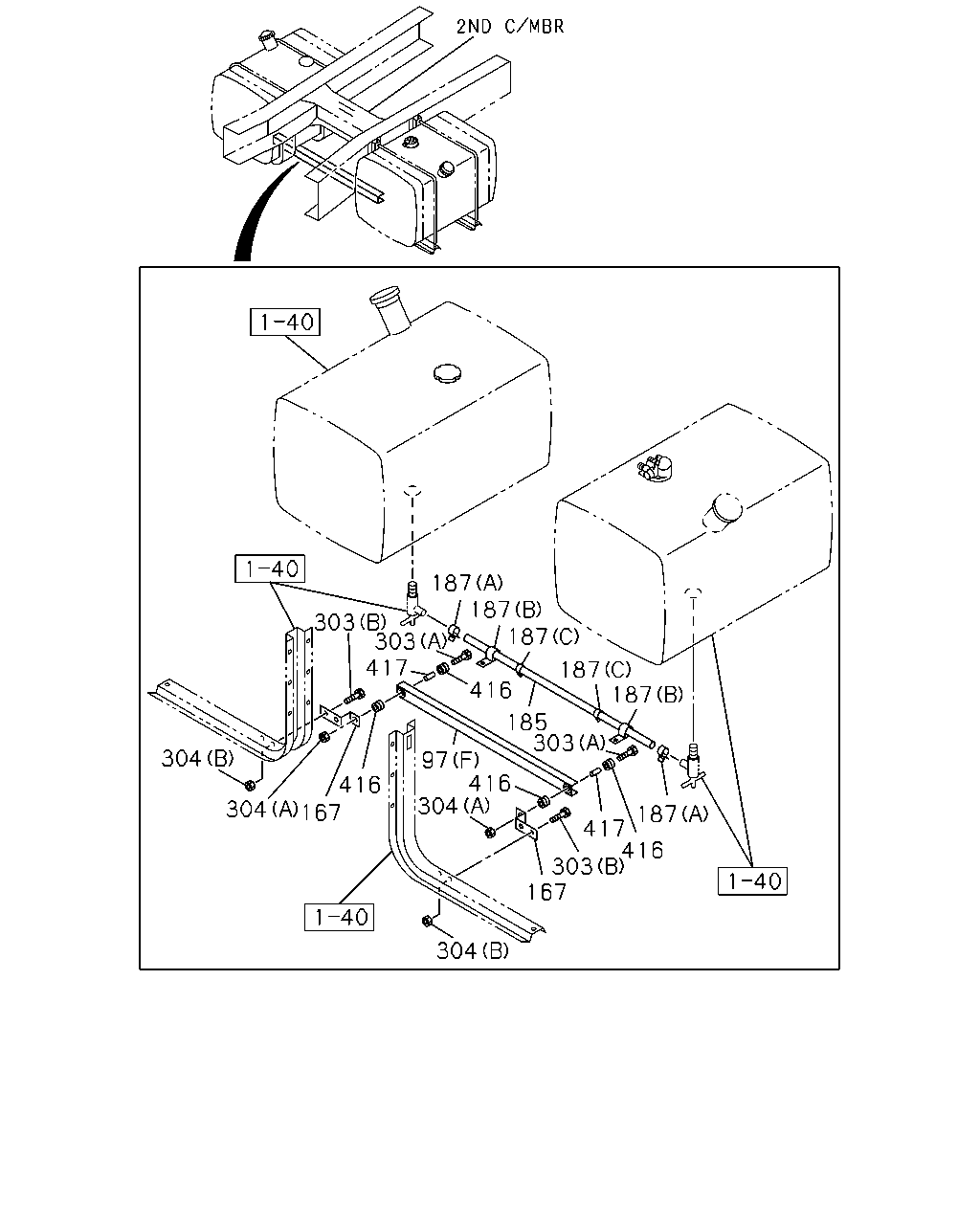

185	PIPE; FUEL TANK TO TANK FUEL TANK 400L+400L<NAR> L=1650 SERVICED BY L=3000	0-01262-300-0	01	1	0710-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 L=50	0-95235-886-0	02	1	0710-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	0710-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	0710-	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE	0-28051-050-0	02	1	0710-	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (B) M8 FLANGE	0-91180-108-0	04	1	0710-	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M10 FLANGE	0-91180-210-0	02	1	0710-	●
416	RUBBER; SUPPORT FUEL TANK 400L+400L<NAR> OD=40	1-22159-094-0	04	1	0710-	●
417	TUBE; DISTANCE,BRKT FUEL TANK 400L+400L<NAR> L=22	9-22159-024-0	02	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
