51517 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

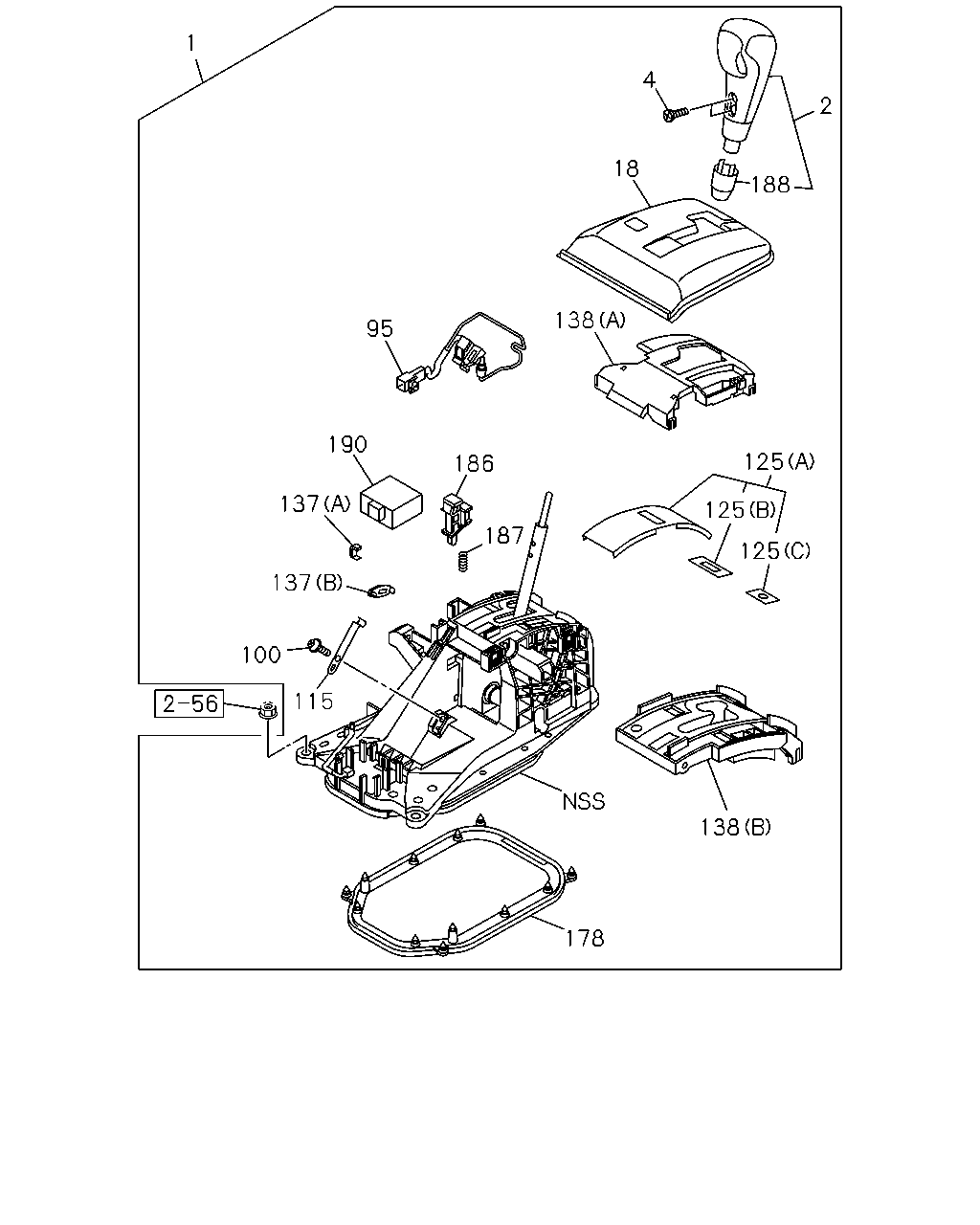

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#145744) — 23 parça
1
4
2
188
18
138
95
186
190
137
137
100
115
187
138
125
125
125
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.006 LEVER; SHIFT,A/T
INTERIOR BASIC(RBA) BLACK
8-97426-495-3
01
1
1407-
1
04.006 LEVER; SHIFT,A/T
INTERIOR CUSTOM(RBD) SILVER
8-97427-694-0
01
1
1407-
2
04.006 KNOB ASM; AUTO CONT LEVER
INTERIOR BASIC(RBA) BLACK
8-97426-496-0
01
1
1407-
2
04.006 KNOB ASM; AUTO CONT LEVER
INTERIOR CUSTOM(RBD) SILVER
8-97421-017-0
01
1
1407-
4
04.006 SCREW; KNOB TO LEVER
8-98163-219-0
02
1
1407-
18
04.020 COVER; INDICATOR,UPR
INTERIOR BASIC(RBA) BLACK
8-97422-069-1
01
1
1407-
18
04.020 COVER; INDICATOR,UPR
INTERIOR CUSTOM(RBD) SILVER
8-97425-357-1
01
1
1407-
95
04.006 LAMP; INDICATOR
8-98173-050-0
01
1
1407-
100
04.012 SCREW
8-98163-221-0
01
1
1407-
115
04.008 PLATE; SPR,LEVER
8-98163-220-0
01
1
1407-
125
04.020 COVER; SHIFT LEVER
(A)
8-98163-185-0
01
1
1407-
125
04.020 COVER; SHIFT LEVER
(C)
8-98163-186-0
01
1
1407-
125
04.020 COVER; SHIFT LEVER
(B)
8-98163-187-0
01
1
1407-
137
04.010 CUSHION
(A)
8-98163-222-0
01
1
1407-
137
04.010 CUSHION
(B)
8-98163-223-0
01
1
1407-
138
04.030 BOX; LAMP
(B)
8-98173-053-0
01
1
1407-
138
04.030 BOX; LAMP
INTERIOR BASIC(RBA) (A)
8-98173-049-1
01
1
1407-
138
04.030 BOX; LAMP
INTERIOR CUSTOM(RBD) (A)
8-98242-512-0
01
1
1407-
178
04.008 SHEET; SHIFT LEVER
8-98163-225-0
01
1
1407-
186
04.006 BUTTON; SHIFT LOCK
BLACK
8-97421-016-0
01
1
1407-
187
04.008 SPRING; RETURN,SHIFT
8-98163-182-0
01
1
1407-
188
04.008 COVER; KNOB
8-98163-209-0
01
1
1407-
190
04.290 CONTROLLER; INTERLOCK
8-98163-217-0
01
1
1407-
