◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#145741) — 84 parça

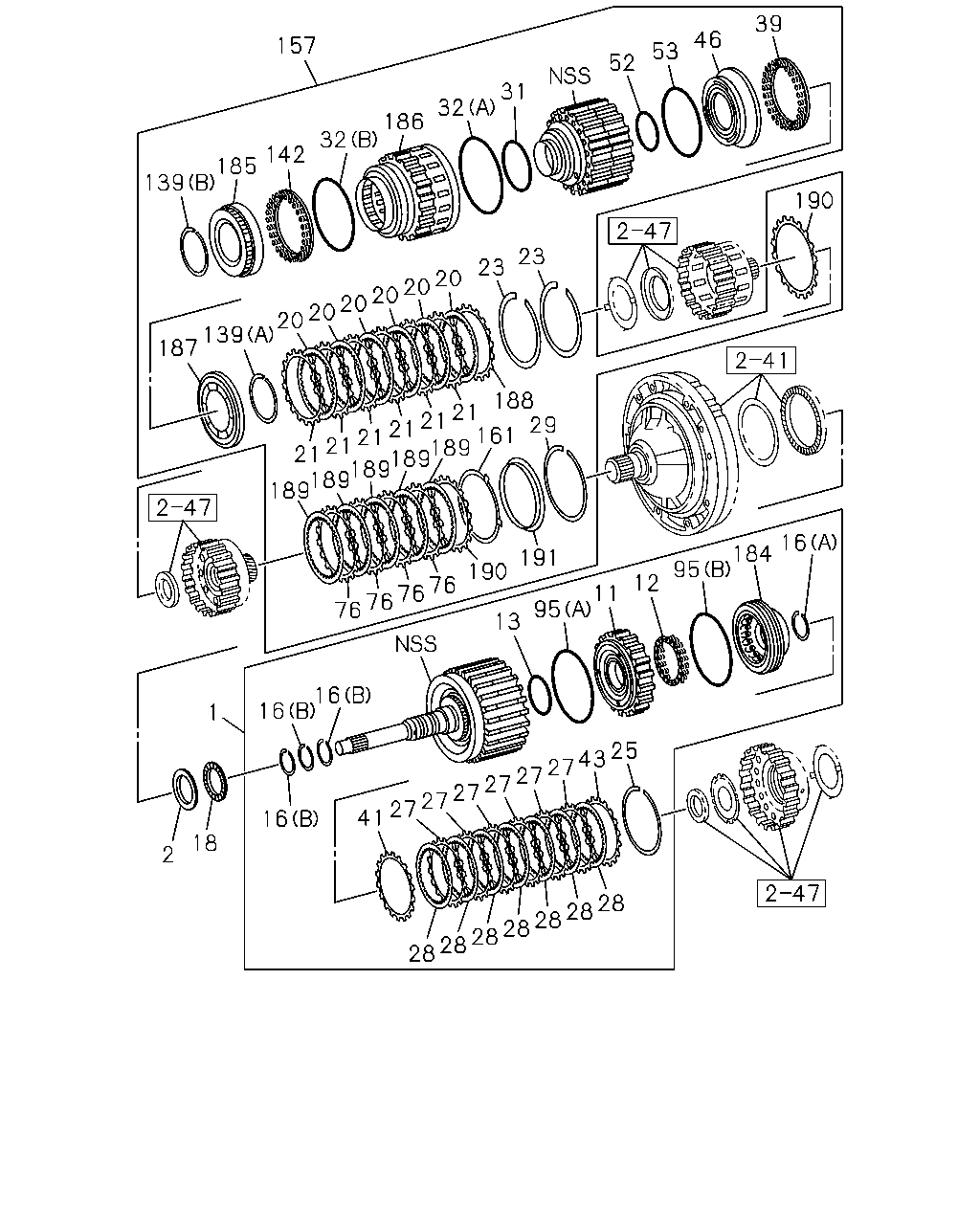

çizim 432652
157 32 142 185 139 186 32 31 52 53 46 39 187 139 20 20 20 20 20 20 23 23 190 188 21 21 21 21 21 21 189 189 189 189 189 161 29 76 76 190 76 191 76 13 11 184 95 12 95 16 25 43 27 27 27 27 27 27 41 28 28 28 28 28 28 28 16 1 18 2 16 16
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4JJ1-TCX ENG(LS0) 		8-98189-510-0 01 1 1509-
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T 8-98189-762-0 01 1 1407-1508
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4JK1-TCX ENG(LR0) 		8-98189-762-0 01 1 1509-
2 04.164 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1407-
11 04.166 PISTON ASM; CLU,A/T
4JJ1-TCX ENG(LS0) 		8-98189-512-0 01 1 1509-
11 04.166 PISTON ASM; CLU,A/T 8-98189-764-0 01 1 1407-1508
11 04.166 PISTON ASM; CLU,A/T
4JK1-TCX ENG(LR0) 		8-98189-764-0 01 1 1509-
12 04.164 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1407-
13 04.166 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1407-
16 04.166 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1407-
16 04.166 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1407-
18 04.164 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1407-
20 04.163 DISC; CLU,A/T
4JJ1-TCX ENG(LS0) OD=162 		8-98189-559-0 06 1 1509-
20 04.163 DISC; CLU,A/T
OD=162 		8-98189-559-0 05 1 1407-1508
20 04.163 DISC; CLU,A/T
4JK1-TCX ENG(LR0) OD=162 		8-98189-559-0 05 1 1509-
21 04.163 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG(LS0) ID=149 		8-98189-558-0 06 1 1509-
21 04.163 DISC ASM; CLU & FACING,A/T
ID=149 		8-98189-558-0 05 1 1407-1508
21 04.163 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG(LR0) ID=149 		8-98189-558-0 05 1 1509-
23 04.164 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1407-
25 04.164 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1407-
27 04.163 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG(LS0) T=1.8 		8-98189-520-0 06 1 1509-
27 04.163 DISC ASM; CLU & FACING,A/T
T=1.8 		8-98189-520-0 05 1 1407-1508
27 04.163 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG(LR0) T=1.8 		8-98189-520-0 05 1 1509-
28 04.163 DISC; CLU,A/T
4JJ1-TCX ENG(LS0) OD=120 		8-98189-519-0 07 1 1509-
28 04.163 DISC; CLU,A/T
OD=120 		8-98189-519-0 06 1 1407-1508
28 04.163 DISC; CLU,A/T
4JK1-TCX ENG(LR0) OD=120 		8-98189-519-0 06 1 1509-
29 04.164 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1407-
31 04.166 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1407-
32 04.166 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1407-
32 04.166 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1407-
39 04.164 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1407-
41 04.164 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1407-
43 04.164 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1407-
46 04.166 PISTON; DIRECT CLU,A/T
4JJ1-TCX ENG(LS0) 		8-98189-540-0 01 1 1509-
46 04.166 PISTON; DIRECT CLU,A/T 8-98189-766-0 01 1 1407-1508
46 04.166 PISTON; DIRECT CLU,A/T
4JK1-TCX ENG(LR0) 		8-98189-766-0 01 1 1509-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
ID=75 		8-98189-542-0 01 1 1407-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU,
ID=126.7 		8-98189-541-0 01 1 1407-
76 04.262 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1407-
95 04.166 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1407-
95 04.166 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1407-
139 04.164 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1407-
139 04.164 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1407-
142 04.167 SPRING; CLU 8-98189-587-0 01 1 1407-
157 04.166 CLUTCH ASM; A/T
4JJ1-TCX ENG(LS0) 		8-98189-538-0 01 1 1509-
157 04.166 CLUTCH ASM; A/T 8-98189-765-0 01 1 1407-1508
157 04.166 CLUTCH ASM; A/T
4JK1-TCX ENG(LR0) 		8-98189-765-0 01 1 1509-
161 04.166 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1407-
184 04.166 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1407-
185 04.166 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1407-
186 04.166 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1407-
187 04.166 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1407-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1407-
189 04.163 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1407-
190 04.164 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1407-
191 04.166 SLEEVE; CLUTCH 8-98189-596-0 01 1 1407-
