◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#145740) — 57 parça

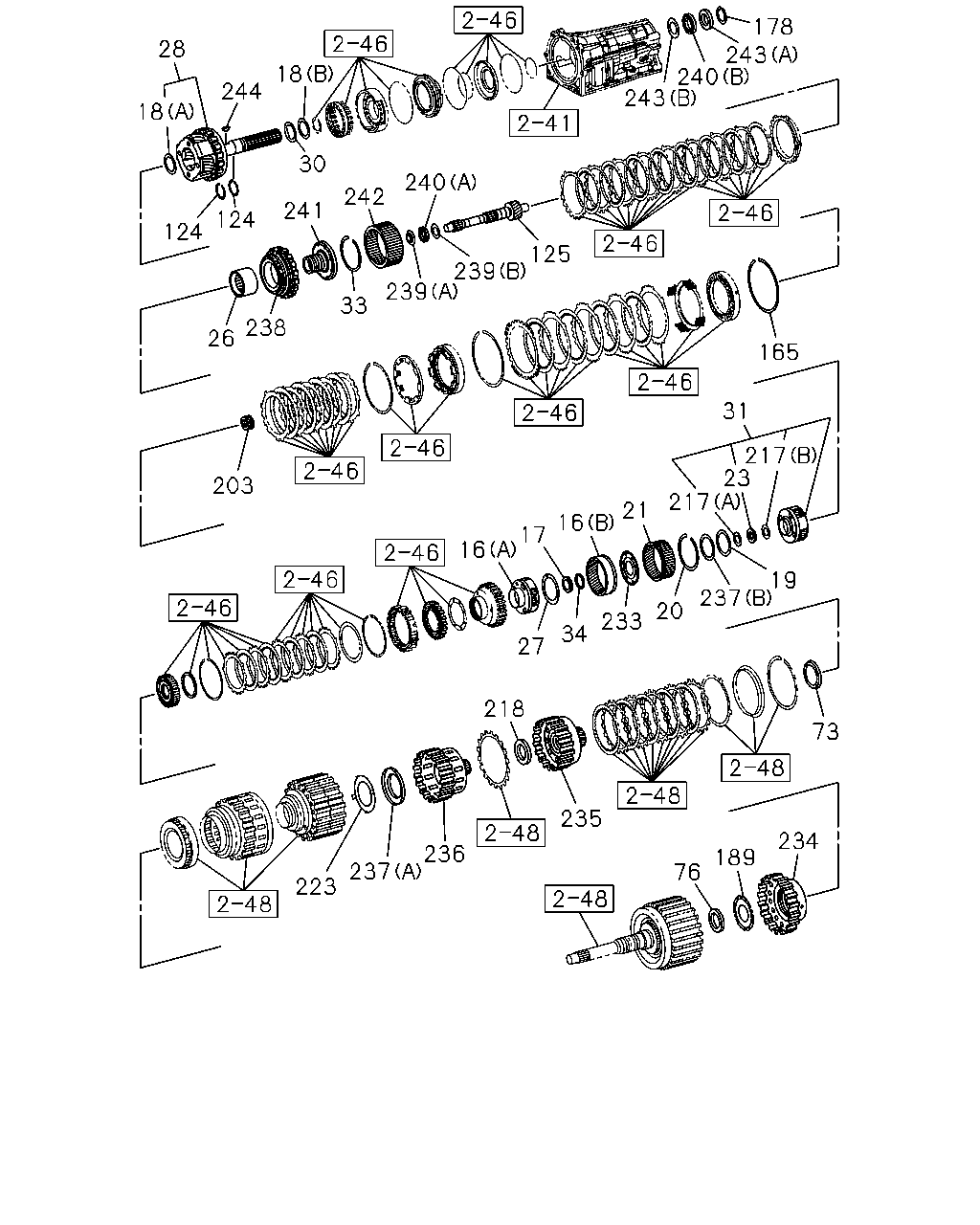

çizim 432720
28 244 18 30 241 124 124 18 242 240 243 240 243 178 239 239 33 238 26 203 16 21 16 17 27 233 20 19 237 73 218 235 76 234 189 236 237 223 31 217 217 23 165 125
BalonParca AdiParca NoAdetTipApplied Date
16 04.256 GEAR ASM; FRT PLANETARY,A/T
(A) 		8-98189-682-0 01 1 1407-
16 04.256 GEAR ASM; FRT PLANETARY,A/T
(B) 		8-98189-686-0 01 1 1407-
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
ID=38 		8-98189-684-0 01 1 1407-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(A) 		8-98189-708-0 01 1 1407-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(B) 		8-98189-712-0 01 1 1407-
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98189-692-0 01 1 1407-
20 04.164 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-691-0 01 1 1407-
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98189-688-0 01 1 1407-
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-98189-695-0 01 1 1407-
26 04.168 RACE; ONEWAY CLU,A/T 8-98189-701-0 01 1 1407-
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 		8-98189-683-0 01 1 1407-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X2(UCB***) ABS W/EBD BRAKE ASSIST<JE5> 		8-98189-707-0 01 1 1407-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X2(UCB***) EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98189-774-0 01 1 1407-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X4(UCS***) 		8-98189-784-0 01 1 1407-
30 04.180 RACE; THRUST BRG,RR PLANETARY FL 8-98189-711-0 01 1 1407-
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-98189-694-0 01 1 1407-
33 04.166 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-710-0 01 1 1407-
34 04.164 BEARING; THRUST,FRT PLANETARY SH 8-98189-685-0 01 1 1407-
73 04.164 WASHER; THRUST,CARRIER
ID=74 		8-98189-679-0 01 1 1407-
76 04.164 BEARING; THRUST,CARRIER 8-98189-673-0 01 1 1407-
124 04.164 RING; SLEEVE,OIL SEAL,RR PLANETA
4X2(UCB***) EXC. ABS W/EBD BRAKE ASSIST<JE5> ID=33 		8-98189-775-0 02 1 1407-
125 04.175 SHAFT ASM; INTERMEDIATE,PLANETAR 8-98189-698-0 01 1 1407-
165 04.176 RING; RET
ID=151 		8-98189-702-0 01 1 1407-
178 04.187 RING; RET
4X2(UCB***) ID=34 		8-98189-730-0 01 1 1407-
189 04.167 RACE; INNER,LOW CLU
ID=23 		8-98189-670-0 01 1 1407-
203 04.166 GEAR; SUN
Z=31 		8-98189-699-0 01 1 1407-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-98189-696-0 01 1 1407-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-98189-697-0 01 1 1407-
218 04.164 BEARING; THRUST,INTERNAL GEAR 8-98189-680-0 01 1 1407-
223 04.164 RACE; BRG,CARRIER 8-98189-675-0 01 1 1407-
233 04.164 FLANGE; FR PLANETARY 8-98189-687-0 01 1 1407-
234 04.164 HUB; FORWARD CLUTCH 8-98189-674-0 01 1 1407-
235 04.164 HUB; REVERSE CLUTCH 8-98189-681-0 01 1 1407-
236 04.164 HUB; CLUTCH 8-98189-678-0 01 1 1407-
237 04.164 BEARING; THRUST
(A) 		8-98189-676-0 01 1 1407-
237 04.164 BEARING; THRUST
(B) 		8-98189-693-0 01 1 1407-
238 04.164 CLUTCH ASM; 1WAY 8-98189-700-0 01 1 1407-
239 04.167 RACE; INTERMEDIATE SHAFT
(A) 		8-98189-703-0 01 1 1407-
239 04.167 RACE; INTERMEDIATE SHAFT
(B) 		8-98189-704-0 01 1 1407-
240 04.164 BEARING; THRUST NEEDLE ROLLER
4X2(UCB***) (B) 		8-98189-729-0 01 1 1407-
240 04.164 BEARING; THRUST NEEDLE ROLLER
(A) 		8-98189-705-0 01 1 1407-
241 04.164 FLANGE; RR PLANETARY 8-98189-706-0 01 1 1407-
242 04.158 GEAR; RR PLANETARY 8-98189-709-0 01 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.8 		8-98189-716-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.9 		8-98189-717-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.0 		8-98189-718-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.1 		8-98189-719-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.2 		8-98189-720-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.85 		8-98189-721-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.95 		8-98189-722-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.05 		8-98189-723-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.15 		8-98189-724-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.25 		8-98189-725-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.30 		8-98189-726-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.35 		8-98189-727-0 AR 1 1407-
243 04.167 RACE; THRUST BEARING
4X2(UCB***) (B) T=2.0 		8-98189-728-0 01 1 1407-
244 04.330 KEY; WOODRUF,PLANETARY GEAR
4X2(UCB***) EXC. ABS W/EBD BRAKE ASSIST<JE5> 04.337 		8-94479-904-0 01 1 1407-
