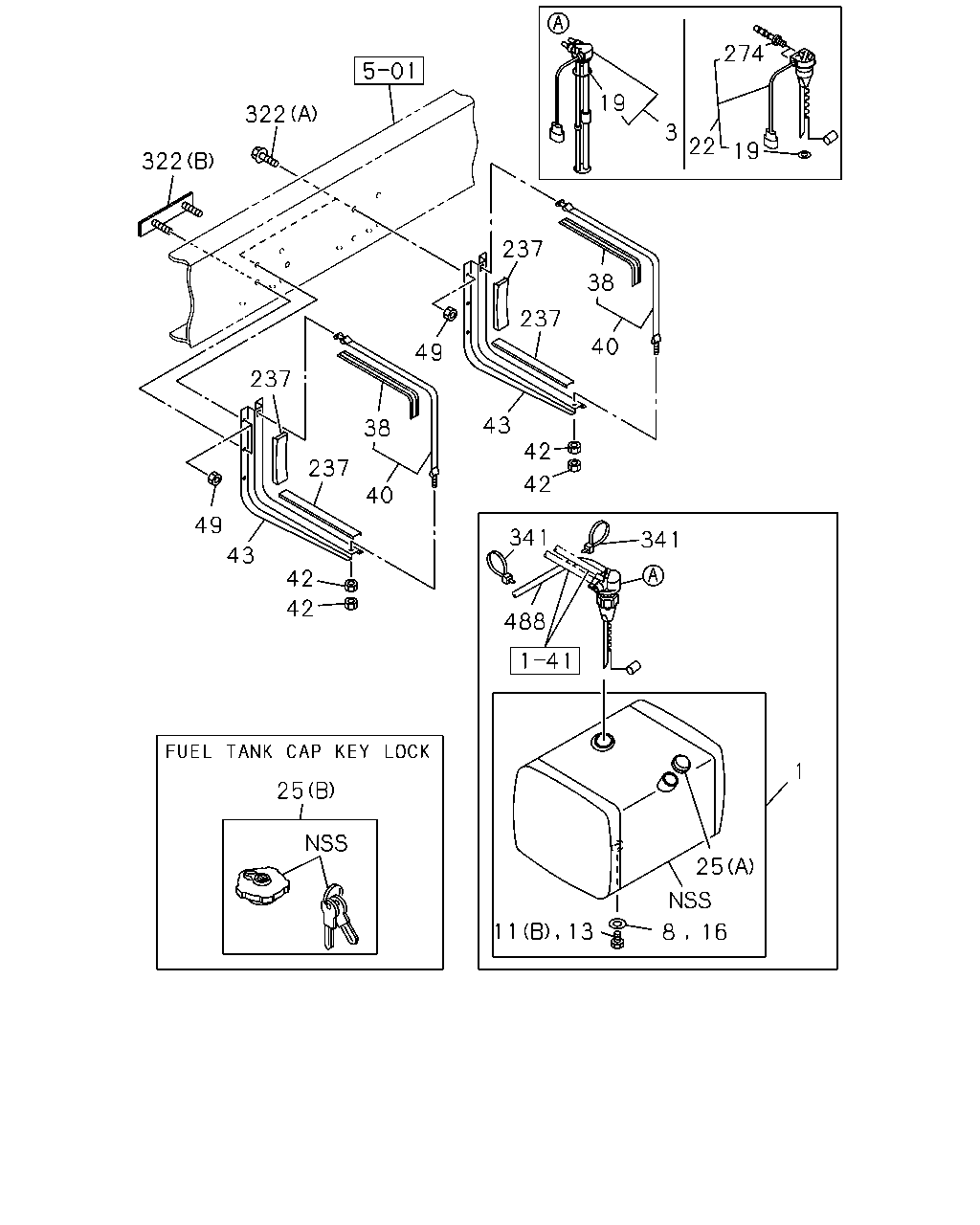

1-40 — FUEL TANK (#14574) — 163 parça

274 22 19 3 19 322 322 49 237 237 38 40 42 341 341 488 25 1 16 8 13 11 25 42 43 49 237 38 237 43 40 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-173-1	02	1	0710-0810	●
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-699-1	02	1	0811-1109	●
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-788-3	02	1	1110-	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-173-1	01	1	0710-0810	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	0811-1005	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	1006-1109	●
1	TANK; FUEL 1050X680X625 400L	1-87411-699-1	01	1	1006-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	1-09680-085-0	02	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (B) M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK (B) M18X12	0-92002-418-0	01	1	1211-		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0710-1005	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1006-1210	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	1006-1210		●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0710-1005	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1006-1210	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	1006-1210		●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0710-1005	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1006-1210	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0710-1005	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	1006-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> FUEL TANK CAP KEY LOCK<N05> (C)	8-98122-533-0	01	1	0805-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	0805-1005	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1006-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1006-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-063-1	01	1	0710-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	0811-1005	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1006-1109	●
25	CAP; FILLER,FUEL TANK (A)	8-98115-780-0	01	1	1006-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	1-22440-063-1	02	1	0710-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	8-98115-780-0	02	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	8-98182-306-0	02	1	1110-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0710-1005	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1006-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1006-		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	0710-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	0710-1005	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	1006-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1006-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1210	1-22550-261-0	04	1	0710-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1210	8-98202-448-0	04	1	1111-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0710-1005	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	1006-	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1006-		●
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	08	1	0710-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0710-1005	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1006-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1006-		●
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-525-1	04	1	0710-	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	04	1	0710-1005	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	04	1	1006-	●
49	NUT; BRKT M12	0-91110-512-0	04	1	1006-		●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	13	1	0710-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-0	04	1	0710-1005	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1006-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1006-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-1	08	1	0710-	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0710-1005	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	1006-1210	●	●
322	BOLT; BRKT FIX (B)	8-98088-498-0	02	1	0710-1005	●
322	BOLT; BRKT FIX (B)	8-98088-498-0	02	1	1006-	●	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> (A) M12X35 FLANGE	0-28051-235-0	08	1	0710-1005	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> (A) M12X35 FLANGE	0-28051-235-0	08	1	1006-	●
322	BOLT; BRKT FIX (A) M12X35 FLANGE	0-28051-235-0	08	1	1006-		●
322	BOLT; BRKT FIX FUEL TANK 400L+400L<NAR> (A) M12X35 FLANGE	0-28051-235-0	20	1	0710-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1006-		●
488	HOSE; RUBBER	8-98134-939-0	01	1	1006-1006		●
488	HOSE; RUBBER	8-98134-936-0	01	1	1007-		●

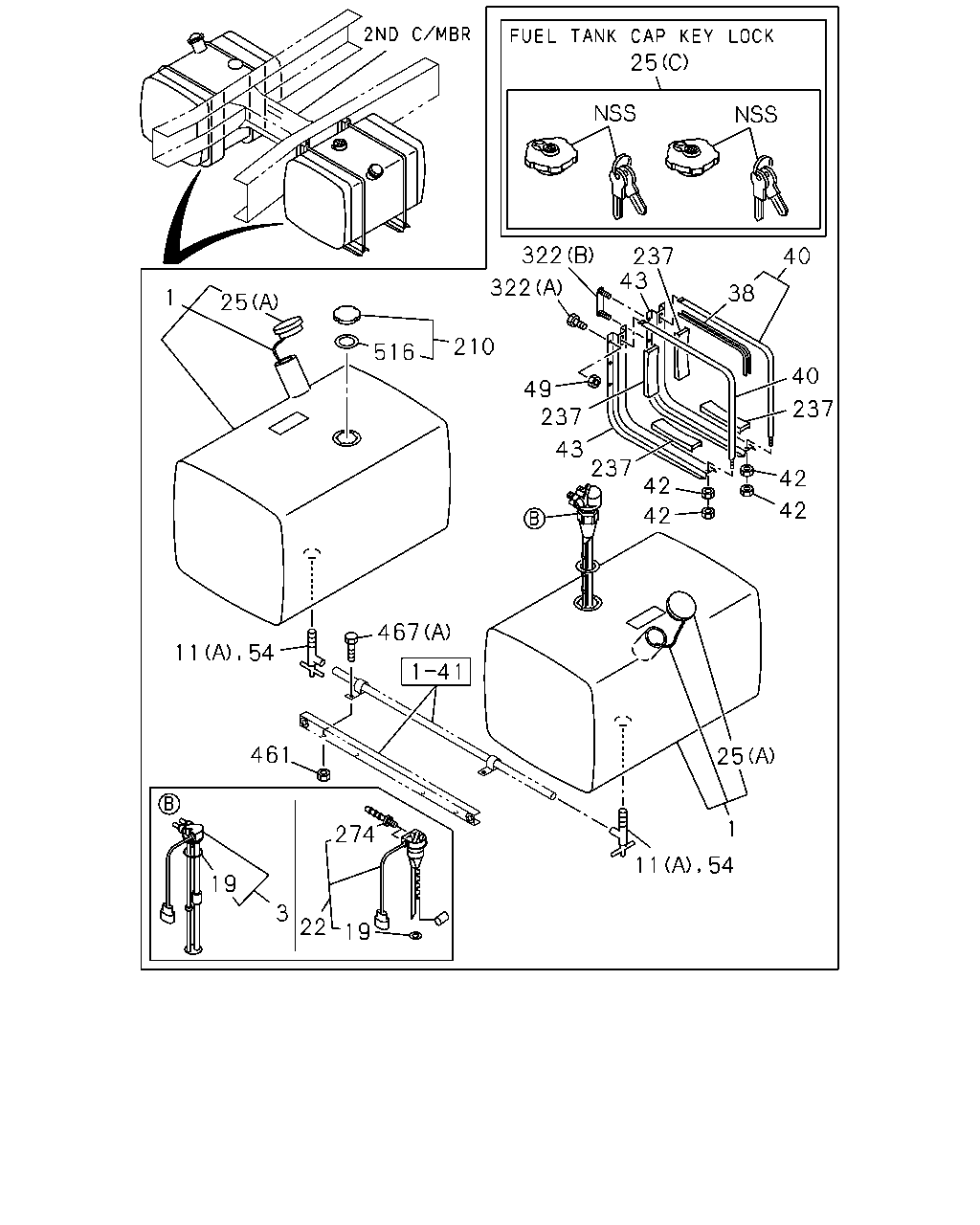

25 237 40 38 40 42 237 42 42 237 43 42 237 49 322 322 210 516 25 1 25 11 54 19 22 274 461 19 3 11 54 467 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-173-1	02	1	0710-0810	●
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-699-1	02	1	0811-1109	●
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1050X680X625 400L	1-87411-788-3	02	1	1110-	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-173-1	01	1	0710-0810	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	0811-1005	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	1006-1109	●
1	TANK; FUEL 1050X680X625 400L	1-87411-699-1	01	1	1006-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	1-09680-085-0	02	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (B) M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK (B) M18X12	0-92002-418-0	01	1	1211-		●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0710-1005	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1006-1210	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0710-1005	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	1006-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> FUEL TANK CAP KEY LOCK<N05> (C)	8-98122-533-0	01	1	0805-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	0805-1005	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1006-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1006-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-063-1	01	1	0710-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	0811-1005	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1006-1109	●
25	CAP; FILLER,FUEL TANK (A)	8-98115-780-0	01	1	1006-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	1-22440-063-1	02	1	0710-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	8-98115-780-0	02	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR> (A)	8-98182-306-0	02	1	1110-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0710-1005	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1006-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1006-		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	0710-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	0710-1005	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	1006-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1006-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1210	1-22550-261-0	04	1	0710-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1210	8-98202-448-0	04	1	1111-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0710-1005	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	1006-	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1006-		●
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	08	1	0710-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0710-1005	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1006-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1006-		●
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-525-1	04	1	0710-	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	04	1	0710-1005	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	04	1	1006-	●
49	NUT; BRKT M12	0-91110-512-0	04	1	1006-		●
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	13	1	0710-	●
54	COCK ASM; FUEL TANK FUEL TANK 400L+400L<NAR>	1-09680-085-0	02	1	0710-1210	●
210	CAP; FUEL TANK FUEL TANK 400L+400L<NAR>	1-22411-076-0	01	1	0710-1210	●
210	CAP; FUEL TANK FUEL TANK 400L+400L<NAR>	1-22411-076-0	01	1	1211-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-0	04	1	0710-1005	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1006-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1006-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-1	08	1	0710-	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0710-1005	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	1006-1210	●	●
322	BOLT; BRKT FIX (B)	8-98088-498-0	02	1	0710-1005	●
322	BOLT; BRKT FIX (B)	8-98088-498-0	02	1	1006-	●	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> (A) M12X35 FLANGE	0-28051-235-0	08	1	0710-1005	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> (A) M12X35 FLANGE	0-28051-235-0	08	1	1006-	●
322	BOLT; BRKT FIX (A) M12X35 FLANGE	0-28051-235-0	08	1	1006-		●
322	BOLT; BRKT FIX FUEL TANK 400L+400L<NAR> (A) M12X35 FLANGE	0-28051-235-0	20	1	0710-	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91180-108-0	02	1	0710-	●
467	BOLT (B) NPTF3/8-18	8-97329-623-0	01	1	1006-1107		●
467	BOLT 6WG1 TC-N(71L) (B) NPTF3/8-18	8-97329-623-0	01	1	1108-	●
467	BOLT (B) NPTF3/8-18	8-97329-623-0	01	1	1108-		●
467	BOLT FUEL TANK 400L+400L<NAR> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●
516	GASKET; CAP FUEL TANK 400L+400L<NAR> ID=58	1-83149-005-0	01	1	0710-1210	●
516	GASKET; CAP FUEL TANK 400L+400L<NAR> ID=58	1-83149-005-0	01	1	1211-	●

467 329 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
329	JOINT ASM; EYE,FUEL PIPE (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1006-1107		●
329	JOINT ASM; EYE,FUEL PIPE 6WG1 TC-N(71L) (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1108-	●
329	JOINT ASM; EYE,FUEL PIPE (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1108-		●
329	JOINT ASM; EYE,FUEL PIPE (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1006-1107		●
329	JOINT ASM; EYE,FUEL PIPE 6WG1 TC-N(71L) (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1108-	●
329	JOINT ASM; EYE,FUEL PIPE (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1108-		●
467	BOLT (B) NPTF3/8-18	8-97329-623-0	01	1	1006-1107		●
467	BOLT 6WG1 TC-N(71L) (B) NPTF3/8-18	8-97329-623-0	01	1	1108-	●
467	BOLT (B) NPTF3/8-18	8-97329-623-0	01	1	1108-		●
467	BOLT FUEL TANK 400L+400L<NAR> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●
