2-03 — CLUTCH PEDAL AND CONTROL (#145725) — 13 parça

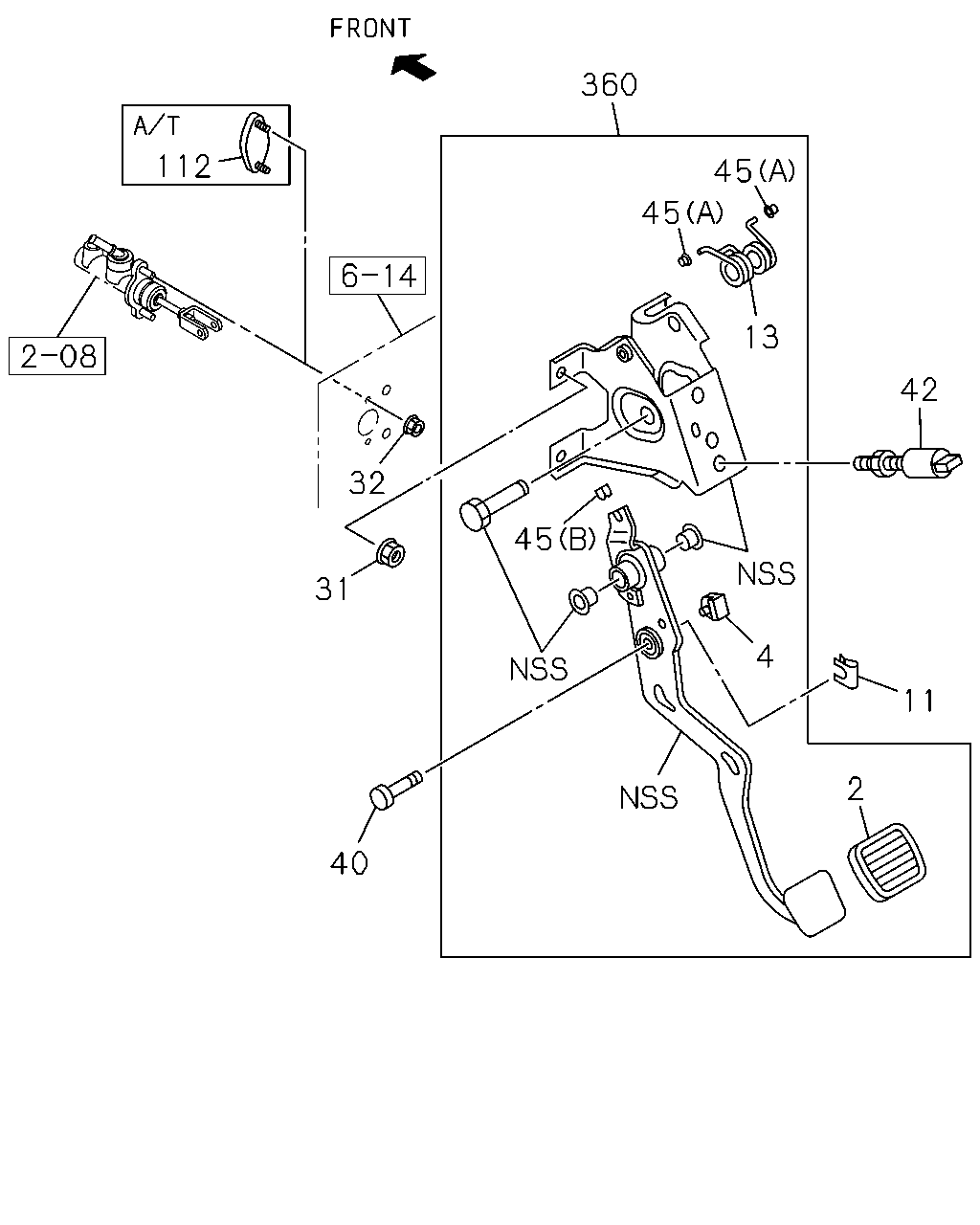

çizim 431484
112 360 32 31 40 45 4 13 42 11 2 45 45
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 1407- ●
4 00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-783-0 01 1 1407- ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-98007-161-0 01 1 1407- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-312-0 01 1 1407- ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1407- ●
32 00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ) OD=7.9 L=27.5 		8-97312-338-0 01 1 1407- ●
42 04.054 SWITCH; CLU
M/T MUA 5 SPEED 5H(MWQ) 		8-98154-210-0 01 1 1407- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97942-313-0 02 1 1407- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97942-314-0 01 1 1407- ●
112 00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1407- ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-853-0 01 1 1407-1601 ●
360 00.830 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ) 		8-98317-405-0 01 1 1602- ●
