1-50 — EXHAUST PIPE AND SILENCER (#145723) — 70 parça

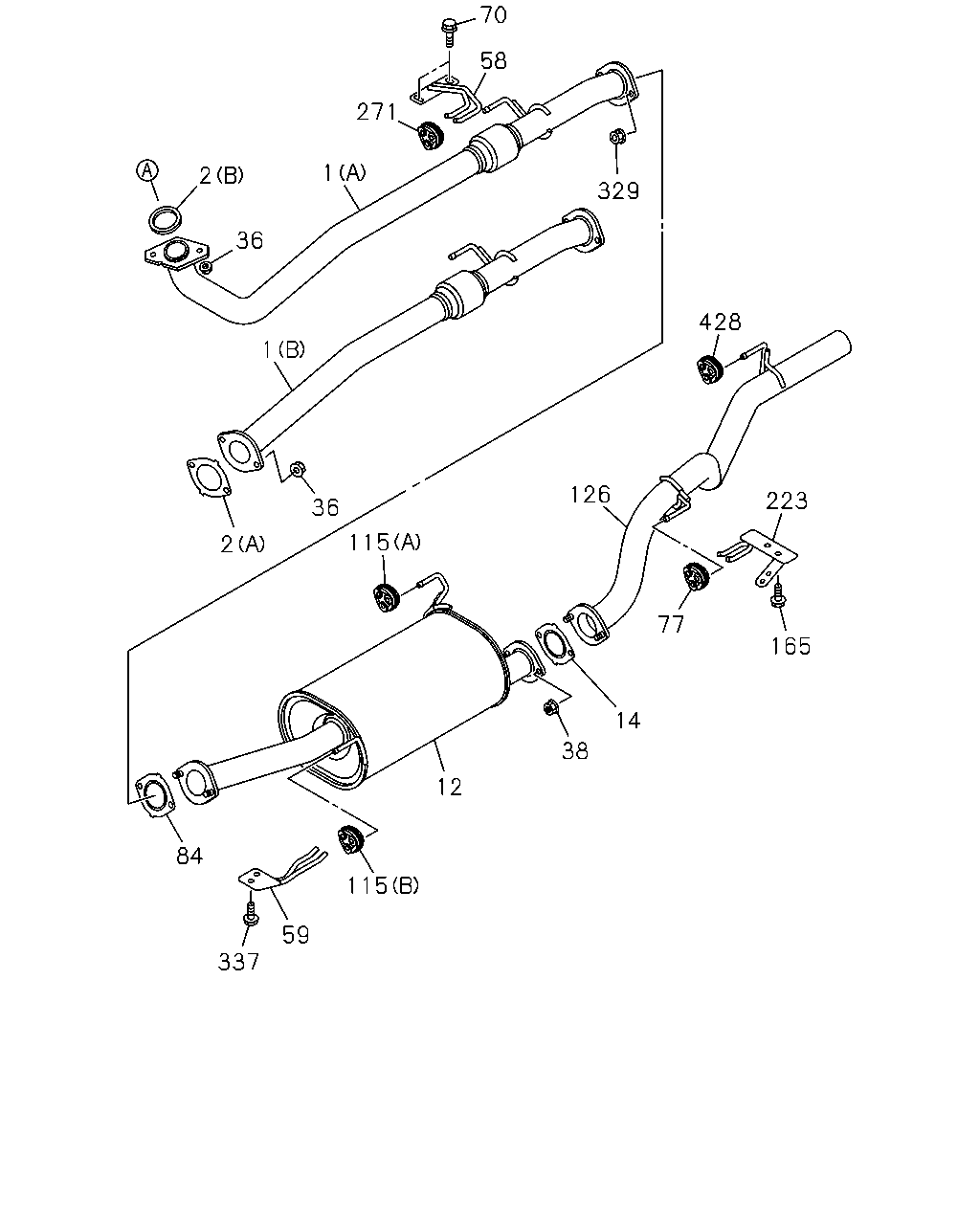

çizim 431482
70 58 271 1 2 36 329 1 36 2 115 126 428 223 165 77 14 38 12 115 59 337 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
EURO4 SPECIFICATION(NT4) (B) 		8-98196-222-1 01 1 1509-1509 ●
1 03.609 PIPE; EXH
EURO4 SPECIFICATION(NT4) (B) 		8-98196-222-1 01 1 1509- ● ●
1 03.609 PIPE; EXH
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (A) 		8-98276-229-1 01 1 1407-1502 ●
1 03.609 PIPE; EXH
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (A) 		8-98288-053-0 01 1 1503-1508 ●
1 03.609 PIPE; EXH
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (A) 		8-98288-053-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO4 SPECIFICATION(NT4) (B) ID=65 		8-97263-052-0 01 1 1509-1509 ●
2 03.611 GASKET; PIPE TO MANIF
EURO4 SPECIFICATION(NT4) (B) ID=65 		8-97263-052-0 01 1 1509- ● ●
2 03.611 GASKET; PIPE TO MANIF
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (A) 		8-98017-270-0 01 1 1407-1508 ●
2 03.611 GASKET; PIPE TO MANIF
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (A) 		8-98017-270-0 01 1 1509- ● ●
12 03.701 SILENCER ASM; EXH
EURO4 SPECIFICATION(NT4) 		8-98196-224-1 01 1 1509- ●
12 03.701 SILENCER ASM; EXH
EURO4 SPECIFICATION(NT4) 		8-98196-225-1 01 1 1509- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98302-092-0 01 1 1509- ●
12 03.701 SILENCER ASM; EXH
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98196-223-0 01 1 1407- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO4 SPECIFICATION(NT4) ID=73 		8-98196-638-0 01 1 1509- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 ID=65 		8-97263-052-0 01 1 1407-1508 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 ID=65 		8-97263-052-0 01 1 1509- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 03.611 ID=65 		8-97263-052-0 01 1 1509- ●
36 03.613 NUT; EXH PIPE
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) M10 FLANGE 		8-97096-192-1 02 1 1407-1508 ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1509-1509 ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1509- ● ●
38 00.002 NUT; SILENCER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1407-1508 ●
38 00.002 NUT; SILENCER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
58 03.613 BRACKET; EXH PIPE,RR
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-97368-450-0 01 1 1407-1508 ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1509-1509 ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1509- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98196-903-0 01 1 1407-1508 ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-98196-903-0 01 1 1509-1509 ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-98196-903-0 01 1 1509- ● ●
70 03.706 BOLT; BRKT
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1407-1508 ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509-1509 ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 1407-1508 ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 1509- ● ●
84 03.611 GASKET; EXH PIPE
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) ID=65 		8-97263-052-0 01 1 1407-1508 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1509-1509 ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1509- ● ●
115 03.704 RUBBER; MTG,SILENCER
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 03.706 (A) 		8-97289-169-0 01 1 1407-1508 ●
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1509-1509 ●
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1509- ● ●
115 03.704 RUBBER; MTG,SILENCER
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) (B) 		8-98124-470-0 01 1 1407-1508 ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 01 1 1509-1509 ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 01 1 1509- ● ●
126 03.705 PIPE; EXH,RR
EURO4 SPECIFICATION(NT4) 		8-98196-459-1 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4X2(UCB***) EURO4 SPECIFICATION(NT4) 		8-98251-134-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) 		8-98253-326-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98302-093-0 01 1 1509- ●
126 03.705 PIPE; EXH,RR
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 		8-98196-454-0 01 1 1407- ●
165 03.706 BOLT; SUPPORT RUBBER
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1407-1508 ●
165 03.706 BOLT; SUPPORT RUBBER
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ●
223 03.706 BRACKET; EXH PIPE 8-98227-677-0 01 1 1407-1508 ●
223 03.706 BRACKET; EXH PIPE 8-98227-677-0 01 1 1509- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 03.706 		8-97289-169-0 01 1 1407-1508 ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1509-1509 ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1509- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1407-1508 ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-1509 ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
EMISSION SYSTEM R15-04(K75),EURO2 SPECIFICATION(NT2) 01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1407-1508 ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509-1509 ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1509- ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1407-1508 ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1509- ● ●

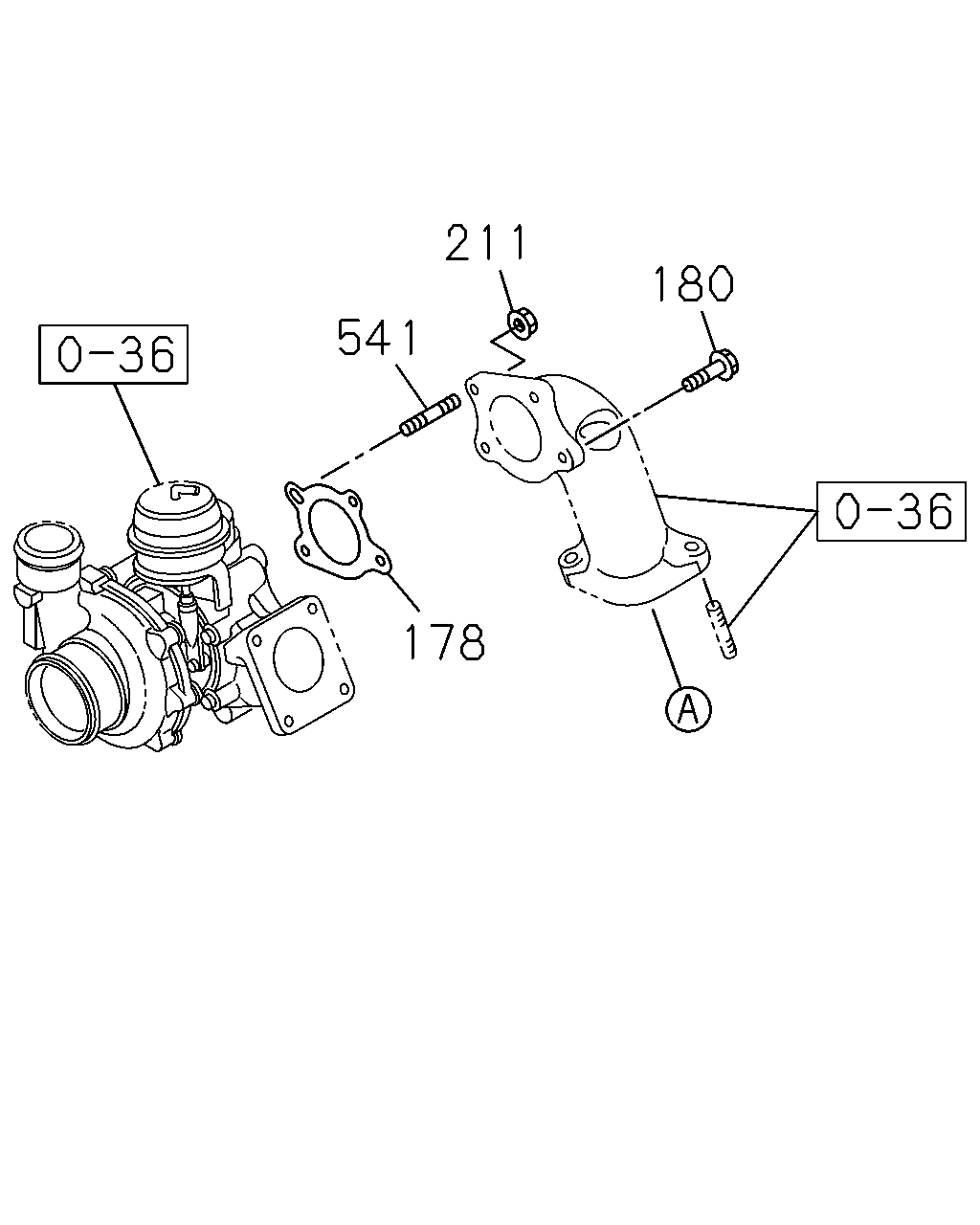

çizim 431595
541 211 180 178
BalonParca AdiParca NoAdetTipApplied Date A B
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1407-1508 ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1509- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1407-1508 ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1509- ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1407-1508 ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1509- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1407-1508 ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1509- ● ●
