1-41 — FUEL PIPING; CHASSIS (#145722) — 126 parça

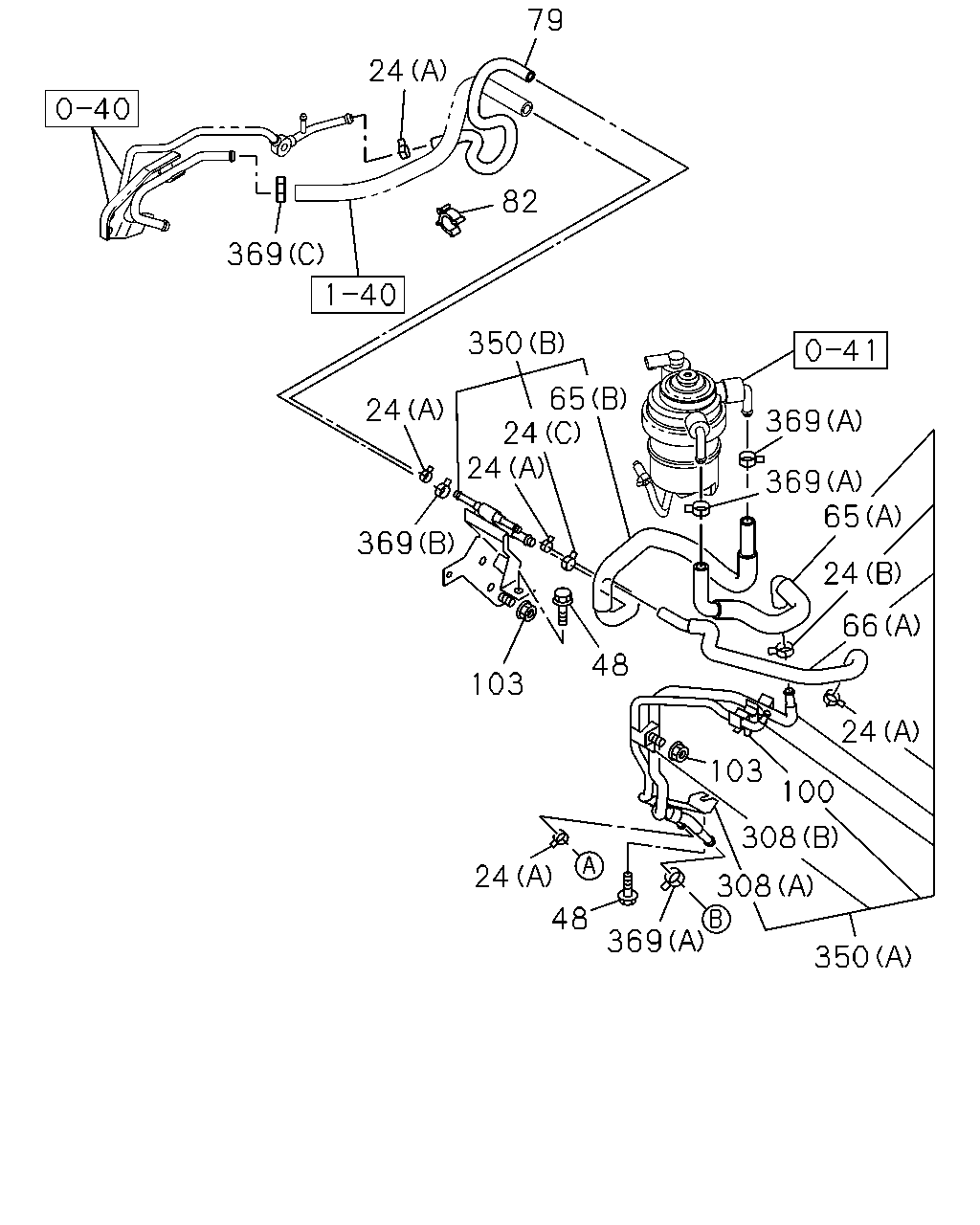

24 79 82 369 350 24 369 103 24 48 369 350 308 103 100 308 24 66 24 65 369 369 65 24 24 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	06	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	06	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98233-886-0	02	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98233-886-0	02	1	1509-	●	●
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1407-1508	●
48	03.162 BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-1509	●
48	03.162 BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98100-729-4	01	1	1407-1508	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-729-4	01	1	1509-1509	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98100-729-4	01	1	1509-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98100-731-2	01	1	1407-1508	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) DELIVERY	8-98100-731-2	01	1	1509-1509	●
65	03.163 HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98100-731-2	01	1	1509-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1407-1508	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A) RETURN	8-98100-720-2	01	1	1509-1509	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98100-720-2	01	1	1509-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1407-1508	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98248-703-0	01	1	1509-1509	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98248-703-0	01	1	1509-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98222-040-0	01	1	1407-1508	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN POOR QUALITY DIESEL FUEL<KF0>	8-98222-040-0	01	1	1509-1509	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN POOR QUALITY DIESEL FUEL<KF0>	8-98222-040-0	01	1	1509-	●	●
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1407-1508	●
82	03.163 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 06.672 ID=17	8-94382-792-1	01	1	1509-1509	●
82	03.163 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 06.672 ID=17	8-94382-792-1	01	1	1509-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1407-1508	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1407-1508	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-1509	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-1509	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-	●	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-	●	●
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-1508	●
103	03.130 NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-1509	●
103	03.130 NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1407-1508	●
308	03.162 BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1509-1509	●
308	03.162 BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1509-	●	●
308	03.162 BRACKET; FUEL PIPE (A)	8-98233-890-0	01	1	1407-1508	●
308	03.162 BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98233-890-0	01	1	1509-1509	●
308	03.162 BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98233-890-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-732-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-732-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-293-6	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-293-6	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (A)	8-98248-691-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (A)	8-98248-691-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-733-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-733-0	01	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1509-	●	●

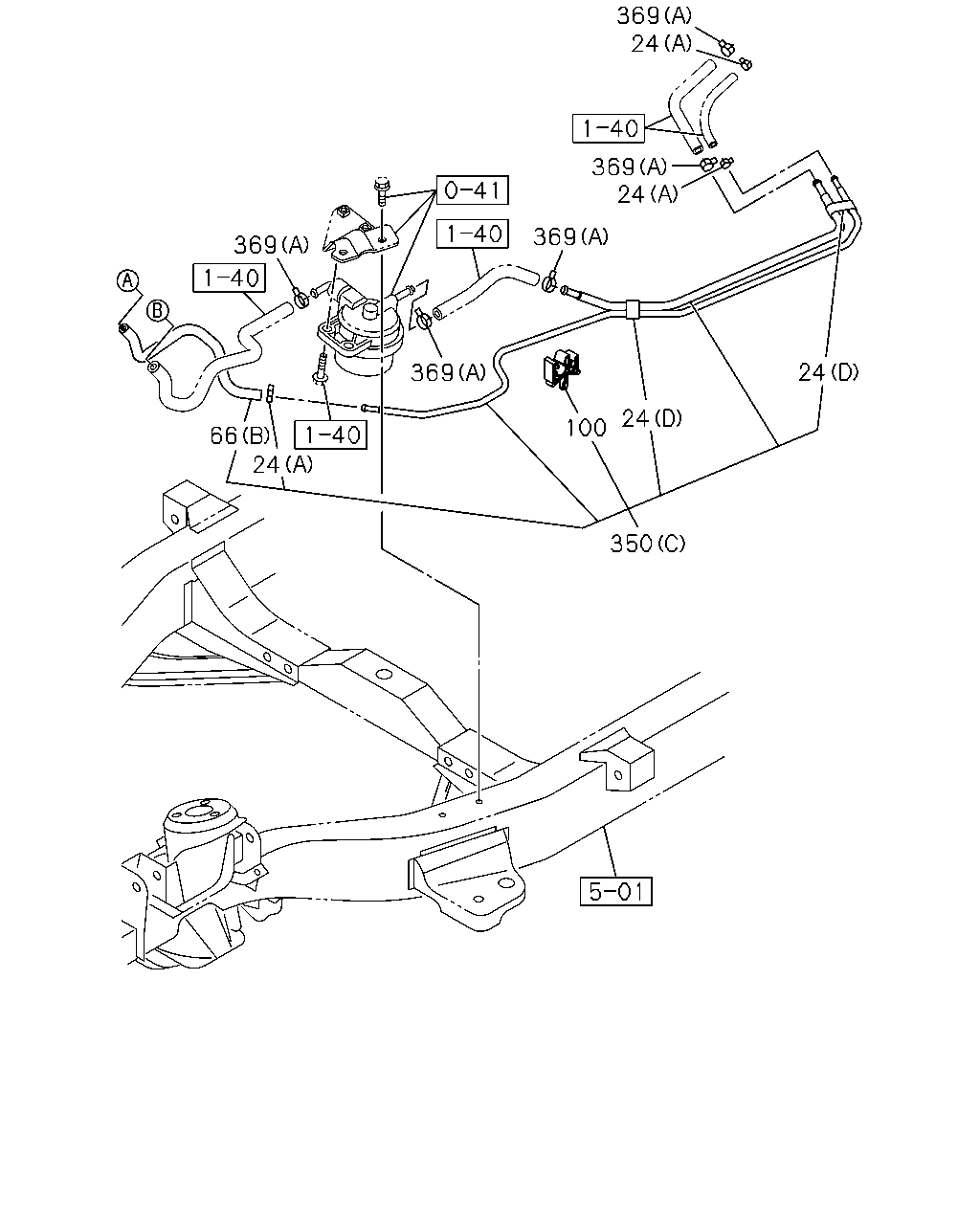

369 24 369 24 369 24 24 100 350 369 369 66 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	06	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.330 (A) ID=11.5	8-98051-892-0	06	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1509-	●	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1407-1508	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98233-886-0	02	1	1509-1509	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98233-886-0	02	1	1509-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1407-1508	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A) RETURN	8-98100-720-2	01	1	1509-1509	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98100-720-2	01	1	1509-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1407-1508	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98248-703-0	01	1	1509-1509	●
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98248-703-0	01	1	1509-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1407-1508	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1407-1508	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-1509	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-1509	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-	●	●
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-732-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-732-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-293-6	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (B)	8-98113-293-6	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (A)	8-98248-691-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (A)	8-98248-691-0	01	1	1509-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1407-1508	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-733-0	01	1	1509-1509	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98248-733-0	01	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 01.762 (C) ID=16	8-98030-682-0	01	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1509-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1407-1508	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1509-1509	●
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1509-	●	●
