0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#145712) — 11 parça

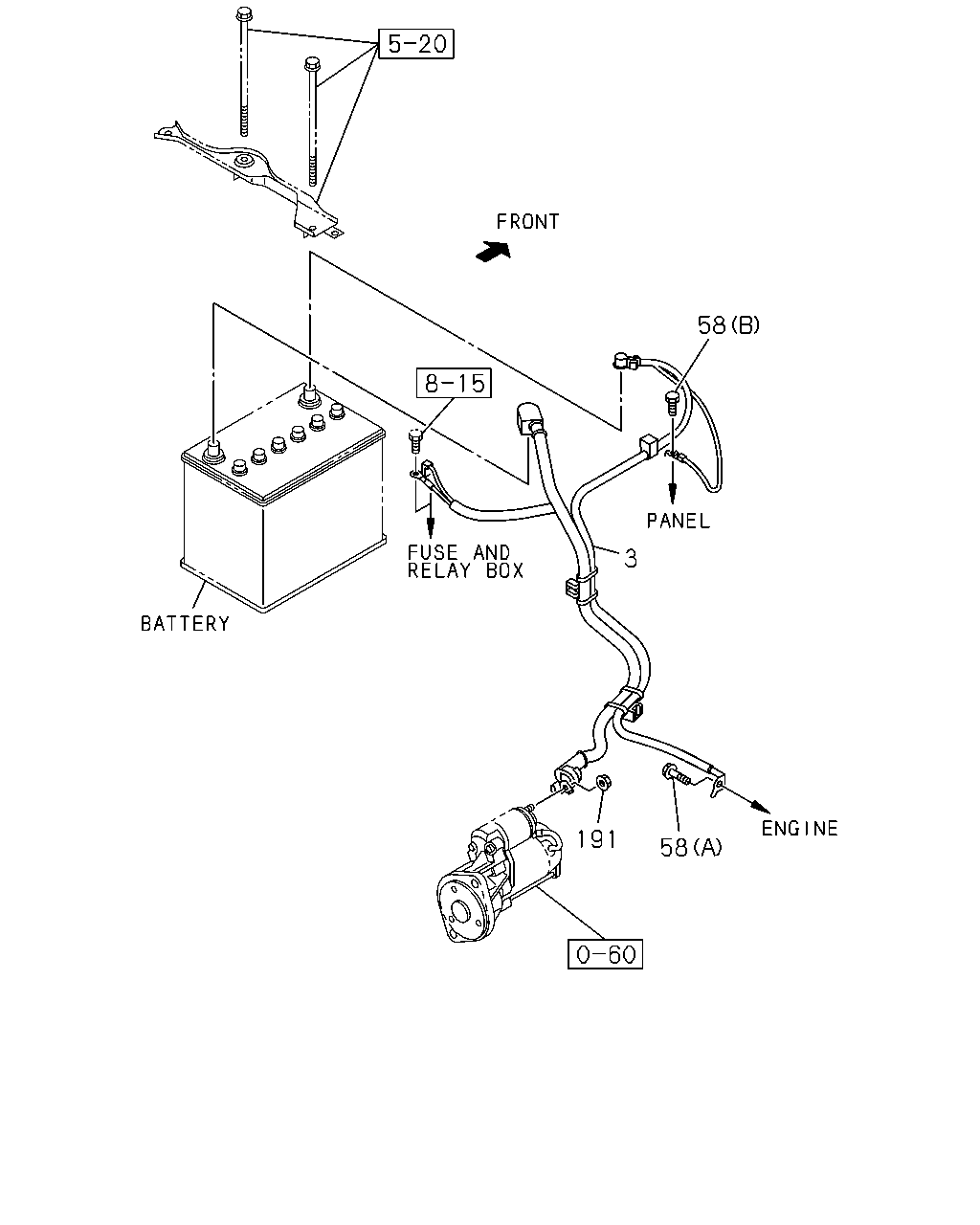

çizim 431336
3 58 58 191
BalonParca AdiParca NoAdetTipApplied Date A B
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) 		8-98238-380-2 01 1 1407-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1) 		8-98238-380-2 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1407-1508 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 95D31L(TQ8) 		8-98160-809-3 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1407-1508 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1407-1501 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1508 ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1509- ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1407-1508 ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
