0-60 — ENGINE ELECTRICAL CONTROL PARTS (#145711) — 104 parça

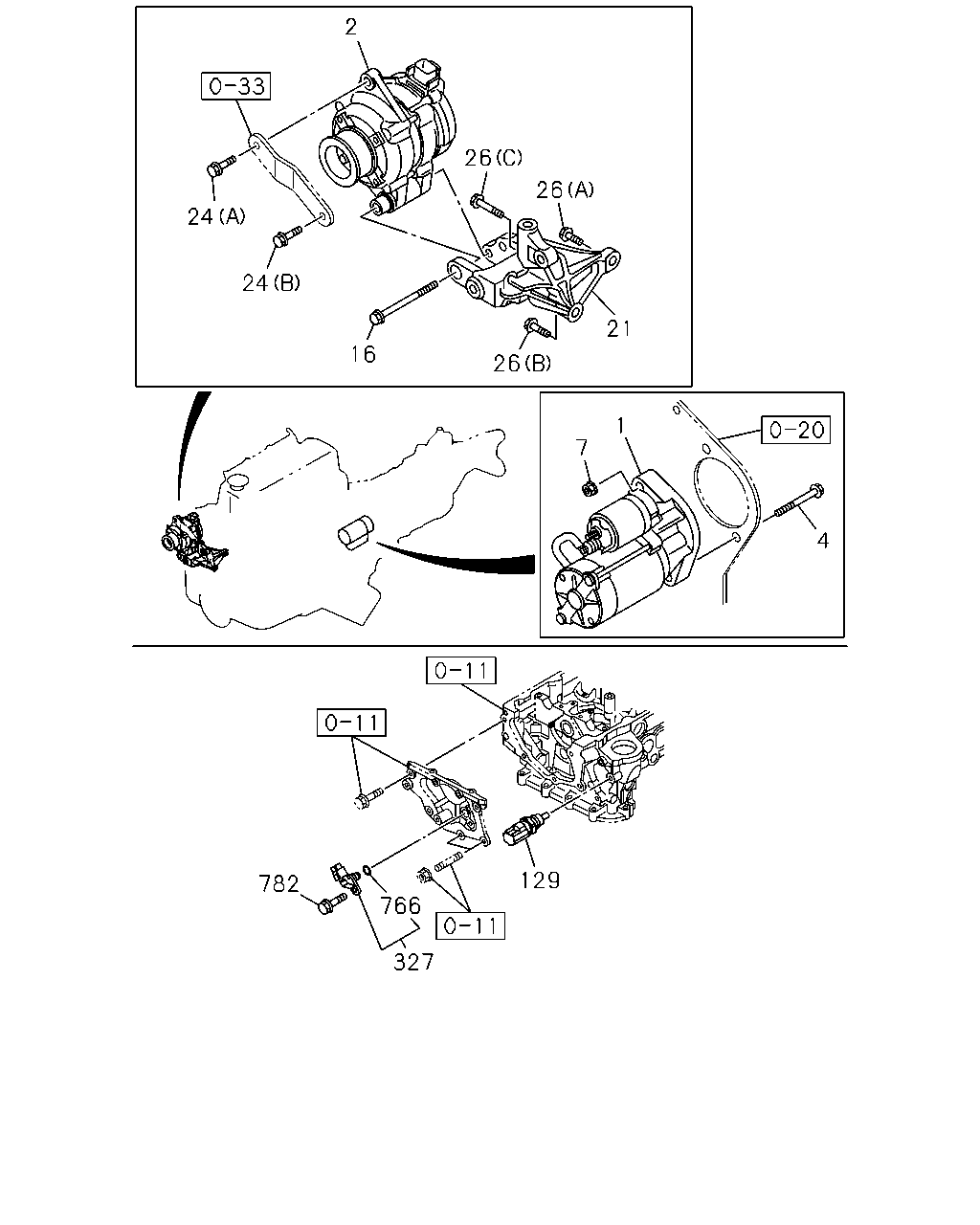

çizim 431469
2 24 24 16 21 26 26 26 4 1 7 129 766 782 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1407-1508 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A 		8-98225-157-0 01 1 1407-1508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A 		8-98225-157-0 01 1 1509- ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1407-1508 ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1509- ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1407-1508 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1509- ● ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1407-1508 ●
16 02.277 BOLT; GEN
M10X95 FLANGE 		8-98236-407-0 01 1 1509- ● ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1407-1508 ●
21 02.277 BRACKET; GEN 8-98275-351-0 01 1 1509- ● ●
24 02.277 BOLT; GEN BRKT
03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1407-1508 ●
24 02.277 BOLT; GEN BRKT
03.275 (A) M8X25 FLANGE 		0-28050-825-0 01 1 1509- ● ●
24 02.277 BOLT; GEN BRKT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1407-1508 ●
24 02.277 BOLT; GEN BRKT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
09.171 (A) M10X25 FLANGE 		0-28051-025-0 01 1 1407-1508 ●
26 02.277 BOLT; GEN BRKT
09.171 (A) M10X25 FLANGE 		0-28051-025-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
04.510 (B) M10X35 FLANGE 		0-28051-035-0 01 1 1407-1508 ●
26 02.277 BOLT; GEN BRKT
04.510 (B) M10X35 FLANGE 		0-28051-035-0 01 1 1509- ● ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1407-1508 ●
26 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28051-045-0 01 1 1509- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1407-1412 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-1508 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1509- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1407-1508 ●
327 02.361 SENSOR; CAMSHAFT POSITION
00.724 		8-98019-024-0 01 1 1509- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1407-1508 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1509- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1407-1508 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1509- ● ●

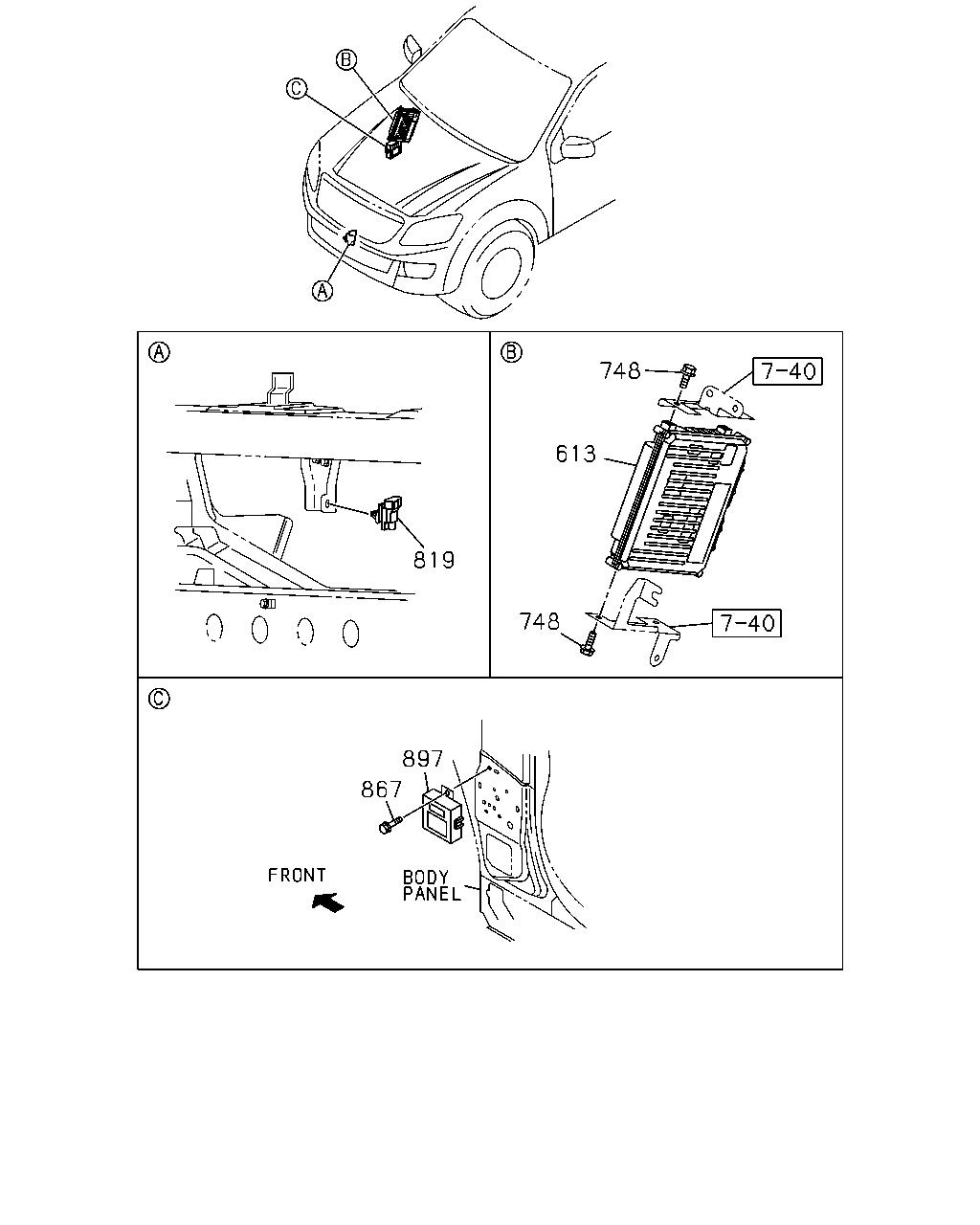

çizim 432745
748 613 748 819 867 897
BalonParca AdiParca NoAdetTipApplied Date A B
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> 		8-98260-273-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98222-951-3 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> 		8-97435-032-1 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98332-989-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98332-991-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98332-990-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-97435-033-1 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98332-992-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> 		8-98332-993-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98332-994-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98332-996-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98332-995-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-97435-018-1 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98332-997-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98332-998-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98304-382-1 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98332-999-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-383-1 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98333-001-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION(NT4) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98333-000-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> 		8-98304-384-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> 		8-98304-378-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98304-386-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98304-380-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98304-385-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98304-388-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98304-379-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98304-387-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98304-389-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98304-381-1 01 1 1509- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> 		8-98260-265-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> 		8-98260-263-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98260-266-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98260-264-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98222-961-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98222-963-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98222-957-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98222-959-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98222-962-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98222-964-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98222-958-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN(MA1) EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98222-960-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> 		8-98260-269-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> 		8-98260-267-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98260-270-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98260-268-2 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98222-969-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98222-971-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98222-965-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> 		8-98222-967-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04(K75) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98222-970-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04(K75) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98222-972-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30> 		8-98222-966-5 01 1 1407- ●
613 03.670 CONTROL UNIT; ENG
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION(NT2) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98222-968-5 01 1 1407- ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1407-1508 ●
748 02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> 		8-98008-687-0 01 1 1407- ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1407-1508 ●
867 02.559 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ●
897 02.510 DRM 8-98221-054-4 01 1 1407-1508 ●
897 02.510 DRM 8-98221-054-4 01 1 1509- ● ●

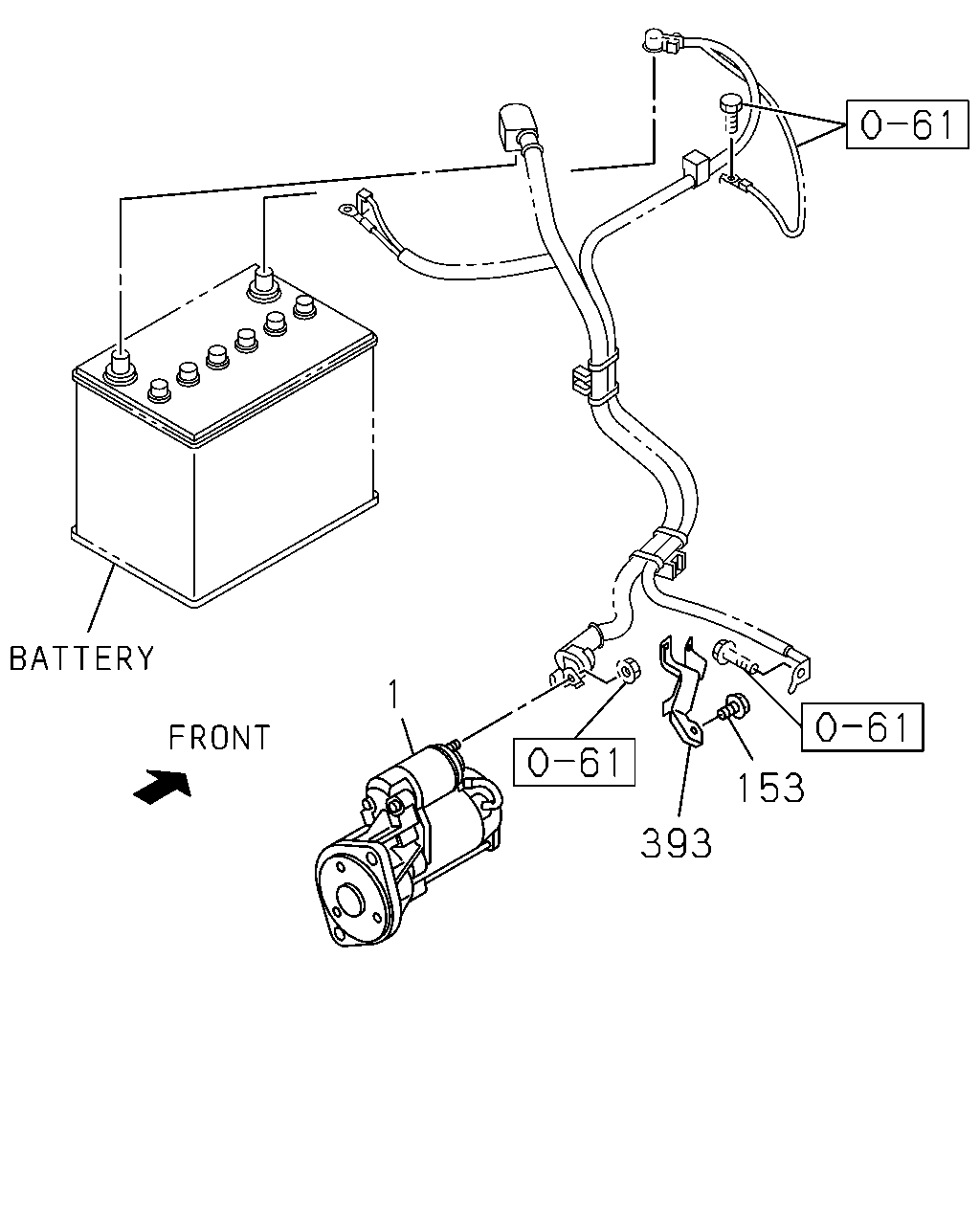

çizim 432792
153 393 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1407-1508 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1509- ● ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1407-1508 ●
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1509- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1407-1508 ●
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1509- ● ●

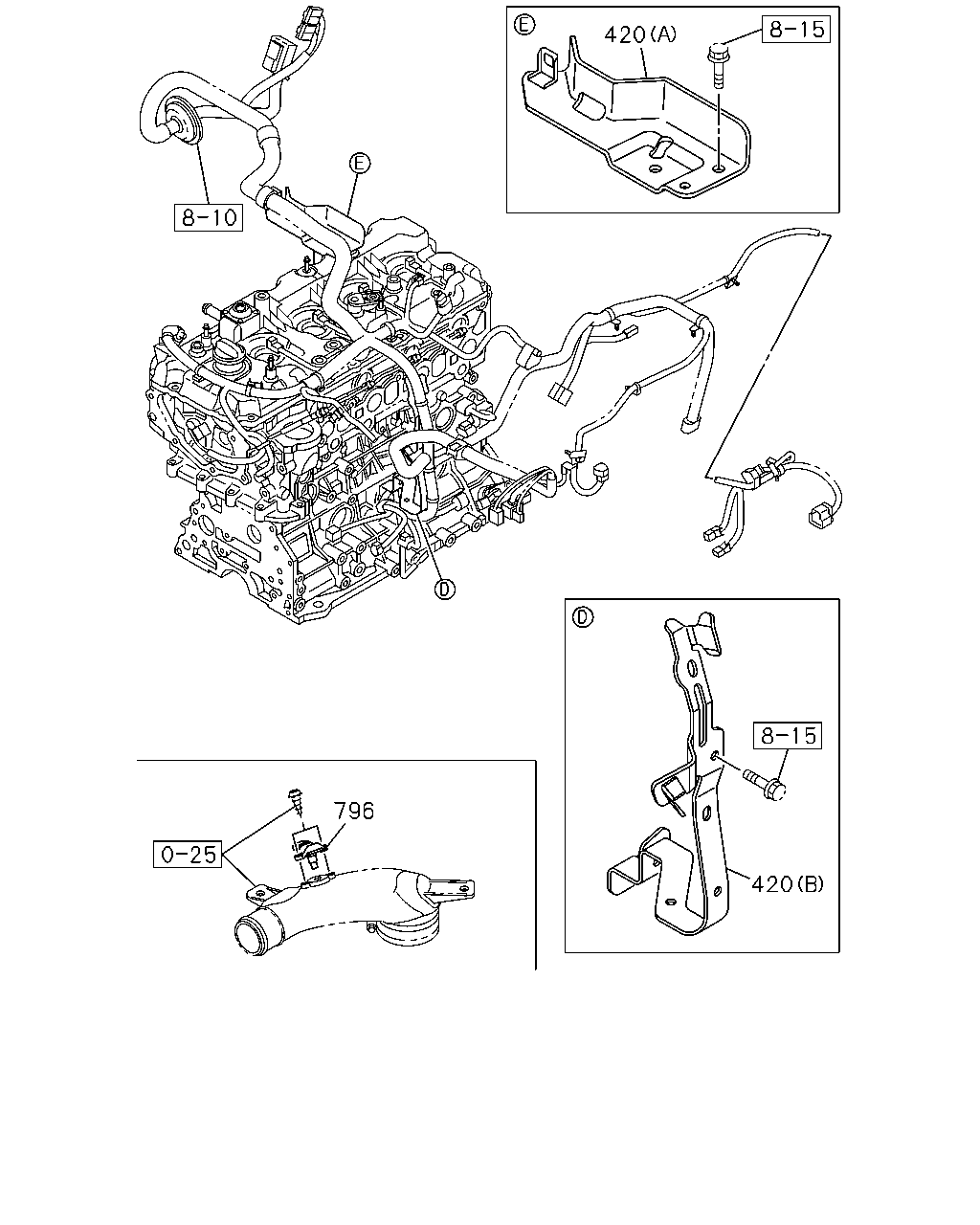

çizim 432793
420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS
(B) 		8-98226-846-1 01 1 1407-1508 ●
420 02.183 BRACKET; HARNESS
(B) 		8-98226-846-1 01 1 1509- ● ●
420 02.183 BRACKET; HARNESS
(A) 		8-98228-383-0 01 1 1407-1508 ●
420 02.183 BRACKET; HARNESS
(A) 		8-98228-383-0 01 1 1509- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1407-1508 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1509- ● ●
