0-52 — OIL AND VACUUM PIPING; ENGINE (#145708) — 82 parça

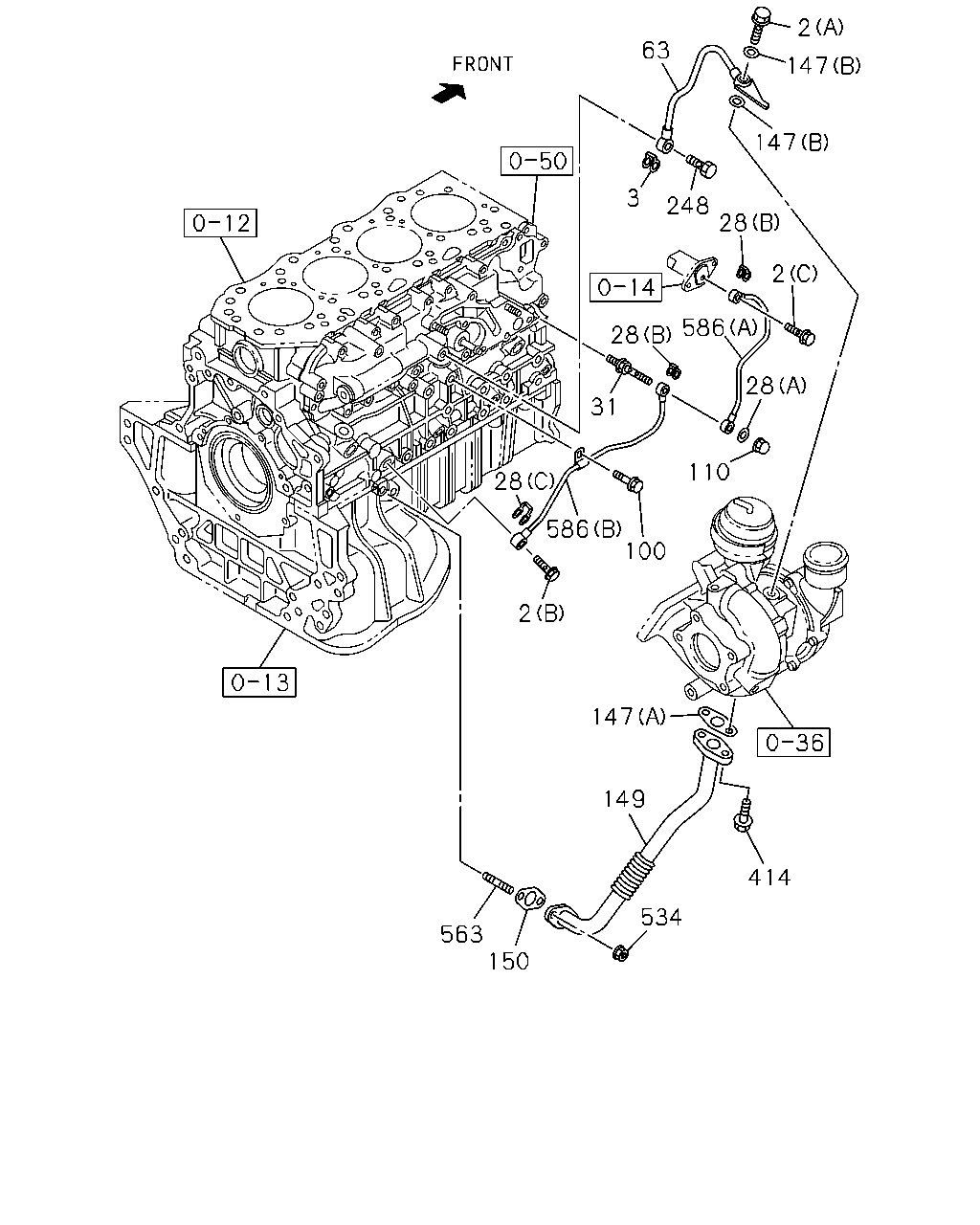

2 147 147 63 3 248 28 2 586 28 28 31 110 28 586 100 2 147 149 414 534 150 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1407-1508	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1509-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1407-1508	●
2	01.531 BOLT; EYE,OIL PIPE (C) M8X23 FLANGE	8-98108-689-0	01	1	1509-	●	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1407-1508	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X25 FLANGE	8-98151-063-1	01	1	1509-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1407-1508	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1509-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1407-1508	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1509-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1407-1508	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1509-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1407-1508	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1509-	●	●
31	01.540 NIPPLE; OIL PIPE	8-98186-104-0	01	1	1407-1508	●
31	01.540 NIPPLE; OIL PIPE	8-98186-104-0	01	1	1509-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98132-014-1	01	1	1407-1508	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98132-014-1	01	1	1509-	●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1407-1508	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1407-1508	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1509-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1407-1508	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1509-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1407-1508	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98156-381-0	01	1	1407-1508	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98156-381-0	01	1	1509-	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1407-1508	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1509-	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1407-1508	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1509-	●	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1407-1508	●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1407-1508	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1407-1508	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1509-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98228-274-0	01	1	1407-1508	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98228-274-0	01	1	1509-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98251-165-0	01	1	1407-1508	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98251-165-0	01	1	1509-	●	●

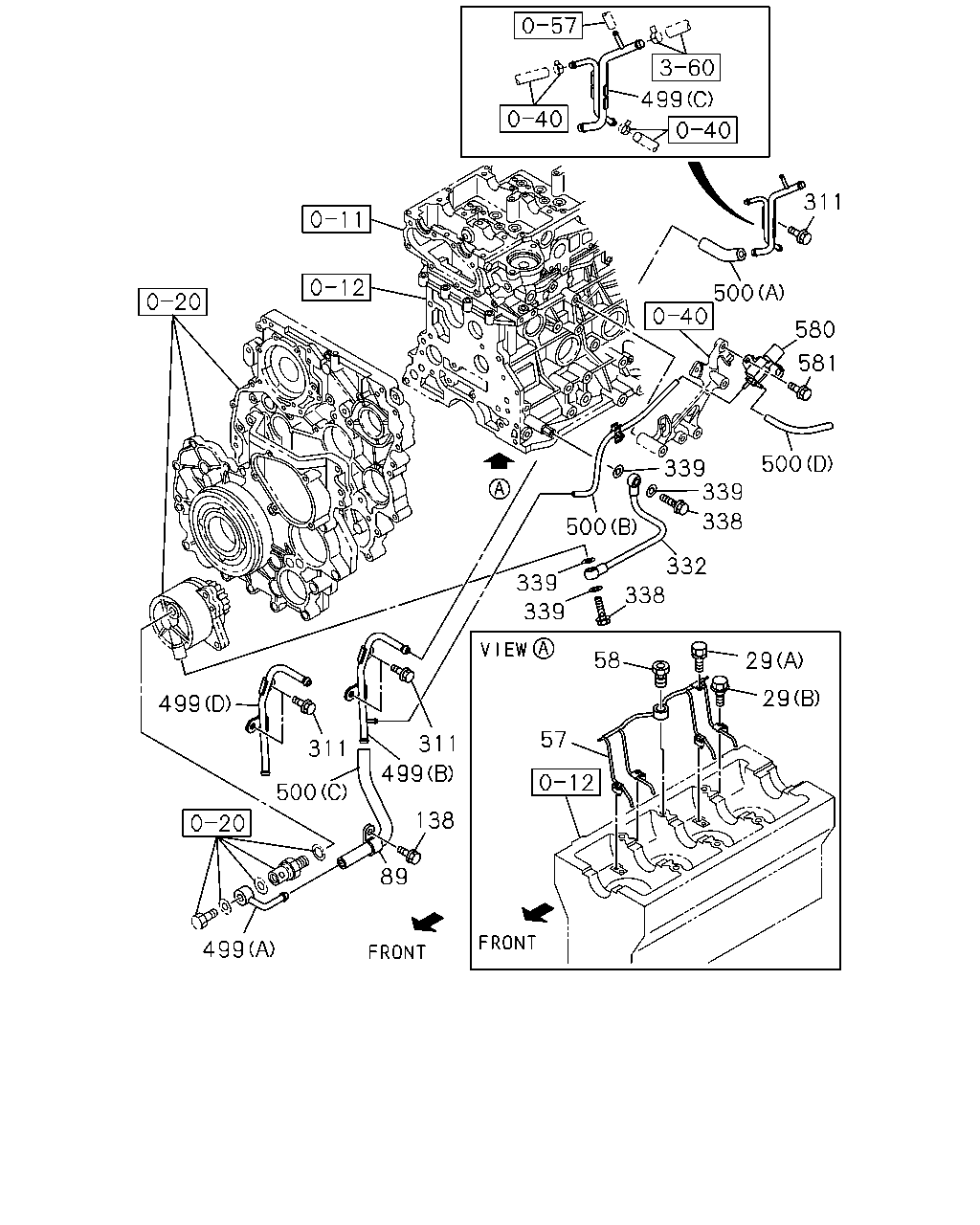

499 311 500 580 581 500 339 339 338 332 338 500 339 339 29 29 57 58 89 138 499 311 311 500 499 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1407-1508	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1407-1508	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1509-	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1407-1508	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1509-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1407-1508	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1509-	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1407-1508	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1509-	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1407-1508	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1407-1508	●
311	01.531 BOLT; PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1509-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1407-1508	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98233-768-0	01	1	1509-	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1407-1508	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1509-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1407-1508	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1509-	●	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1407-1508	●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1509-	●	●
499	04.681 PIPE; VACUUM (C)	8-98132-058-2	01	1	1407-1508	●
499	04.681 PIPE; VACUUM (C)	8-98132-058-2	01	1	1509-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (B)	8-98228-436-0	01	1	1407-1508	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (B)	8-98228-436-0	01	1	1509-	●	●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04(K75) (D)	8-98258-938-0	01	1	1407-1508	●
499	04.681 PIPE; VACUUM EMISSION SYSTEM R15-04(K75) (D)	8-98258-938-0	01	1	1509-	●	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1407-1508	●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1509-	●	●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1407-1508	●
500	04.681 HOSE; VACUUM (C)	8-98228-437-0	01	1	1509-	●	●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION(NT2) (D)	8-98228-430-0	01	1	1407-1508	●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION(NT2) (D)	8-98228-430-0	01	1	1509-	●	●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION(NT2) (B)	8-98228-438-0	01	1	1407-1508	●
500	04.681 HOSE; VACUUM EURO2 SPECIFICATION(NT2) (B)	8-98228-438-0	01	1	1509-	●	●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION(NT2) 03.670	8-97352-145-0	01	1	1407-1508	●
580	01.531 VALVE; VAC SW EURO2 SPECIFICATION(NT2) 03.670	8-97352-145-0	01	1	1509-	●	●
581	01.531 BOLT; VSV EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1407-1508	●
581	01.531 BOLT; VSV EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
