◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#145707) — 14 parça

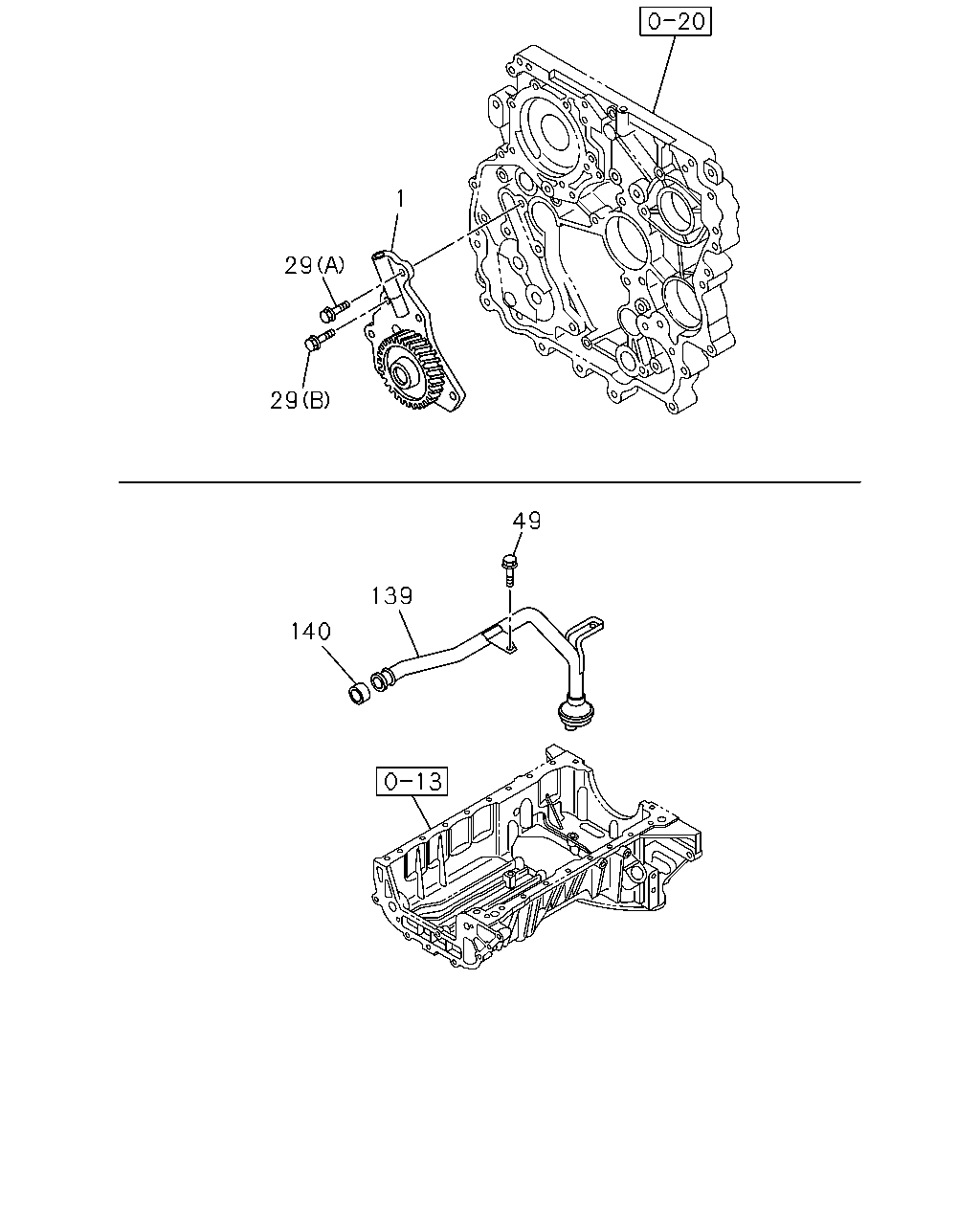

çizim 431508
29 29 139 49 140 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1407-1508 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1509- ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1407-1508 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1509- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1407-1508 ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1509- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407-1508 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
139 01.639 PIPE; OIL STRAINER
4X2(UCB***) 		8-98127-247-0 01 1 1407-1508 ●
139 01.639 PIPE; OIL STRAINER
4X2(UCB***) 		8-98127-247-0 01 1 1509- ● ●
139 01.639 PIPE; OIL STRAINER
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) 		8-98132-012-0 01 1 1407-1508 ●
139 01.639 PIPE; OIL STRAINER
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) 		8-98132-012-0 01 1 1509- ● ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1407-1508 ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1509- ● ●
